Rigol MHO984 4CH, 12Bit, 800MHz, 4GSa/s Digital Oscilloscope

Name: Rigol MHO984 4CH, 12Bit, 800MHz, 4GSa/s Digital Oscilloscope
Brand: Rigol
SKU: MHO984
Availability: InStock

£864.00 (£1,036.80 inc VAT)

Launch Offer

Purchasing this product includes the following as standard:

2-channel, 50 MHz Function/Arbitrary Waveform Generator Option (Bode plot supported)
Worth £286!

10+ In UK Stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: MHO984 Categories: Rigol Digital Oscilloscopes, Rigol MHO900 Series Digital Oscilloscopes, Test & Measurement Brand: Rigol

Description

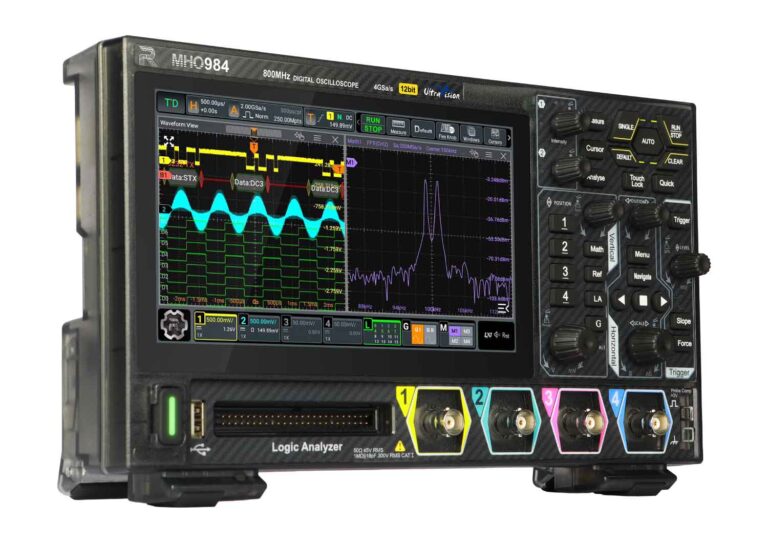

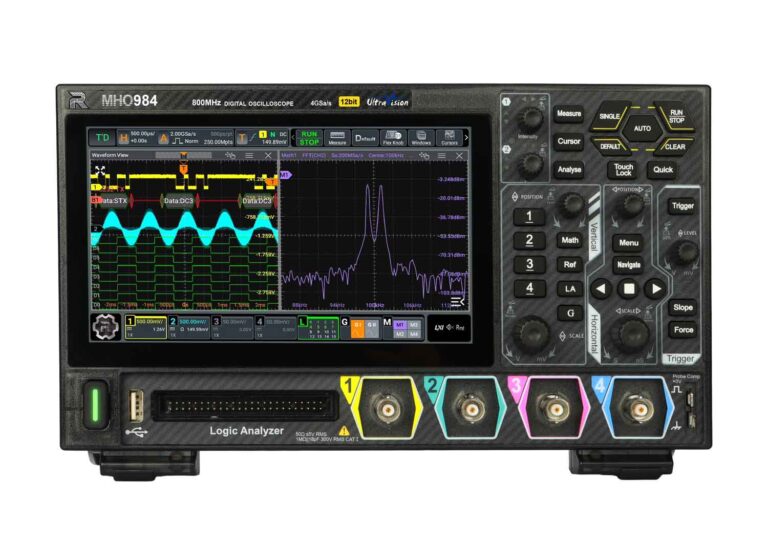

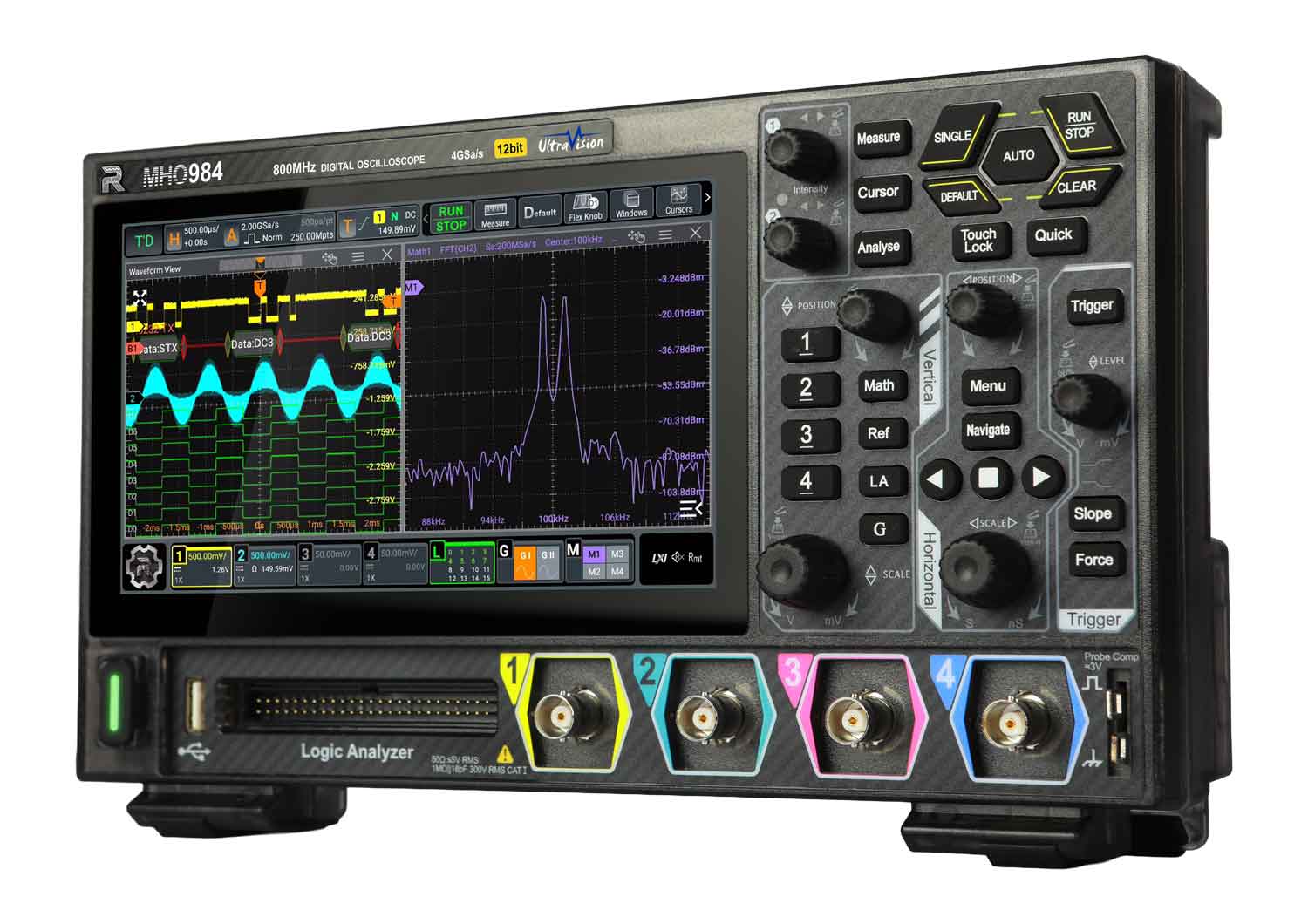

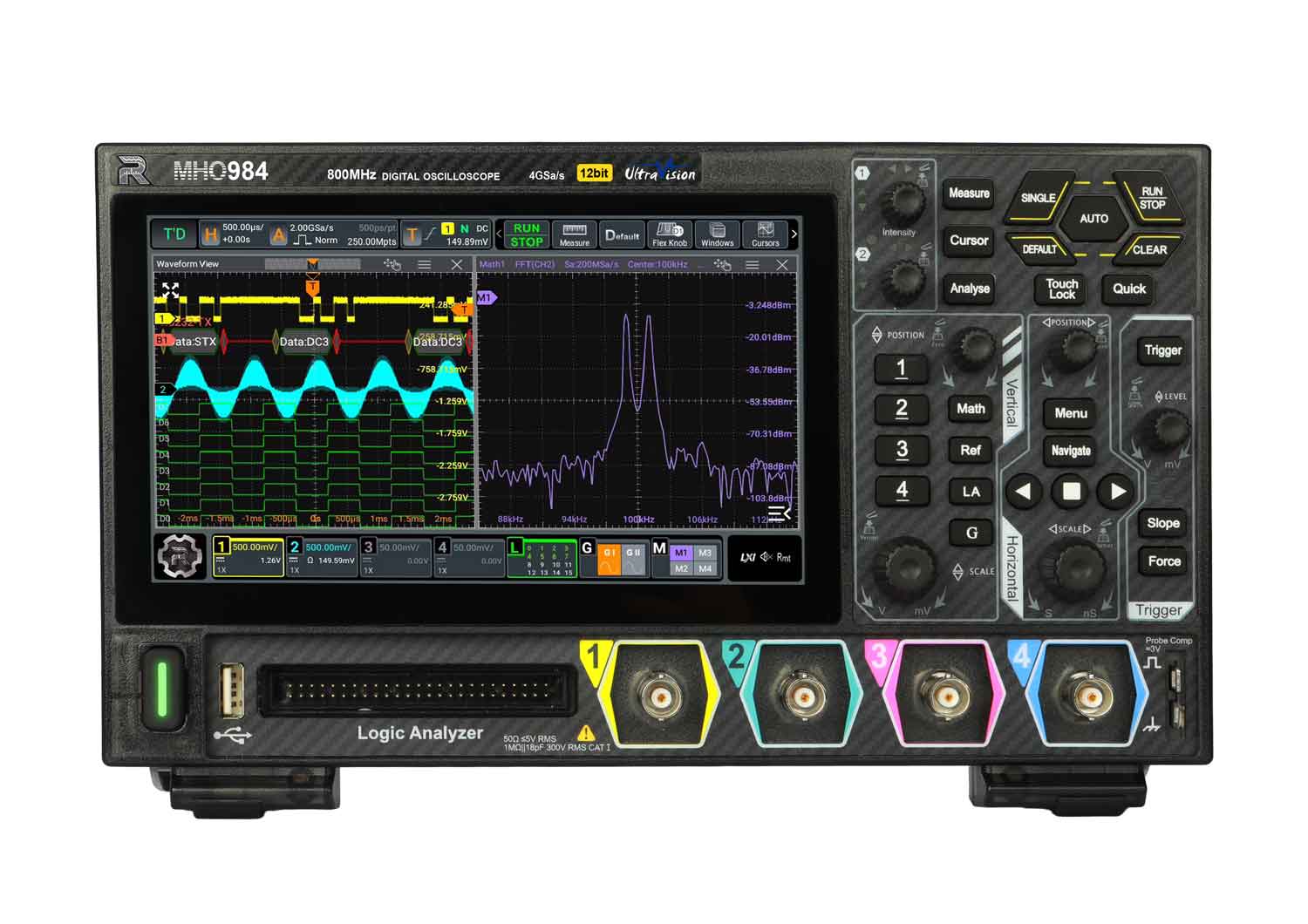

Rigol MHO984 4CH, 12Bit, 800MHz, 4GSa/s Digital Oscilloscope

The MHO900 series is RIGOL’s economical oscilloscope. Compact in size, it features a 1,000,000 wfms/s[1] capture rate, max memory depth of 500 Mpts (option), 12-bit high resolution and low noise.

The product supports 16 digital channels. One instrument can analyse both analogue and digital signals to meet embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, Bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

Resolution and Performance:
- $12$ -bit resolution
- Max. analogue bandwidth, with analogue channels
- Max. waveform capture rate: $1, 000, 000 wfms/s$
- Real-time sample rate: up to $4 GSa/s$
- Vertical sensitivity $200 μ V/div$ to $10 V/div$
Memory and Analysis:
- Max. memory depth of $500 Mpts$ (optional)
- $16$ digital channels, with $200 MHz$ PLA $2216$ logic analyser probe (optional)
- Supports waveform search and navigation for faster debugging of signal anomalies
- Supports histogram, digital signal analysis, and other measurements
Integrated Tools (Optional):
- Optional $2$ -channel, $50 MHz$ / $100 MHz$ Function/Arbitrary Waveform Generator (with Bode plot support)
Display and Interface:
- $7$ ” ( $1024 \times 600$ ) HD touch screen
- Digital phosphor display with real-time $256$ level intensity grading

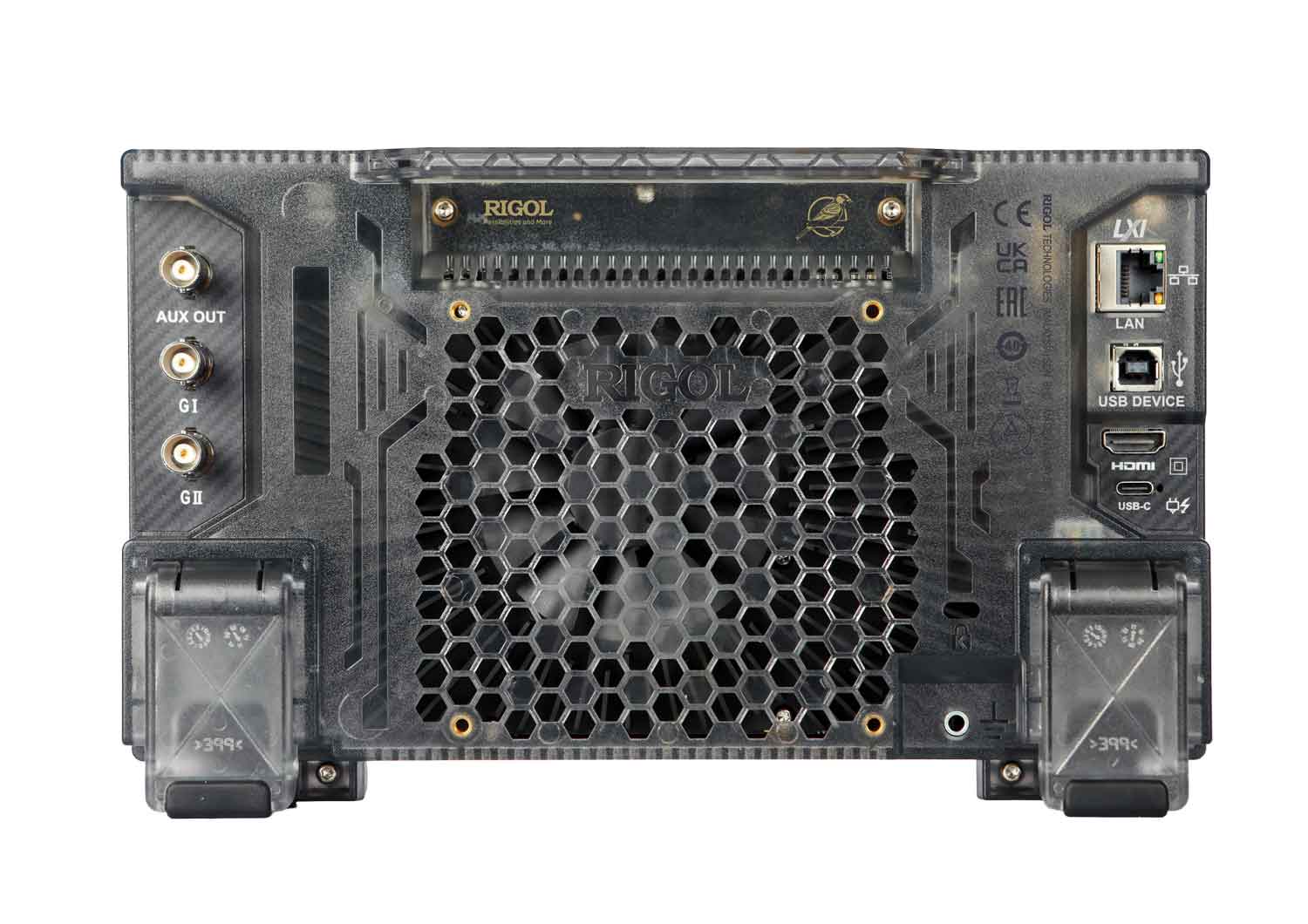

- Standard USB $2.0$ Device & Host, LAN ( $100 M$ ), and HDMI interfaces
Design and Usability:
- Novel and delicate industrial design, easy to operate
- Flex knob brings a user-friendly experience
- Supports online upgrade of the software version

Product Images

N-in-one Integrated Efficient Test Tool<br />
<br />
Standard 16 digital channels allows you to capture and analyse the digital signals together with the analogue signals.<br />
Optional 2-channel, 100 MHz AFG option can output up to 100 MHz pure sine wave, with Bode plot supported for signal analysis.

N-in-one Integrated Efficient Test Tool Learn more...

High Performance Rebuilds the Entry-Level Standard<br />
<br />
800 MHz BW & 4 GSa/s sample rate enable you to address the high-speed signal acquisition challenge. 12-bit high-precision ADC, 4096 vertical digitalizing levels, not missing any weak signals. Max. 500 Mpts memory depth enables you to record high-speed and complex events, giving you full insight into the full details of high-speed signals. Various protocol decoding

High Performance Rebuilds the Entry-Level Standard Learn more...

Various Applications<br />
<br />
Take a look at some applications for the MHO900 Series

Various Applications Learn more...

Standard Hardware Accessories

Rigol 4x RP3500A 500MHz Passive Oscilloscope Probes

Optional Software Accessories

Optional Hardware Accessories

Documentation

MHO900 Datasheet

Technical Specifications

Model	MHO984	MHO954	MHO934
Max. Analog Bandwidth (50 Ω, -3 dB)	800 MHz (single-channel^[1] & half-channel^[2]) 400 MHz (all-channel^[3])	500 MHz (single-channel^[1] & half-channel^[2]) 400 MHz (all-channel^[3])	350 MHz (for any number of channels)
Max. Analog Bandwidth (1 MΩ, -3 dB)	500 MHz (single-channel^[1] & half-channel^[2]) 400 MHz (all-channel^[3])	500 MHz (single-channel^[1] & half-channel^[2]) 400 MHz (all-channel^[3])	350 MHz (for any number of channels)
Calculated Rising Time under 50 Ω (10%–90%, typical)	437 ps	700 ps	1 ns
No. of Analog Channels	4
Function/Arbitrary Waveform Generator (AFG)^[4]	2-Channel, 100 MHz, 1 GSa/s (Opt.) 2-Channel, 50 MHz, 1 GSa/s (Opt.)
Bode Plot^[5]	Sweep Range: 10 Hz to 30 MHz
