Rigol MHO900 Series Digital Oscilloscopes

Slide

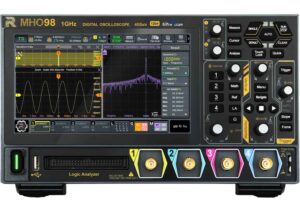

MHO98
Limited Edition
high-Resolution Digital Oscilloscope

1GHz | 4GSa/s | 500Mpts std. | 100MHz AFG std.

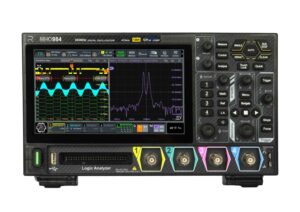

MHO900 Series
Standard Edition
high-Resolution Digital Oscilloscope

350/500/800MHz | 4GSa/s | 500Mpts opt. | 50/100MHz AFG opt.

The RIGOL MHO900 series is a budget-friendly oscilloscope that doesn’t compromise on performance. It boasts a compact design with exceptional specs, including a super-fast 1,000,000 wfms/s capture rate, 12-bit high resolution, and low noise operation. It also offers up to 500 Mpts of memory depth (optional).

A key benefit is its 16 digital channels, allowing you to analyze both analog and digital signals in one device—perfect for embedded design and testing. Best of all, it’s priced like an entry-level scope but gives you access to advanced features like serial and parallel bus analysis and Bode plots, making it an excellent investment for R&D, education, and scientific research.

Resolution and Performance:

12-bit resolution
Max. analogue bandwidth, with analogue channels
Max. waveform capture rate: 1,000,000 wfms/s
Real-time sample rate: up to 4 GSa/s
Vertical sensitivity 200 μV/div to 10 V/div

Memory and Analysis:

Max. memory depth of 500 Mpts (optional)
16 digital channels, with 200 MHz PLA2216 logic analyser probe (optional)
Supports waveform search and navigation for faster debugging of signal anomalies
Supports histogram, digital signal analysis, and other measurements

Integrated Tools (Optional):

Optional 2-channel, 50 MHz/100 MHz Function/Arbitrary Waveform Generator (with Bode plot support)

Display and Interface:

7″ (1024×600) HD touch screen
Digital phosphor display with real-time 256level intensity grading
Standard USB2.0 Device & Host, LAN (100 M), and HDMI interfaces

Design and Usability:

Novel and delicate industrial design, easy to operate
Flex knob brings a user-friendly experience
Supports online upgrade of software version
