Aaronia HyperLOG 7040 Log Periodic Broadband Yagi Antenna 700MHz to 4GHz

£229.95 (£275.94 inc VAT)

Available on back-order

SKU: AA-HYPERLOG-7040 Categories: ,

Aaronia HyperLOG 7040 Antenna

Aaronia HyperLOG® 70xx (700MHz up to 4GHz) series log-periodic measurement antennas are high performance and very cost-effective. When used with any regular spectrum analyser, they form a professional directional RF measurement system. Hence they are an ideal solution for EMC measurements, both in the laboratory and outdoor.

Due to their flexibility in polarisation, HyperLOG antennas can also be used as handy WLAN or Wifi antennas. Point-to-point WLAN links or networks can be constructed easily using the full bandwidth up to 6GHz, achieving high throughput. Optimal for MMDS, ISM, CCTV and data/telephony transmission.

Features:

  • Only one broadband antenna for the complete frequency range from 700MHz up to 4GHz
  • Optimal for usage with spectrum analysers for EMC measurement
  • Incl. high tech radome with modern design
  • Free and easy change of antenna polarization
  • Calibration data can be saved on an IC at the antenna and also read back
  • Excellent forward/backward ratio
  • Excellent symmetry of radiation patterns
  • Integrated 1/4″ tripod socket
  • Suitable for mobile use
  • Suitable for outdoor installation
  • Directional
  • Robust design
  • Splash water proof
  • Small weight and dimensions
  • Made in Germany
  • 10 years warranty

Description


Documentation

Model HyperLOG 4040 HyperLOG 7025 HyperLOG 7040
Design biconical biconical biconical
Frequency Range 400MHz-4GHz 700MHz-2,5GHz 700MHz-4GHz
Max. Output Power 100 W CW (400MHz) 100 W CW (400MHz) 100 W CW (400MHz)
Nominal impedance 50 Ohm 50 Ohm 50 Ohm
VSWR (typ.) <1:2 <1:2 <1:2
Gain (typ.) 4dBi 4dBi 4dBi
Antenna Transducer Factor 18-38dB/m 23-34dB/m 23-38dB/m
Calibration Points 361 (10MHz-Steps) 183 (10MHz-Steps) 333 (10MHz-Steps)
RF-Connector SMA-Connector (18GHz) or
N-Connector via Adapter
SMA-Connector (18GHz) or
N-Connector via Adapter
SMA-Connector (18GHz) or
N-Connector via Adapter
Dimensions (L/W/D) 590x360x30 mm 340x200x25 mm 340x200x25 mm
Weight 1200gr 270g 270g
Warranty 2 Years 2 Years 2 Years

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Optional Accessories …

  • Aaronia Multifunction Pistol-Grip

    £229.95
    Add to basket
  • Aaronia 10m Low Loss SMA Cable

    £93.45
    Add to basket
  • Aaronia SMA to N-type Adapter

    £23.10
    Add to basket
  • Aaronia Large Aluminium Tripod

    £46.20
    Add to basket

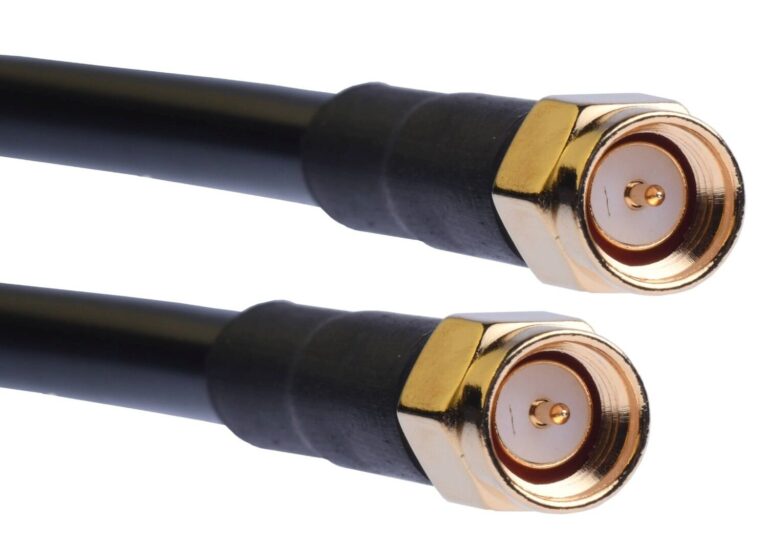

  • Aaronia 1m SMA Cable
