Rohde & Schwarz R&S®NPA Power Analysers
The R&S®NPA series of single phase power analysers is a comprehensive range of compact testers meticulously designed for AC/DC load or standby current characterization with fundamental accuracy of 0.05% and low current measurement down to 5 milliamps.
Power Measurement Range: 50 µW to 12 kW
Analogue Bandwidth: DC to 100 kHz
Sampling Frequency: 500 ksample/s
16‑Bit Resolution for Current and Voltage
Basic Accuracy: 0.05%
Up to 26 Different Measurement and Mathematical Functions
The R&S®NPA family comprises compact, all-in-one testers for DC load, AC load, and standby current characterisation. These instruments eliminate the need for external PC software by providing a high-resolution numerical and graphical display directly on the unit. With a basic accuracy of 0.05% and a wide power measurement range from 50 µW up to 12 kW, the series is built for both R&D labs and production test systems.
Key Series Features
- High-Resolution Acquisition: 16-bit resolution for current and voltage with a 500 ksample/s sampling frequency.
- Broad Bandwidth: Supports signal acquisition from DC to 100 kHz.
- Flexible Display: Simultaneously displays up to 10 user-configurable parameters with a 10 Hz refresh rate.
- Seamless Integration: Standard Ethernet (LAN) and USB interfaces with SCPI-based remote control; “-G” models include an IEEE-488 (GPIB) interface.
Unit Comparison
R&S®NPA101 Power Meter
Primary Use: High-precision fundamental power measurements for R&D and production.
Measurement Parameters: Tracks 26 key parameters, including Voltage (V), Current (A), Power (W), and THD.
Key Capabilities:
- Basic accuracy: 0.05%
- 16-bit resolution for voltage and current
- Sampling rate: 500 ksample/s
- Includes a hardware-based integrator for power consumption analysis
Standard Connectivity: USB and LAN (Ethernet) interfaces included as standard.

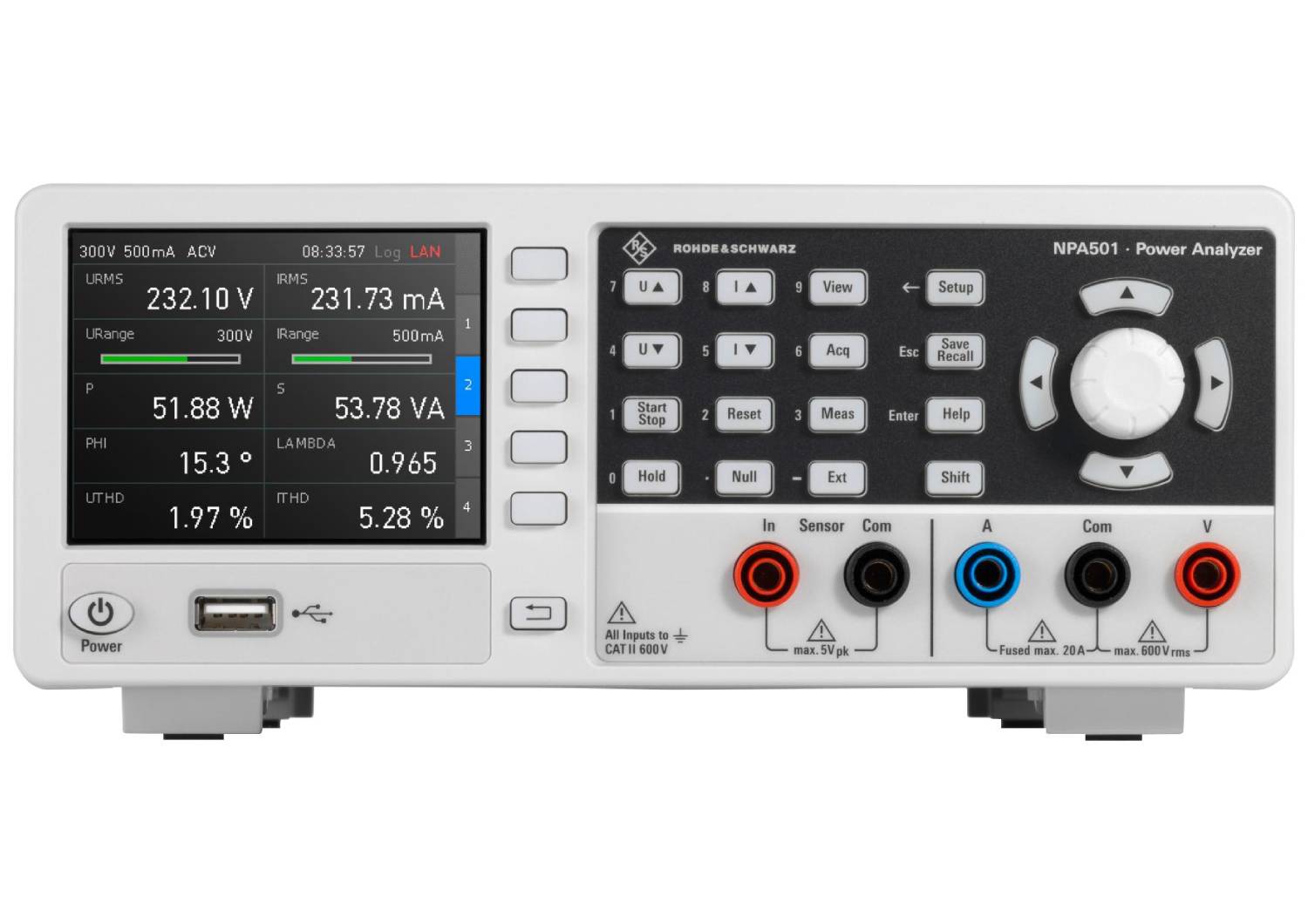

R&S®NPA501 Power Analyser
Primary Use: Detailed waveform and harmonic analysis without needing a PC.
Core Capabilities: Includes everything found in the NPA101 (high-precision measurement, 26 parameters, and hardware integrator) plus expanded visual and hardware tools.
Added Visual Tools: Includes Graphical Display modes:
- Harmonics Mode: View up to the 50th harmonic in bar chart or list format.
- Inrush Mode: Capture and analyse turn-on current peaks and transients.
- Waveform/Trend: View signal shapes and parameter changes over time.
Hardware Expansion: Sensor Input: BNC connector for external current probes or shunts.
Analogue/Digital I/O: Rear-panel BNCs for PASS/FAIL testing and analogue output.
Option: Available as NPA501-G with an integrated GPIB (IEEE-488) interface.
R&S®NPA101 Power Meter
Primary Use: validating consumer electronics against international energy and safety standards.
Core Capabilities: Includes everything from the NPA101 and NPA501 (high-precision measurements, all graphical modes, sensor input, and BNC I/O) plus specialised testing automation.
Compliance Wizards: Step-by-step automated testing for:
- IEC 62301: Standby power consumption.
- EN 50564: Extended standby power.
- EN 61000-3-2: Harmonic current limits.
Option: Available as NPA701-G with an integrated GPIB (IEEE-488) interface.
| SKU | Manufacturer | Image | Frequency Range | Channels | Accuracy | Sample Rate | Voltage | Current | Harmonic Order | Additional Features | Stock | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPA101-3657.0562.02 | Rohde & Schwarz |  | DC to 100 kHz | 1 | 0.05% | 500 kSa/s | 600V | 20 A | Total Harmonic Distortion | Features a specialized 5V range for precise standby energy measurement. | On Backorder | - |
| NPA501-3657.0562.03 | Rohde & Schwarz |  | DC to 100 kHz | 1 | 0.05% | 500 kSa/s | 600V | 20 A | Up to 50th order | The only unit in this class that can plot two measurands simultaneously on-screen. | On Backorder | - |
| NPA501-G-3657.0562.05 | Rohde & Schwarz | | DC to 100 kHz | 1 | 0.05% | 500 kSa/s | 600V | 20 A | Up to 50th order | The only unit in this class that can plot two measurands simultaneously on-screen. | On Backorder | - |
| NPA701-3657.0562.04 | Rohde & Schwarz |  | DC to 100 kHz | 1 | 0.05% | 500 kSa/s | 600V | 20 A | Up to 50th order | Built-in wizards for IEC 62301 & EN 50564—no PC required for standard testing. | On Backorder | - |
| NPA701-G-3657.0562.06 | Rohde & Schwarz | | DC to 100 kHz | 1 | 0.05% | 500 kSa/s | 600V | 20 A | Up to 50th order | Built-in wizards for IEC 62301 & EN 50564—no PC required for standard testing. | On Backorder | - |
