Tekbox TBHPF1-9kHz High Pass Filter

£83.51 (£100.21 inc VAT)

Available on back-order

Request QuoteRemove from Quote
Request Quote
SKU: TBHPF1-9kHz Categories: , , , ,

Description

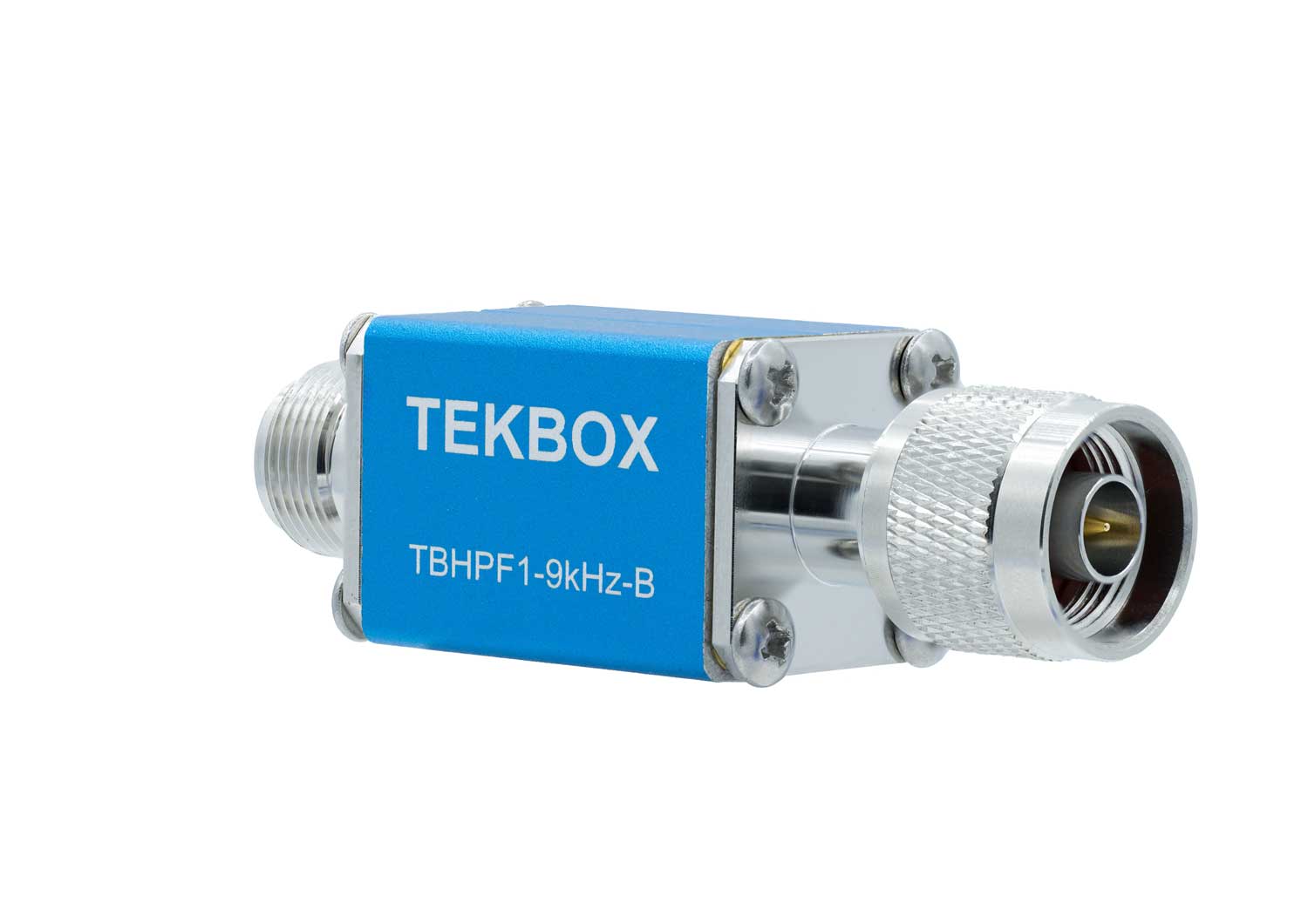

Tekbox TBHPF1-9kHz High Pass Filter

9 kHz Highpass Filter for protection of spectrum analyser or EMI-receiver RF inputs against high amplitude subharmonics and residual 50 Hz voltage in conducted emission measurement set ups

SPECIFICATIONS

  • High Pass Filter, reflective, 50 Ohm
  • 3dB bandwidth: 9 kHz – 3 GHz
  • Maximum input voltage: 100V; 250V for < 5 sec.
  • Maximum permitted input current at frequencies < 9kHz and open output: 160 mA
  • Maximum input power at frequencies 20 kHz – 1 GHz: 10W
  • Resistive dampening to prevent pulses with high rise time cause excessive ringing
  • Connectors: N-Male / N-Female
  • Dimensions: 26 x 26 x 82 mm
  • Weight: ca. 100g

Documentation

User Manual

Tekbox TBHPF1-9KHZ User Manual


Specifications
Maximum input voltage:100V; 250V for < 5 sec.
3 dB bandwidth:150 kHz – 3 GHz
Footprint26 x 26 x 82 mm
Weight100 g
Connector typeN-Male / N-Female
Transfer impedance23 dB Ohm
Maximum permitted input current at frequencies < 150kHz and open output:650 mA
Maximum input power at frequencies 300 kHz – 1 GHz:10W



Frequency (MHz)Transfer Impedance (dBΩ)Frequency (MHz)Transfer Impedance (dBΩ)
30-100.4813000-38.18
40-99.7614000-36.91
50-99.5815000-35.72
100-92.7220000-30.78
250-97.3225000-26.98
500-89.7750000-15.47
750-85.71100000-5.84
1000-81.59250000-0.80
2500-66.11500000-0.21
5000-54.481000000-0.07
6000-51.4110000000-0.05
7000-48.7730000000-0.06
8000-46.52100000000-0.17
9000-44.50250000000-0.26
10000-42.69500000000-0.32
11000-41.05750000000 -0.20
12000-39.561000000000-0.21
