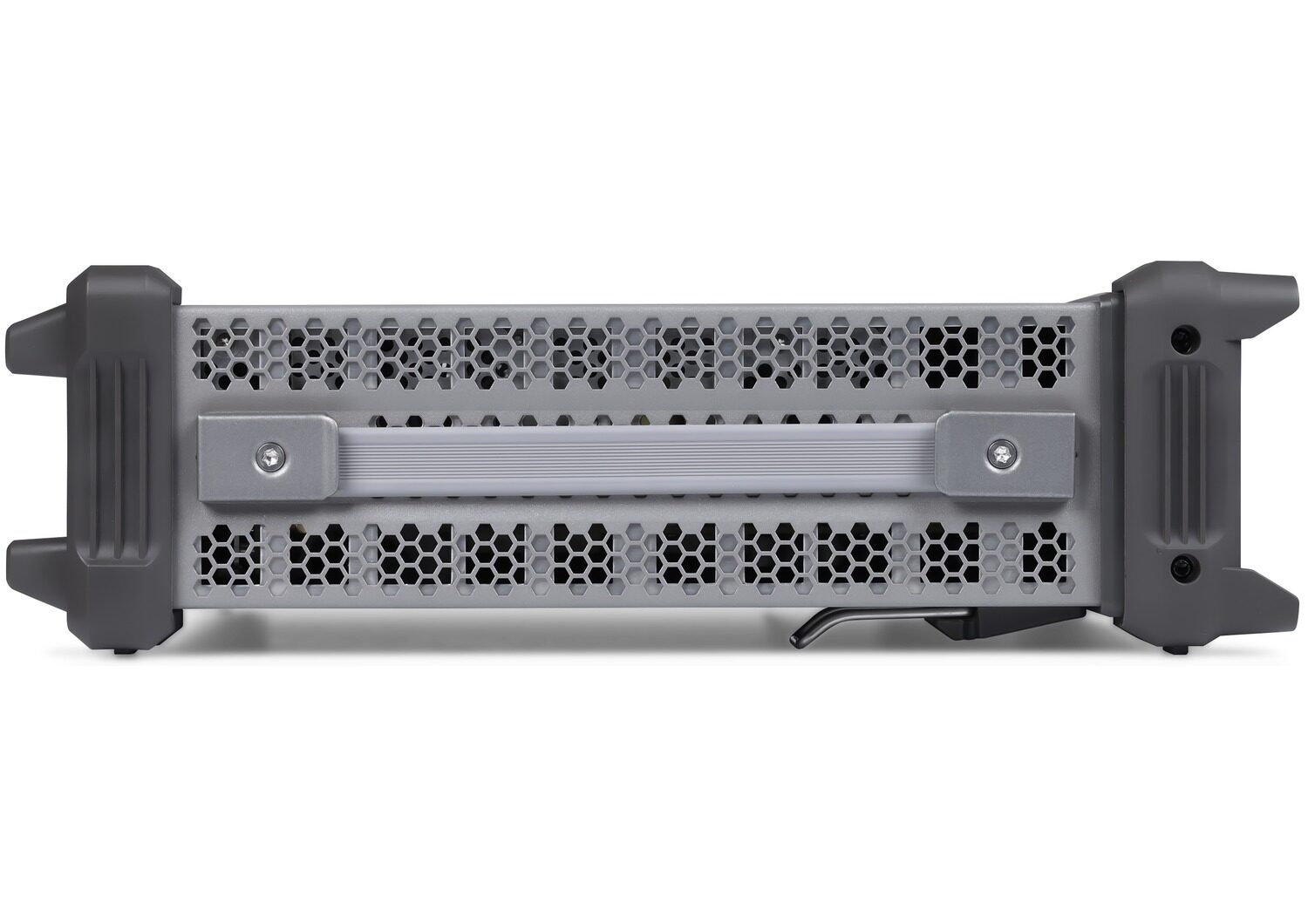

Image of Siglent ssg3000x plus side telonicuk

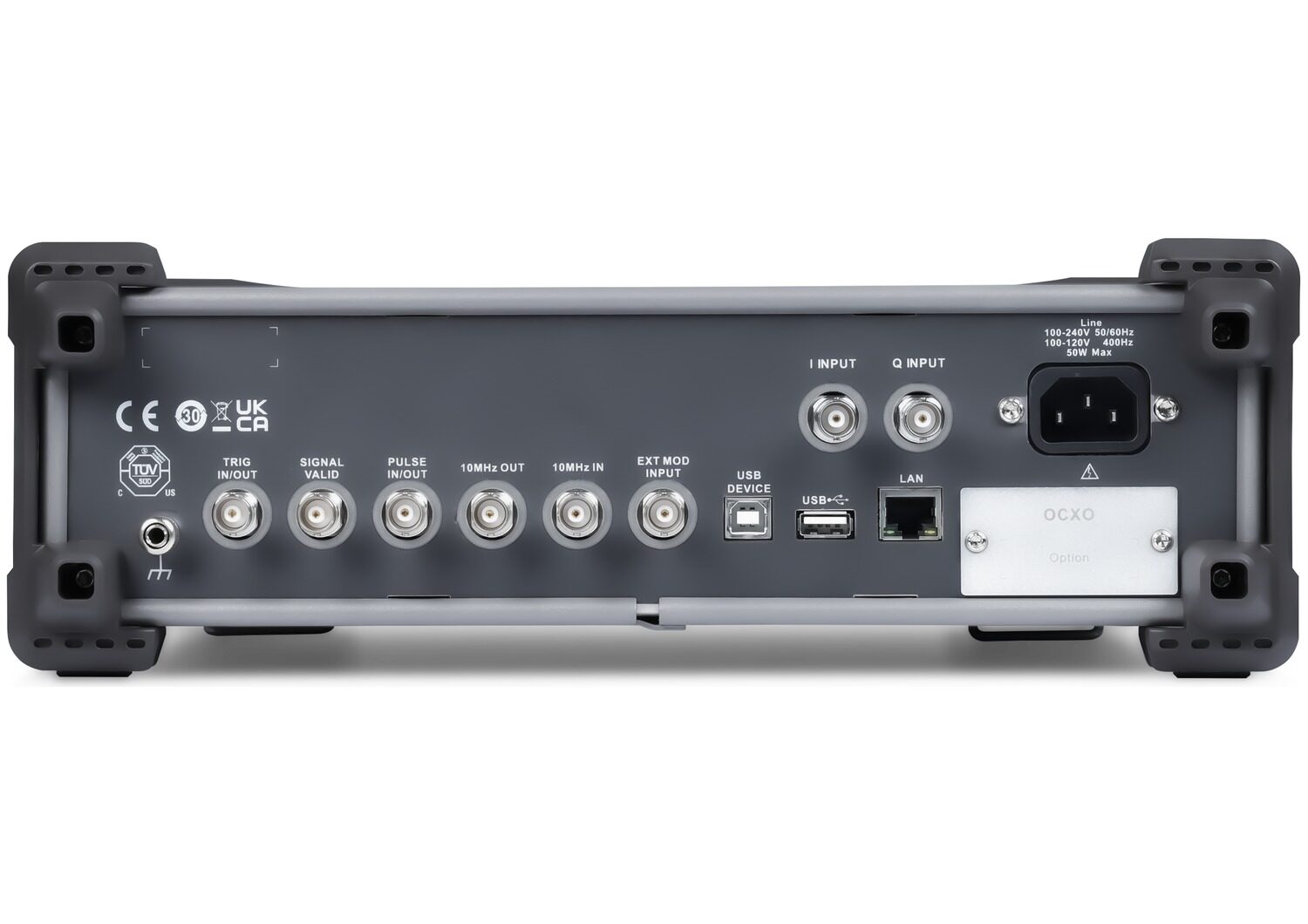

Siglent SSG3021X Plus 2.1 GHz RF Signal Generator

£1739.00 (£2086.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SSG3021X Plus Categories: , , Brand:

Description


Siglent SSG3021X Plus 2.1 GHz RF Signal Generator

The Siglent SSG3021X Plus is a 9 kHz to 2.1 GHz RF signal generator designed to provide clean, stable signals for RF development, testing, education and production. It combines 0.01 Hz frequency resolution with AM, FM, PM and pulse modulation, flexible sweep capabilities, USB power meter support and a simple 5-inch touchscreen interface.

Key Features
  • 9 kHz to 2.1 GHz or 3.2 GHz frequency range, depending on model
  • 0.01 Hz frequency setting resolution
  • Output level from -110 dBm to +13 dBm, with up to +20 dBm typical maximum output
  • Phase noise as low as -117 dBc/Hz at 1 GHz, 20 kHz offset (typ.)
  • AM, FM and PM analogue modulation with internal, external or combined modulation sources
  • Standard pulse modulation with single and double pulse generation
  • Optional pulse train generator for configurable pulse sequences
  • Frequency and level step/list sweep functions with multiple trigger modes
  • USB power meter measurement and closed-loop level control
  • Optional high-stability OCXO reference for improved frequency stability
  • External I/Q modulation on SSG3000X-IQE Plus models
  • 5-inch 800 × 480 capacitive touchscreen
  • USB and LAN interfaces with Web remote control and optional GPIB connectivity
Applications
  • RF component and circuit characterisation
  • Receiver sensitivity testing
  • Amplifier OIP3 and intermodulation testing
  • Mixer and filter testing
  • Local oscillator substitution
  • Wireless module and RF board production testing
  • Communications and modulation experiments
  • RF module troubleshooting and maintenance
  • Automated production and validation systems
  • Education and RF laboratory teaching
  • IQ and multi-tone signal generation when using IQE models with a suitable external baseband source

Product Images

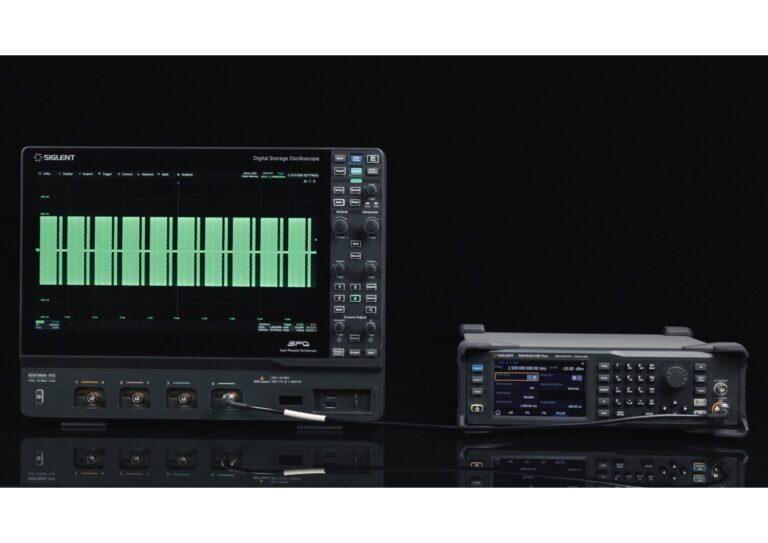

Improved pulse performance with fast rise and fall times provides precise RF pulse generation for demanding test applications.

Fast, Precise Pulse Modulation

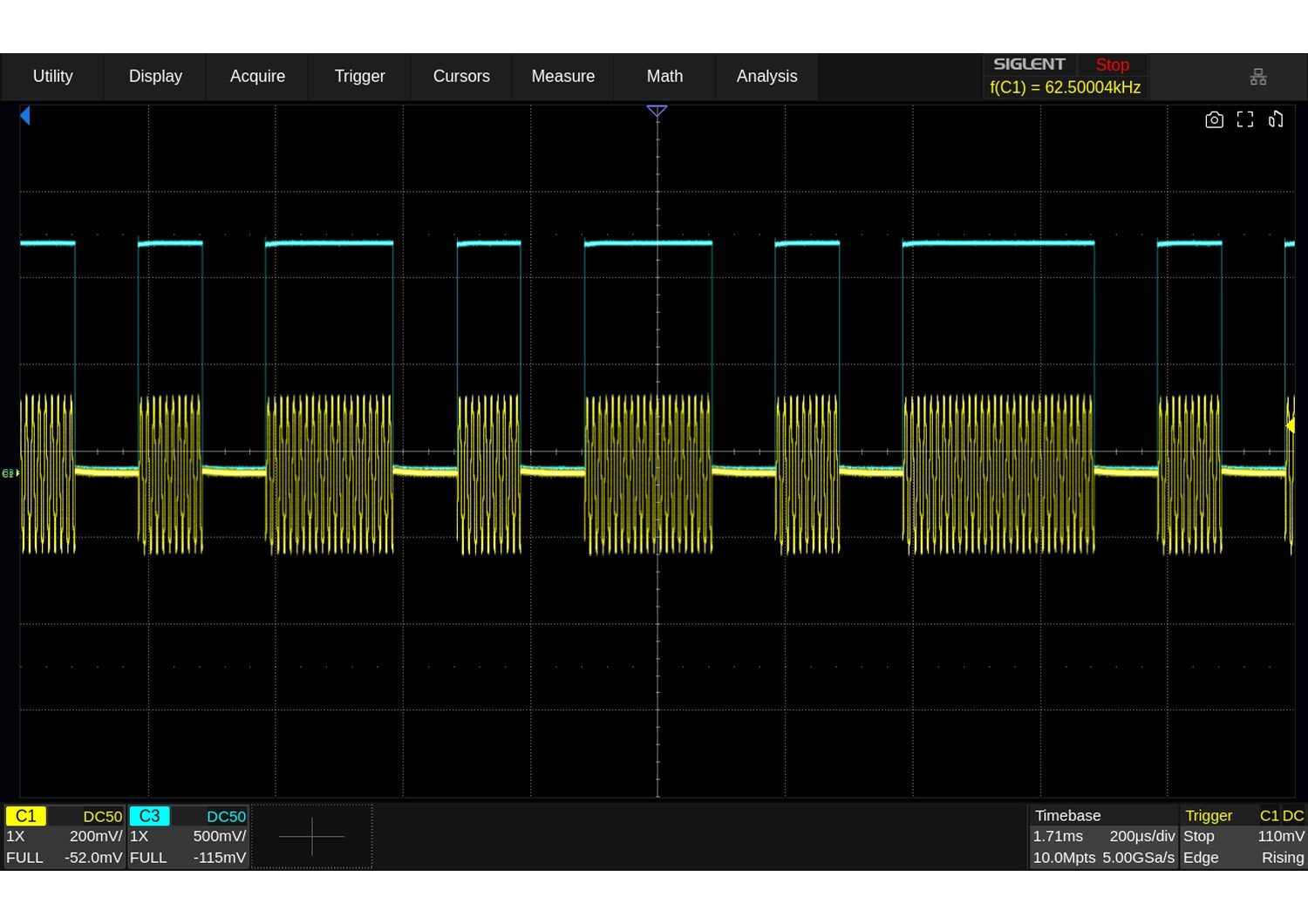

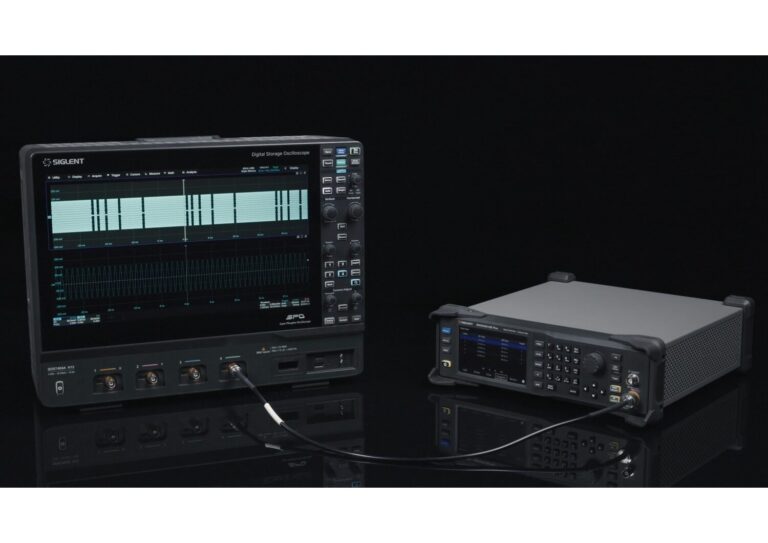

The optional pulse train generator supports individually configurable on/off times and repetition counts across sequences of up to 2,047 pulses.

Create Custom Pulse Sequences

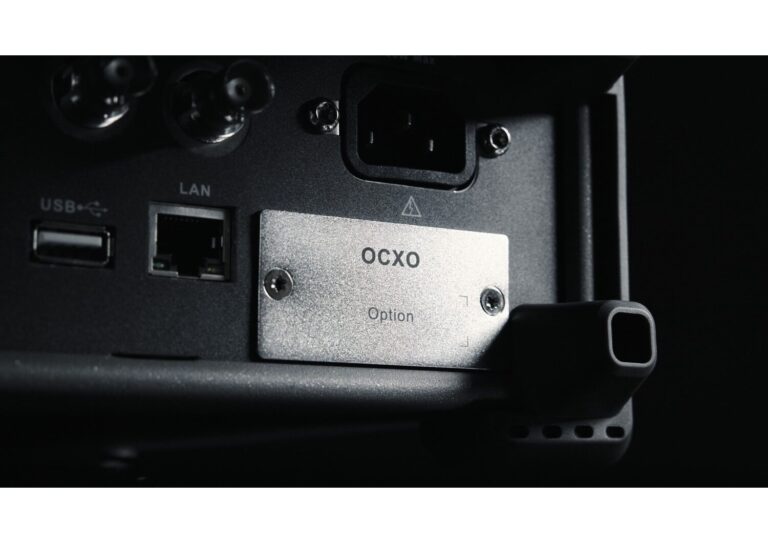

Add the 10M_OCXO_L precision reference for improved frequency accuracy and stability, including ±1 ppb temperature stability.

Optional High-Stability OCXO

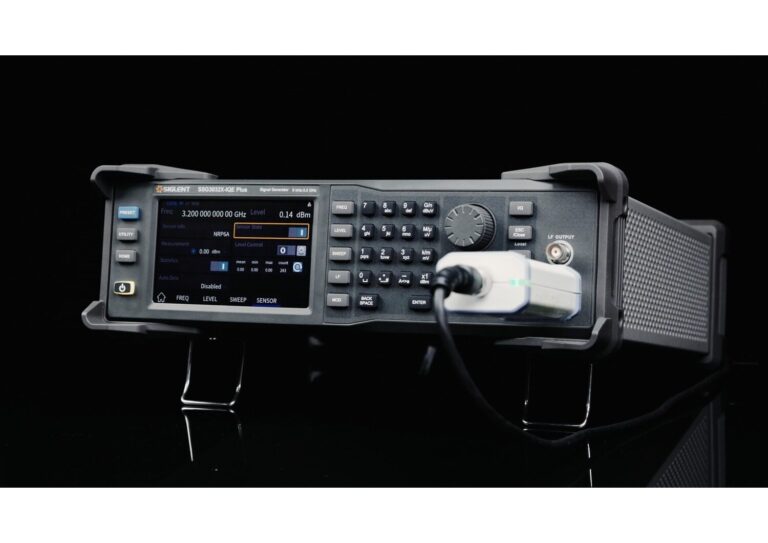

Connect a compatible USB power meter for direct measurement and closed-loop level control, helping compensate for cable loss, gain and frequency response.

USB Power Meter Control

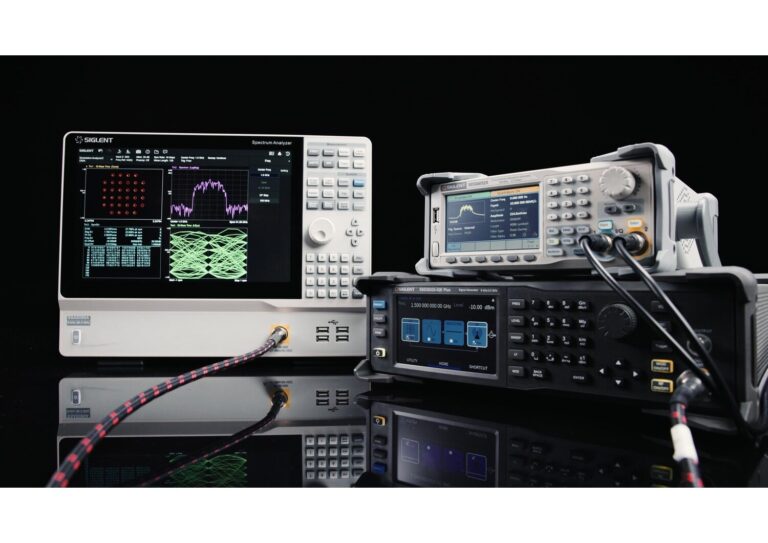

IQE models can work with an external baseband source such as the Siglent SDG6000X to generate vector and multi-tone signals for communications and active-device testing.

External I/Q Modulation

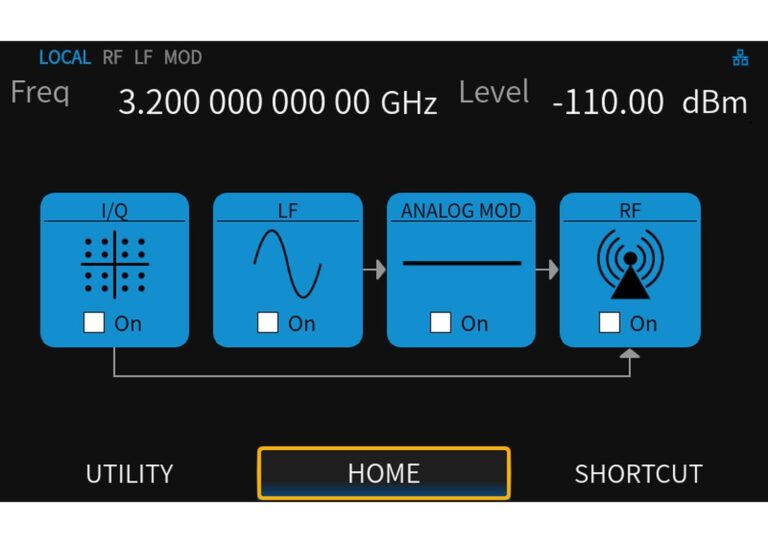

A 5-inch capacitive touchscreen provides quick access to RF, modulation, sweep and I/Q functions, with USB, LAN and Web remote control for bench or automated use.

Straightforward Signal Setup

×

Improved pulse performance with fast rise and fall times provides precise RF pulse generation for demanding test applications.
The optional pulse train generator supports individually configurable on/off times and repetition counts across sequences of up to 2,047 pulses.
Add the 10M_OCXO_L precision reference for improved frequency accuracy and stability, including ±1 ppb temperature stability.
Connect a compatible USB power meter for direct measurement and closed-loop level control, helping compensate for cable loss, gain and frequency response.
IQE models can work with an external baseband source such as the Siglent SDG6000X to generate vector and multi-tone signals for communications and active-device testing.
A 5-inch capacitive touchscreen provides quick access to RF, modulation, sweep and I/Q functions, with USB, LAN and Web remote control for bench or automated use.

Product Videos

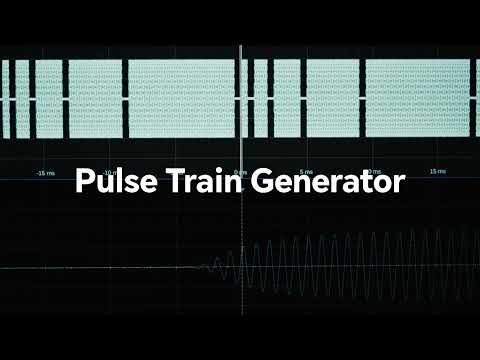

YouTube Video
Siglent's SSG3000X Plus RF Signal Generator

Documentation


Frequency Range 9 kHz to 2.1 GHz (SSG3021X Plus / SSG3021X-IQE Plus)
9 kHz to 3.2 GHz (SSG3032X Plus / SSG3032X-IQE Plus)
IQ Frequency Range 10 MHz to 2.1 GHz (SSG3021X-IQE Plus)
10 MHz to 3.2 GHz (SSG3032X-IQE Plus)
Frequency Resolution 0.01 Hz
Amplitude Resolution 0.01 dB
Level Setting Range -110 dBm to +9 dBm (9 kHz to 100 kHz)
-110 dBm to +15 dBm (100 kHz to 1 MHz)
-110 dBm to +20 dBm (1 MHz to 3.2 GHz)
Level Performance Range -110 dBm to +5 dBm (9 kHz to 100 kHz)
-110 dBm to +10 dBm (100 kHz to 1 MHz)
-110 dBm to +13 dBm (1 MHz to 3.2 GHz)
Level Accuracy ≤ ±0.7 dB (typ.)
Phase Noise -117 dBc/Hz at 1 GHz, 20 kHz offset (typ.)
Harmonics < -30 dBc, 1 MHz to 3.2 GHz, output ≤ +13 dBm
Pulse On/Off Ratio >63 dBc (1 MHz to 250 MHz)
>68 dBc (250 MHz to 3.2 GHz)
Pulse Rise/Fall Time <15 ns (typ.)
Modulation AM, FM, PM and pulse modulation
External I/Q Bandwidth Baseband I or Q: <100 MHz (typ.)
RF (I+Q): <200 MHz (typ.)
IQE models only
Frequency Sweep Linear/logarithmic step and arbitrary list sweep
Step Sweep Points 2 to 65,535
List Sweep Points 1 to 500
Reference Internal/external 10 MHz; optional 10M_OCXO_L high-stability OCXO
Display 5-inch capacitive touchscreen, 800 × 480
Interfaces USB Host, USB Device, LAN; optional GPIB via USB-GPIB adapter
Dimensions 338 × 113 × 369 mm (W × H × D)
Weight 4.84 kg
