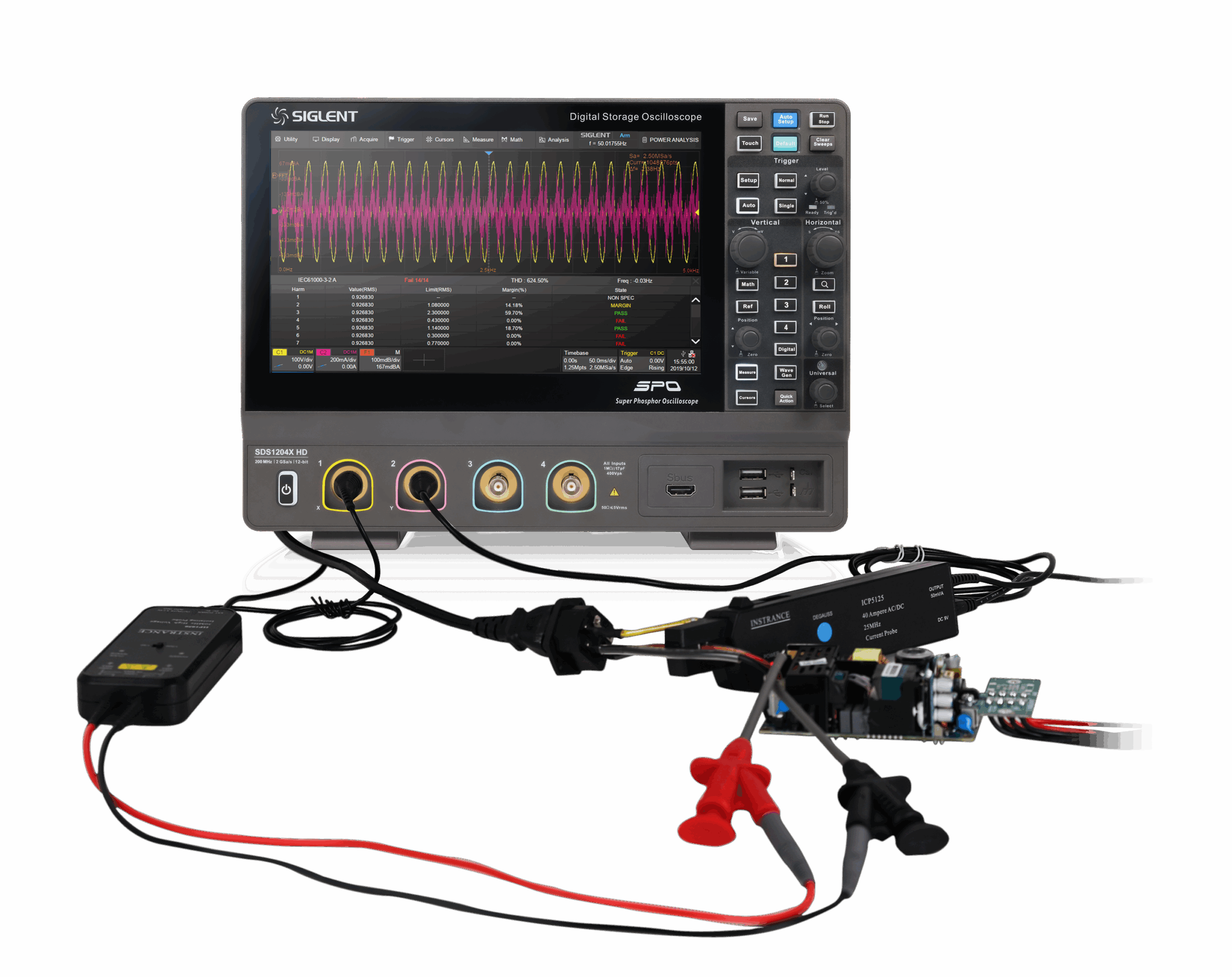

Siglent SDS1104X HD 4Ch, 100MHz, 2GSa/s, 12 Bit, HD high resolution oscilloscope

£955.00 (£1,146.00 inc VAT)

2 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Description


SDS1104X HD 100MHz, 4 channels, 2GSa/s, 12-bit high resolution, 100Mpts memory depth mixed signal oscilloscope; 12.1'' touch screen

SIGLENT’s SDS1000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analogue-Digital Converters and front ends with excellent noise floor performance. They are available in bandwidths of 200 MHz and 100 MHz, have maximum record length of 100 Mpts, and display 2/4 analogue channels + optional 16 digital channels mixed signal analysis ability. The SDS1000X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS1000X HD. The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Features:

  • High Resolution: 12-bit Analogue-Digital Convertors with a sample rate of up to 2 GSa/s.
  • Low Noise Front Ends: Front ends with a 70 μVrms noise floor at 200 MHz bandwidth.
  • Analogue Channels: 2/4 analogue channels with bandwidths of up to 200 MHz.
  • SPO Technology: Provides fast waveform capture rates.
  • Waveform Capture Rate: Up to 120,000 wfm/s in normal mode and 500,000 wfm/s in sequence mode.
  • Intensity Grading and Colour Temperature Display: Supports 256-level intensity grading and colour temperature display modes.
  • Record Length: Up to 100 Mpts record length.
  • Digital Trigger System: Supports various intelligent trigger types including Edge, Slope, Pulse width, Window, etc.
  • Serial Bus Triggering and Decoding: Supports protocols I2C, SPI, UART, CAN, LIN, CAN FD  (Decode Only), and FlexRay (Decode Only) fitted as standard
  • Segmented Acquisition Mode: Divides the maximum record length into multiple segments with minimal dead time.
  • History Waveform Record Function: Records waveforms with a maximum length of 80,000 frames.
  • Automatic Measurements: Supports over 50 parameters with statistics, histogram, track, trend, gating measurement, etc.
  • Math Traces: Supports 4 math traces with various mathematical operations and formula editor.
  • Data Analysis Functions: Includes Search, Navigate, Counter, Bode plot, and Power Analysis.
  • Mask Test Function: High-speed hardware-based mask test function with user-defined mask creation.
  • Optional Digital Channels: Provides 16 digital channels (optional).
  • Optional Waveform Generator: Includes a 25 MHz waveform generator (optional).
  • Large Display: Features a large 10.1” TFT-LCD display with 1024 * 600 resolution and capacitive touch screen supporting multi-touch gestures.
  • Interfaces: Various interfaces including USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, and Trigger Out.
  • Remote Control and SCPI Support: Built-in web server supports remote control over LAN port using a web browser, SCPI remote control commands, and supports external mouse and keyboard.

Siglent SDS1000X-HD Oscilloscope Comparison Table

MODEL ANALOGUE BANDWIDTH NUMBER OF CHANNELS HIGHEST REAL-TIME SAMPLING RATE HIGHEST WAVEFORM CAPTURE RATE MAXIMUM STORAGE DEPTH VERTICAL RESOLUTION
SDS1102X HD 100MHz 2 2GSa/s 500,000 wfm/s 100 Mpts 12-bit
SDS1104X HD 100MHz 4 2GSa/s 500,000 wfm/s 100 Mpts 12-bit
SDS1202X HD 200MHz 2 2GSa/s 500,000 wfm/s 100 Mpts 12-bit
SDS1204X HD 200MHz 4 2GSa/s 500,000 wfm/s 100 Mpts 12-bit
