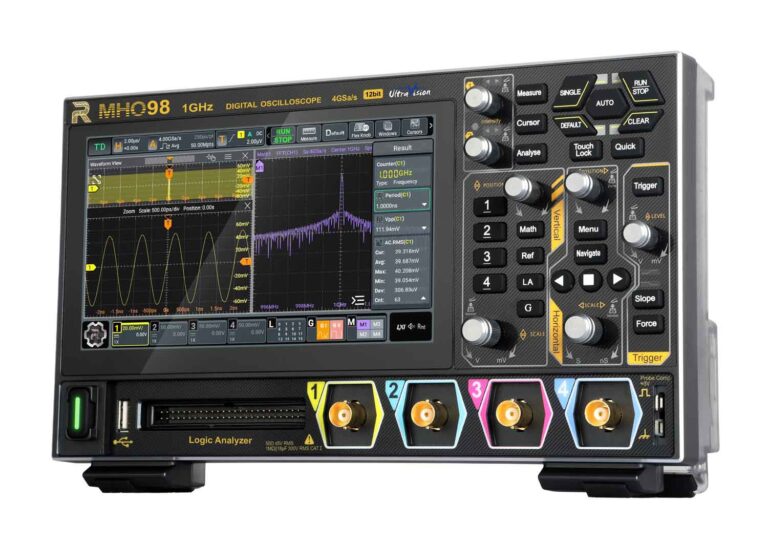

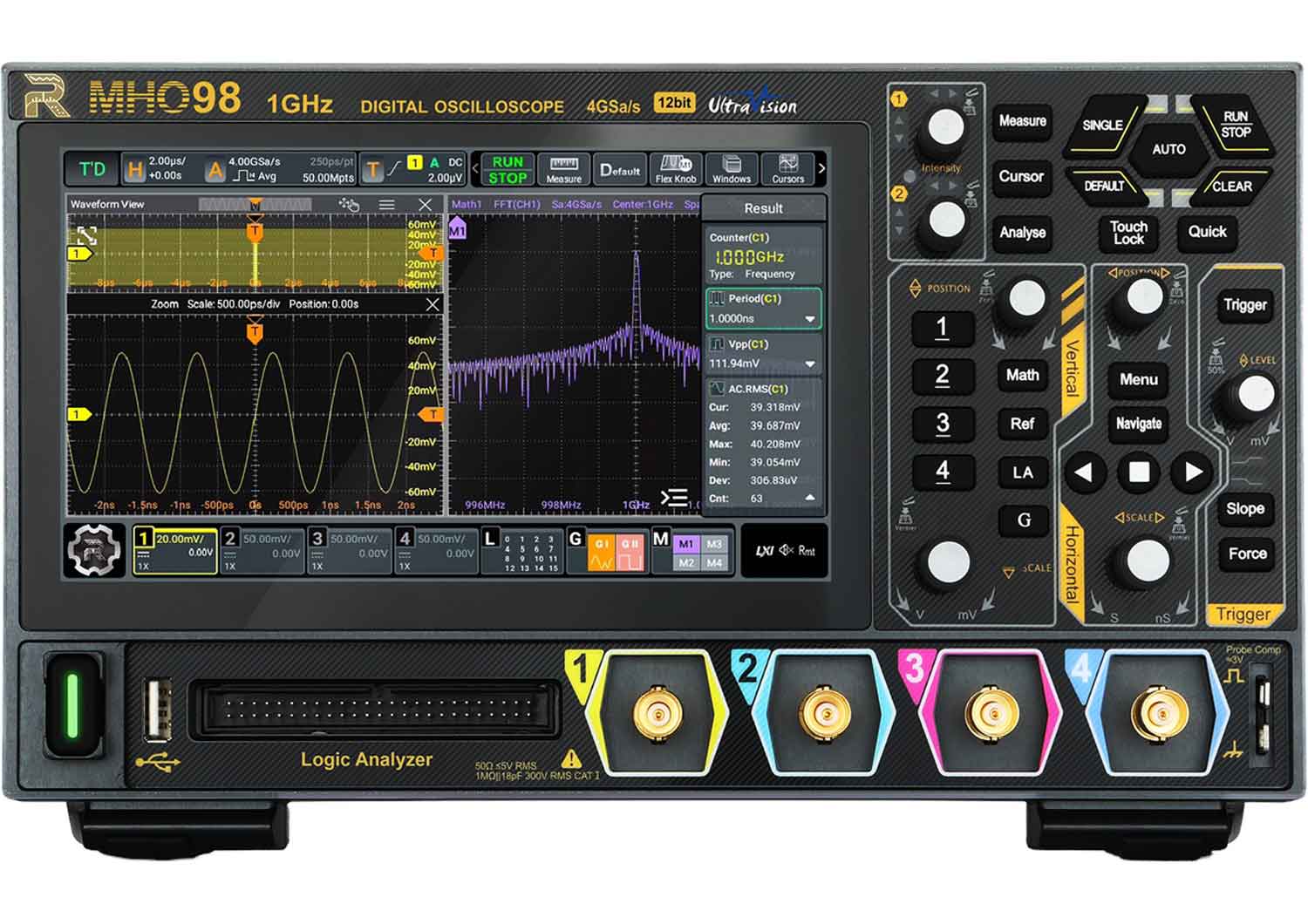

Limited Edition: Rigol MHO98 4CH, 12Bit, 1GHz, 4GSa/s Digital Oscilloscope

Description

Limited Edition: Rigol MHO98 4CH, 12Bit, 1GHz, 4GSa/s Digital Oscilloscope

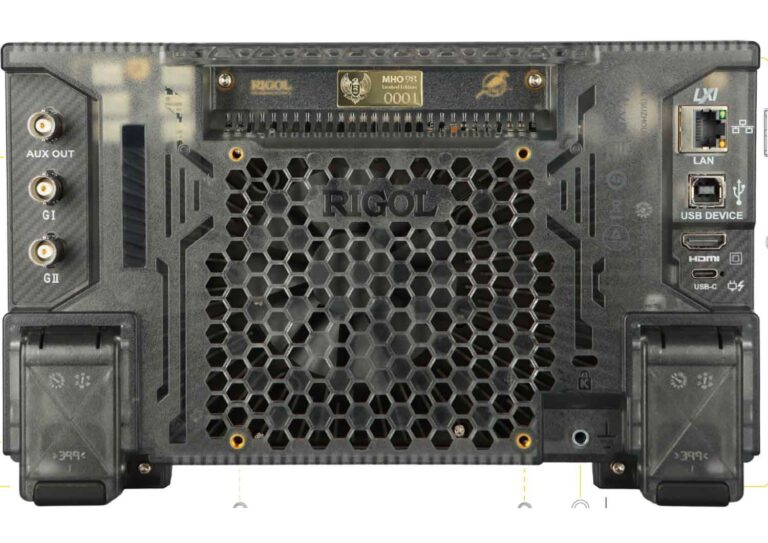

For the customer who demands the absolute best, the Limited Edition MHO984 elevates the experience. This special edition delivers unmatched value with 1GHz bandwidth and a 4 GSa/s sample rate to tackle high-speed signals with ease. It comes fully loaded, featuring the 500 Mpts memory depth, the 16-channel logic analyser probe, and a standard 100 MHz 2-channel Function/Arbitrary Waveform Generator. Beyond performance, the MHO984 is a piece of artwork on the bench, sporting a high-quality metal enclosure, metal knobs, and a transparent rear panel that showcases the precision circuitry. Each unit is a unique collector’s item, commemorated with a 24K gold nameplate and a unique number that grants the distinguished customer an exclusive identity and value.

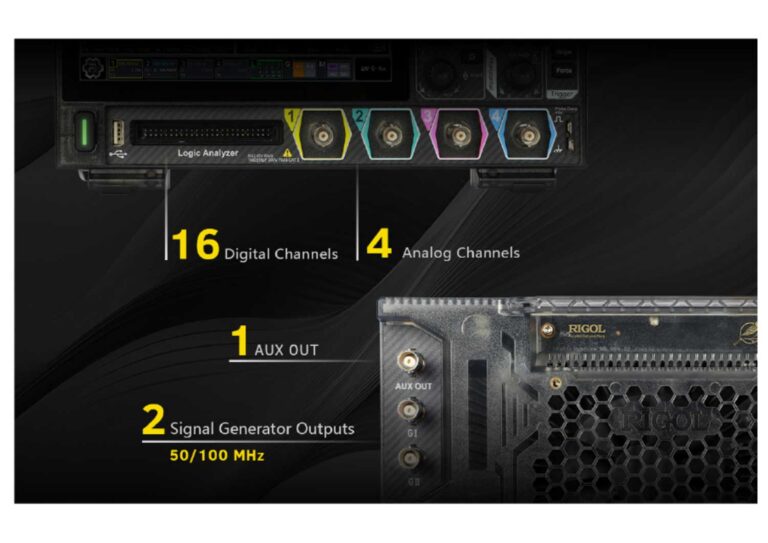

• Integrated Channels and Tools with the Limited Edition:
  • 24K Gold Plated Nameplate Engraved with a unique number from 1-1,998 (there is a total of 1,998 units worldwide)
  • STANDARD 16 digital channels, 200 MHz PLA2216 logic analyser probe
  • STANDARD 4x RP3500A 500MHz Passive Oscilloscope Probes
  • STANDARD 2-channel, 100 MHz Function/Arbitrary Waveform Generator (Bode plot supported)
  • STANDARD Max. memory depth of 500 Mpts
  • FREE Instrument Carry Bag included

• Resolution and Performance:
  • 12-bit resolution
  • Max. analogue bandwidth, analogue channels
  • Real-time sample rate: up to 4 GSa/s
  • Max. waveform capture rate: 1,000,000 wfms/s
  • Vertical sensitivity 200 μV/div to 10 V/div
• Analysis and Display:
  • Digital phosphor display with real-time 256-level intensity grading
  • Supports histogram, digital signal analysis, etc.
  • Supports waveform search and navigation function, capable of debugging the signal anomalies faster
  • 7″ (1024×600) HD touch screen
• Design and Interface:
  • Flex knob brings a user-friendly experience
  • Standard USB2.0 Device & Host, LAN (100 M), and HDMI interfaces
  • Novel and delicate industrial design, easy to operate
  • Supports online upgrade of software version

Product Images

N-in-one Integrated Efficient Test Tool Learn more...

High Performance Rebuilds the Entry-Level Standard Learn more...

Various Applications Learn more...
