Rigol DS70304 Digital Oscilloscope, 3GHz Bandwidth, up to 16 bit

Rigol DS70304 Digital Oscilloscope, 3GHz Bandwidth, up to 16 bit

Name: Rigol DS70304 Digital Oscilloscope, 3GHz Bandwidth, up to 16 bit
Brand: Rigol
SKU: DS70304
Availability: BackOrder

Original price was: £19487.00.Current price is: £15589.00. (£18,706.80 inc VAT)

Available on back-order

Facebook

Post

SKU: DS70304 Categories: Rigol Digital Oscilloscopes, Rigol DS70000 Series Digital Oscilloscopes Brand: Rigol

Description

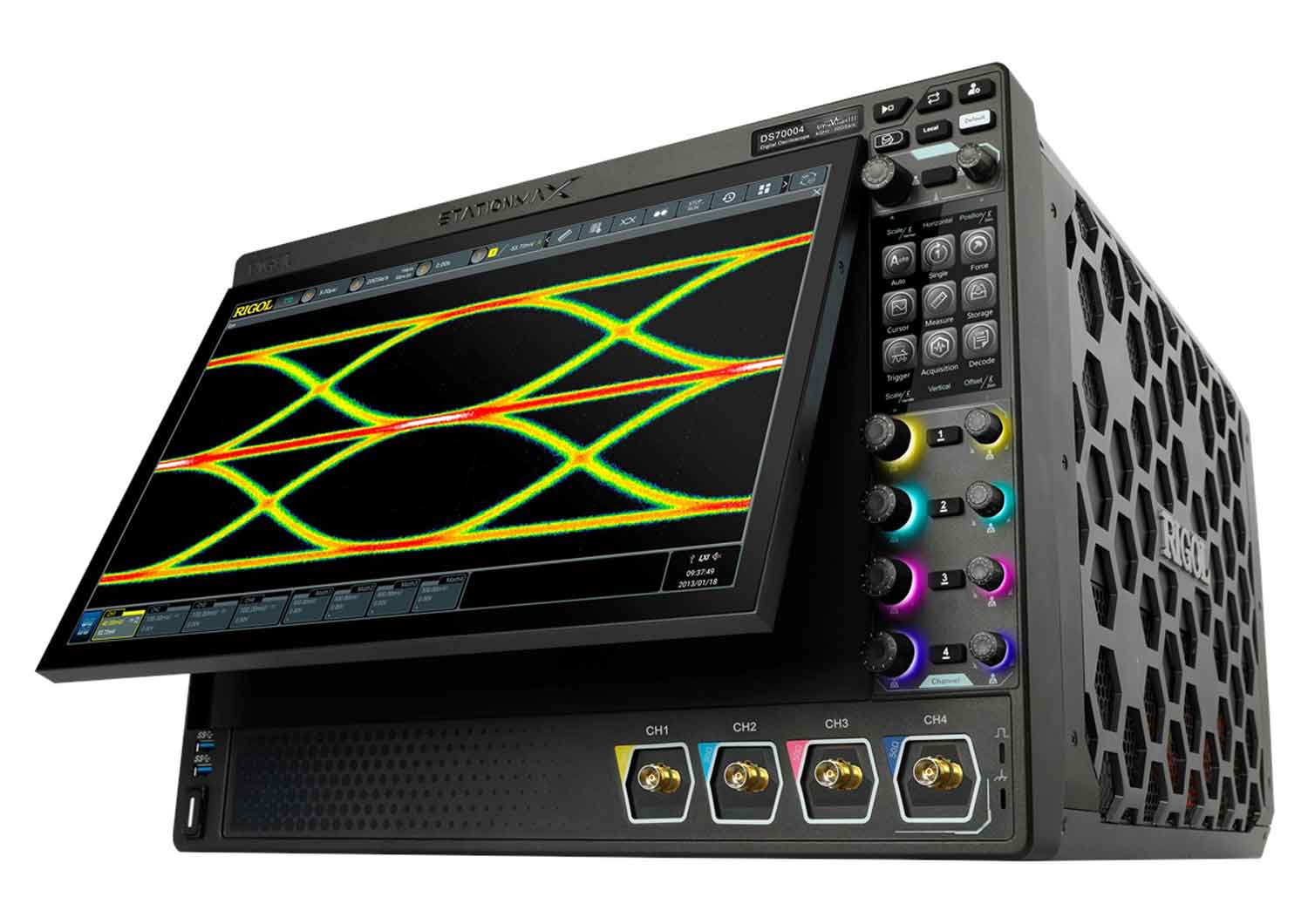

Rigol DS70304 Digital Oscilloscope

The new DS70000 Series is available in 3 GHz or 5 GHz bandwidths and combines the new UltraVision III oscilloscope technology and UltraReal spectrum analysis technology to create RIGOL’s most powerful test and measurement instrument ever.

Features:

5-in-1 workstation: High-end oscilloscope, voltmeter, frequency counter/totalizer, real-time spectrum analyser (option RTSA), protocol analyser (option).
4 analogue input channels.
Bandwidth 3 GHz or 5 GHz.
Sample rate up to 20 GS/s.
Dimensions: 7 U (full rack size).

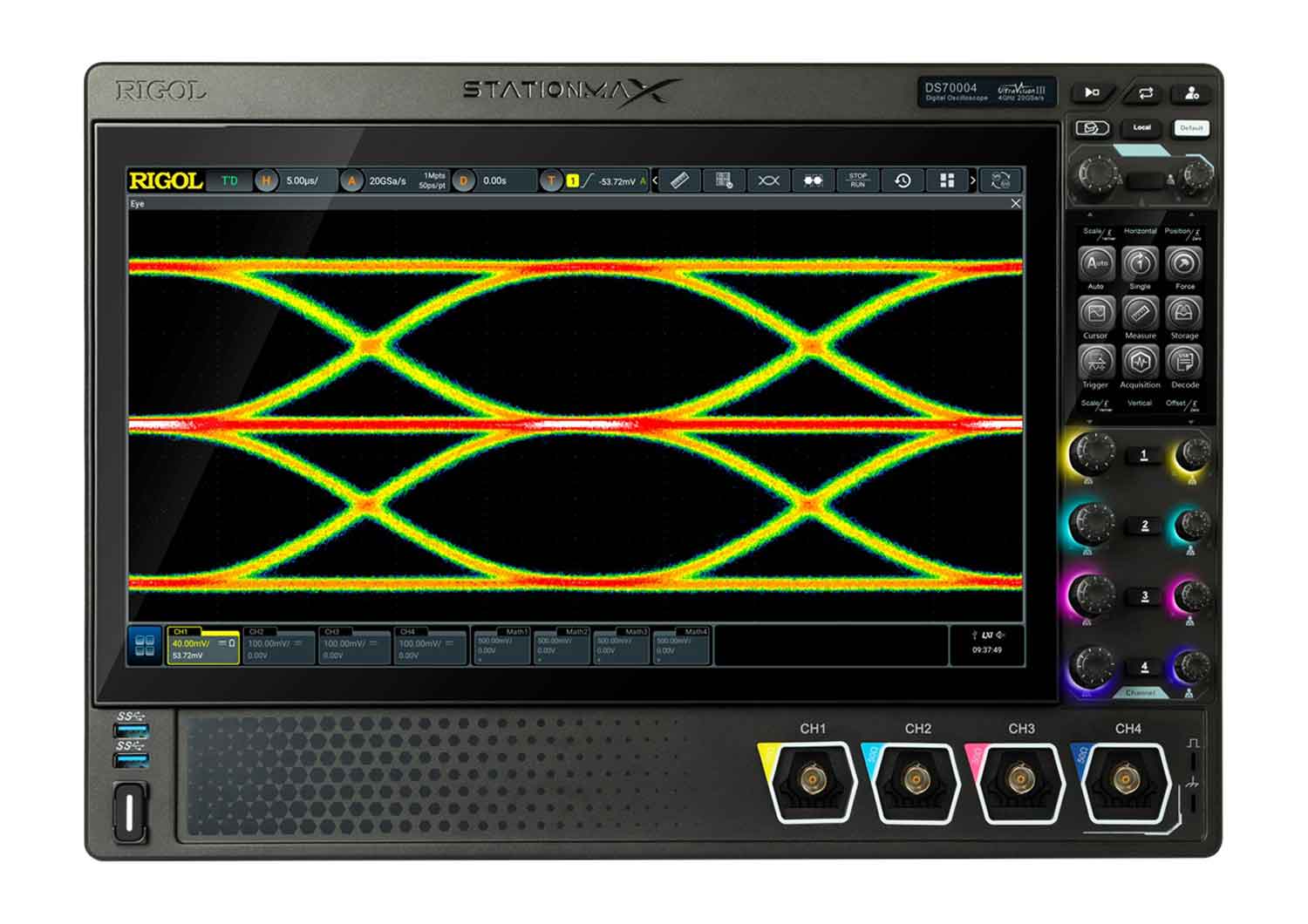

Two touch displays:
Tilting, capacitive 15.6″/39.6 cm colour touchscreen display (main display, for multiple measurement windows).
3.5″/8.9 cm touchscreen display for device settings and control.
Memory depth 500 Mpts, option up to 2 GPts.
The vertical resolution can be selected between 8-bit and 16-bit, ideal for measuring very small signal components.
Waveform capture rate up to 1 Mio Wfms/s.
Various versatile display, math and trigger features (e.g. zone trigger).

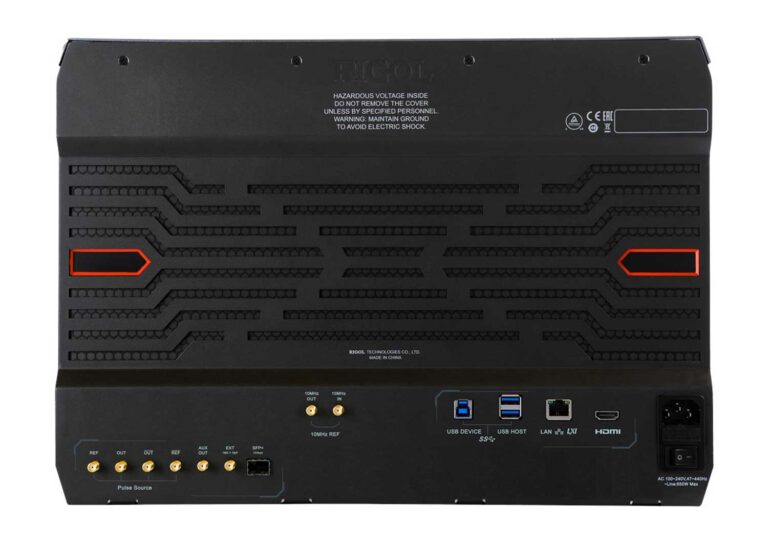

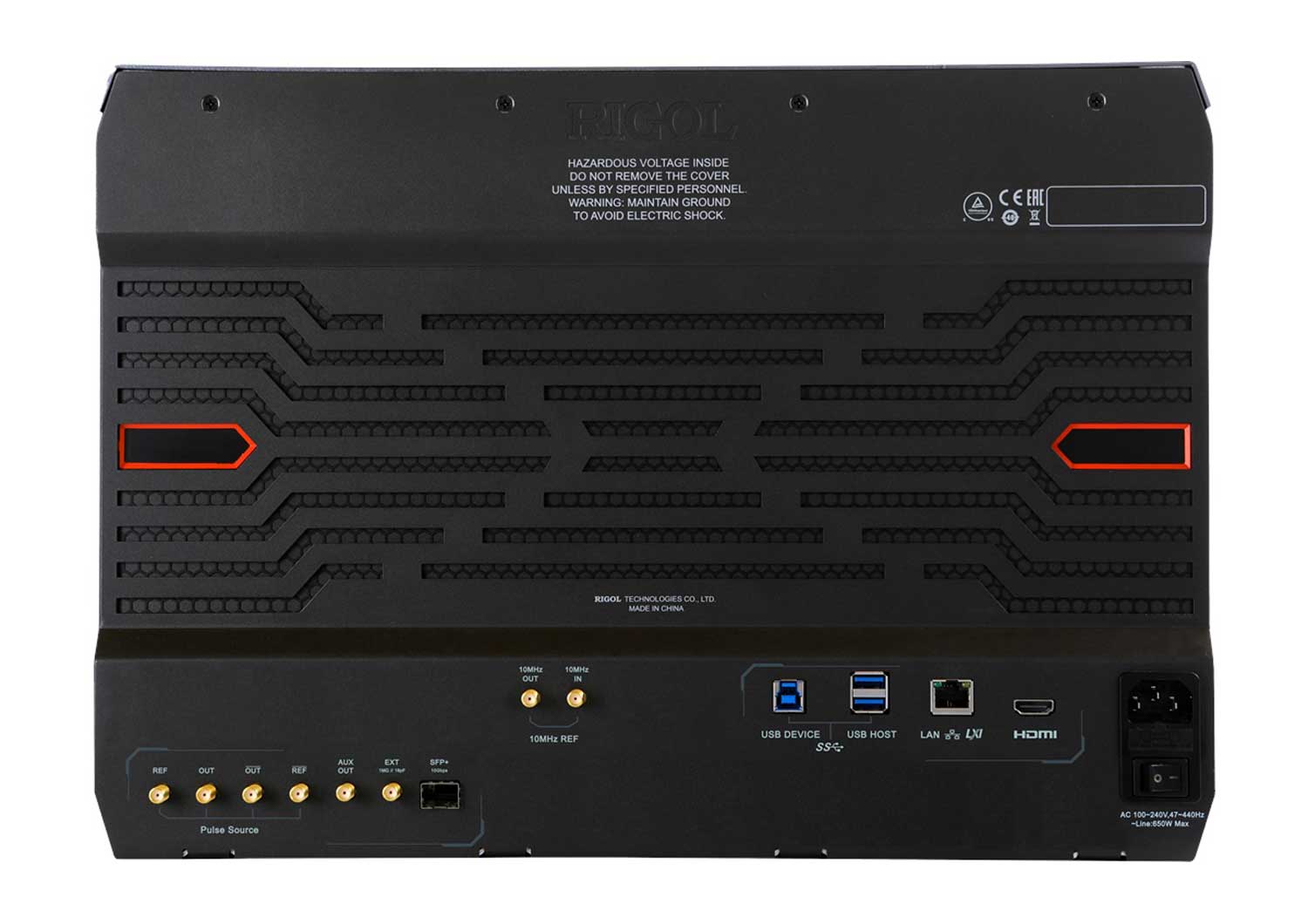

Interfaces: USB 3.0 host/device, LAN/Ethernet (remote control or via web control/browser), optional USB-to-GPIB (adaptor) as well as USB mouse support; additional HDMI, TRIG OUT, 10-MHz-IN/OUT, AUX OUT.

Rigol DS70000 Oscilloscope Comparison Table

Model	Channels	Bandwidth	Sample Rate	Memory	Waveform Refresh Rate
DS70504	4 (1 EXT)	5GHz	4 channels with each 10 GSa/s (single channel 20 GSa/s)	500Mpts (std)	1,000,000wfm/s
DS70304	4 (1 EXT)	3GHz	4 channels with each 10 GSa/s (single channel 20 GSa/s)	500Mpts (std)	1,000,000wfm/s

Product Images

Photoelectric encoder<br />
<br />

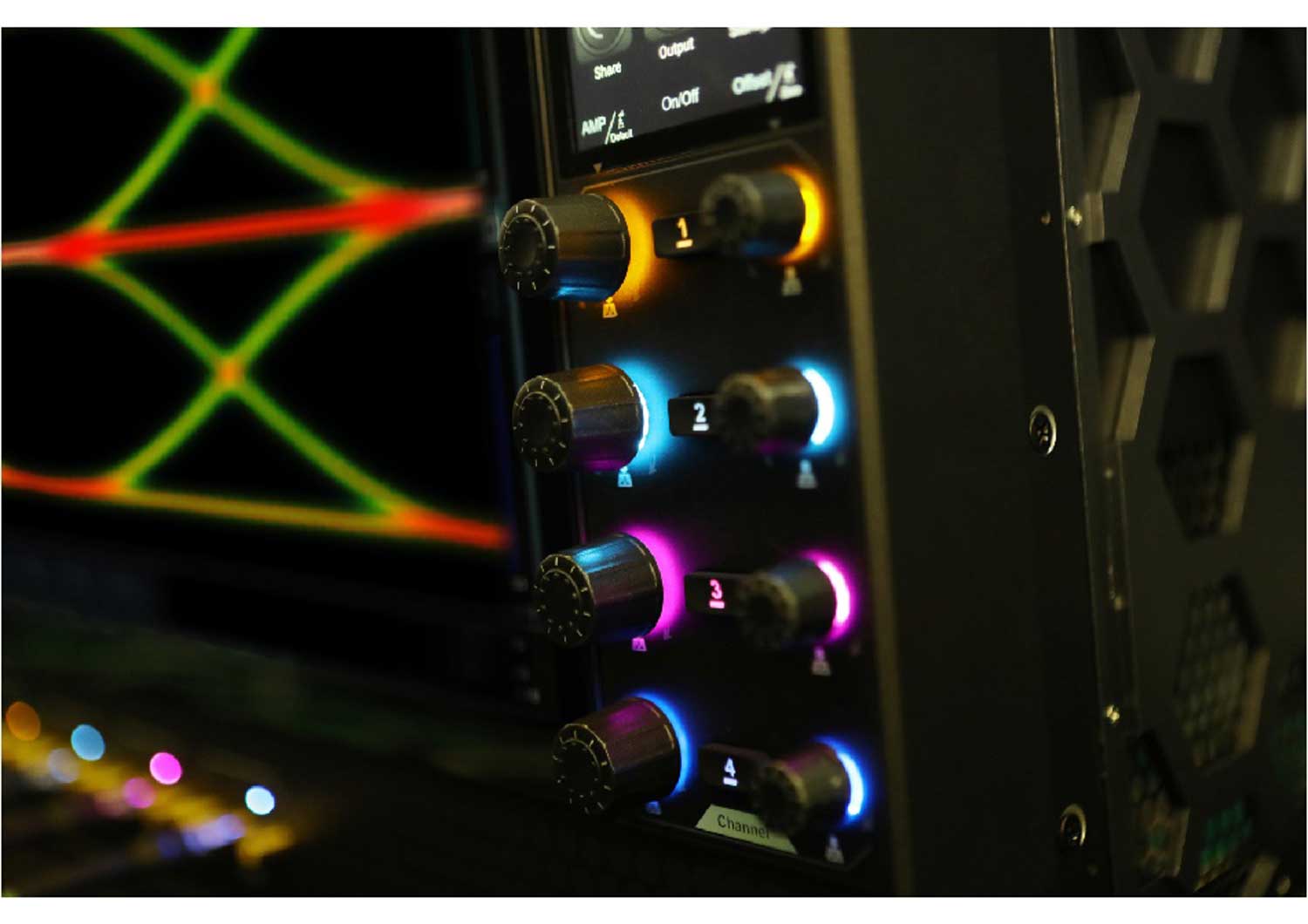

The photoelectric encoder operating knob guarantees more than 100.000 times of pressing operation and 1 million times of rotation operation, greatly improving the service life of the knob. With photoelectric encoders, you no longer have to worry about wear, ensuring reliable operation throughout the life of the instrument.

Photoelectric encoder Learn more...

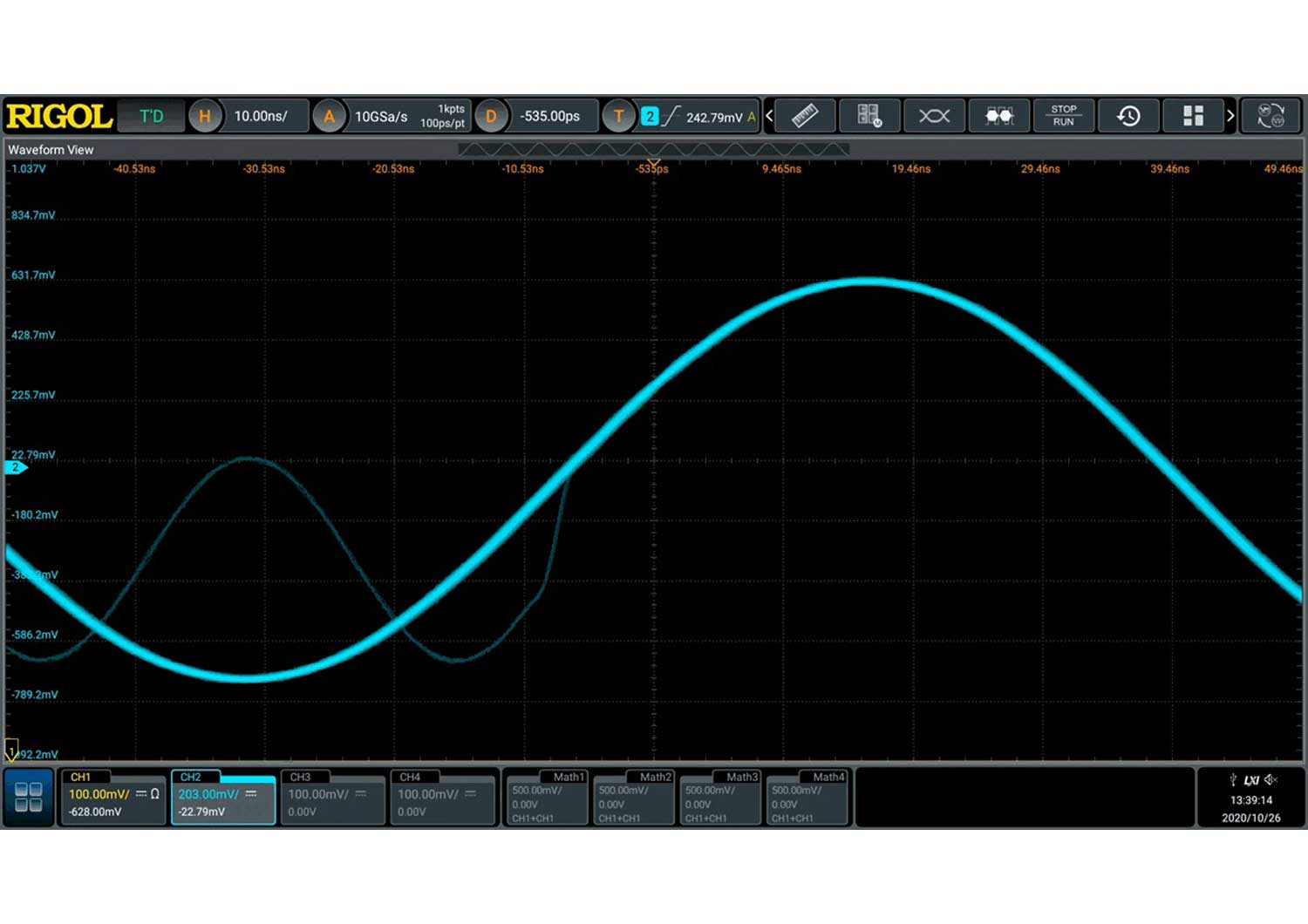

Up to 1.000.000 wfm/s waveform update rate Learn more...

High resolution up to 16 bits<br />
<br />

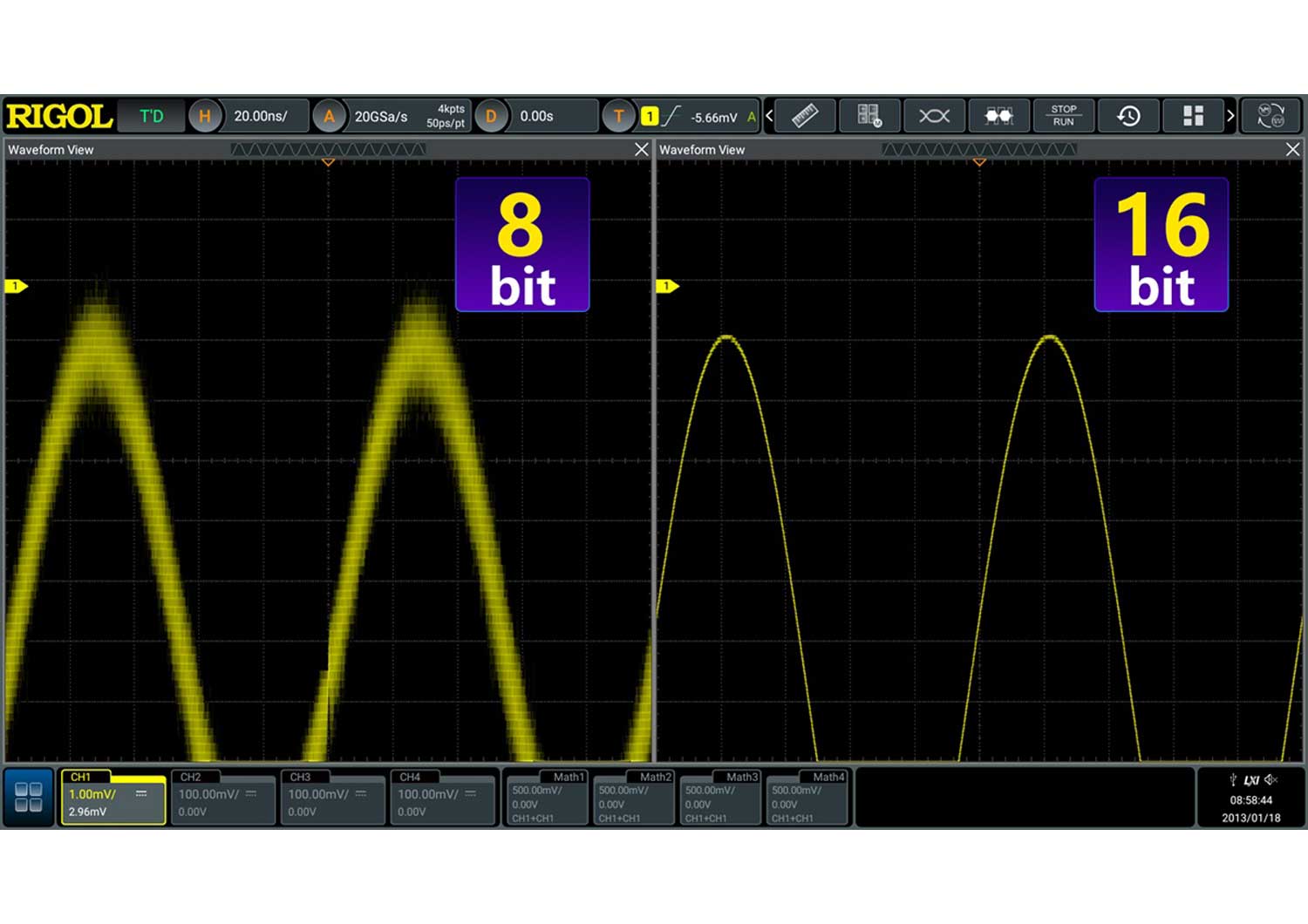

The new high resolution capability allows users to set the desired number of bits (up to 16) for the measurement and then reports the available bandwidth. This removes signal noise that can obscure important test results

High resolution up to 16 bits Learn more...

Multi-window-support<br />
<br />

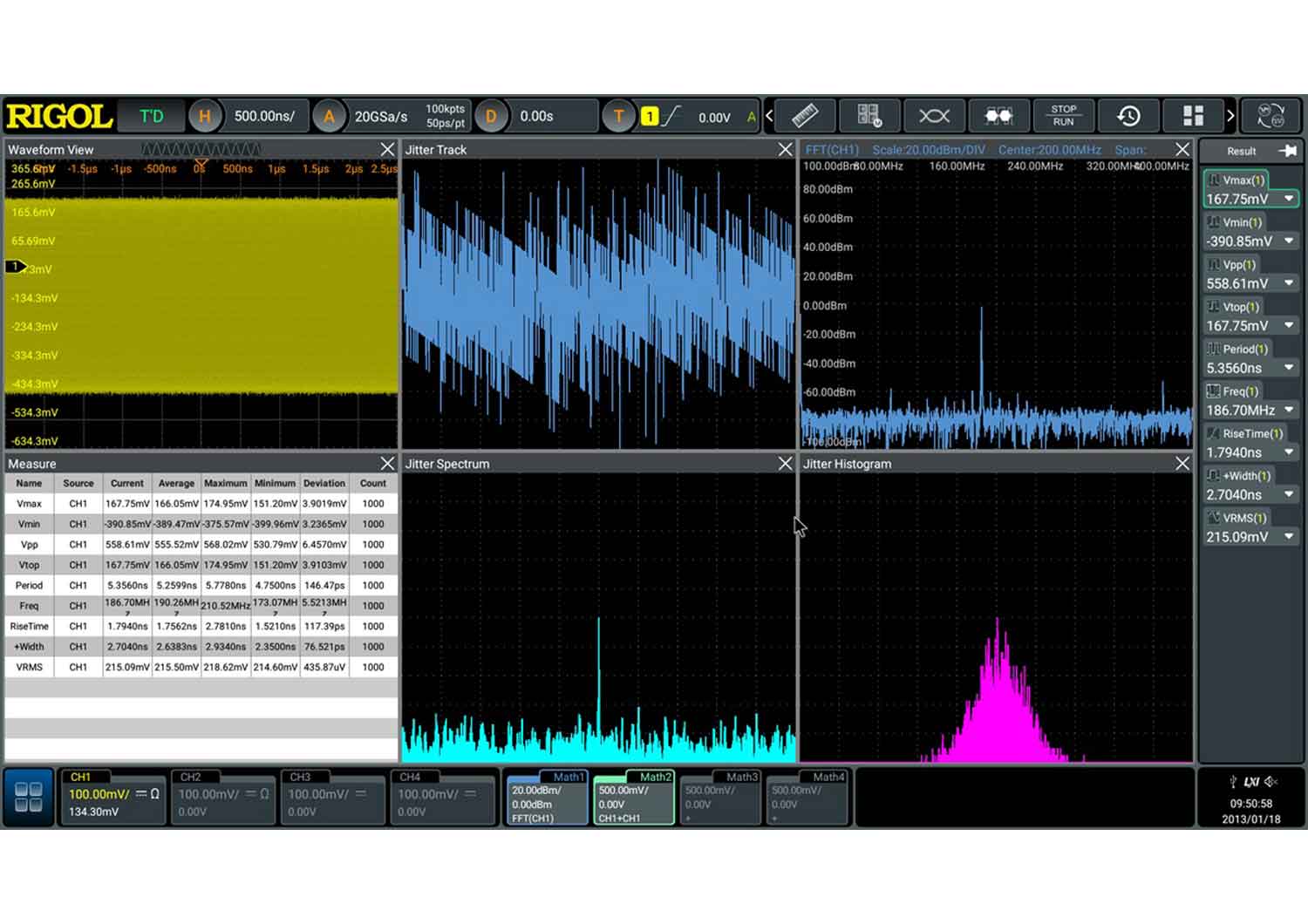

The main display is a 39.6 cm (15.6

Multi-window-support Learn more...

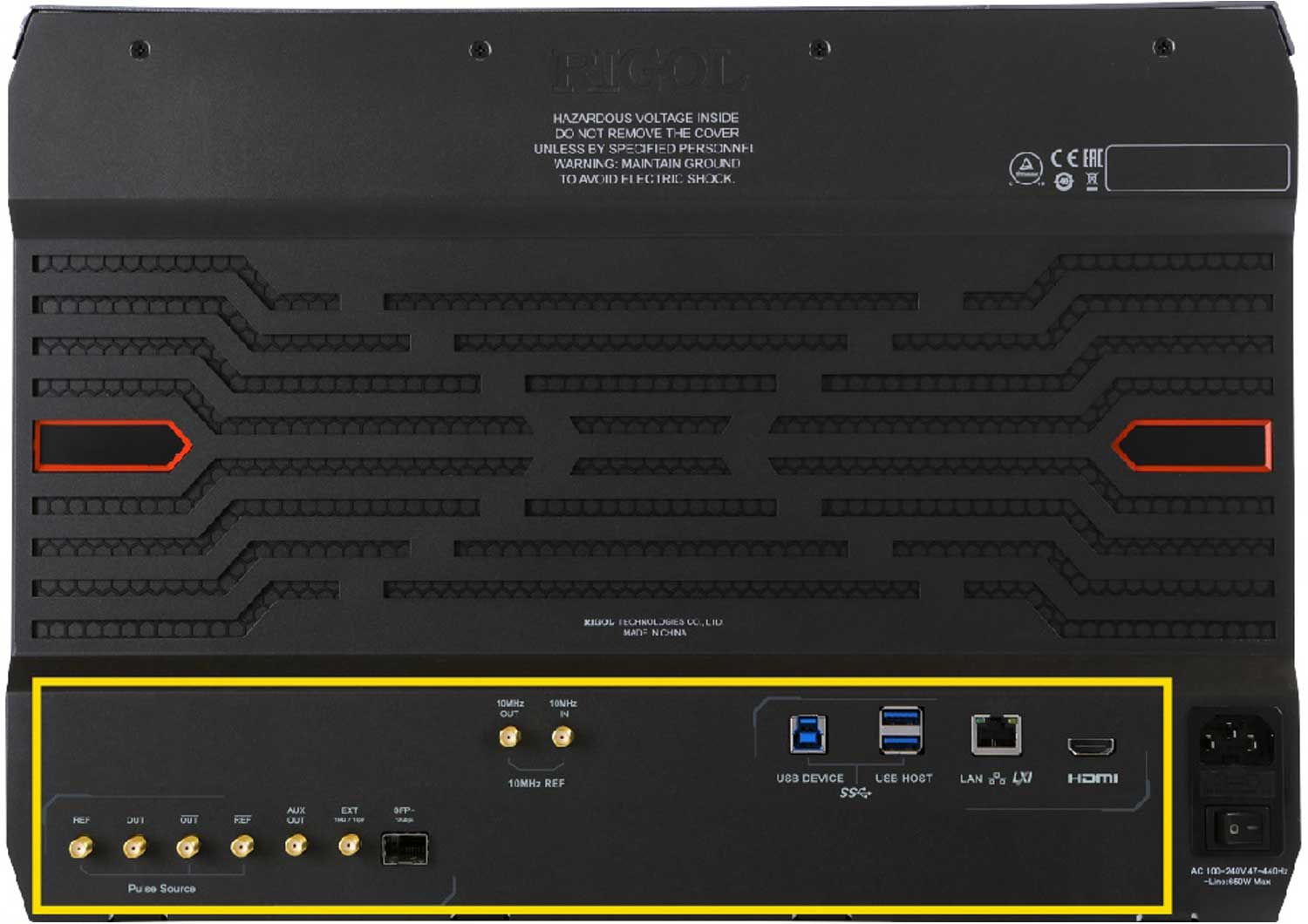

Multiple external interfaces<br />
<br />
The Rigol DS70504 provides a variety of external interfaces that improve usability and data access including USB 3.0 Host and Device, LAN (LXI), HDMI, AUX OUT, 10 MHz IN, 10 MHz Out and GPIB (option) via the USB-GPIB adaptor. For remote control over LAN, the DS70000 includes complete web control with web-based screen recording, a SCPI command interface, and ftp access to files stored on the instrument. The HDMI outputs supports use of an external monitor or video display.

Multiple external interfaces Learn more...

Standard Hardware Accessories

Rigol 4x RP3500A 500MHz Passive Oscilloscope Probes
£0
UK Power Cord
USB Data Cable

Optional Software Accessories

Optional Hardware Accessories

Documentation

Aaronia BPSG Datasheet DS70000 User Manual

Aaronia BPSG Datasheet DS70000 QuickGuide

Aaronia BPSG Datasheet DS70000 Datasheet

Aaronia BPSG Datasheet DS70000 Programming Manual

Model	DS70504	DS70304
Analogue Bandwidth (50 Ω, -3 dB)	5 GHz	3 GHz
Analogue Bandwidth (1 MΩ, -3 dB)	500 MHz
Calculated Rising Time under 50 Ω (Half-channel 10%-90%, typical)	≤108 ps	≤130 ps
No. of Input Channels	4 analogue channel inputs 1 EXT channel input
Sampling Mode	Real-time sampling
Max. Sample Rate of Analogue Channel	Half-channel: 20 GSa/s Full-channel: 10 GSa/s
Max. Memory Depth	Standard: 500 Mpts Option: 2 Gpts (half-channel), 1 Gpts (full-channel)
Max. Waveform Capture Rate	>1,000,000 wfms/s
Vertical Resolution	8-16 bits (selectable)
Hardware Real-time Waveform Recording and Playing	Max. 2,000,000 frames (half-channel)
Peak Detection	Captures 200 ps glitches
LCD Size and Type	Main display: 15.6” capacitive multi-touch screen with onebutton electronic tilt Secondary display: 3.5” capacitive multi-touch screen with user-defined shortcut key menu, supporting quickresponsive touch operation with vibration
Display Resolution	Main display: 1920×1080; Secondary display: 480×320
