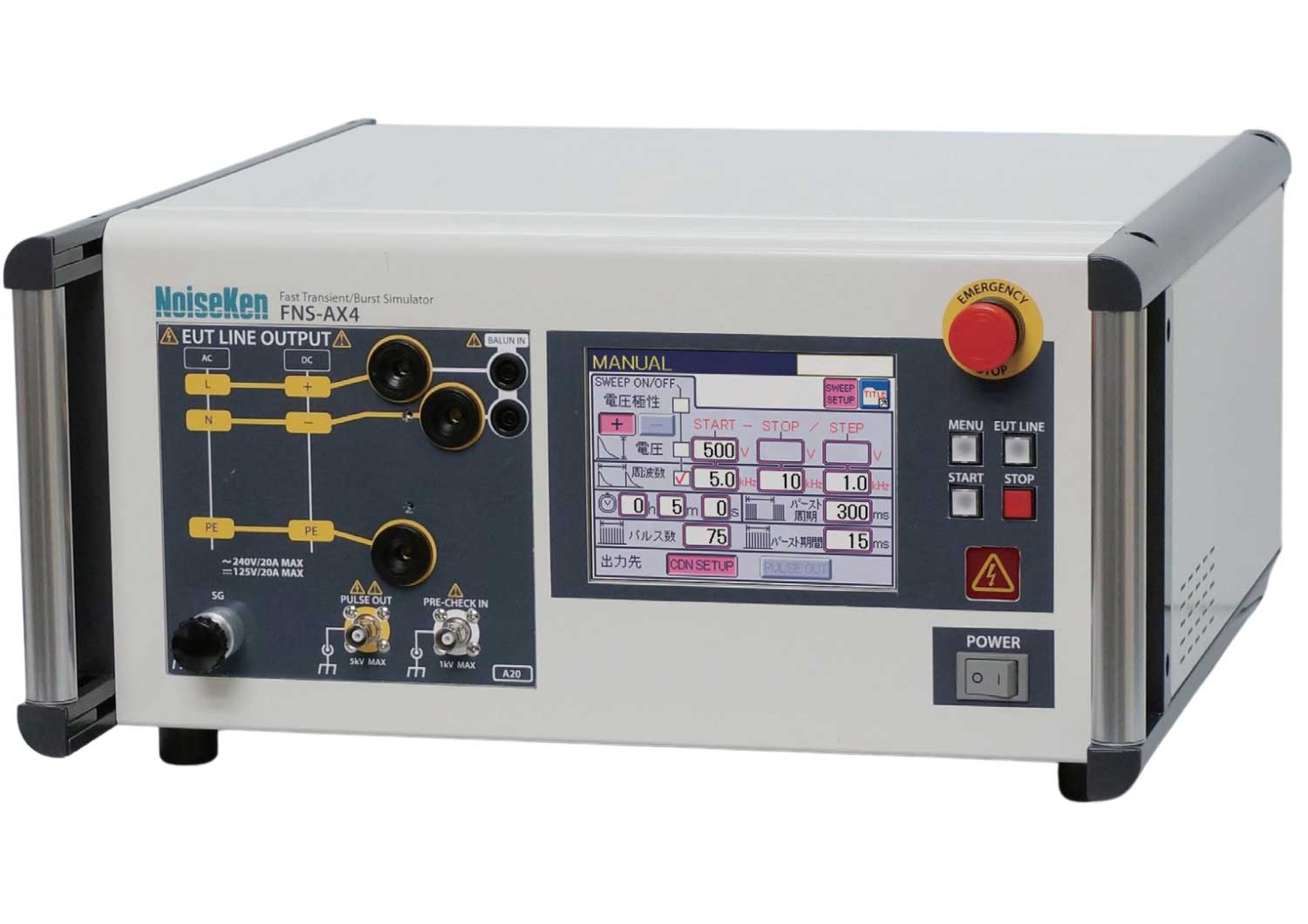

NoiseKen FNS-AX4-A20 Fast Transient Burst Simulator IEC 61000-4-4 Ed.3

Available on back-order

SKU: FNS-AX4-A20 Categories: EMC, EFT / Burst Testing & Diagnostic Solutions Brand: NoiseKen

Description

NoiseKen FNS-AX4-A20 Fast Transient Burst Simulator IEC 61000-4-4 Ed.3

The FNS-AX4 Series represents Noise Laboratory’s latest generation of Fast Transient/Burst (EFT/B) simulators, designed for IEC 61000-4-4 Ed 3 compliance testing — the 3.0 edition of the standard.

These instruments feature built-in Coupling/Decoupling Networks (CDN) and support both common mode and optional normal mode tests (per ANSI C37.90.1) to ensure comprehensive immunity evaluation for AC and DC power lines.

Their touchscreen operation, multi-language interface, and PC/Android remote-control software make them intuitive, efficient, and ready for modern EMC laboratories.

Key Features

Fully compliant with IEC 61000-4-4 Edition 3.0 — designed for full calibration of the latest 3.0 standard.
Built-in CDN (Coupling/Decoupling Network) — selectable coupling phases for all power configurations.
User-friendly LCD touchscreen with intuitive menus and numeric keypad for simple operation.
Pre-check function — built-in waveform monitor eliminates need for external attenuator or oscilloscope during setup.
Three test modes: Standard (preset per IEC), Manual (custom setup and sweep), and Sequence (automated multi-step execution).
Remote control and data logging available via Windows and Android™ software options.
Automatic test logging with calibration date reminders.
Multi-language interface — English, Japanese, Chinese, and Korean supported.
Optional Normal Mode Test (ANSI C37.90.1) with dedicated coupling balun (Model 15-00013A).
Comprehensive safety system including emergency stop, 3-channel EUT FAIL input, and indicator outputs.

What's Included

FNS-AX4-A20 main unit
SG cable (0.1 m, Model 05-00103A)
AC power cord
Line input cables – A20 type (3 pcs) / B63 type (5 pcs, Model 05-00151A or 05-00152A)
Line output cables – A20 type (3 pcs) / B63 type (5 pcs, Model 05-00157A)
CDN waveform verification connector (Model 02-00152A)
Coaxial cable for pre-check (0.3 m, Model 02-00151A)
Accessory bag
Instruction manual (common for A20/B63)

Applications

EMC compliance and calibration laboratories conducting IEC 61000-4-4 Edition 3 testing.
Product development and pre-compliance verification for consumer, automotive, industrial, and medical electronics.
Evaluation of fast transient/burst immunity on AC or DC power lines.
A20 model: ideal for single-phase tabletop or small EUT testing.
B63 model: designed for high-capacity three-phase or industrial EUT applications.

Compliance Standards

IEC 61000-4-4 Edition 3.0 — full compliance and calibration alignment with the latest standard.
ANSI C37.90.1 Normal-Mode Test — supported with optional Normal-Mode Coupling Balun (Model 15-00013A).
Waveform verification per IEC 61000-4-4 using optional attenuators (Model 00-00017A 50 Ω / 00-00018A 1 kΩ).

Product Images

Image of Fns ax4 pre test inspection telonicuk

Easy to perform pre-test inspection with pre-check function

Image of Fns ax4 coupling balun telonicuk

Coupling Balun available for normal mode test

Simple and Easy EUT power line connection

Product Videos

Fast Transient Burst Simulator　FNS-AX4-A20/B63

Standard Hardware Accessories

Optional Hardware Accessories

Documentation

Catalogues

FNS-AX4 Catalogue

User Manuals

FNS-AX4 UserManual

Generator specification	Specification / Function
Output voltage	200 to 5000 V / 10 V Step
Polarity	Positive or negative, polarity alternation is possible per burst
Repetition frequency	0.1 kHz to 2000 kHz
	0.1 kHz to 1 kHz / 0.01 kHz step, Tolerance ±5%. 1.0 kHz to 10 kHz / 0.1 kHz step Tolerance ±5% 10 kHz to 100 kHz / 1 kHz step, Tolerance ±5%. 100 kHz to 1000 kHz / 10 kHz step Tolerance ±5% 1000 kHz to 2000 kHz / 100 kHz step, Tolerance ±10%. (Limitation per voltage levels when continuous output)
Number of pulses	1 to 1000 at a step of 1 pulse. Setting limit: 1 pulse per ms in a burst (repetition frequency 1 kHz or more)
Burst duration	Formula for Burst duration = Pulse number / Repetition Frequency Scope of manually setting value for burst duration: 0.01 to 999 ms
Burst period	10 to 1000ms ±10ms 10ms steps (500ms or more for polarity alternate mode)
Polarity alternate function	Output polarity alternated between positive and negative at each burst period Setting condition: the burst period is 500ms or more and the burst pause period [(burst period) – (burst duration)] is 100ms or more Maximum test time: 10 minutes
Continuous Pulse output	Up to 1000 V-10kHz or less, to 2000V-4kHz or less, to 5000V-1kHz or less. Maximum test time for each case: 10 min
Frequency modulation	Frequency is shifted continuously between the set frequency and approximately -10% from the set frequency. The modulating wave is a triangular wave of approximately 20Hz
External trigger	External trigger input invokes 1 burst output in synchronisation with the trigger input. Trigger specification: Hi (±5V) → Lo (0 V) triggers one burst period.
Pulse waveform (at 50 Ω load)	Pulse peak voltage: (set voltage / 2) ±10% Rise time: 5 ns ±30% Pulse width: 50 ns ±30%
Pulse waveform (at 1 kΩ load)	Pulse peak voltage: (set voltage × 0.95) ±20% Rise time: 5 ns ±30% Pulse width: 35 to 150 ns
DC blocking capacitor	10nF ±20%

CDN specification	Specification / Function
Power capacity	A 20 model: Single phase AC 240 V / 20 A, DC 125 V / 20 A (10 A for PE) B 63 model: three-phase AC 600 V / 63 A, DC 125 V / 63 A (10 A for N/PE)
Applied phase	A20 model: L / N / PE. B63 model: L1 / L2 / L3 / N / PE Single line or all lines can be specified individually for each phase
Injection mode	Common mode (Normal mode available using the option)
EUT Line input/output	φ6 mm safety socket
Coupling capacitor	33 nF
Output waveform specification	Pulse peak voltage: (set voltage / 2) ±10% Rise time: 5.5 ns ±1.5 ns Pulse width: 45 ns ±15 ns Set voltage: 4,600 V, frequency specified from 5 kHz to 100 kHz
Input residual voltage	10% or less of the setting pulse voltage, EUT line input is 50 Ω termination, line output is defined as open
AC Line Sync	Synchronous and asynchronous settings available. Setting phase angle: 0 to 360° ±10° 1° Step Synchronizable voltage: AC 85 V to rated voltage Reference phase: between L-N (A20 model), L1-L2 (B63 model)

Other specifications	Specification / Function
Emergency stop	Push lock type switch (test stop, EUT line OFF)
EUT FAIL function	FAIL signal from external (Hi → Lo) detected during test FAIL signal specifications VLo: 0 V, VHi: +5V Choose operation from test stop/pause when triggered 3 channels available for the FAIL input
External interface	REMOTE (For external PC control), CDN I/F (For external CDN), INDICATOR (For Warning lamp or Indicator lamp) EUT FAIL INPUT (For temporary pause at EUT failure event)
Accessary	Power Cable, SG Cable, Line Input Cable, Output Cable, Waveform Check Connector, Coaxial Cable, Operation Manual, Accessory bag
Operating environment	Temperature 15 to 35 °C, Relative humidity 25 to 75%
External dimension / Weight	W430 × H199 × D370 mm (excluding protrusions) / Approximately 14 kg (A20 model) and 22 kg (B63 model)
Power supply	AC100 to 240V ± 10% 50/60 Hz Approximately 120 VA
