NoiseKen ESS-S3011A Electrostatic Discharge Simulator & GT-30RB Discharge Gun – IEC 61000-4-2 ED 3.0 Compliant

.

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: ESS-S3011A + GT-30RB Categories: , Tag: Brand:

Description


The NoiseKen ESS-S3011A + GT-30RB is a complete ESD immunity testing system designed for compliance with IEC 61000-4-2 Edition 3.0.

This system includes both the ESS-S3011A simulator main unit and the GT-30RB discharge gun, allowing accurate and repeatable contact and air discharge testing straight out of the box. With its intuitive LCD front panel, multi-mode operation, and automated pre-check features, the ESS-S3011A delivers professional-grade performance for R&D, compliance, and production testing environments.

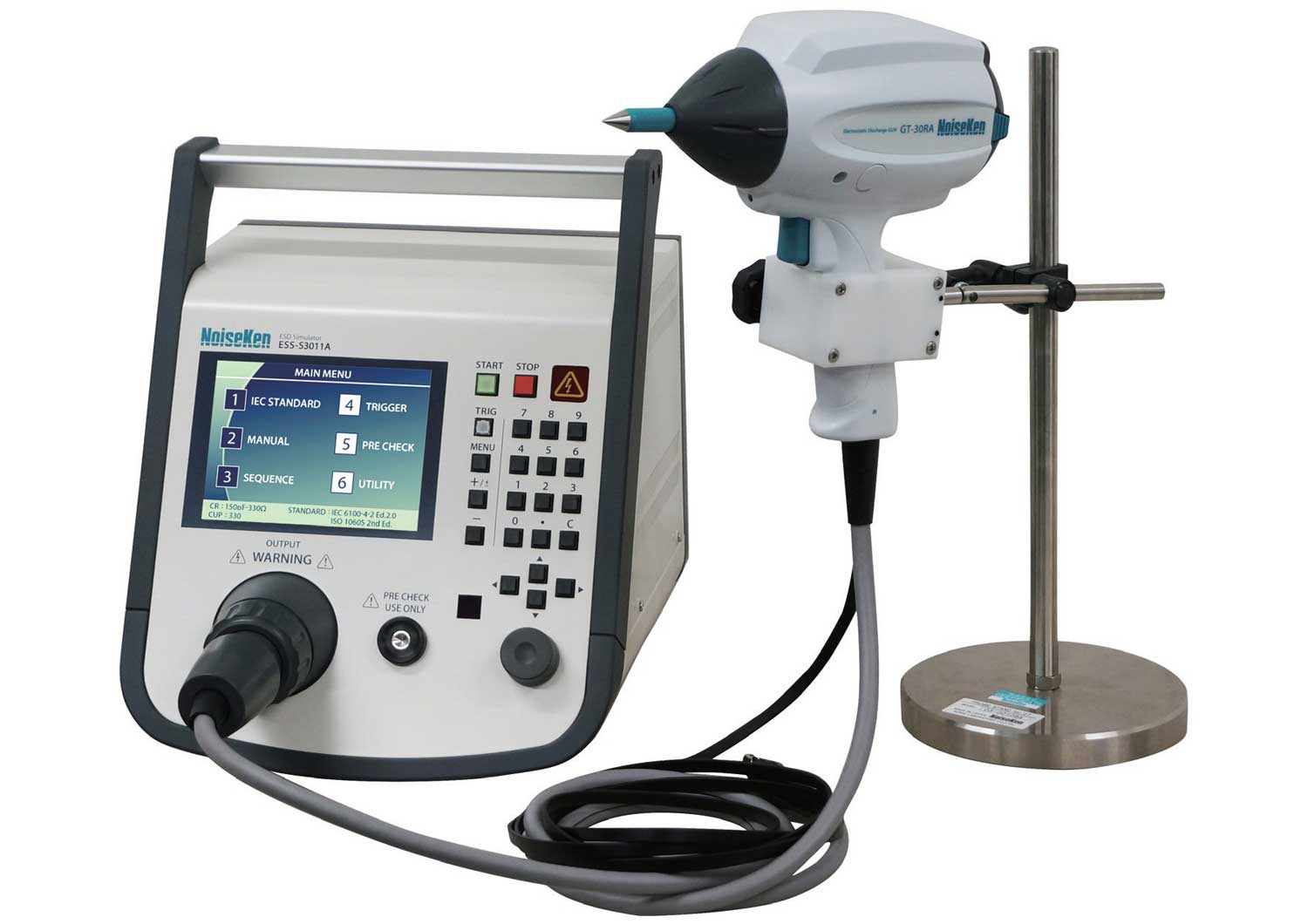

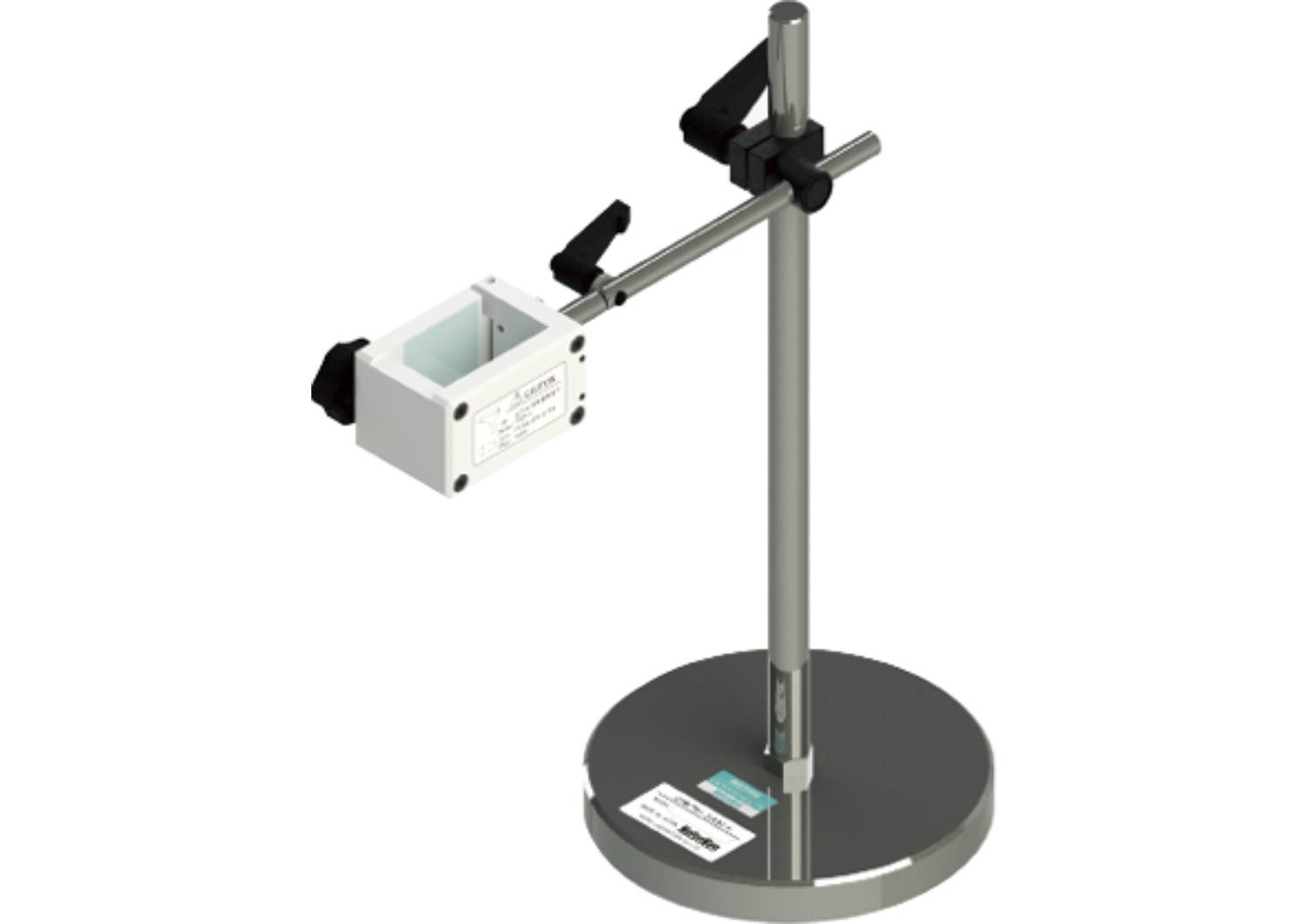

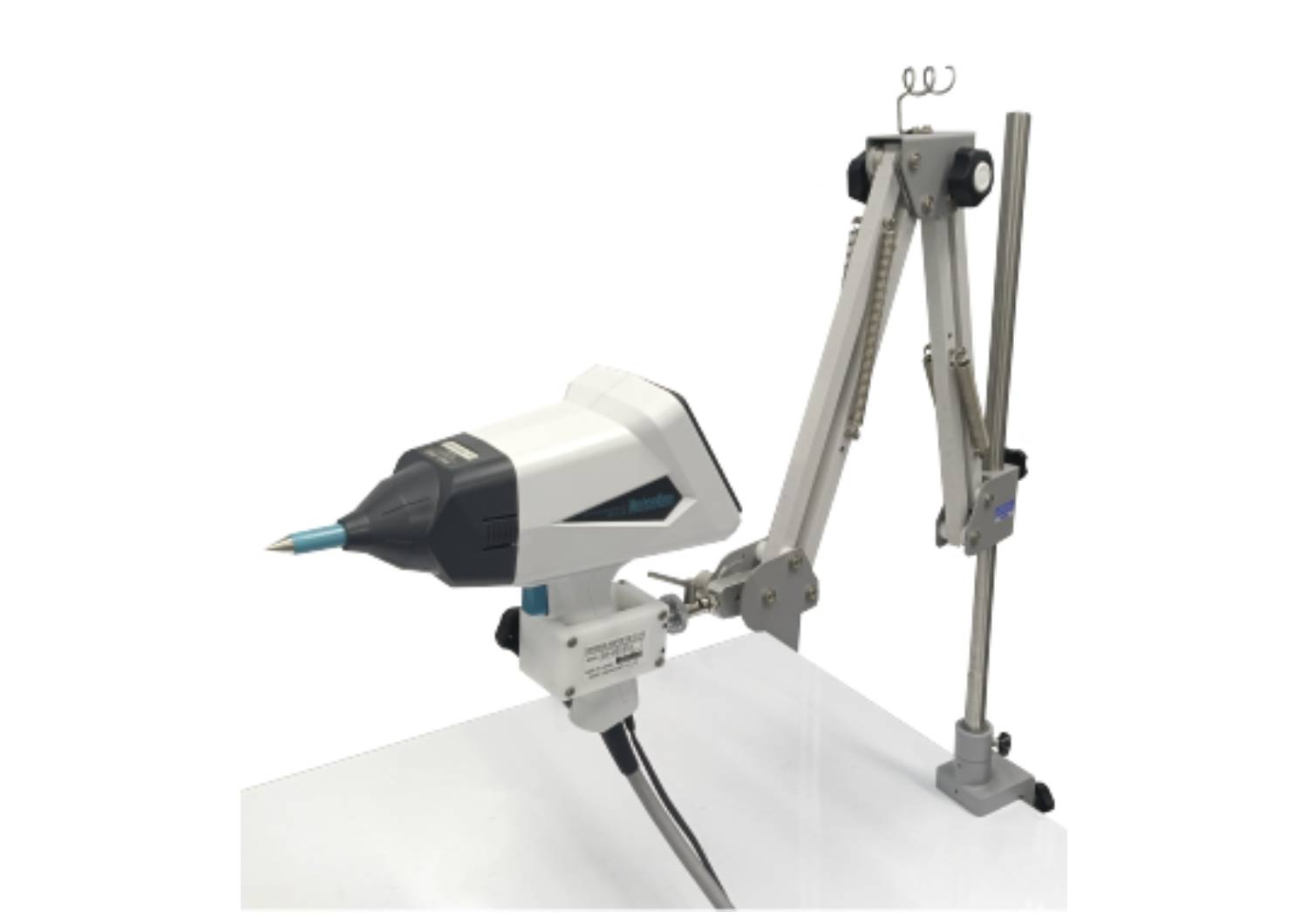

*Note, the Probe stand in the product image is a paid-for optional accessory.

Key Features
  • Complies with IEC 61000-4-2 Edition 3.0 for electrostatic discharge immunity testing.
  • Multiple operating modes – IEC Standard, Manual, and Sequence modes for flexible test setup.
  • Color LCD display and sloped control panel for improved usability.
  • Automatic CR & discharge cup recognition prevents configuration errors.
  • Pre-check function ensures correct setup before test execution.
  • Discharge detection function confirms valid discharges (air mode only).
  • Optical interface control available for PC remote operation.
  • Infrared remote controller (optional) for convenient remote triggering.
  • Compact, high-reliability design suitable for bench-top or production environments.
Short Specifications
  • Output Voltage: 0.2 kV – 30 kV (± polarity)
  • Discharge Modes: Contact / Air
  • Operation Modes: IEC Standard / Manual / Sequence
  • Display: 4.3-inch color LCD with keypad and rotary knob
  • Communication: Optical link (optional interface)
  • Power Supply: AC 100 – 240 V, 50/60 Hz
  • Dimensions: Approx. 280 (W) × 125 (H) × 350 (D) mm
  • Weight: Approx. 6 kg (main unit)
What’s Included
  • ESS-S3011A simulator main unit
  • GT-30RB discharge gun (with integrated 150 pF / 330 Ω CR unit)
  • 330 Ω discharge cup (attached)
  • Contact discharge tip (conical)
  • Air discharge tip (round)
  • Gun holder and mounting plate with screws
  • AC power cable
  • Instruction manuals
Compliance Standards
  • IEC 61000-4-2 Edition 3.0: Electromagnetic compatibility – Testing and measurement techniques – Electrostatic discharge immunity test.
Applications
  • Consumer electronics and industrial equipment – ESD immunity qualification to IEC 61000-4-2.
  • Laboratory and compliance testing – Pre-compliance, certification, and QA validation.
  • Research and product design – Reproducible ESD waveform evaluation.
  • Educational and training environments – Safe, precise ESD demonstration system.

Product Images

Achieve a more reliable test<br /> <br /> The new ESD simulator is equipped with 3 pre-check functions; “high voltage power output check”, “insulation failure check”, and “discharge relay operation check” on the main body and discharge gun. You can prevent troubles such as failing to perform the test properly; if you did not notice the failure of the tester body or the relay inside the discharge gun has reached the end of its life.

Achieve a more reliable test

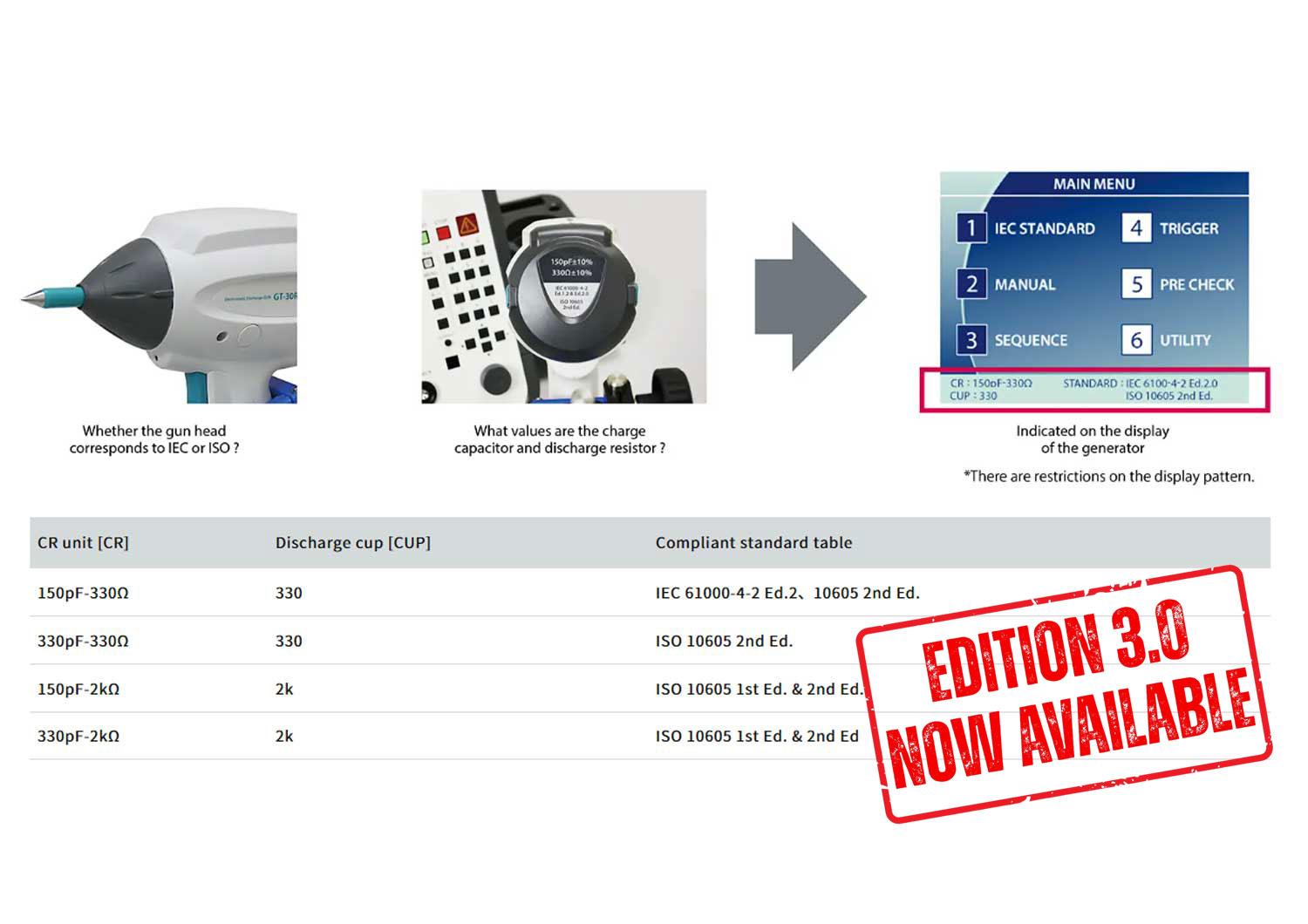

CR constant indicator<br /> <br /> The constants of the discharge resistance and discharge capacitor, which were previously disassembled and checked, are now displayed on the main unit screen. When the CR unit or discharge cup of the discharge gun is replaced, it is automatically recognized and the type of CR unit is determined. The CR unit and the discharge cup are identified separately, and if the combination complies with the standard, the conforming standard is displayed at the bottom of the main menu.

CR constant indicator

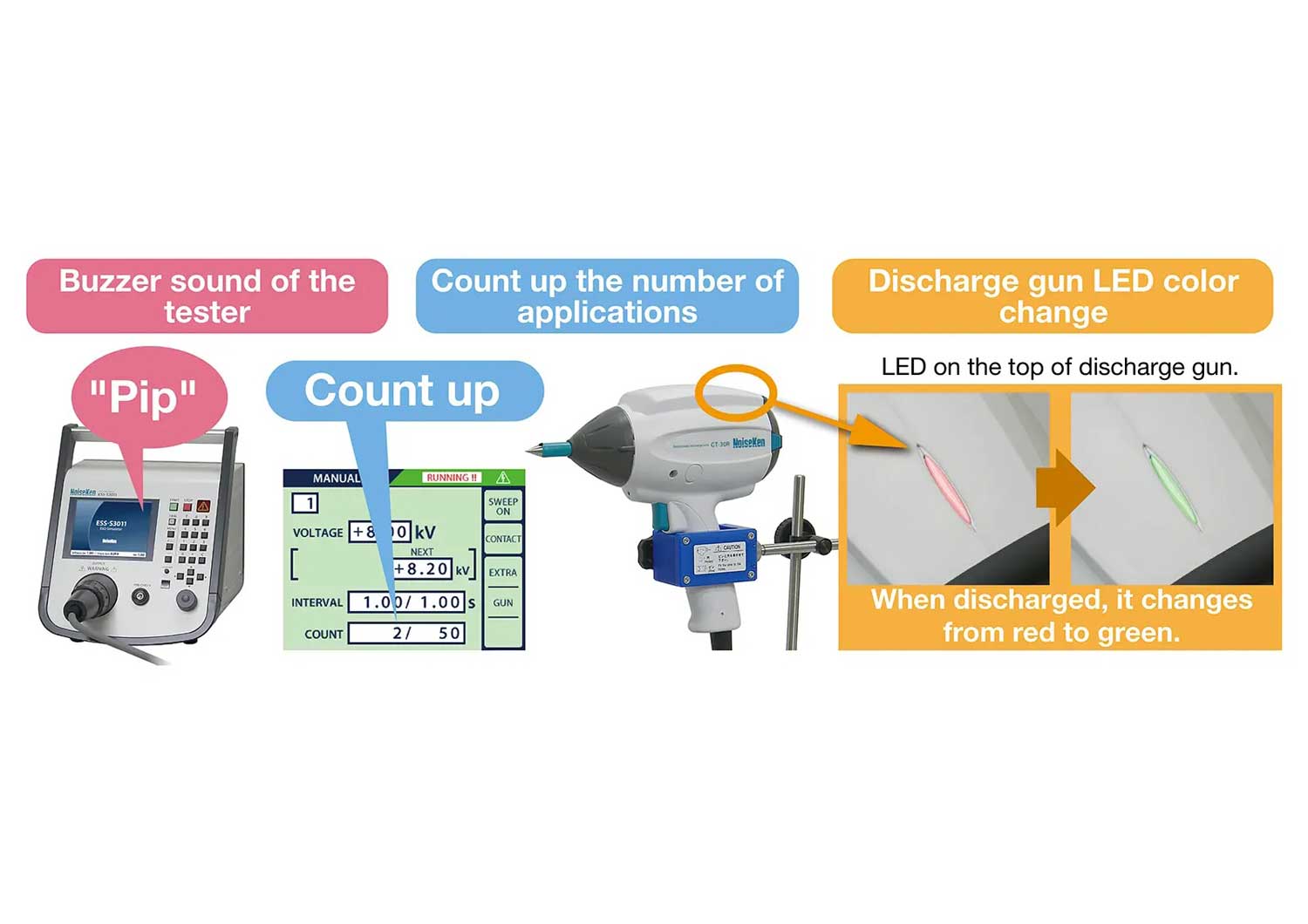

Discharge Detection Function<br /> <br /> It is possible to check the presence or absence of discharge during an air discharge test, which was difficult until now, by checking the buzzer sound from the tester and the LED display on the top of the discharge gun.

Discharge Detection Function

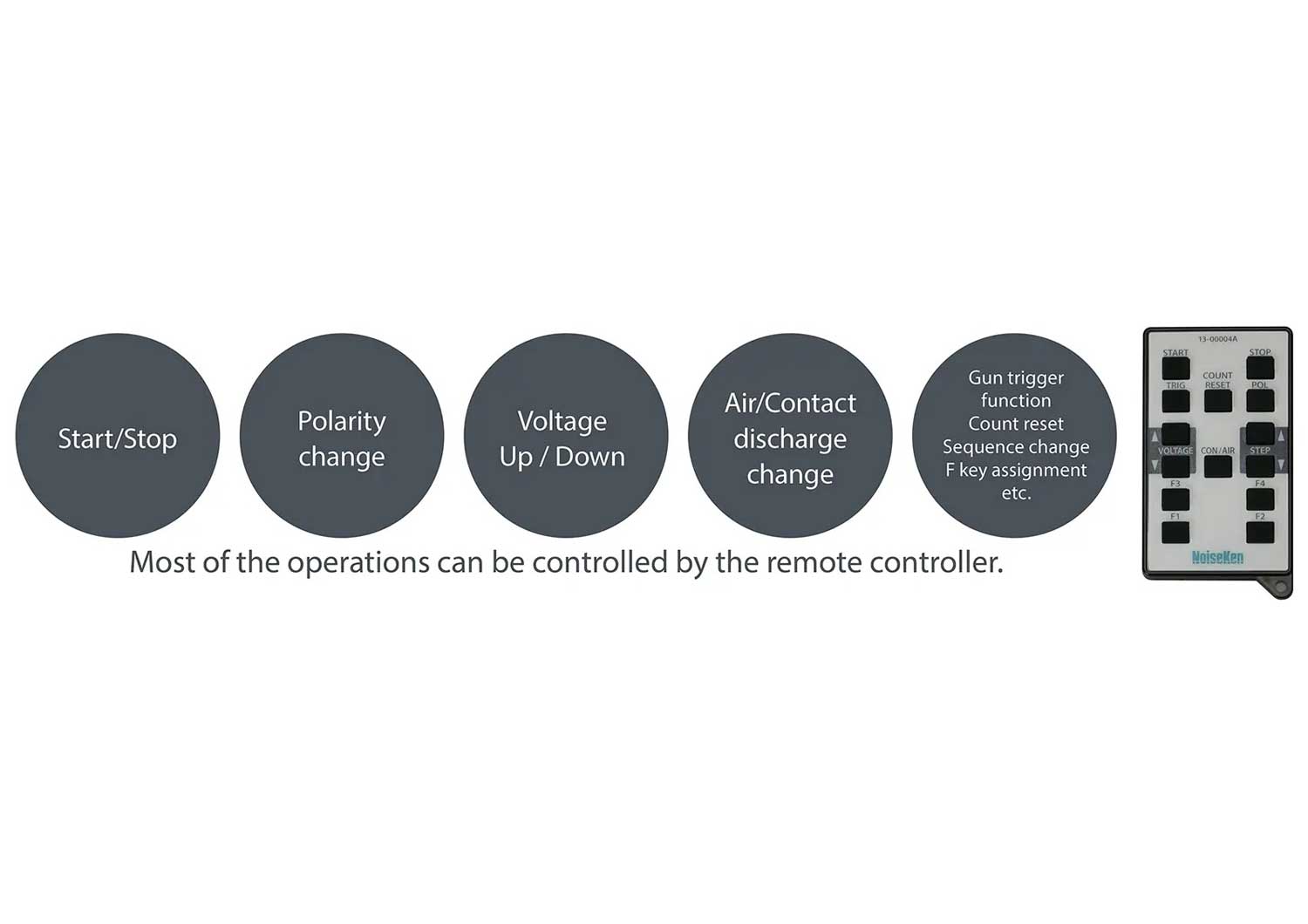

Infra-red Remote Controller<br /> <br /> Since you can operate the tester with the remote control without returning to the tester during the test, the test can proceed smoothly.

Infra-red Remote Controller

High visibility LCD Panel<br /> <br /> Reviewed the past operatability, adding Ten-key and Rotary knob realizing an easier and more comfortable operation. can be realized.<br /> <br /> In “1 IEC STANDARD” in MAIN MENU, since the test levels are present, the test parameters can be set easily only with selection of the test level. In “2 MANUAL”, voltage, number of times interval and sweep settings of the test can be selected and also the set conditions can be saved. In “3 SEQUENCE”, the set conditions in MANUAL can be recalled for combining them so as to realize the arbitrary sequential tests. In addition, varied functions like setting for gun trigger, automated ESD eliminator, etc. are equipped.

High visibility LCD Panel

×

Achieve a more reliable test

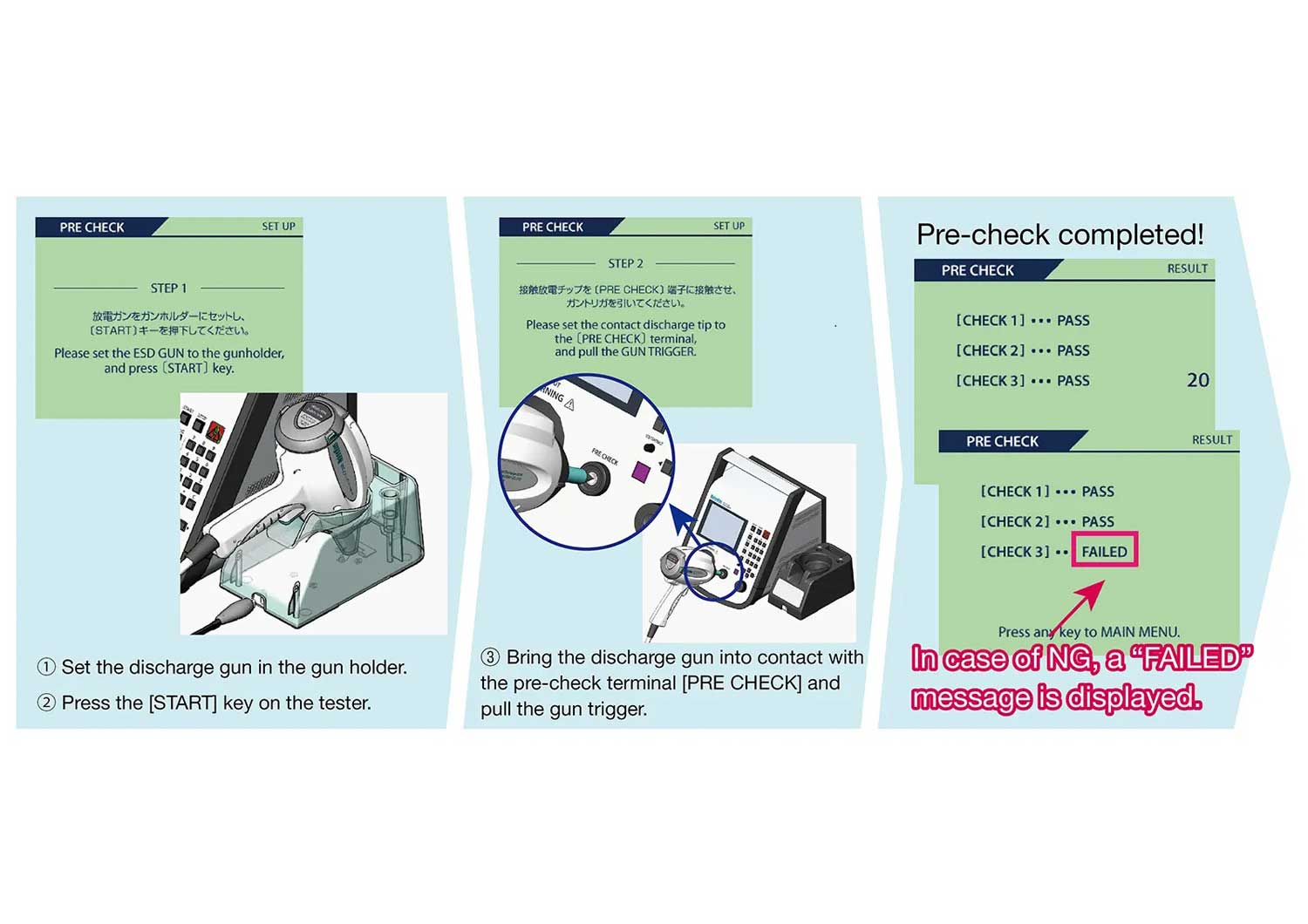

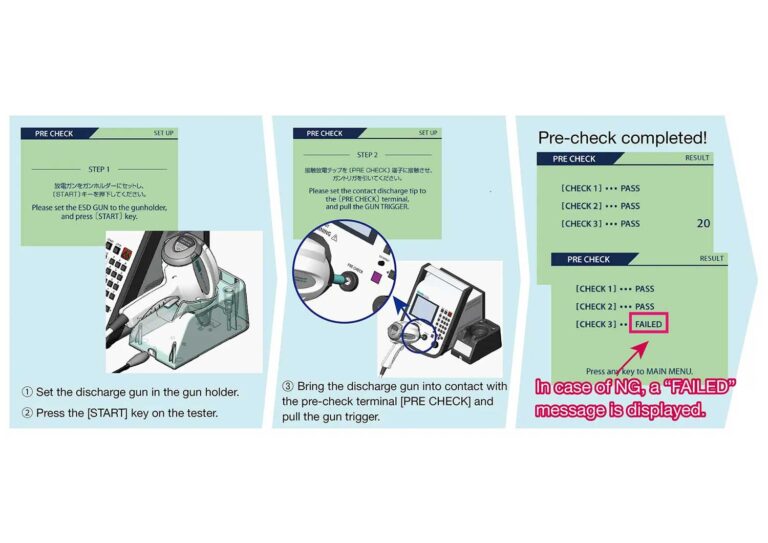

The new ESD simulator is equipped with 3 pre-check functions; “high voltage power output check”, “insulation failure check”, and “discharge relay operation check” on the main body and discharge gun. You can prevent troubles such as failing to perform the test properly; if you did not notice the failure of the tester body or the relay inside the discharge gun has reached the end of its life.
CR constant indicator

The constants of the discharge resistance and discharge capacitor, which were previously disassembled and checked, are now displayed on the main unit screen. When the CR unit or discharge cup of the discharge gun is replaced, it is automatically recognized and the type of CR unit is determined. The CR unit and the discharge cup are identified separately, and if the combination complies with the standard, the conforming standard is displayed at the bottom of the main menu.
Discharge Detection Function

It is possible to check the presence or absence of discharge during an air discharge test, which was difficult until now, by checking the buzzer sound from the tester and the LED display on the top of the discharge gun.
Infra-red Remote Controller

Since you can operate the tester with the remote control without returning to the tester during the test, the test can proceed smoothly.
High visibility LCD Panel

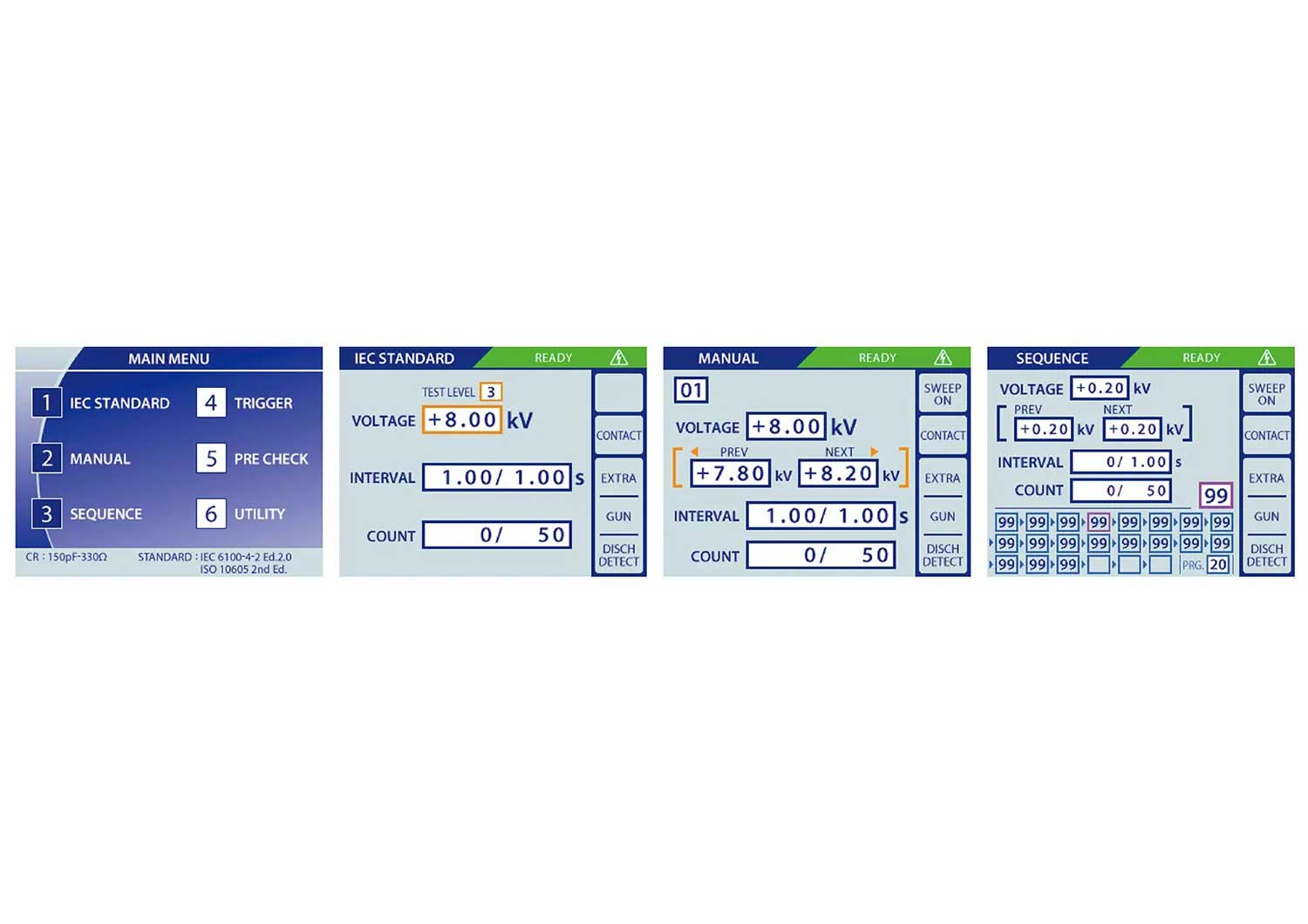

Reviewed the past operatability, adding Ten-key and Rotary knob realizing an easier and more comfortable operation. can be realized.

In “1 IEC STANDARD” in MAIN MENU, since the test levels are present, the test parameters can be set easily only with selection of the test level. In “2 MANUAL”, voltage, number of times interval and sweep settings of the test can be selected and also the set conditions can be saved. In “3 SEQUENCE”, the set conditions in MANUAL can be recalled for combining them so as to realize the arbitrary sequential tests. In addition, varied functions like setting for gun trigger, automated ESD eliminator, etc. are equipped.

Product Videos

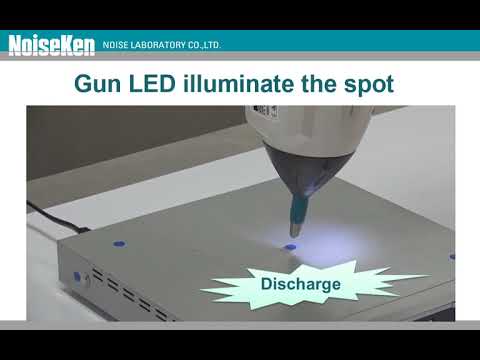

YouTube Video
Product Walkthrough
YouTube Video
ESS-S3011A
YouTube Video

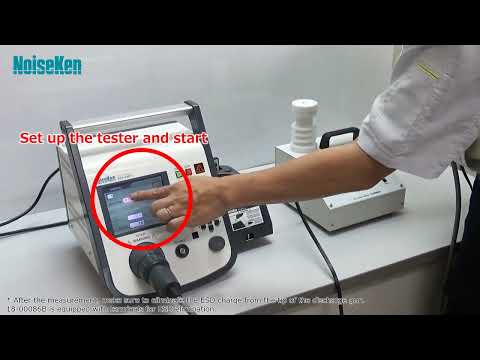

ESD Voltage Meter MODEL : 18-00086B
YouTube Video

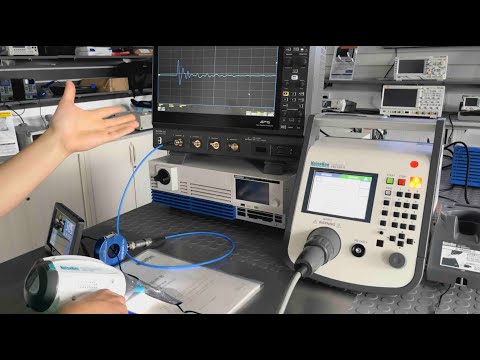

Using an ESD gun for troubleshooting immunities - Dr Min Zhang- Mach One Design EMC

Documentation


Parameter Specification
Polarity Positive / Negative
Output voltage 0.20 kV ~ 30.0 kV(30.5 kV max) *0.20kV ~ 1.99kV ±10% 2.00kV ~ 30.0kV ±5%
~ 10.0 kV : 0.01 kV step ~ 30.0 kV : 0.1 kV step
Repetition cycle 0.05s ~ 600s ±10% / Manual
Set step : 0.01s (0.05 ~ 9.99s), 0.10s (10.0 ~ 600.0s)
Discharge number of times 1 ~ 60,000 times, Preset 1 time step or continuous preset
Discharge mode Contact discharge / Air discharge
Radiation level mode NORMAL mode / EXTRA mode
Trigger mode Gun trigger / Main trigger / External trigger
Operation panel Colour LCD / Push-buttons (Partially lighting)
Gun holder Standard attached (to hold the discharge gun Model GT-30RA)
Radiation mode select switch Extra / Normal switching function built-in
Discharge detection Discharge detection function in air-discharge-equipped
Pre-checking function Following 3 steps function equipped (by user operation. Not the calibration, but just checking)
STEP 1: High voltage output checking
STEP 2: Withstanding voltage checking
STEP 3: Discharge relay operation checking
CR & Gun head checking CR constant and gun head recognisable
(indication to prevent a wrong combination)
“IEC STANDARD” test mode Contact discharge mode: 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV steps
Air discharge mode: 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV steps
“MANUAL” test mode Contact / Air discharge mode, Arbitrary setting 0.2 kV ~ 30.0 kV
Sweeping function built-in, Recordable up to 99 units
“SEQUENCE” test mode Enables continuous operation of units set to MANUAL mode.
Max. 22 steps / 1 program, and the programs are recordable up to 20.
Warning lamp Lighting at the voltage output from the generator.
Blinking at electrostatic discharging.
Charge capacitor/resistor 150 pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30RA)
Charge the resistor in the generator 10 MΩ (Totally 53Ω in combination with 43 MΩ in discharge gun) *
AUX connector D-SUB 15-pin female connector
(for connecting to Patolight, automated ESD eliminator,
external interlock input, external trigger input terminal)
Optical communication Optical connector (serial interface) for connecting to a PC connector
Power supply/consumption AC100 V ~ AC240 V 50 Hz / 60 Hz ±10% 75VA
Dimensions Generator : (W)392 mm × (H)312 mm × (D)295.3 mm (gun holder included)
Discharge gun : (W)83.3 mm × (H)217.2 mm × (D)229.3 mm
Weight Generator: approx. 7.5 kg (with Gun Holder)
Discharge gun: approx. 1080 g (cable and connector excluded)
