NoiseKen ESD voltage meter for measuring the hold time and output voltage of electrostatic testers

.

SKU: 18-00086B Categories: , , Brand:

Description


NoiseKen ESD voltage meter for measuring the hold time and output voltage of electrostatic testers

The ESD voltage meter MODEL: 18-00086B is a device that can measure the voltage holding time (holding voltage after 5 seconds) and output voltage, which are the tester specifications during the air discharge test in IEC 61000-4-2.

The measured voltage is displayed on a 7-segment LED with peak and holding voltage values.

Product Images

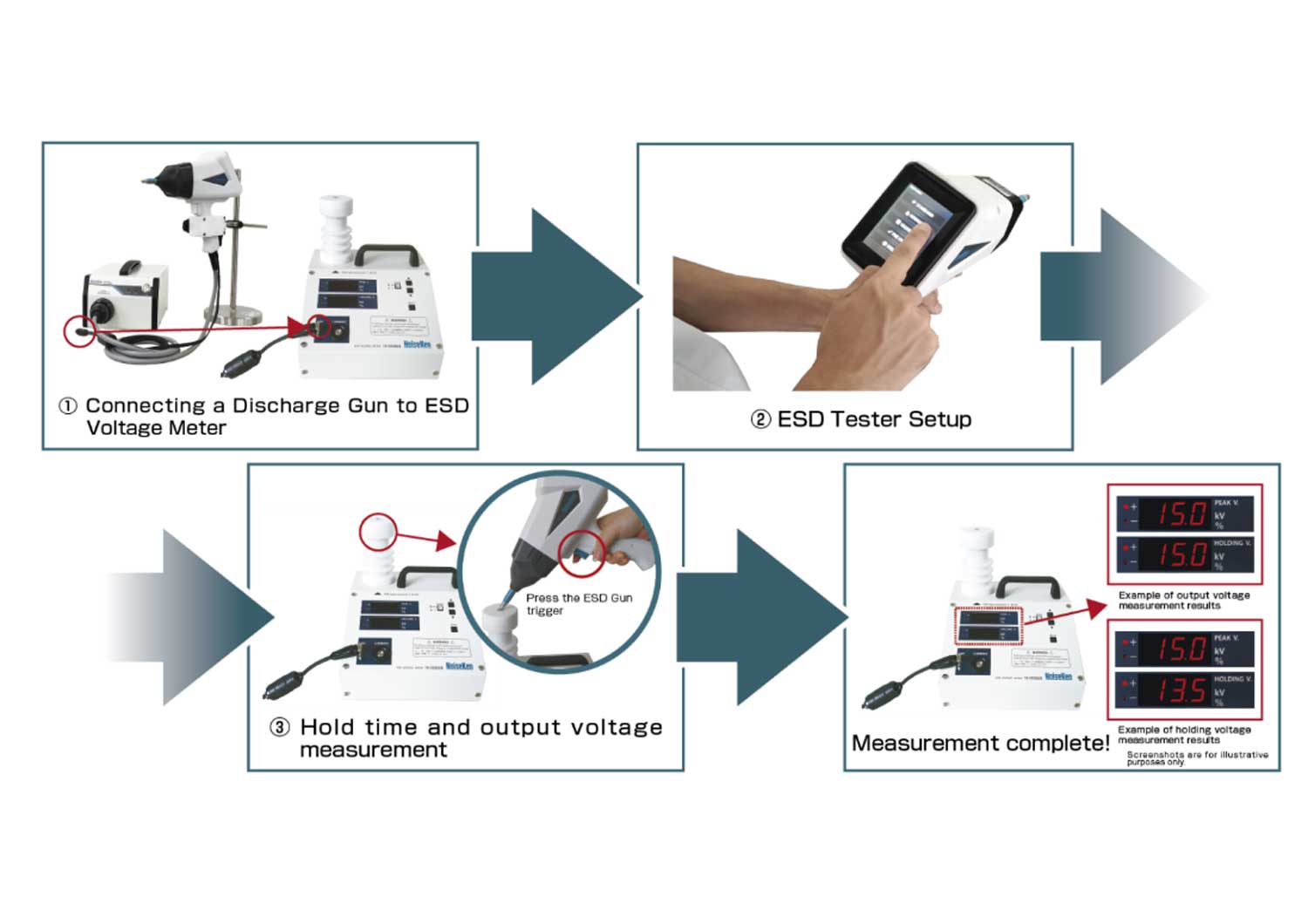

Easy measurement of tester specifications for the Air Discharge testing!<br /> <br /> Hold time measurement function<br /> <br /> IEC 61000-4-2 standard specifies the voltage “Hold Time” as a tester specification related to the Air discharge testing. The Hold Time is defined as “the time interval during which the output voltage decreases by 10% or less due to leakage before the discharge” and is required to be “at least 5 seconds”. By using this product, the voltage “hold time” can be easily measured. Also, the output voltage specified in the IEC 61000-4-2 Standard can be easily measured without using a high-voltage probe or voltmeter.

Easy measurement of tester specifications for the Air Discharge testing!

×

Easy measurement of tester specifications for the Air Discharge testing!

Hold time measurement function

IEC 61000-4-2 standard specifies the voltage “Hold Time” as a tester specification related to the Air discharge testing. The Hold Time is defined as “the time interval during which the output voltage decreases by 10% or less due to leakage before the discharge” and is required to be “at least 5 seconds”. By using this product, the voltage “hold time” can be easily measured. Also, the output voltage specified in the IEC 61000-4-2 Standard can be easily measured without using a high-voltage probe or voltmeter.

Product Videos

YouTube Video
ESD Voltage Meter MODEL : 18-00086B

Documentation


Parameter Functions / Performance
Input polarity Positive/Negative
Input voltage ±2kV – 30kV *Voltage value set at the electrostatic tester
Voltage display accuracy (voltage display mode) Within ±5% *for DC input
Display Voltage value: 7-segment LED 4 digits. Polarity: LED
Buzzer built-in
Monitor output BNC connector Approx. 1/10,000 (Approx. 3V output at 30kV input).
Output accuracy: ±20% of indicated voltage value
GND Terminal Conductive to the GND of the product housing
Elimination terminal Conductive to the GND of the product housing
Input resistance 1TΩ±20%
Voltage divider ratio Approx. 1/3,333
Check voltage setting range 2.0kV, 4.0kV, 8.0kV, 15.0kV, 20.0kV, 25.0kV, 30.0kV * Input voltage threshold is 1/2 of the set check voltage value
Hold time setting range 5.0 – 30.0 sec.
Power supply AC100V ~ 240V±10% 50Hz / 60Hz
Power consumption 13VA
Operating temperature range +15°C – +35°C
Operating humidity range 30%RH to 60%RH (no condensation)
External dimensions (W)220mm x (H)256.5mm x (D)230mm (excluding protrusions)
Mass Approx. 2kg
