NoiseKen EPS-02Ev3s Simplified Electromagnetic Field Visualisation System

Description

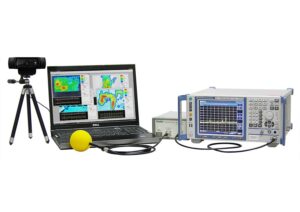

NoiseKen EPS-02Ev3s Simplified Electromagnetic Field Visualisation System

Three-Dimensional Indication (Time, Frequency, Amplitude) Simplifies EMC/EMI Debugging

EPS is an EMC/EMI debugging tool enabling designers to rapidly perform pre-measurement, failure point identification, and efficiency improvement confirmation in the EMC/EMI countermeasure process of product design.
How does it work? The software detects locations of probes by colour discrimination through the camera’s image sensors*, real-time analysis measures signal frequency, and shows a heat map by overlapping electromagnetic field strength and real images of measured objects.

*location detection method based on Patent Application 2007-223275 by National University Corporation Kanazawa University and Patent 5205547 by Noise Laboratory Co, Ltd.

Key Features

Visual EMI/EMC debugging – Real-time electromagnetic field mapping displayed as a heatmap over the test object.
Spectrum superimposition function – Display and compare up to three frequency spectra simultaneously (highest peak, range maximum, and pointer-designated point).
3D visualization (time, frequency, amplitude) – Detects transient or intermittent noise for advanced analysis.
Density display function – Highlights frequency of noise occurrences to quickly identify persistent emissions.
Comment and marker system – Annotate test points and record countermeasure effectiveness directly in the software.
Easy before/after comparison – Overlay previous measurements and highlight differences in colour.
Image recognition alignment – Automatic probe-tip detection and camera alignment for repeatable measurements.
Enhanced data analysis tools – Real-time, Max Hold, and Max Peak data views; simultaneous waveform display.
Supports external CAD integration – Measurement data can be exported and overlaid on CAD models.

Short Specifications

Measurement Frequency Range: Depends on spectrum analyser and probe specifications.
Measurement Units: dBμV, dBm.
Recording Modes: Single, Free Run, Max Hold, Max Peak Data.
Compatible OS: Microsoft® Windows® 7-10 (English or Japanese versions).
Recommended PC Specs: Intel® Core™ i5 or higher (i7 recommended), 8 GB RAM, Full HD display.
Auxiliary Functions: Save/load/export, comment input, camera image inversion, ghost overlay, zoom functions.
Communication Interfaces: LAN and USB connections (to camera, analyser, and PC).

What's Included

EPS-02Ev3 software package with license key (USB protection dongle)
Web camera for visual mapping
Camera tripod and extension pole
USB extension cable (2m) and LAN cable (2m)
Setup media and Quick Start Guide
Compatible probe set and preamplifier sold separately (consult for configurations)

Compliance & Compatibility

Measurement Support: Meets the needs of EMC/EMI pre-compliance diagnostics and countermeasure verification.
Analyser Compatibility: Supports multiple standard-compliant spectrum analysers and EMI receivers per CISPR 22 / CISPR 32 frameworks.

Applications

EMC/EMI debugging and analysis – Identify hot spots, noise sources, and coupling paths on PCBs and devices.
Pre-compliance verification – Evaluate emissions before official testing to save certification time and cost.
Design optimization – Validate countermeasures such as ferrite cores, capacitors, or shielding directly on prototypes.
Automotive electronics – Localize noise sources on ECUs, harnesses, and vehicle systems.
Educational and research environments – Visualize electromagnetic behaviour for study and demonstration.

Product Images

Easy Comparison Before and After Countermeasures

Measurement in Different Sizes

Easily Check the Noise Occurrence Frequency

Simplified EMC/EMI Debugging

Product Videos

Electromagnetic Field Visualization System - EPS-02Ev3

Standard Hardware Accessories

Optional Hardware Accessories

Documentation

Catalogues

EPS-02Ev3 Catalogue

User Manuals

EPS-02Ev3 UserManual

Item	Specification
Frequency range	100kHz ~ 3GHz *Depends on the electromagnetic field probe specifications (The above is for ETS probes)
Measurement unit	dBμV, dBm
Sensor/probe	φ60 / 30 / 10mm loop coil (magnetic field), φ36mm ball (electric field), φ6mm tip (electric field). Total 5 types *Depends on electromagnetic probe specifications (Probe by ETS-Lindgren)
Probe cable length	2m (N(P)-BNC(P) (Coaxial connector cable)
Data recording method	Single / Free Run / Max Hold / Max Peak Data*
Auxiliary function	Save / load / export / comment input / factor re-read / camera image retake / Save / load / export / comment input / factor re-read / camera / image retake / up-down & right-left inversion of camera image / ghost display of camera image / Screen enlargement-reduction
Compatible operating system	Windows 7 / 10
System configuration	Electromagnetic field probe (PN 7405), BNC (P) -N (P) connector coaxial cable (02-000150A), Three Colour Probe Head Covers (03-00111A), RF preamplifier (00-00019A), Spectrum analyser, Control PC
accessories	LAN cable, NI-GPIB-USB-HS GPIB Controller, Camera, USB cable extension 2 m for camera, Tripod for camera, Software, USB protect key, Instruction manual
OS	Microsoft® Windows® 7 32-bit / 64-bit (Eng/Jap) Microsoft® Windows® 10 32-bit / 64-bit (Eng/Jap)
CPU	Intel Core™ i5 or higher (i7 or higher recommended)
Memory	8 GB or more recommended
Hard Disc	min. 20 GB of free space
Display	over 1366 × 768 pixels
