MICROTEST 8761NK-512P 512-Pin 4-Wire Cable & Harness Tester, 1 kV DC

£6128.00 (£7353.60 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: 8761NK-512P Categories: , Brand:

Compare with other Cable & Harness Testers

SKUImageMeasurementsTest PinsContinuityAC FlashDC FlashInsulation ResistanceStockPrice
8761NK-512PNewImage of Microtest 8761k 512p front telonicuk4-wire5121 mΩ–52 ΩN/A50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£6,128.00
8740FA-128PNewImage of Microtest 8740 128p front telonicuk2-wire1281 mΩ–52 Ω100–1,000 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£1,715.00
8740FA-256PNewImage of Microtest 8740 256p front telonicuk2-wire2561 mΩ–52 Ω100–1,000 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£2,328.00
8740FA-512PNewImage of Microtest 8740 512p front telonicuk2-wire5121 mΩ–52 Ω100–1,000 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£3,677.00
8740N-128PNewImage of Microtest 8740 128p front telonicuk2-wire1281 mΩ–52 ΩN/A50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£1,348.00
8740N-256PNewImage of Microtest 8740 256p front telonicuk2-wire2561 mΩ–52 ΩN/A50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£1,593.00
8740N-512PNewImage of Microtest 8740 512p front telonicuk2-wire5121 mΩ–52 ΩN/A50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£2,818.00
8740NA-128PNewImage of Microtest 8740 128p front telonicuk2-wire1281 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£1,471.00
8740NA-256PNewImage of Microtest 8740 256p front telonicuk2-wire2561 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£1,961.00
8740NA-512PNewImage of Microtest 8740 512p front telonicuk2-wire5121 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1 GΩOn Backorder£3,187.00
8740NAK-1024PNewImage of Microtest 8740k 1024p front telonicuk2-wire10241 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1.2 GΩOn Backorder£5,515.00
8740NK-1024PNewImage of Microtest 8740k 1024p front telonicuk2-wire10241 mΩ–52 ΩN/A50–1,000 V / 0.1–1,000 µA0.1 MΩ–1.2 GΩOn Backorder£4,902.00
8761FA-128PNewImage of Microtest 8761 128p front telonicuk4-wire1281 mΩ–52 Ω100–1,000 V / 0.01–5 mA50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£2,574.00
8761FA-256PNewImage of Microtest 8761 256p front telonicuk4-wire2561 mΩ–52 Ω100–1,000 V / 0.01–5 mA50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£3,677.00
8761FA-64PNewImage of Microtest 8761 64p front telonicuk4-wire641 mΩ–52 Ω100–1,000 V / 0.01–5 mA50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£2,084.00
8761N-128PNewImage of Microtest 8761 128p front telonicuk4-wire1281 mΩ–52 ΩN/A50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£2,205.00
8761N-256PNewImage of Microtest 8761 256p front telonicuk4-wire2561 mΩ–52 ΩN/A50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£3,309.00
8761N-64PNewImage of Microtest 8761 64p front telonicuk4-wire641 mΩ–52 ΩN/A50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£1,838.00
8761NA-128PNewImage of Microtest 8761 128p front telonicuk4-wire1281 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£2,328.00
8761NA-256PNewImage of Microtest 8761 256p front telonicuk4-wire2561 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£3,431.00
8761NA-64PNewImage of Microtest 8761 64p front telonicuk4-wire641 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£1,961.00
8761NAC-128PNewImage of Microtest 8761nac 128p front telonicuk4-wire USB-C1281 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1.2 GΩOn Backorder£2,574.00
8761NAC-64PNewImage of Microtest 8761nac 64p front telonicuk4-wire USB-C641 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,000 µA0.1 MΩ–1.2 GΩOn Backorder£2,084.00
8761NAK-512pNewImage of Microtest 8761k 512p front telonicuk4-wire5121 mΩ–52 Ω100–700 V / 0.01–5 mA50–1,000 V / 0.1–1,200 µA0.1 MΩ–1.2 GΩOn Backorder£6,683.00

Description


MICROTEST 8761NK-512P 512-Pin 4-Wire Cable & Harness Tester, 1 kV DC

The MICROTEST 8761NK-512P is a 512-pin 4-wire cable and wire harness tester with continuity measurement from 1 mΩ to 52 Ω. Separate current and voltage-sense connections reduce the effect of fixture lead resistance when checking low-resistance conductors and contacts. It provides DC Hipot testing up to 1 kV, insulation resistance covering 0.1 MΩ–1.2 GΩ, open/short testing, intermittent-fault detection and resistor, capacitor and diode checks. The 512-point K configuration provides additional connection capacity in a 435 × 270 × 360 mm enclosure. A separate low-resistance scanning function covers 10 mΩ to 52 Ω at 10 mA. Storage for up to 500 test files and RS-232, USB Host, printer and remote interfaces support repeat production work.

Key Features
  • 4-wire measurement with 512 test-point configurations.
  • Continuity resistance from 1 mΩ to 52 Ω, with a 10 mA measurement current.
  • Open/short, intermittent continuity, intermittent open/short, single-side testing and terminal judgement.
  • K enclosure with 16 front connector slots for high connection-count fixtures.
  • Low-resistance scanning from 10 mΩ to 52 Ω at 10 mA.
  • NK: DC Hipot up to 1 kV; NAK: up to 700 V AC and 1 kV DC.
  • Insulation resistance covering 0.1 MΩ–1.2 GΩ.
  • Component checks: resistance 50 mΩ–20 MΩ, capacitance 10 pF–12 µF and diode voltage 0.1–6.8 V.
  • Automatic circuit learning for connection-pattern inspection.
  • Up to 500 stored test files, programmable continuous testing, pin search and self-diagnosis.
  • RS-232, USB Host, Print and Remote interfaces; optional PC Link and production accessories.
Applications
  • Production inspection of cable and wire harness assemblies with up to 512 test points.
  • Low-resistance conductor and contact checks using four-wire fixtures.
  • Electrical inspection of automotive and consumer-electronics harnesses, connectors and flexible flat cables.
  • Detecting intermittent connections during handling or movement of the assembly.
  • Checking resistors, capacitors and diodes incorporated into cable assemblies.
  • Dielectric-strength and insulation testing within the selected model’s ratings.

Product Images

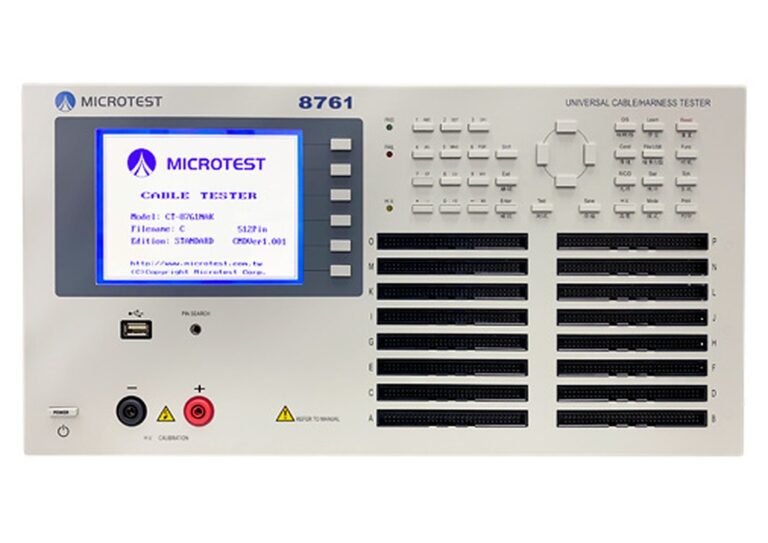

The 8761K configuration provides 512 test points using 4-wire measurement. Its 270 mm-high enclosure accommodates 16 front connector slots.

512 test points for larger cable assemblies

Separate current and voltage-sense connections reduce fixture lead resistance errors. Continuity measurement from 1 mΩ to 52 Ω supports low-resistance cable and connector checks.

Four-wire measurement down to 1 mΩ

Check that intended connections are present and unintended connections are absent. Automatic circuit learning helps establish the wiring pattern for inspection.

Identify open and short circuits

Apply DC Hipot and insulation resistance tests across the series. NA models add AC testing up to 700 V; FA models reach 1 kV AC and 1.5 kV DC. N models provide DC testing only.

Check dielectric strength and insulation

Measure resistors, capacitors and diodes incorporated into cable assemblies. Component ranges include resistance from 50 mΩ to 20 MΩ and capacitance from 10 pF to 12 µF.

Test components within the assembly

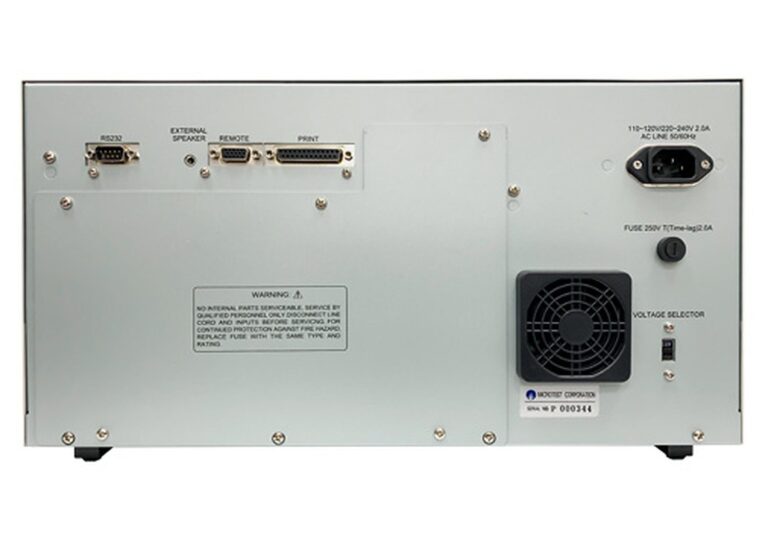

RS-232, USB Host, printer and remote interfaces support a production test station. Optional PC Link, networking and remote-control accessories can be selected for the installation.

Interfaces for production integration

×

The 8761K configuration provides 512 test points using 4-wire measurement. Its 270 mm-high enclosure accommodates 16 front connector slots.
Separate current and voltage-sense connections reduce fixture lead resistance errors. Continuity measurement from 1 mΩ to 52 Ω supports low-resistance cable and connector checks.
Check that intended connections are present and unintended connections are absent. Automatic circuit learning helps establish the wiring pattern for inspection.
Apply DC Hipot and insulation resistance tests across the series. NA models add AC testing up to 700 V; FA models reach 1 kV AC and 1.5 kV DC. N models provide DC testing only.
Measure resistors, capacitors and diodes incorporated into cable assemblies. Component ranges include resistance from 50 mΩ to 20 MΩ and capacitance from 10 pF to 12 µF.
RS-232, USB Host, printer and remote interfaces support a production test station. Optional PC Link, networking and remote-control accessories can be selected for the installation.

Product Videos

YouTube Video
MICROTEST | 8761 Cable Tester

Documentation

Application Notes


Specification 8761NK 8761NAK
Measurement method 4-wire 4-wire
Available test points 512 512
AC Hipot voltage Not available 100–700 V
DC Hipot voltage 50–1,000 V 50–1,000 V
AC Hipot leakage current Not available 0.01–5 mA
AC arc detection settings Not available 1–48
DC Hipot leakage current 0.1–1,200 µA 0.1–1,200 µA
DC arc detection settings 1–48 1–48
Insulation resistance 0.1 MΩ–1.2 GΩ 0.1 MΩ–1.2 GΩ
Hipot output accuracy ±5% ±5%
Hipot measurement basic accuracy ±5% ±5%
Rated output (manufacturer description) 5 V DC 5 V DC
Hipot measurement time 0.01–60 s 0.01–60 s
Maximum allowable DUT capacitance 5 µF 5 µF
Continuity resistance 1 mΩ–52 Ω 1 mΩ–52 Ω
Continuity test current 10 mA 10 mA
Intermittent continuity 20 Ω–2 kΩ 20 Ω–2 kΩ
O/S, intermittent O/S and quick intermittent open circuit 1–100 kΩ 1–100 kΩ
Single-side testing and O/S terminal judgement Supported Supported
Component resistance 50 mΩ–20 MΩ 50 mΩ–20 MΩ
Resistance signal 0.1–3 V 0.1–3 V
Component capacitance 10 pF–12 µF 10 pF–12 µF
Capacitance signal 0.1–1.2 V 0.1–1.2 V
Capacitance frequency AUTO; optional 48 Hz / 480 Hz / 4.8 kHz / 48 kHz AUTO; optional 48 Hz / 480 Hz / 4.8 kHz / 48 kHz
Diode voltage 0.1–6.8 V 0.1–6.8 V
Test files Up to 500 Up to 500
Display 320 × 240 dot-matrix 320 × 240 dot-matrix
Advanced functions Programmable continuous testing / pin search / self-diagnosis Programmable continuous testing / pin search / self-diagnosis
Scan modes Automatic / manual / external trigger Automatic / manual / external trigger
Controls System / Rapid / Edit / Function System / Rapid / Edit / Function
Indication Pass/Fail and HV indicators / screen / sound Pass/Fail and HV indicators / screen / sound
Operation Manual / automatic / remote Manual / automatic / remote
Interfaces RS-232 / USB Host / Print / Remote RS-232 / USB Host / Print / Remote
PC Link Supported; software is an optional ordering item Supported; software is an optional ordering item
Supply 115 / 230 V AC ±10%, 50 / 60 Hz 115 / 230 V AC ±10%, 50 / 60 Hz
Operating environment 15–35°C; ≤70% RH 15–35°C; ≤70% RH
Low-resistance scanning 10 mΩ–52 Ω at 10 mA 10 mΩ–52 Ω at 10 mA
Power consumption 250 VA 250 VA
Dimensions W × H × D 435 × 270 × 360 mm 435 × 270 × 360 mm
Weight 18 kg 18 kg
Voltage qualification Manufacturer note: at a 5 MΩ setting or below 5 µA, maximum test voltage is 650 V; AC tolerance setting range 0.01–5 mA. Consult the manual for the test conditions. Manufacturer note: at a 5 MΩ setting or below 5 µA, maximum test voltage is 650 V; AC tolerance setting range 0.01–5 mA. Consult the manual for the test conditions.
