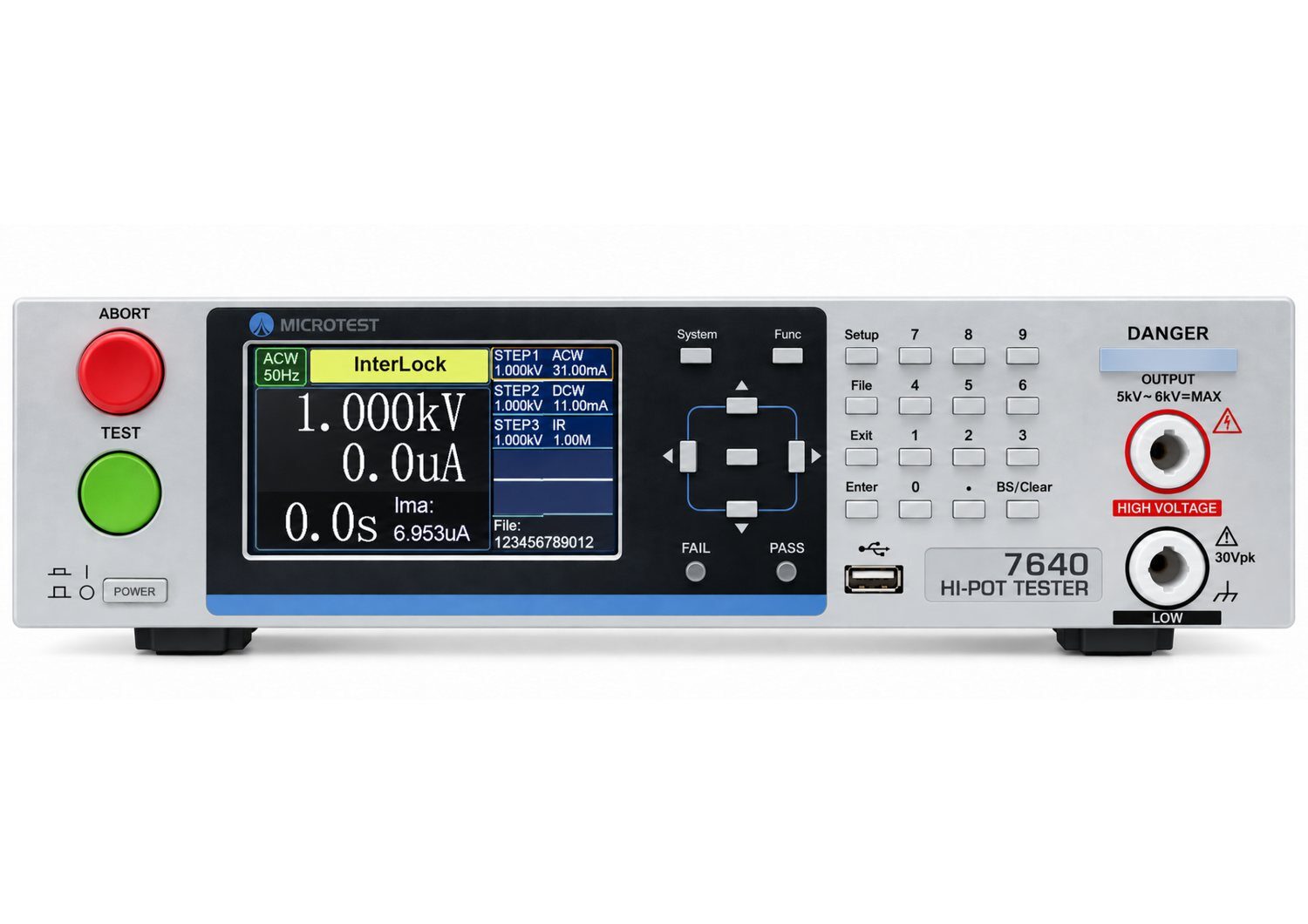

Image of Microtest 7640 final telonicuk

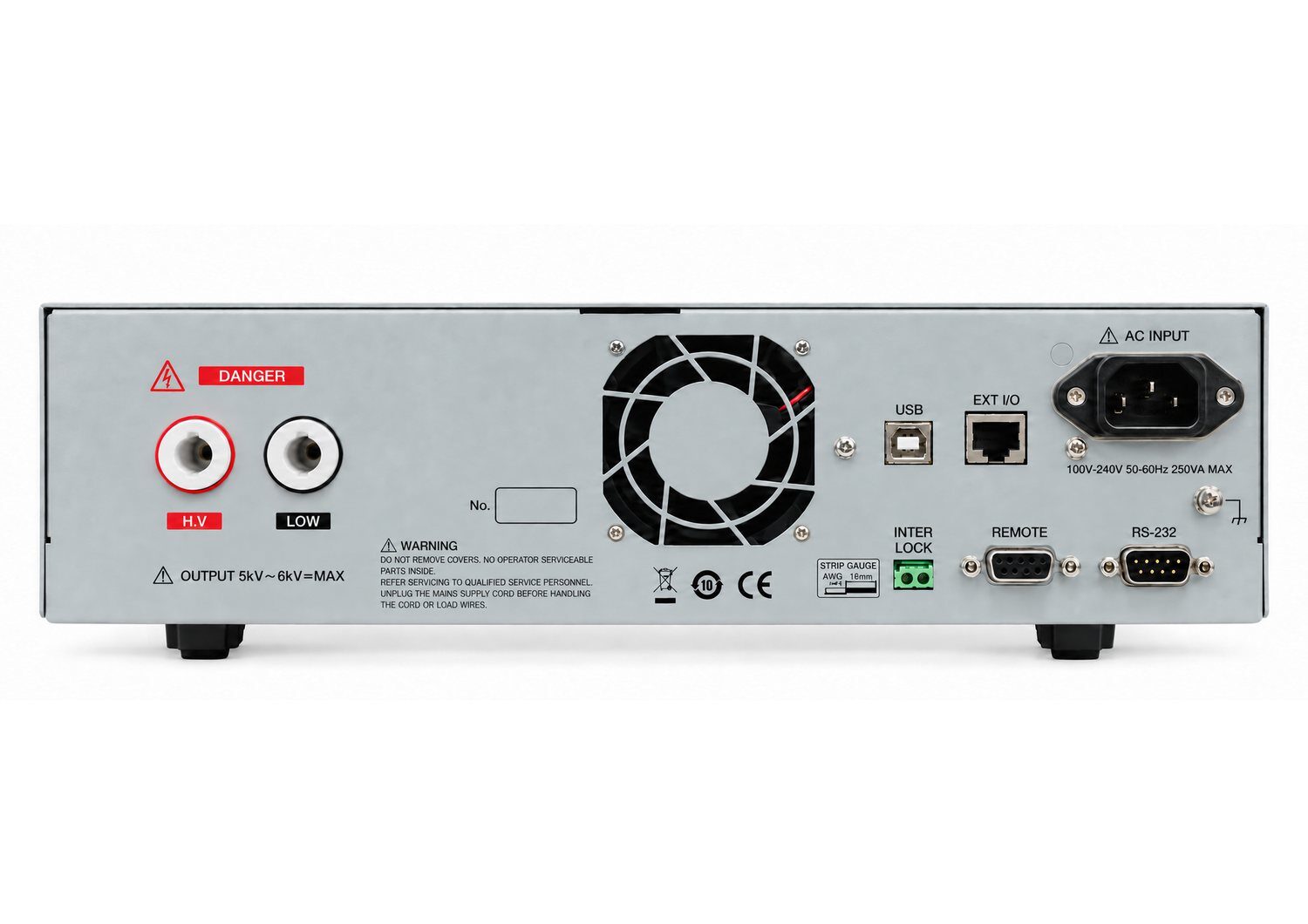

Image of Microtest 7640 rear telonicuk

MICROTEST 7640 1-Channel 5kV AC / 6kV DC / 100GΩ Hi-Pot Tester

.

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: MICROTEST-7640 Categories: , Brand:

Description


MICROTEST 7640 1-Channel 5kV AC / 6kV DC / 100GΩ Hi-Pot Tester

The MICROTEST 7640 is a single-channel, three-in-one electrical safety tester that combines AC withstand voltage, DC withstand voltage, and insulation resistance testing in one production-ready instrument. It delivers up to 5kV AC at 30 mA, 6kV DC at 10 mA, and insulation-resistance measurements from 200 kω to 100 GΩ.

Designed for component, cable, motor, appliance and power-electronics testing, the 7640 combines programmable test sequences with adjustable arc detection, True RMS measurement and a safety interlock. Its colour TFT display, internal file storage, USB host/device connectivity, RS-232, remote control and EXT I/O make it suitable for both engineering benches and integrated production systems.

Key Features
  • Three-in-one AC withstand, DC withstand and insulation-resistance testing
  • AC hipot output from 10V to 5000V, with up to 30mA rated current
  • DC hipot output from 10V to 6000V, with up to 10mA rated current
  • Insulation-resistance testing from 200kΩ to 100GΩ
  • Choice of single-channel 7640 or eight-channel 7641
  • 7641 expandable to as many as 72 channels with compatible 7508A or 7516A scanner boxes
  • Programmable ramp, dwell and fall times from 0.1 to 99.9 seconds
  • Adjustable arc detection with OFF and sensitivity levels 1 to 9
  • True RMS measurement and fixture-leakage compensation
  • Safety interlock protection
  • 4.3-inch, 480 × 272 colour TFT display
  • RS-232, Remote, USB Host, USB Device and EXT I/O interfaces
  • Internal test-program storage and removable USB storage
  • PC connectivity for remote programming, control and test-data logging
Applications
  • Transformers, inductors, capacitors and filters
  • Motors, stators, rotors and coil insulation
  • Wires, cables, insulation materials and high-voltage connectors
  • High-voltage harnesses and multi-terminal assemblies
  • Household appliances and power supplies
  • Automotive power boards and battery flexible PCBs
  • New-energy vehicle electrical assemblies
  • Engineering validation and safety-compliance testing
  • Quality control and automated production-line testing
  • Multi-point and parallel testing with the 7641

Product Images

Perform AC hi-pot, DC hi-pot and insulation-resistance testing from one platform.

Three safety tests in one

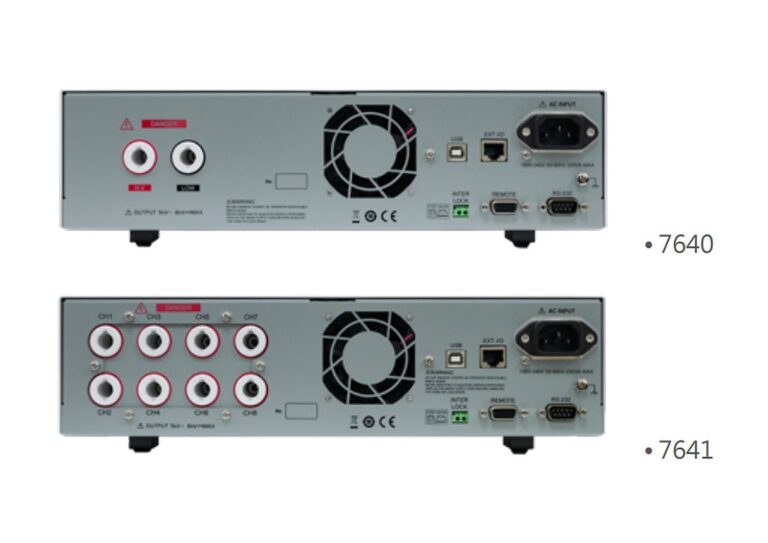

The 7640 provides one test channel, while the 7641 provides eight configurable channels.

Choose the right channel count

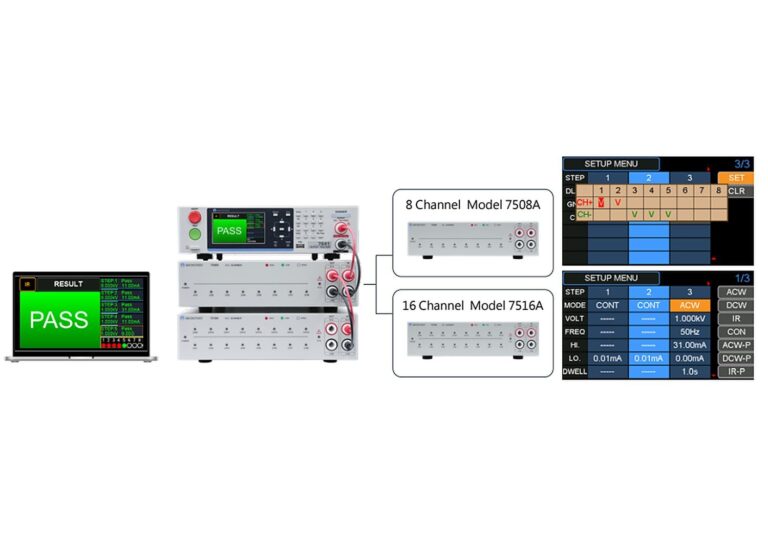

Compatible 7508A and 7516A scanner boxes can extend a 7641 system to as many as 72 channels.

Expand when required

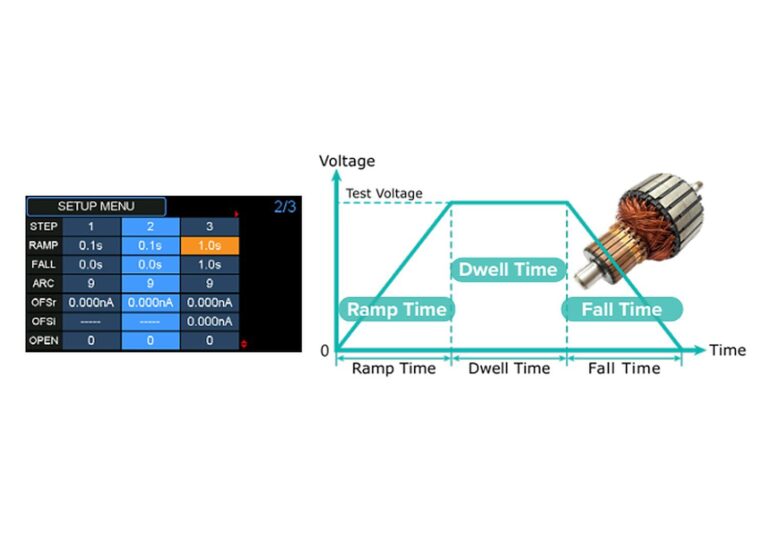

Programmable ramp, dwell and fall timing helps protect the DUT from sudden voltage changes.

Controlled voltage profiles

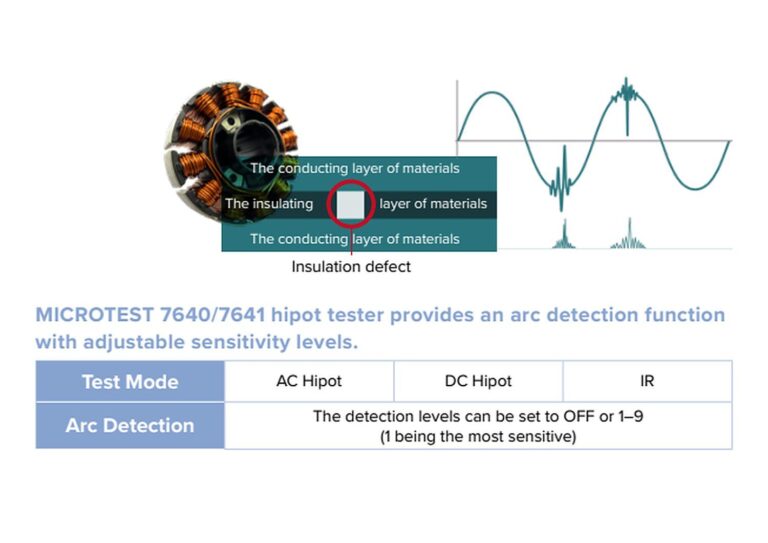

Adjustable arc sensitivity helps identify transient discharge through weak or damaged insulation.

Detect insulation defects

×

Perform AC hi-pot, DC hi-pot and insulation-resistance testing from one platform.
The 7640 provides one test channel, while the 7641 provides eight configurable channels.
Compatible 7508A and 7516A scanner boxes can extend a 7641 system to as many as 72 channels.
Programmable ramp, dwell and fall timing helps protect the DUT from sudden voltage changes.
Adjustable arc sensitivity helps identify transient discharge through weak or damaged insulation.

Documentation


Specification MICROTEST 7640 MICROTEST 7641
Model configuration
Built-in channels 1 8
Maximum channels with expansion Single-channel base instrument Up to 72 with compatible 7508A / 7516A scanner boxes
Test-sequence capacity Up to 8 steps per group Up to 16 steps per group
Built-in storage 64 sets 32 sets
AC hi-pot
Output voltage 10V to 5000V 10V to 5000V
Voltage resolution 1V 1V
Voltage accuracy ±(2% of setting + 5V), no load ±(2% of setting + 5V), no load
Output frequency 50 / 60Hz 50 / 60Hz
Rated current, maximum 30mA 30mA
Leakage-current range 0 to 31mA 0 to 31mA
Lower leakage-current resolution 0.001mA 0.001mA
Lower leakage-current accuracy ±(1% of reading + 5µA) ±(1% of reading + 5µA)
DC hi-pot
Output voltage 10V to 6000V 10V to 6000V
Voltage resolution 1V 1V
Voltage accuracy ±(2% of setting + 5V) ±(2% of setting + 5V)
Rated current, maximum 10mA 10mA
Leakage-current range 0 to 11mA 0 to 11mA
Lower leakage-current resolution 0.001mA 0.001mA
Lower leakage-current accuracy ±(1% of reading + 5µA) ±(1% of reading + 5µA)
Insulation resistance
Output voltage 10V to 6000V 10V to 6000V
Voltage resolution 1V 1V
Voltage accuracy ±(2% of setting + 5V) ±(2% of setting + 5V)
Rated current, maximum 1mA 1mA
IR range / upper threshold 200kΩ to 100GΩ 200kΩ to 100GΩ
IR resolution 0.001MΩ 0.001MΩ
Timing and detection
Measuring time 0.1 to 999s; 0 for continuous 0.1 to 999s; 0 for continuous
Measuring-time resolution 0.1s 0.1s
Ramp / dwell / fall time 0.1 to 99.9s 0.1 to 99.9s
Arc detection OFF or levels 1 to 9; level 1 is most sensitive OFF or levels 1 to 9; level 1 is most sensitive
General
Remote control Test and Abort Test and Abort
Remote output signals Pass, Fail, HV Output and Testing Pass, Fail, HV Output and Testing
Safety switch Rear INTER LOCK must be closed to enable high-voltage output Rear INTER LOCK must be closed to enable high-voltage output
Interfaces RS-232, Remote, USB Host, USB Device and EXT I/O RS-232, Remote, USB Host, USB Device and EXT I/O
Display 4.3-inch TFT LCD, 480 × 272 4.3-inch TFT LCD, 480 × 272
Power supply 100Vac to 240Vac, 50 / 60Hz ±5% 100Vac to 240Vac, 50 / 60Hz ±5%
Power consumption 350VA 350VA
Operating environment 5°C to 40°C; 20% to 80% RH 5°C to 40°C; 20% to 80% RH
Dimensions (W × H × D) 340 × 88 × 369.6mm 340 × 88 × 429.6mm
Weight 12kg 14kg

Related products

  • RentalImage of Telonic tos9301 front

    Rental: Kikusui TOS9301PD AC/DC HiPot Tester with Insulation Resistance and Partial Discharge Test

    £348.00 (£417.60 inc. VAT)

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Kikusui tos5200 5kv ac hipot tester front1 png

    Kikusui TOS5200 AC Flash Tester / HiPot Tester 0-5000V 0-100mA (200mA S/C)

    £1,203.00 (£1,443.60 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Mircotest impulse 7750 front1

    Microtest Impulse Winding Tester 7750-5H 100V~5200V

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • Image of Mircotest impulse 7750 front1

    Microtest Impulse Winding Tester 7750-5S 100V~5200V

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more

Mandatory Accessories …

  • NewImage of Microtest tl hp0008 telonicuk

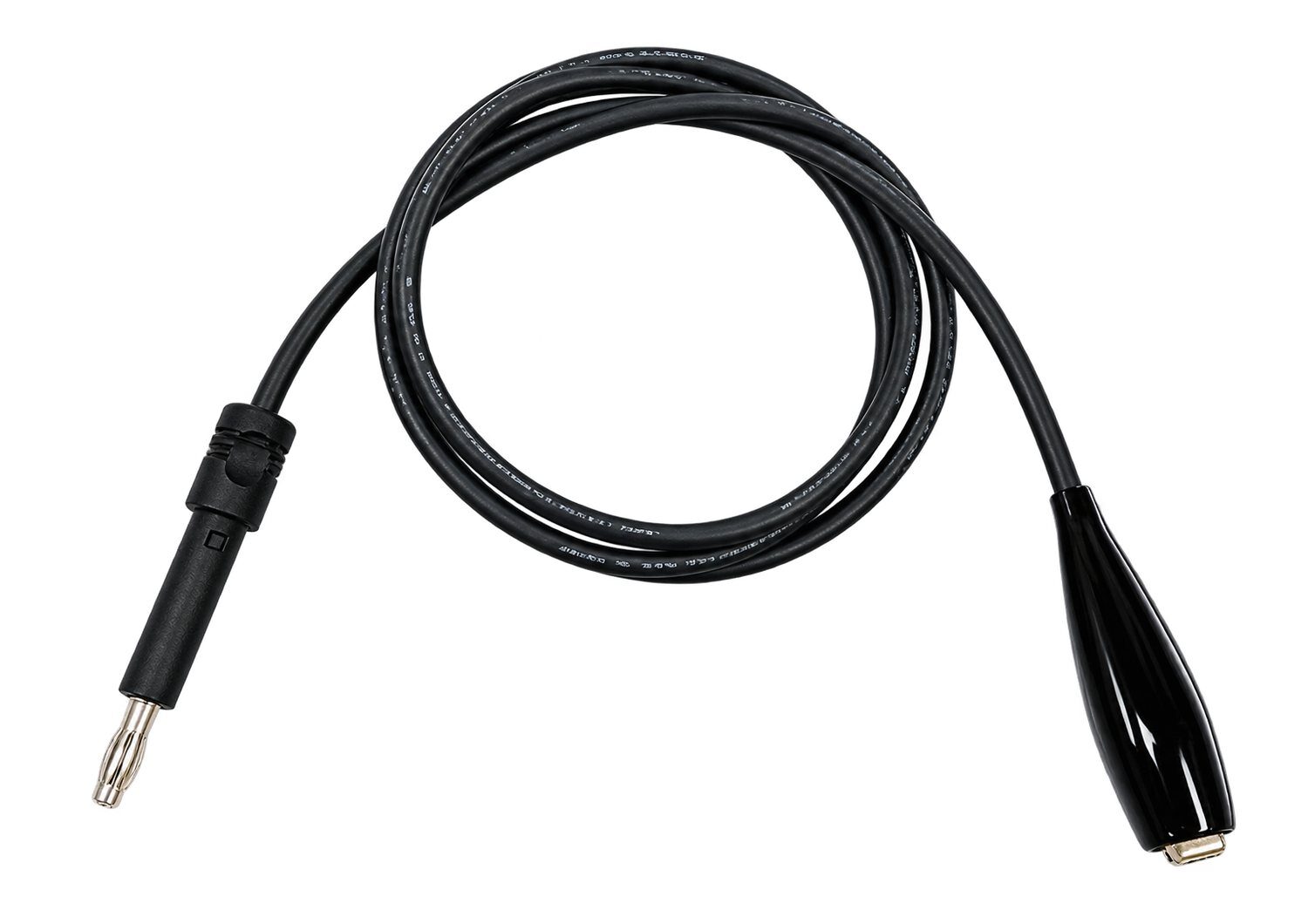

    TL-HP0008 Black High-Voltage Test Cable – Standard Accessory

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • NewImage of Microtest tl hp0009 telonicuk

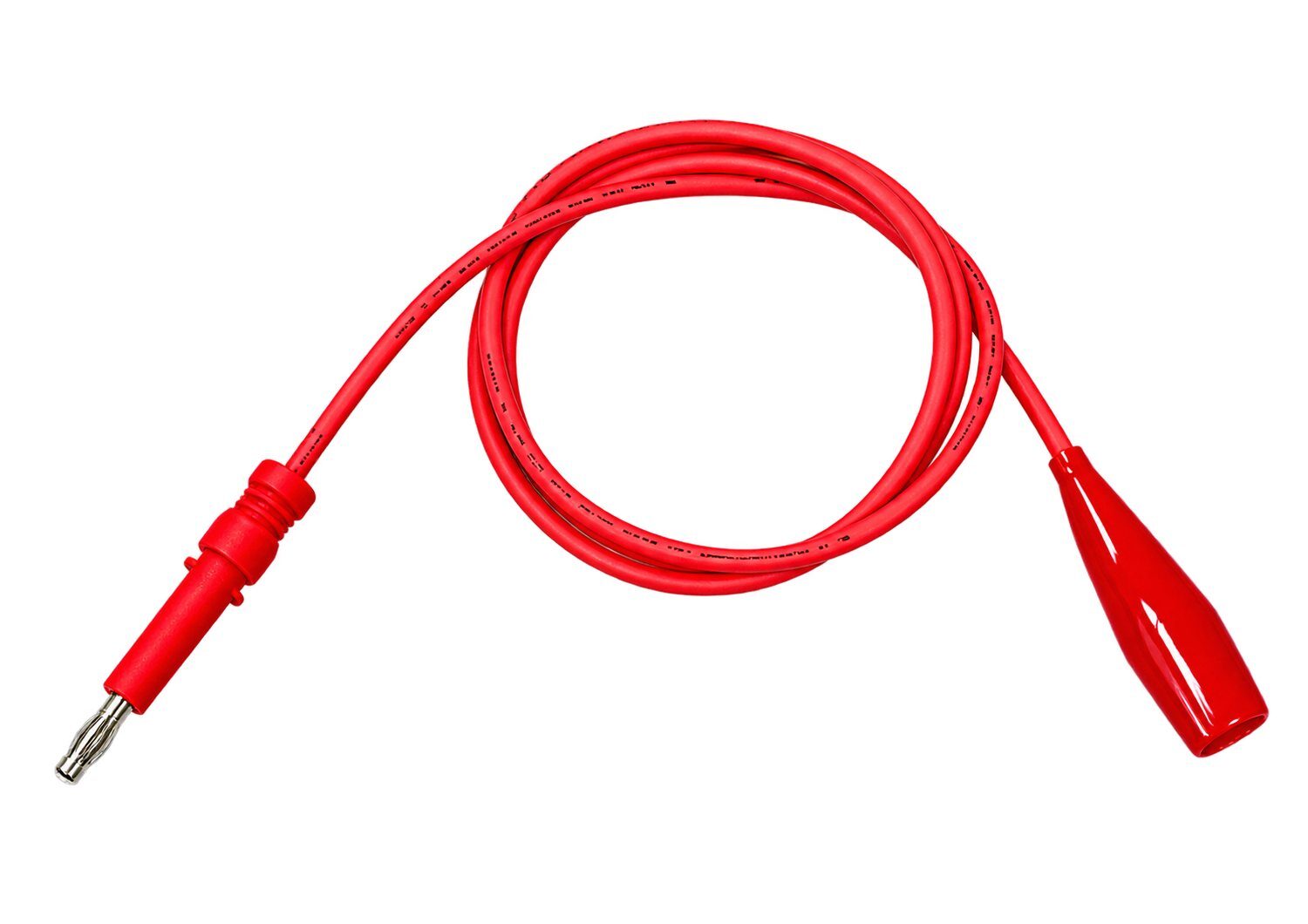

    TL-HP0009 Red High-Voltage Test Cable – Standard Accessory

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • Image of Power cord

    UK Power Cord

    .     Read more

Optional Accessories …

  • NewImage of Microtest f7620 m p telonicuk

    Microtest F7620(P) Pneumatic Transformer HV Scan Box

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • NewImage of Microtest 7508a telonicuk

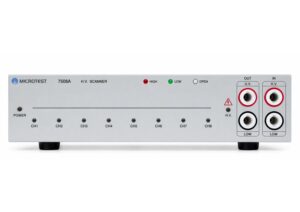

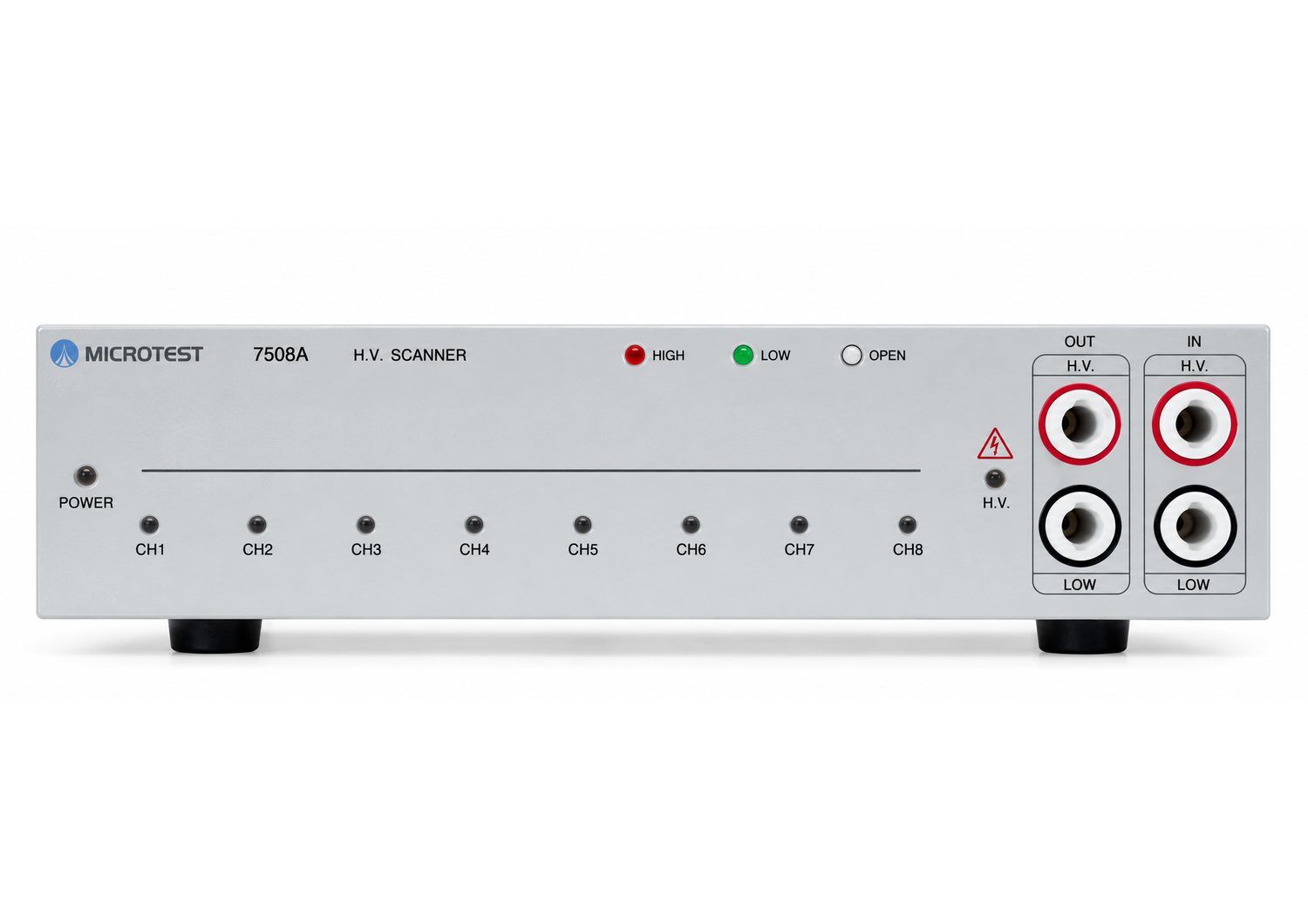

    Microtest 7508A 8-Channel Expansion Box

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • NewImage of Microtest pc link software telonicuk

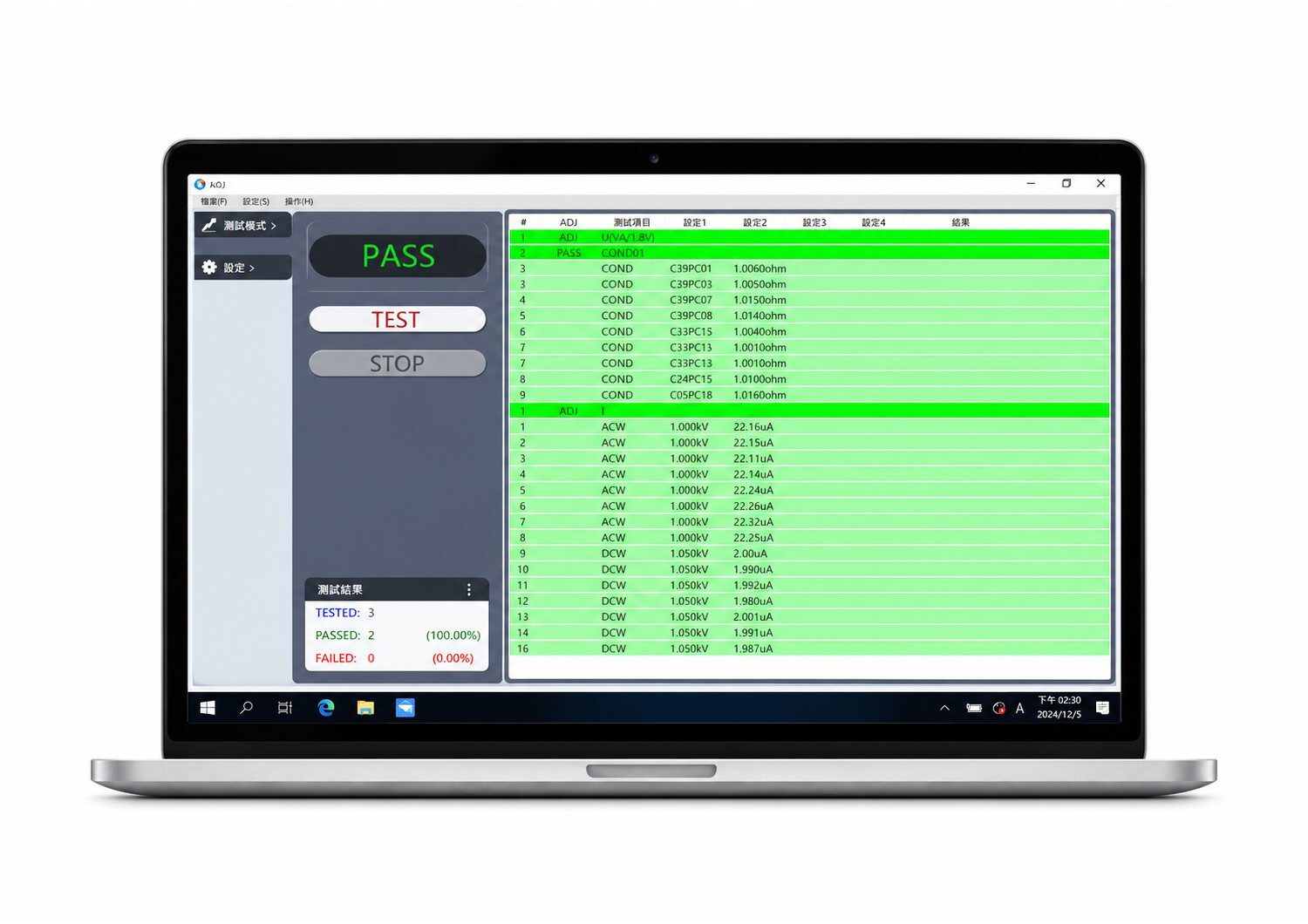

    Microtest PC Link Software

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • NewImage of Microtest f7620 m p telonicuk

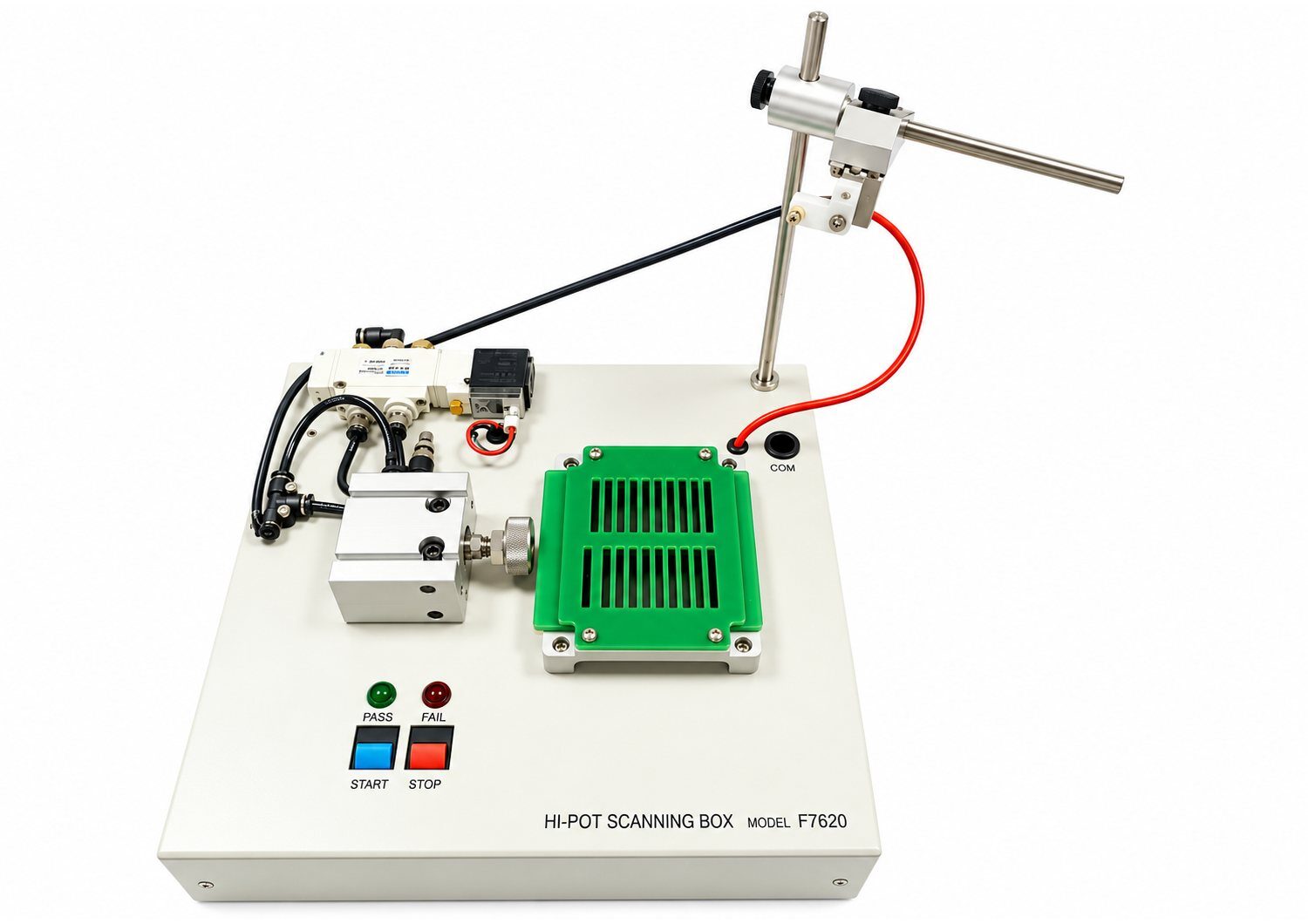

    Microtest F7620(M) Manual Transformer HV Scan Box

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • NewImage of Microtest f760001 telonicuk

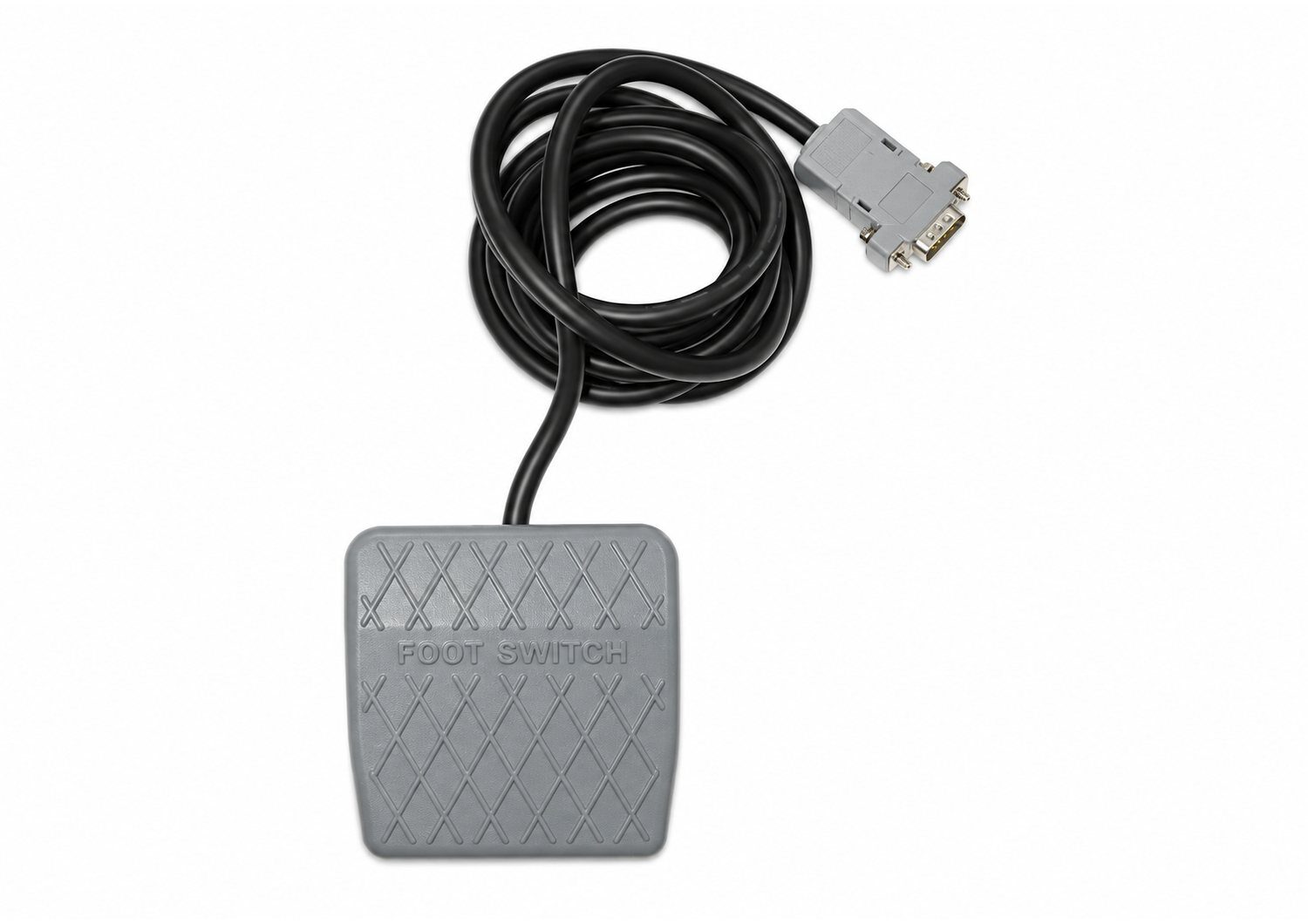

    Microtest F760001 D-Sub Foot Switch

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • NewImage of Microtest 7516a telonicuk

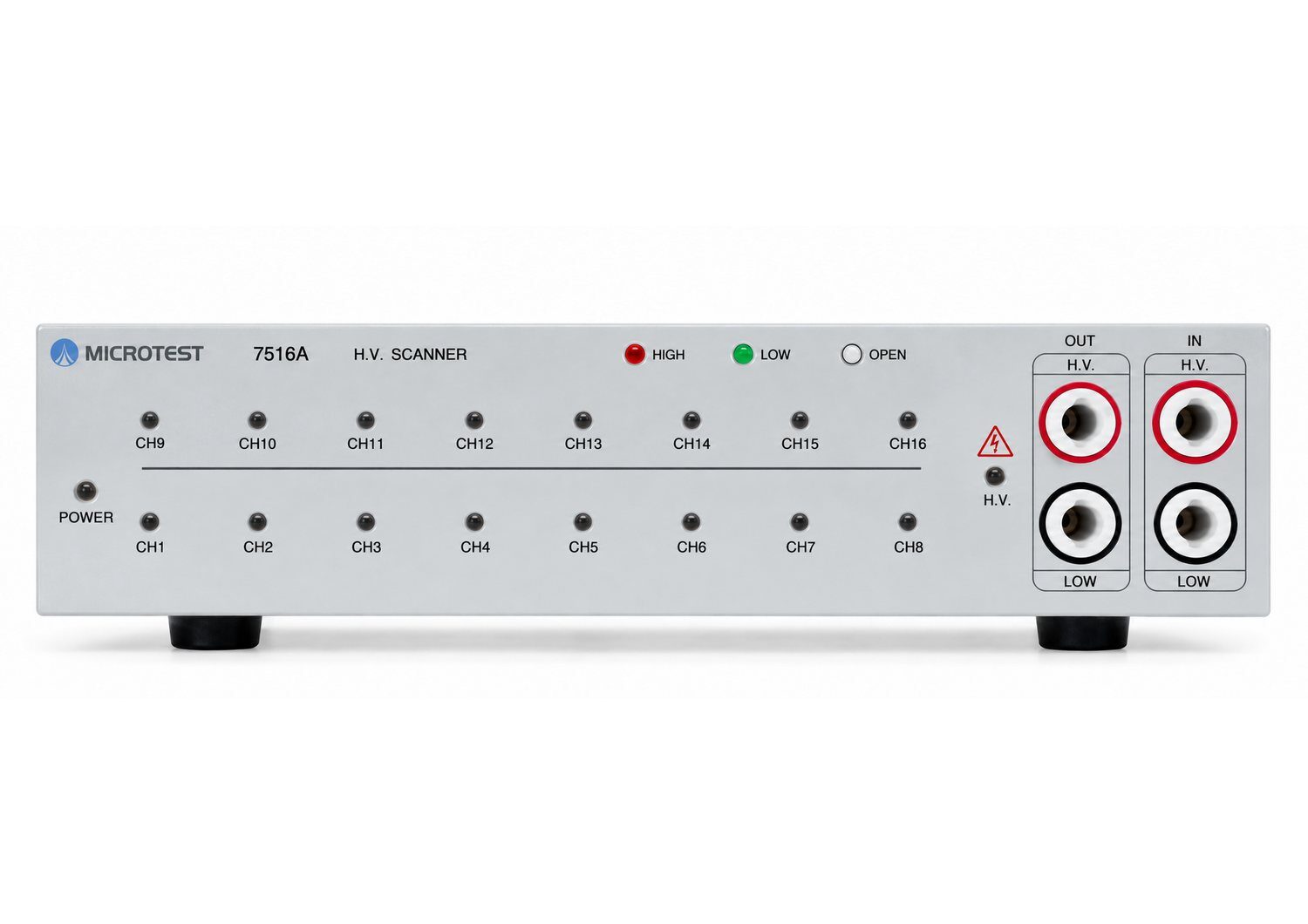

    Microtest 7516A 16-Channel Expansion Box

    .

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Read more
  • NewImage of Microtest tl 000003 telonicuk

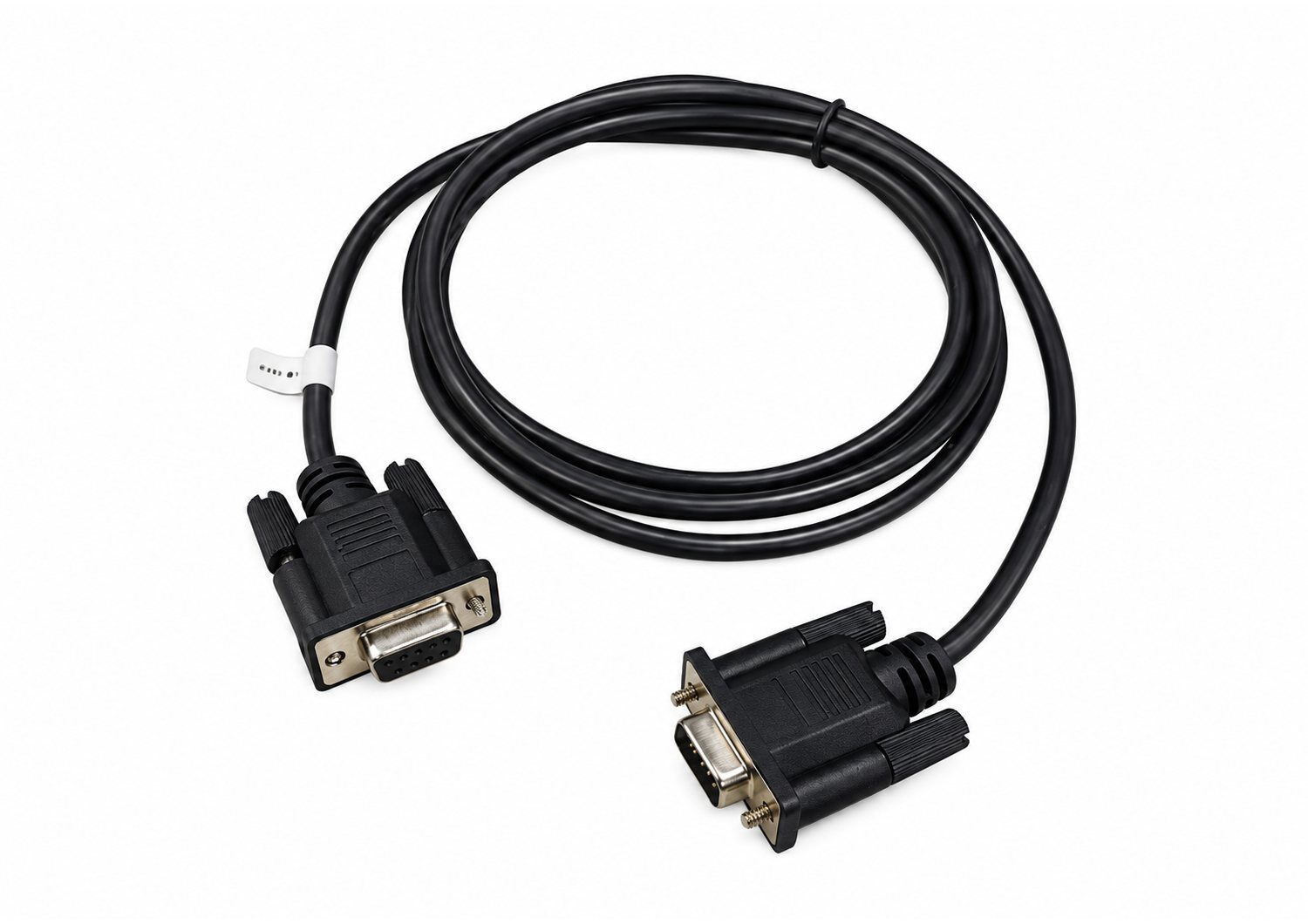

    Microtest TL-000003 RS-232 Cable

    .
