Description
Langer EMV-Technik P21 Mini Burst Field Generator (E)

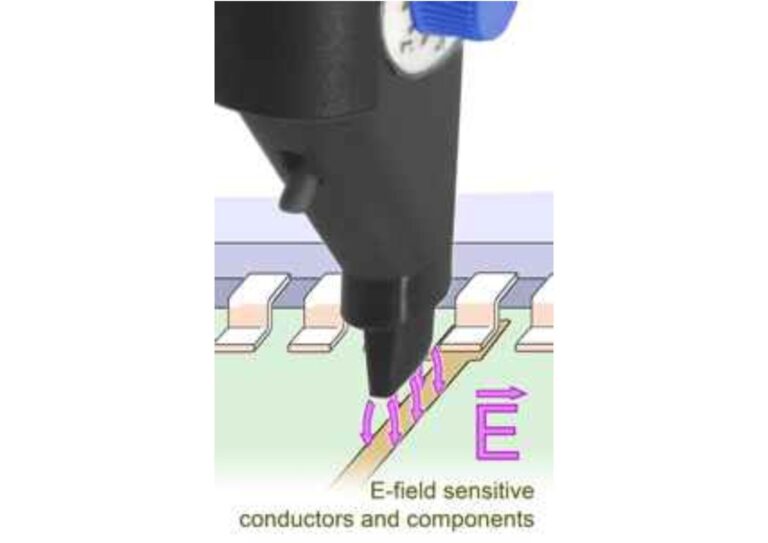

The P21 mini burst field generator creates an electric field at its tip, which is suitable for coupling into conducting paths, wires, pins, and components, especially SMD components like resistors and capacitors. Single conductors of flat cables or plug contacts can be tested.

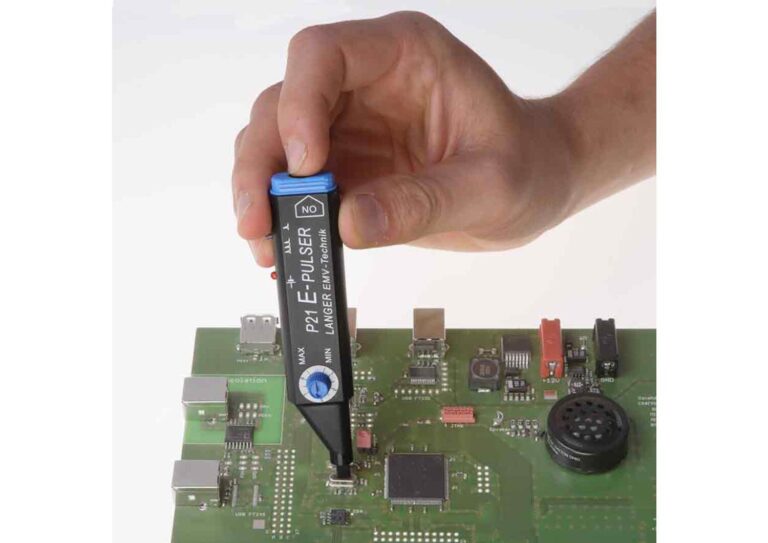

To measure, the P21 is positioned onto the device under test. Conventional generators and test stations can be used to determine whether a device complies with the legally required noise immunity standard. However, weak spots on an assembly cannot be located precisely. Detailed information about their location, susceptibility and type of action (E-field or B-field susceptibility) is required to easily and efficiently locate them on the printed circuit board and eliminate them. Mini burst field generators are handy and can be used at the developer’s own workspace.
- 1x P21, Mini Burst Field Generator (E)
- 1x User Manual
Recommended Product: AAA Batteries
- Testing the electric-field susceptibility of PCBs
- Evaluating SMD components and circuits
- Identifying E-field sensitive traces and pins
- Locating EMC weak points before compliance testing
- Verifying shielding and filtering improvements
Product Images

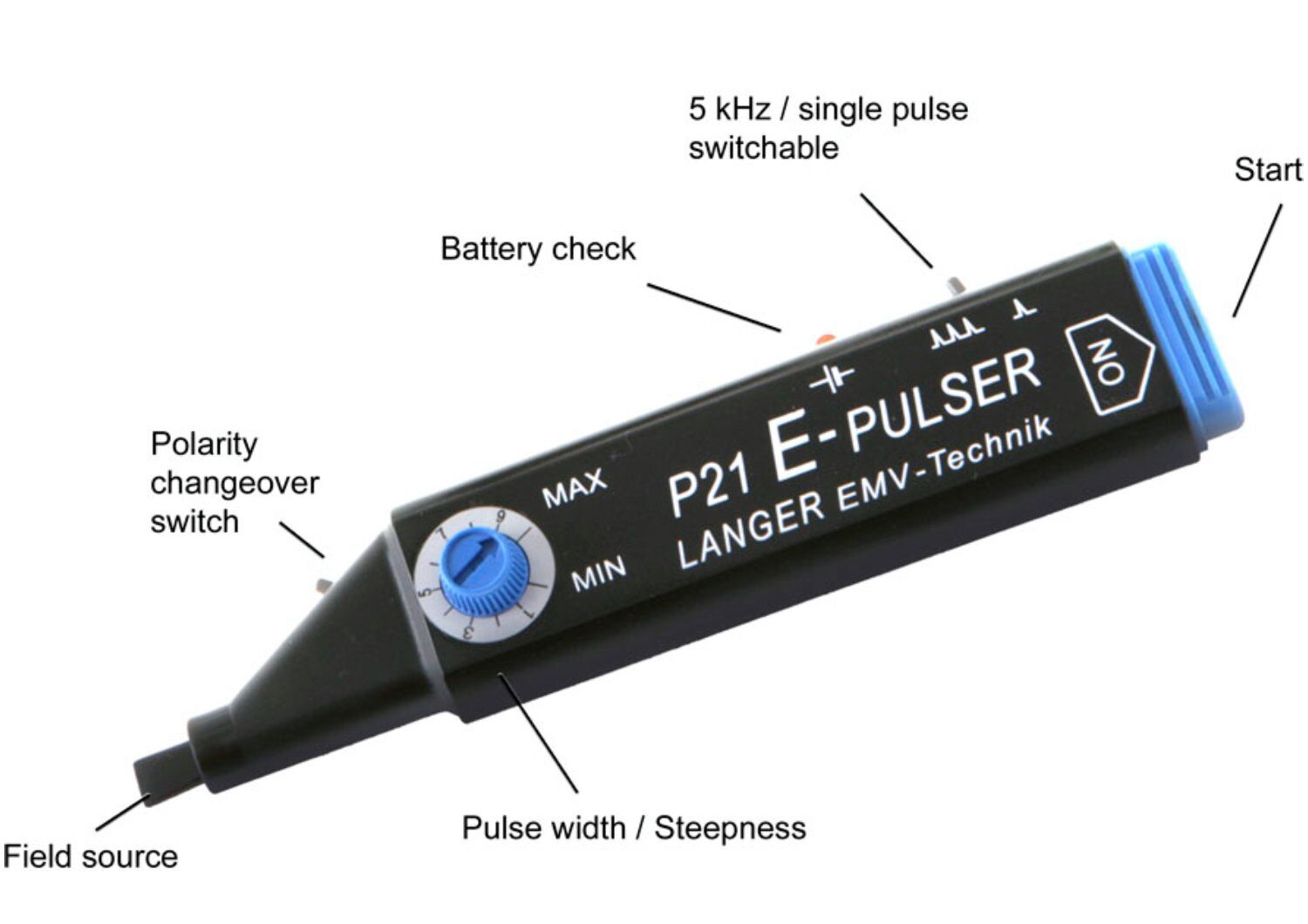

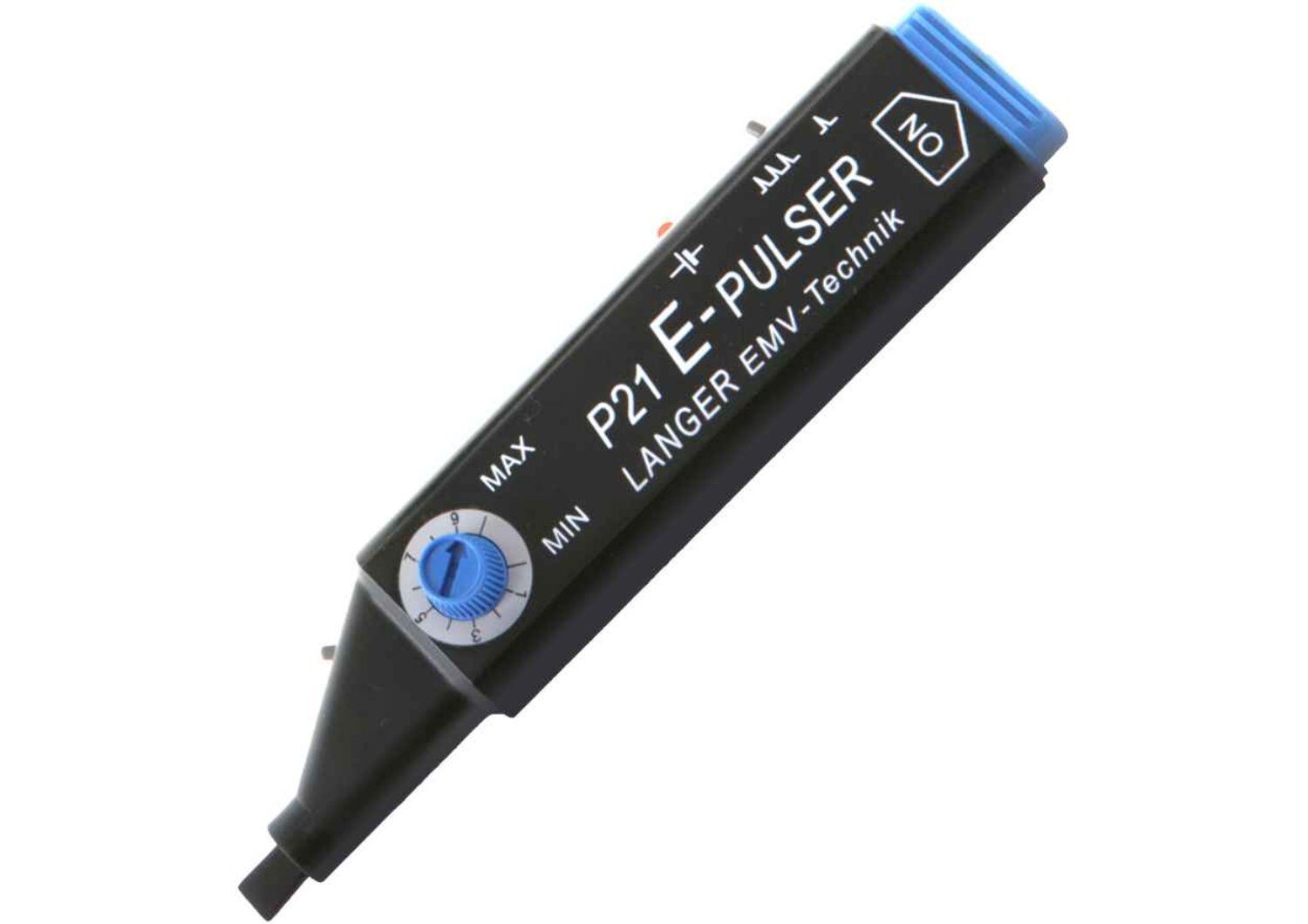

P21 Mini Burst Field Generator (E)
Measuring principles
P1 Set Datasheet
