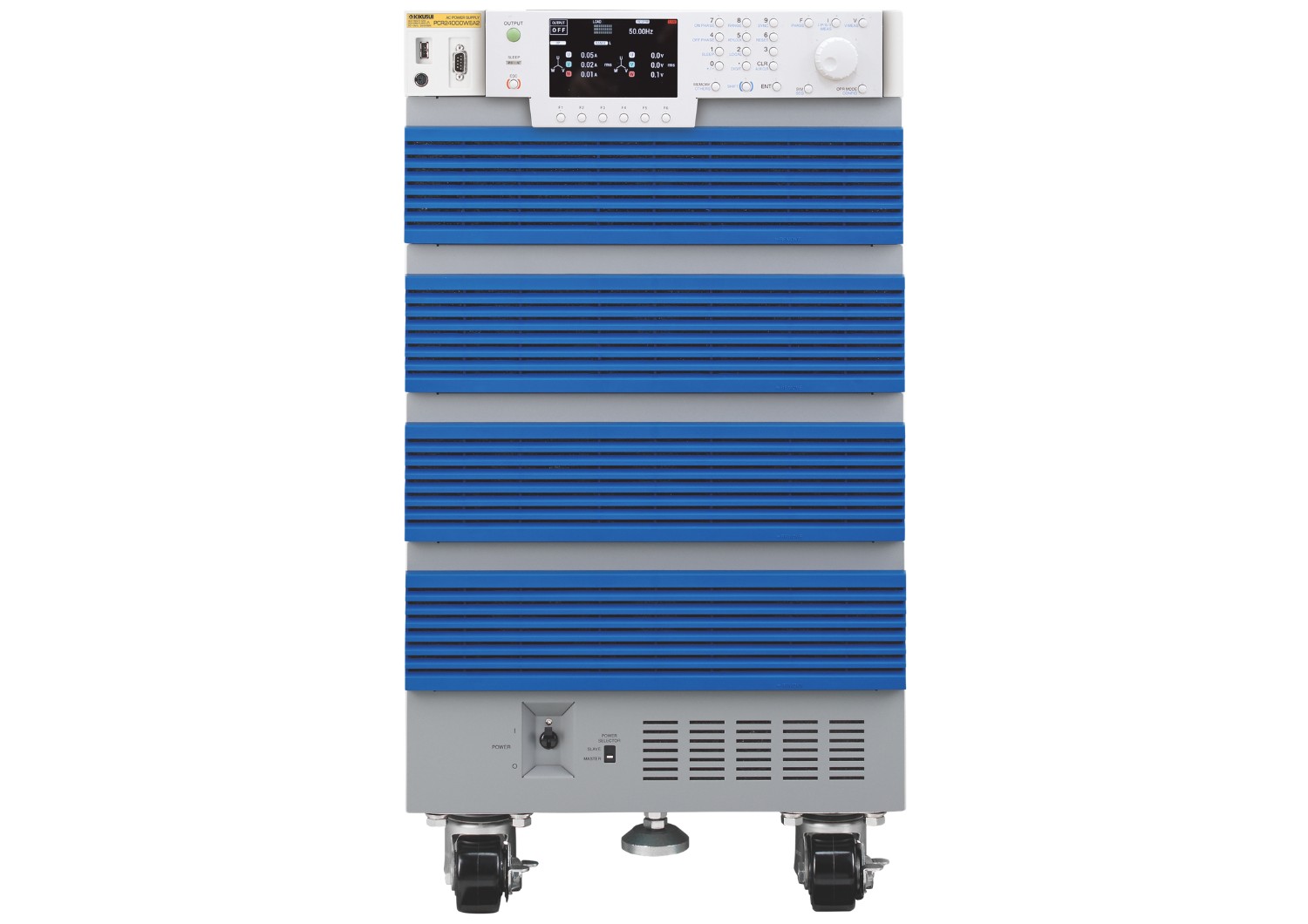

Kikusui PCR24000WEA2R AC/DC Power Supply / Frequency Converter, Single-phase 24kVA, Single-phase 3-wire 16kVA, Three-phase 24kVA. AC 0 to 320Vrms per phase, 1Hz to 5kHz, DC0 to ±452V, PWM type with regenerative function

. (£0.00 inc VAT)

Please contact us for pricing.

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Free Calibration Price Match Guarantee

Description


Kikusui PCR24000WEA2R AC Power Supply / Frequency Converter

The PCR24000WEA2R is a Single-phase 24kVA/Single-phase 3-wire 16kVA/Three-phase 24kVA, AC 0 to 320Vrms, 1Hz to 5kHz, DC0 to ±452V, PWM type, with regenerative function AC Power Supply / Frequency Converter. The PCR-WEA2R is a series of multifunctional switching AC power supplies that combines accurate, high-power output with an ultra-compact design. The 6 model line-up ranges from 6 kVA to 36 kVA AC/DC with single & 3-phase variable output from 6 kVA and up. The PCR-WEA2/WEA2R also supports mix-and-match parallel operation*2 up to 144 kVA for large-scale test systems. Output frequency up to 5 kHz is also available with all models, which is critical for AC applications in avionic industries.

Compact Size!
Compared to our previous PWM models, the size of the PCR-WEA has been drastically reduced up to 60%. Efficiency has also been increased by approximately 7%, for an overall high efficiency of approximately 85%.

Low Ripple Noise
Achieves an extremely low switching noise for a PWM inverter-type AC power supply, with ripple noise as low as 0.25 Vrms. The PCR-WEA series even boasts similar noise performance with the PCR-LE/LE2 linear amplifier power supply series. The compact, high-power design of the PCR-WEA/WEA2 has been achieved with absolutely no compromises to ripple noise performance.

Output Frequency up to 5 kHz
It has a maximum output frequency up to 5 kHz for critical applications in the defense and avionics industries. The frequency performance of the PCR-WEA allows for simulation of sharp voltage fluctuations required for airborne electronic equipment testing. Furthermore, the compact 6kVA/6U form factor allows for the easy preparation of an automated, one-rack testing system without requiring a costly, specialized power source installation space.

LAN, USB, RS232C Standard Digital Interface
The PCR-WEA/WEA2 series includes a flexible digital interface for users utilizing LAN, USB, and RS232C communication interfaces (GPIB factory option available). LAN connection is LXI compliant, allowing you to monitor and control your device wherever you are via computer, smartphone, or tablet web browser. This feature is particularly important when conducting critical AC tests in anechoic chambers/shield rooms.

Power Line Error Simulation
The PCR-WEA/WEA2 series can simulate various power line abnormalities such as power outages, voltage drops (dips) and voltage increases (pops). This feature is useful for the testing of power-source switches and various electronic devices.

100% Regeneration Capability, No Time Limit
The PCR-WEA2R models are capable of 100% power regeneration. The power regeneration feature is available with absolutely no reverse load flow time limit. (30% for PCR-LE/LE2)
*Regeneration is limited within installation site. Only available in “R” models (PCR-WEA2R).

Available Software:

  • SD009 Power Line Disturbance Immunity Testing Software
  • Standards Covered: IEC61000-1-11, IEC61000-4-13, IEC61000-4-14, IEC61000-4-17, IEC61000-4-27, IEC61000-4-28, IEC61000-4-29, IEC61000-4-34.
  • SD012 Avionics Test Software
  • Standards Covered: MIL-STD-704A , RTCA/DO-160 Section 16, JIS W0812.
  • SD021 RMT CONT Software
  • SD032 Wavy Sequence Creation Software

Product Videos

PCR-WE Programmable AC/DC Power Supply

Documentation


Datasheet

Kikusui PCRWEA/2/R Datasheet



User Manual

Kikusui PCRWEA/2/R User Manual



Interface Manual

Kikusui PCRWEA/2/R Interface Manual



Input (AC rms)
Model PCR1000WEA PCR2000WEA PCR3000WEA2 PCR6000WEA2 PCR12000WEA2 PCR18000WEA2 PCR24000WEA2 PCR30000WEA2 PCR36000WEA2
Nominal input voltage 1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac 1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac 1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac 3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
Phase Single-phase Single-phase Single-phase Three-phase Three-phase Three-phase Three-phase Three-phase Three-phase
Nominal input Frequency 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz
Input frequency range 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz
Apparent power 1.4kVA and less 2.7kVA and less 4kVA and less 7.8kVA and less 15.6kVA and less 23.4kVA and less 31.2kVA and less 39kVA and less 46.8kVA and less
Power factor 0.95(TYP) 0.95(TYP) 0.95(TYP) 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model
Maximum current 1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A 1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A 1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A 3P3W Input Model: 27A
3P4W Input Model: 14A
3P3W Input Model: 53A
3P4W Input Model: 28A
3P3W Input Model: 80A
3P4W Input Model: 42A
3P3W Input Model: 106A
3P4W Input Model: 56A
3P3W Input Model: 133A
3P4W Input Model: 70A
3P3W Input Model: 159A
3P4W Input Model: 84A
Holdup time for power interruption 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms
Output
Model PCR1000WEA PCR2000WEA PCR3000WEA2 PCR6000WEA2 PCR12000WEA2 PCR18000WEA2 PCR24000WEA2 PCR30000WEA2 PCR36000WEA2
AC Voltage
Rating 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V
Setting Range 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V
Setting Resolution 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V
Setting accuracy
(phase voltage)
±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)
Setting accuracy
(Line voltage)
±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)
Maximum
current
Single-phase output 10 A / 5 A 20 A / 10 A 30 A / 15 A 60A / 30A 120A / 60A 180A / 90A 240A / 120A 300A / 150A 360A / 180A
Single-phase three-wire output,
Three-phase output
10A / 5A 20A / 10A 40A / 20A 60A / 30A 80A / 40A 100A / 50A 120A / 60A
Phase 1P 1P 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable
Power
capacity
Single-phase output 1 kVA 2 kVA 3kVA 6kVA 12kVA 18kVA 24kVA 30kVA 36kVA
Three-phase output – – – – – – 3kVA 6kVA 12kVA 18kVA 24kVA 30kVA 36kVA
Single-phase ―
three-wire output
– – – – – – 2kVA 4kVA 8kVA 12kVA 16kVA 20kVA 24kVA
Maximum peak current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current
Inrush current capacity 3 times the rated current (0.07 s) 3 times the rated current (0.07 s) 3 times the rated current (0.07 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s)
Load power factor 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging)
Frequency
Setting range 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required)
Resolution 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)
Accuracy ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C
Phase
Resolution – – – – – – 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)
Accuracy – – – – – – Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]
DC
voltage
Rating -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V
Setting range -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V
Resolution 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V
Accuracy ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V)
Maximum current 10A / 5A 20A / 10A 30A / 15A 60A / 30A 120A / 60A 180A / 90A 240A / 120A 300A / 150A 360A / 180A
Power capacity 1kW 2kW 3kW 6kW 12kW 18kW 24kW 30kW 36kW
Efficiency 82 %(TYP) 82 %(TYP) 82 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP)
Regeneration Function
Model PCR6000WEA2R PCR12000WEA2R PCR18000WEA2R PCR24000WEA2R PCR30000WEA2R PCR3600WEA2R
Maximum Regenerated Power *1 6kVA 12kVA 18kVA 24kVA 30kVA 36kVA
Maximum Reverse Power Flow Current 1P2W *1 *2 60A / 30A 120A / 60A 180A / 90A 240A / 120A 300A / 150A 360A / 180A
Maximum Reverse Power Flow Current 1P3W3P *1 *2 20A / 10A 40A / 20A 60A / 30A 80A / 40A 100A / 50A 120A / 60A
Regeneration Efficiency *3 85% (TYP) 85% (TYP) 85% (TYP) 85% (TYP) 85% (TYP) 85% (TYP)
Output Current Harmonic Distortion THD: 5% and less, each harmonic: 3% an less (2nd to 40th) THD: 5% and less, each harmonic: 3% an less (2nd to 40th) THD: 5% and less, each harmonic: 3% an less (2nd to 40th) THD: 5% and less, each harmonic: 3% an less (2nd to 40th) THD: 5% and less, each harmonic: 3% an less (2nd to 40th) THD: 5% and less, each harmonic: 3% an less (2nd to 40th)

Regeneration Function

Only for three-phase, three-wire input models with R at the end of the model name. Single-phase output models and three-phase, four-wire input models do not have a regeneration function. For regeneration within the installation site only.

*1 – When the output phase voltage is between 100Vac and 160Vac or 200Vac and 320Vac, the output current is reduced by the output voltage.

When the output frequency is between 1Hz and 40Hz, the output current is reduced by the output frequency. The output current is 70% at 1Hz.

*2 – When the output voltage is 100V or 200V and the output frequency is between 40Hz and 1kHz (when the current phase is -90 deg to -180 deg or 90 deg to 180 deg relative to the output voltage)

*3 – When the output voltage is 100V or 200V, the output current is the rated value, sine wave, the load power factor is 1, and the output frequency is between 45Hz to 65Hz.

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
