Kikusui PCR12000WEA2 AC/DC Power Supply / Frequency Converter, Single-phase 12kVA, Single-phase 3-wire 8kVA, Three-phase 12kVA. AC 0 to 320Vrms per phase, 1Hz to 5kHz, DC0 to ±452V, PWM type

. (£0.00 inc VAT)

Please contact us for pricing.

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Free Shipping Free Calibration Price Match Guarantee

Description

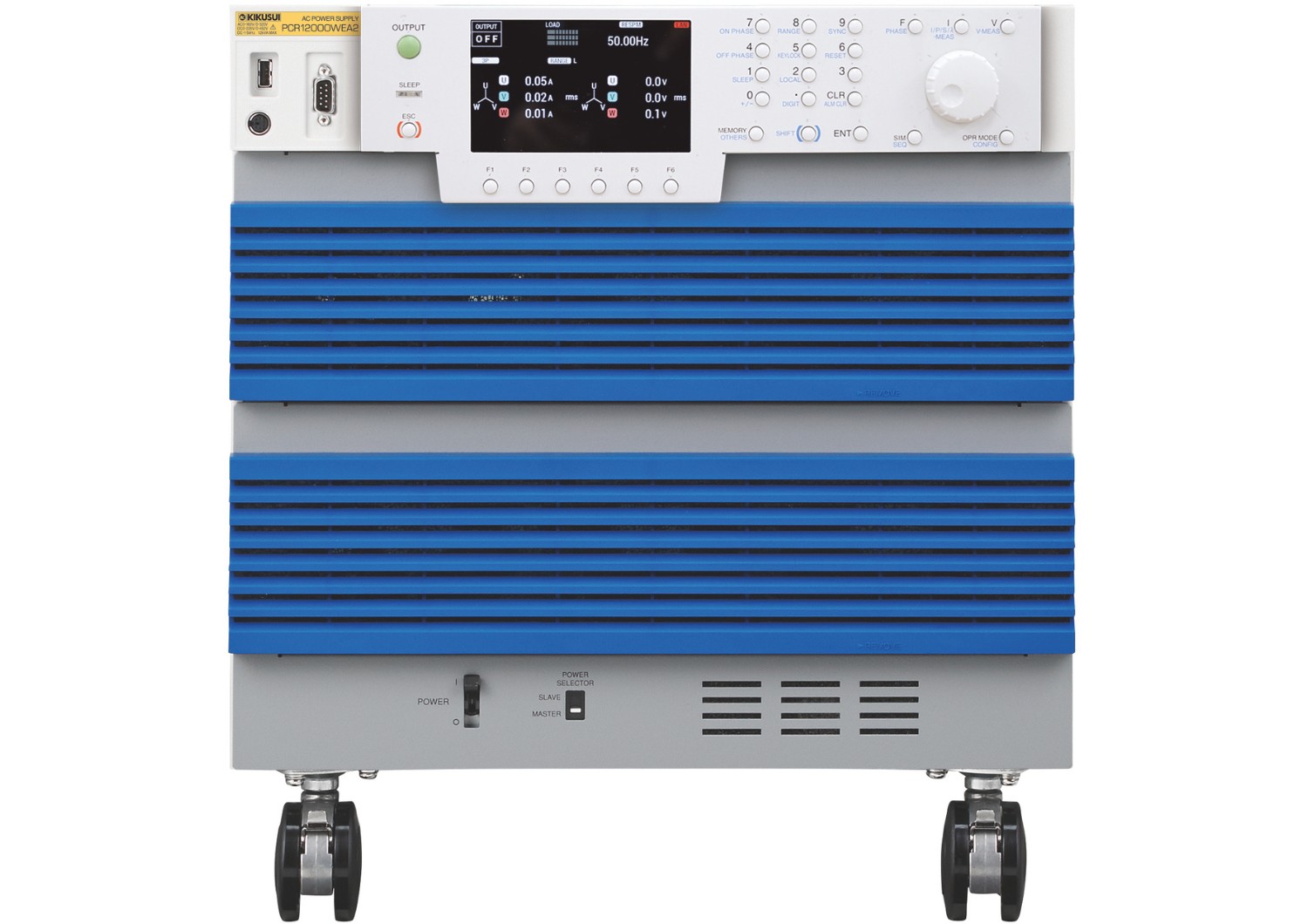

Kikusui PCR12000WEA2 AC Power Supply / Frequency Converter

The PCR12000WEA2 is a Single-phase 12kVA/Single-phase 3-wire 8kVA/Three-phase 12kVA, AC 0 to 320Vrms, 1Hz to 5kHz, DC0 to ±452V, PWM type AC Power Supply / Frequency Converter. The PCR-WEA/WEA2 is a series of multifunctional switching AC power supplies that combines accurate, high-power output with an ultra-compact design. The 15 model line-up ranges from 1 kVA to 36 kVA AC/DC with single & 3-phase variable output from 6 kVA and up. The PCR-WEA2 also features a regenerative mode*1 that can drastically reduce power consumption and cut operating costs. The PCR-WEA2/WEA2R also supports mix-and-match parallel operation*2 up to 144 kVA for large-scale test systems. Output frequency up to 5 kHz is also available with all models, which is critical for AC applications in avionic industries. Compact Size! Compared to our previous PWM models, the size of the PCR-WE has been drastically reduced up to 60%. Efficiency has also been increased by approximately 7%, for an overall high efficiency of approximately 85%. Low Ripple Noise Achieves an extremely low switching noise for a PWM inverter-type AC power supply, with ripple noise as low as 0.25 Vrms. The PCR-WEA series even boasts similar noise performance with the PCR-LE/LE2 linear amplifier power supply series. The compact, high-power design of the PCR-WEA/WEA2 has been achieved with absolutely no compromises to ripple noise performance. Output Frequency up to 5 kHz It has a maximum output frequency up to 5 kHz for critical applications in the defense and avionics industries. The frequency performance of the PCR-WEA allows for simulation of sharp voltage fluctuations required for airborne electronic equipment testing. Furthermore, the compact 6kVA/6U form factor allows for the easy preparation of an automated, one-rack testing system without requiring a costly, specialized power source installation space. LAN, USB, RS232C Standard Digital Interface The PCR-WEA/WEA2 series includes a flexible digital interface for users utilizing LAN, USB, and RS232C communication interfaces (GPIB factory option available). LAN connection is LXI compliant, allowing you to monitor and control your device wherever you are via computer, smartphone, or tablet web browser. This feature is particularly important when conducting critical AC tests in anechoic chambers/shield rooms. Power Line Error Simulation The PCR-WEA/WEA2 series can simulate various power line abnormalities such as power outages, voltage drops (dips) and voltage increases (pops). This feature is useful for the testing of power-source switches and various electronic devices. Available Software:
  • SD009 Power Line Disturbance Immunity Testing Software
  • Standards Covered: IEC61000-1-11, IEC61000-4-13, IEC61000-4-14, IEC61000-4-17, IEC61000-4-27, IEC61000-4-28, IEC61000-4-29, IEC61000-4-34.
  • SD012 Avionics Test Software
  • Standards Covered: MIL-STD-704A , RTCA/DO-160 Section 16, JIS W0812.
  • SD021 RMT CONT Software
  • SD032 Wavy Sequence Creation Software

Product Videos

PCR-WE Programmable AC/DC Power Supply

Documentation


Datasheet

Kikusui PCRWEA/2/R Datasheet



User Manual

Kikusui PCRWEA/2/R User Manual



Interface Manual

Kikusui PCRWEA/2/R Interface Manual



Input (AC rms)
Model PCR1000WEA PCR2000WEA PCR3000WEA2 PCR6000WEA2 PCR12000WEA2 PCR18000WEA2 PCR24000WEA2 PCR30000WEA2 PCR36000WEA2
Nominal input voltage 1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac 1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac 1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac 3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage)
3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
Phase Single-phase Single-phase Single-phase Three-phase Three-phase Three-phase Three-phase Three-phase Three-phase
Nominal input Frequency 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz 50 Hz to 60 Hz
Input frequency range 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz 45 Hz to 65 Hz
Apparent power 1.4kVA and less 2.7kVA and less 4kVA and less 7.8kVA and less 15.6kVA and less 23.4kVA and less 31.2kVA and less 39kVA and less 46.8kVA and less
Power factor 0.95(TYP) 0.95(TYP) 0.95(TYP) 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model 0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model
Maximum current 1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A 1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A 1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A 3P3W Input Model: 27A
3P4W Input Model: 14A
3P3W Input Model: 53A
3P4W Input Model: 28A
3P3W Input Model: 80A
3P4W Input Model: 42A
3P3W Input Model: 106A
3P4W Input Model: 56A
3P3W Input Model: 133A
3P4W Input Model: 70A
3P3W Input Model: 159A
3P4W Input Model: 84A
Holdup time for power interruption 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms 10 ms
Output
Model PCR1000WEA PCR2000WEA PCR3000WEA2 PCR6000WEA2 PCR12000WEA2 PCR18000WEA2 PCR24000WEA2 PCR30000WEA2 PCR36000WEA2
AC Voltage
Rating 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V 155 V / 320 V
Setting Range 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V 0 V to 157.5 V / 0 V to 315.0 V
Setting Resolution 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V
Setting accuracy
(phase voltage)
±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)
Setting accuracy
(Line voltage)
±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) ±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)
Maximum
current
Single-phase output 10 A / 5 A 20 A / 10 A 30 A / 15 A 60A / 30A 120A / 60A 180A / 90A 240A / 120A 300A / 150A 360A / 180A
Single-phase three-wire output,
Three-phase output
10A / 5A 20A / 10A 40A / 20A 60A / 30A 80A / 40A 100A / 50A 120A / 60A
Phase 1P 1P 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable 1P2W, 1P3W, 3P4W switchable
Power
capacity
Single-phase output 1 kVA 2 kVA 3kVA 6kVA 12kVA 18kVA 24kVA 30kVA 36kVA
Three-phase output – – – – – – 3kVA 6kVA 12kVA 18kVA 24kVA 30kVA 36kVA
Single-phase ―
three-wire output
– – – – – – 2kVA 4kVA 8kVA 12kVA 16kVA 20kVA 24kVA
Maximum peak current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current 4 times the maximum output current
Inrush current capacity 3 times the rated current (0.07 s) 3 times the rated current (0.07 s) 3 times the rated current (0.07 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s) 1.4 times the rated current (0.5 s)
Load power factor 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging) 0 to 1 (leading or lagging)
Frequency
Setting range 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required) 1 Hz to 5 kHz  (5 kHz -3dB, <40 Hz derating required)
Resolution 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz) 0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)
Accuracy ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C ±0.01 %, Temperature coefficient : ±0.005 %/°C
Phase
Resolution – – – – – – 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more) 0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)
Accuracy – – – – – – Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz] Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]
DC
voltage
Rating -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V -219 V to +219 V / -438 V to +438 V
Setting range -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V -222.5 V to +222.5 V / -445.0 V to +445.0 V
Resolution 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V 0.1 V
Accuracy ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V) ±(0.05 % of setting +0.1 V)
Maximum current 10A / 5A 20A / 10A 30A / 15A 60A / 30A 120A / 60A 180A / 90A 240A / 120A 300A / 150A 360A / 180A
Power capacity 1kW 2kW 3kW 6kW 12kW 18kW 24kW 30kW 36kW
Efficiency 82 %(TYP) 82 %(TYP) 82 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP) 85 %(TYP)

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
