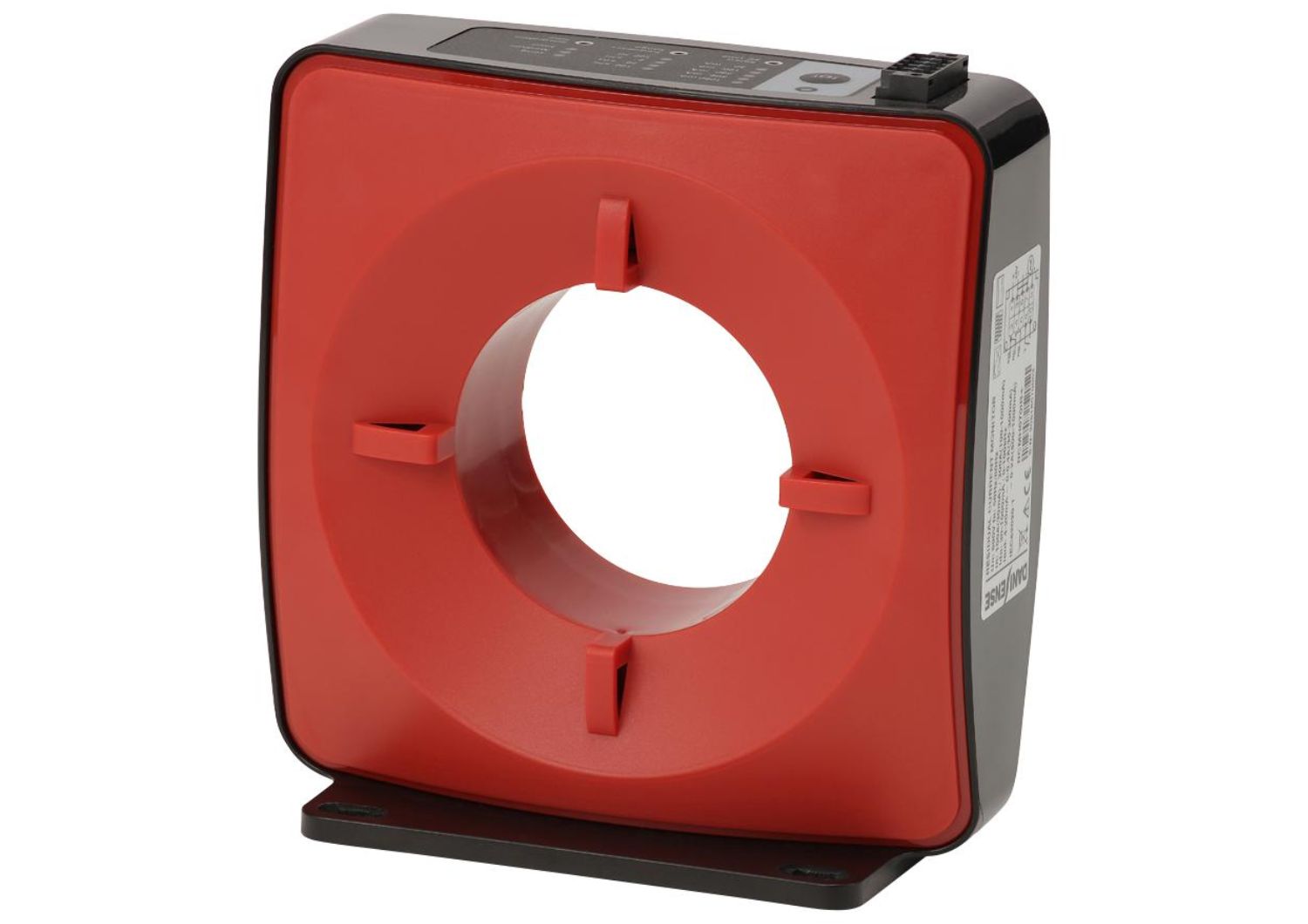

Danisense RCMH070IB+ Residual Current Monitoring

Description

Danisense RCMH070IB+ Residual Current Monitoring

With the multiplication of power electronic devices used in industrial and commercial installations creating DC and high frequency residual current, the traditional type A residual current device could achieve its limits and doesn’t work properly. Thanks to its zero-flux technology expertise, Danisense developed a range of highly flexible Residual Current Monitor of Type B/B+ for measuring DC and AC residual currents up to 100kHz, with analogue 4-20mA and relay output. Functions like user selectable frequency range, integration time and rated residual operating current in combination with a full compliance with the new norm IEC62020-1, makes this product the right solution to protect your equipment locally or remotely.

• Residual current monitoring in industry
• Condition-based monitoring of insulation health
• Replacement of / supplement to compulsory High voltage insulation testing
• Scheduling of planned factory maintenance
• DC power systems (UPS, PV, LED lighting…)
• High frequency loads (SMPS, Motor drives…)
• Mission critical (Data centers, Medical …)

Features:

• 70mm primary cable / busbar apperture
• DC and AC residual current measurement of Type B/B+ in the range 0-2Arms up to 100kHz
• User selectable:
• – Frequency range
• – Integration time
• – Rated residual operating current
• Analogue 4-20mA and relay output
• Fluxgate current measurement technology with
  fixed excitation frequency for enhanced accuracy
  and stability
