Danisense DR5000UX-10V/7500A Zero Flux Current Transducer AC:5000Arms, DC:7500A

Name: Danisense DR5000UX-10V/7500A Zero Flux Current Transducer AC:5000Arms, DC:7500A
Brand: Danisense
SKU: DR5000UX-10V/7500A
Availability: BackOrder

£8676.00 (£10411.20 inc. VAT)

Available on back-order

Facebook

Post

SKU: DR5000UX-10V/7500A Categories: 3000A+ Current Transducers, Danisense Tag: Precision Metrology Brand: Danisense

Description

Danisense DR5000UX-10V/7500A Zero Flux Current Transducer

Ultra-stable, high precision (ppm class) fluxgate technology DR Series current transducer for non-intrusive, isolated DC and AC current measurement up to 8000A.

Features

Linearity error maximum +/- 7ppm
3 pin XLR mini connector for voltage output
Transducer core optimised for high level of immunity against external magnetic fields
Operating temperature: Transducer head 0-60°C - Electronics 0-45°C
Ratio 1V/750A
Aperture diameter 150 mm
2U 19” Control unit with universal (100-240V AC 50/60Hz) AC input voltage or 120-370V DC input voltage
Danisense advanced sensor protection circuit “ASPC”

Applications

MPS for particles accelerators
Stable power supplies
Precision drives
Battery testing and evaluation systems
Power measurement and power analysis
Current calibration purposes

Standard Hardware Accessories

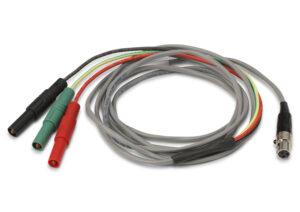

Danisense XLRm/Banana Voltage Cable
£113
UK Power Cord

Optional Hardware Accessories

Documentation

Datasheets: Current transducer 3000A+

Danisense DR5000IM

Danisense DR5000UX 10V 5000

Danisense DR5000UX 10V 7500

Danisense DR10000IM

Danisense DR10000UX 10V

Danisense Product Selection Guide

Danisense: Choosing Current Transducers & Interface Units

Danisense Product User Manuals

Specifications Highlights (@23⁰C)	Symbol	Unit	Min	Typ	Max
Measuring range (DC or AC peak)	IPM	A	-5.500		5.500
Nominal primary AC current	IPN AC	Arms			3.600
Nominal primary DC current	IPN DC	A	-5000		5.000
Nominal output voltage @ 5000A	VSN	V	-10.000		10.000
Primary / secondary ratio	Ratio	V/kA		2.000
Linearity error	ƐL	ppm	-7		7
Offset current (including earth field)	VOE	ppm	-11		11
Ratio error	VRE	ppm	-5		5
DC-10Hz Overall accuracy @23°C (= ƐL + VRE + VOE)	ƐDC	ppm	-23		23
AC Max. gain error (10Hz to 1kHz)	ƐAC	%	-0.05		0.05
AC Max. phase shift error (10Hz to 1kHz)	q	⁰			0.05
Bandwidth	f(-3dB)	kHz	100
Operting temperature transducer head	Ta	⁰C	0		60

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
