DL2000ID

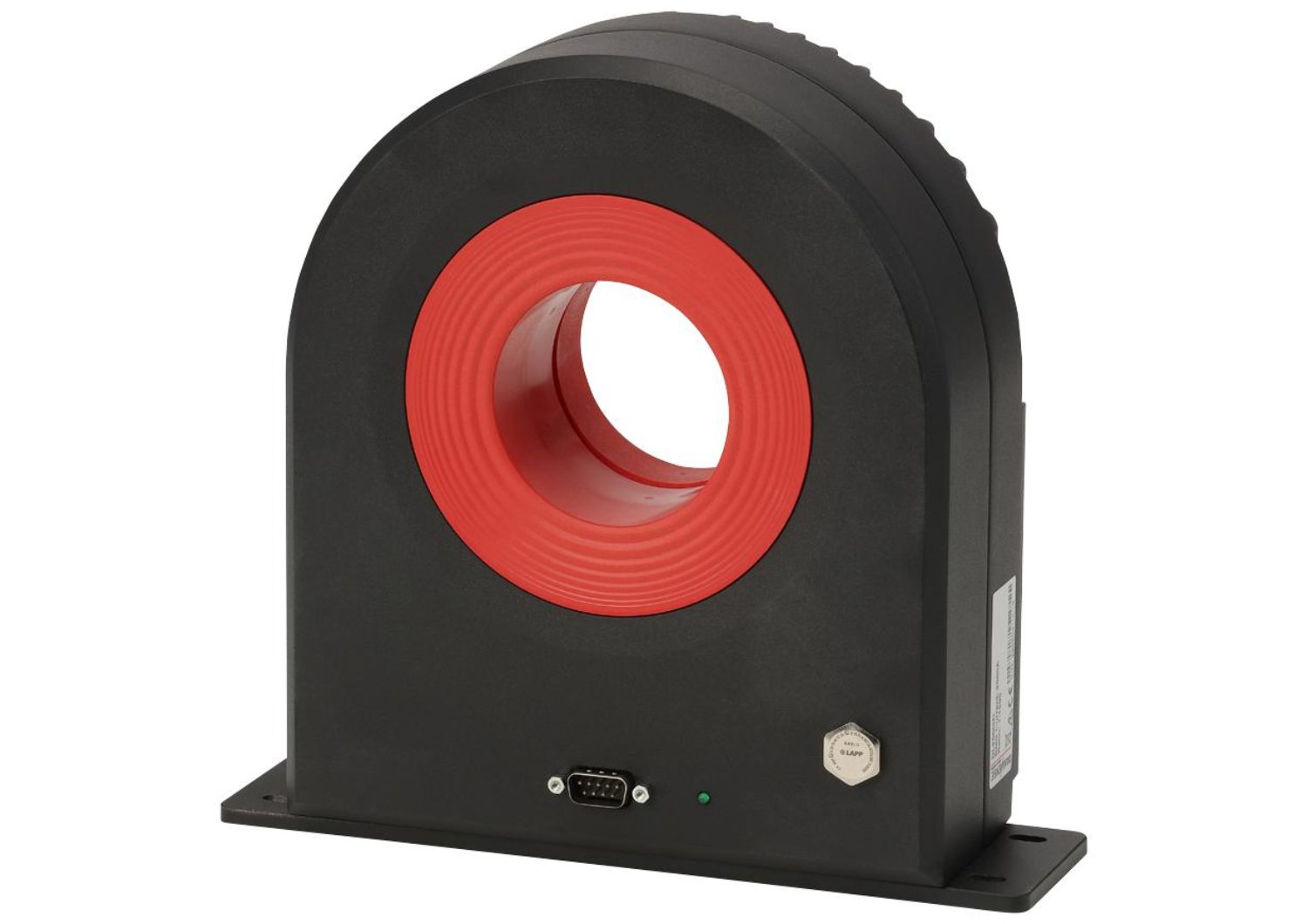

Danisense DL2000ID-CD100 Zero Flux Current Transducer AC:2000Arms, DC:3000A

£3831.00 (£4,597.20 inc VAT)

Available on back-order

SKU: DL2000ID-CD100 Categories: , , Tags: , , Brand:

Description


Danisense DL2000ID-CD100 Zero Flux Current Transducer

High precision DC transducer (DCCT) measuring up to 3000 A currents and continuously measuring 3000 A currents with a linearity error less than 1 ppm.
Based on the ultra-stable Danisense closed loop flux gate technology, the DL2000ID has very low offset and ultra low drift. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability. For calibration of currents up to ±50 A the DL2000ID-CB100 and DL2000ID-CD100 versions are available with additional calibration windings with 100 turns.

Features
  • 2000 A rms nominal current
  • 1500 :1 primary/secondary current ratio
  • Current output through D-sub-9 connector
  • Ø68 mm aperture
  • 7 ppm total accuracy
  • 1 ppm linearity
  • 6 ppm offset
  • Status signal and LED
  • Option for additional calibration windings
Applications
  • Electric vehicle (EV) test bench
  • Power measurement and power analysis
  • Particles accelerators
  • MRI devices and medical scanners
  • Batteriy testing and evaluation systems
  • Current calibration purposes
  • Stable power supplies
  • Precision current sensing

Documentation

Datasheets: Current transducer 600A to 3000A

Specifications Highlights Symbol Unit Min Typ Max
Nominal primary AC current IPN AC Arms 2000
Nominal primary DC current IP N DC A -3000 3000
Measuring range ÎP M A -3000 3000
Primary / secondary ratio n1 : n2 1:1500 1:1500
Linearity error ƐL ppm -1 1
Offset current (including earth field) IOE ppm -6 6
DC-10Hz Overall accuracy @25°C (= ƐL + IOE ) accƐ ppm -7 7
AC Maximum gain error 10Hz to 2kHz ƐG % ±0.01
Operating temperature range Ta °C -40 65
Power supply voltages Uc V ±14.25 ±15.75

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
