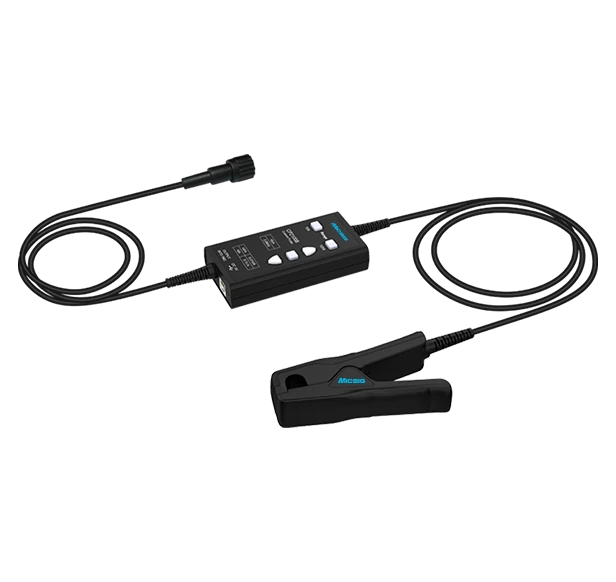

Micsig CP2100 Series Low Frequency AC/DC Current Probe

Slide
CP2100 Series
Low Frequency AC / DC Current Probe

- Max. Bandwidth: 2.5MHz
- Max. Measurable Current: 70Arms
- Max. Conductor Diameter: 13mm
- Interface: BNC

The CP2100 series is a current probe for DC and AC. It has a split design, a nice look, uses BNC, and suits oscilloscopes and multimeters. The max current is 100Apk (70.7Arms), with 2 models: CP2100A (DC-800kHz), CP2100B (DC2.5MHz) and 10A/100A ranges. It has auto and manual zero adjustment, is USB-powered, and is used in motor drives, power frequency, inverters, etc.

Applications:

  • Measurement and fault analysis of power circuits
  • Measurement of motor drives, such as frequency converters
  • Measurement of power electronic devices
  • Power frequency applications and measurements
  • Avionics applications
SKUImageBrandBandwidthRise TimeRangesCurrent Input MaxAccuracyNoiseConductor SizePowerInterfaceStockPrice
CP2100ACP2100ABMicsigDC~800kHz≤437.5ns10A/100A70.7Arms, 100Apk3%±50mA (10A)
4%±50mA (100A,500mA~40Apk)
15% (100A,40Apk~100Apk)		N/A13mmDC-5VBNC4£258.00
CP2100BCP2100ABMicsigDC~2.5MHz≤140ns10A/100A70.7Arms, 100Apk3%±50mA (10A)
4%±50mA (100A,500mA~40Apk)
15% (100A,40Apk~100Apk)		N/A13mmDC-5VBNCOn Backorder£430.00
  • CP2100AB

    Micsig CP2100A AC/DC Current Probe

    £258.00 (£309.60 inc. VAT)

    4 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • CP2100AB

    Micsig CP2100B AC/DC Current Probe

    £430.00 (£516.00 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
