Siglent SDG3000X Series Arbitrary Waveform Generators

Slide

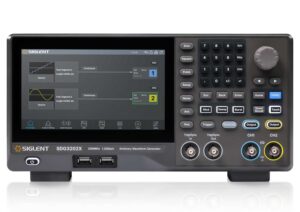

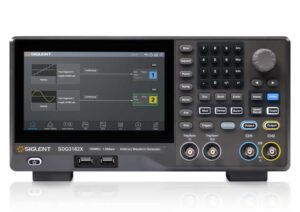

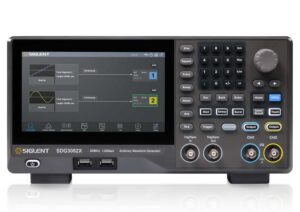

SDG3000X Series
Function/Arbitrary Waveform Generators

- Output Frequency: 80/160/200 MHz
- Arbitrary Waveform Length: 40Mpts
- Vertical Resolution: 16-bit
- Sampling Rate: 1.2 GSa/s
- Display: 7" Touch Screen

The SDG3000X series dual-channel function/arbitrary waveform generator has a maximum bandwidth of 200MHz, an excellent sampling system specifications of 1.2 GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs.

Key Features

  • Maximum output amplitude 20 Vpp
  • Rich analogue and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst functions
  • Harmonic function
  • Waveform Combining Function
  • 196 built-in arbitrary waveforms
  • Built-in WebServer supports instrument control via a web browser
  • 7-inch display touch screen
