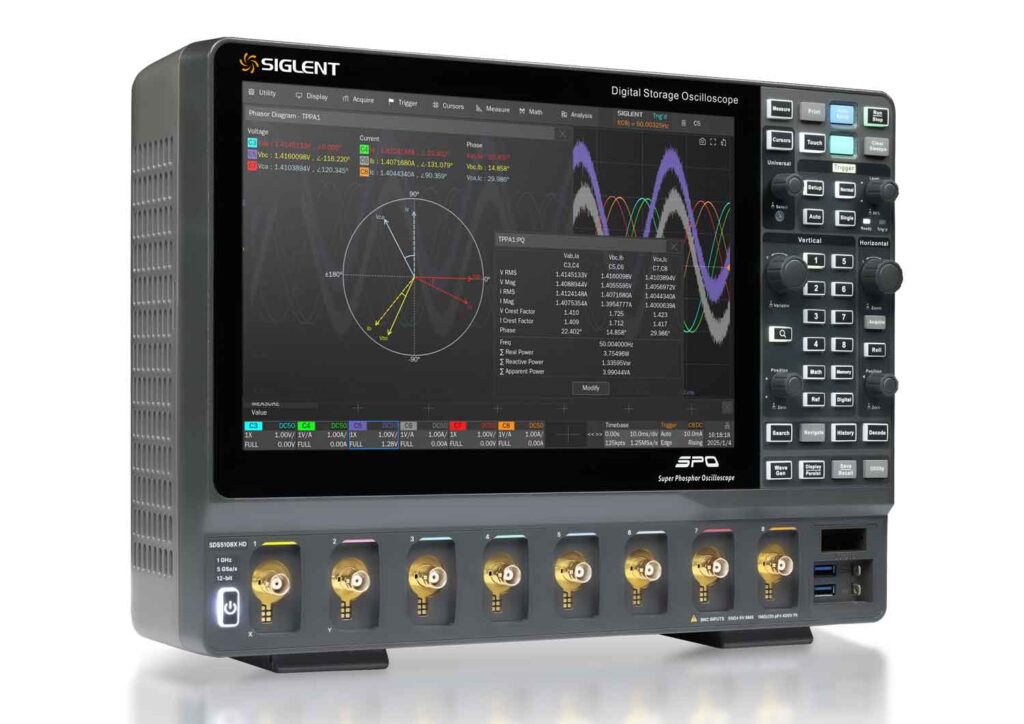

Siglent SDS5000X HD Series Digital Storage Oscilloscope

Supports 8 channels with 12-bit resolution, ultra-low noise, and precision measurements for multi-channel applications. SDS5000X HD are available in 4, 6 and 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, 5 GSa/s sampling rate, maximum record length of 2.5 Gpts/ch. Siglent SPO technology enables a 650,000 wfm/s capture rate with 256-level intensity grading. Digital trigger features high sensitivity, low jitter, and supports smart triggers, serial decoding. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, as well as serial decoding, is also a feature of them. The SDS5000X HD employs a 12.1‘ capacitive touch screen and supports multi-touch gestures, with the addition of a user-friendly UI design, which can greatly improve operational efficiency.

Key Features

  • 350 MHz, 500 MHz, 1 GHz models
  • 4/6/8 analog channels + 1 external trigger
  • 16 digital channels
  • Sampling rate up to 5 GSa/s
  • Up to 2.5 Gpts waveform length
  • Waveform capture rate up to 650,000 wfm/s (Sequence mode)
  • Typical ENOB at 1 GHz of 8.2 bits
