Siglent SDS5000L Low Profile Oscilloscopes

SDS5000L are available in 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, has 12-bit ADCs with a sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch. SDS5000L series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 160,000 wfm/s, 256-level intensity grading display function, plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes, including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, as well as serial decoding, are also features of them.

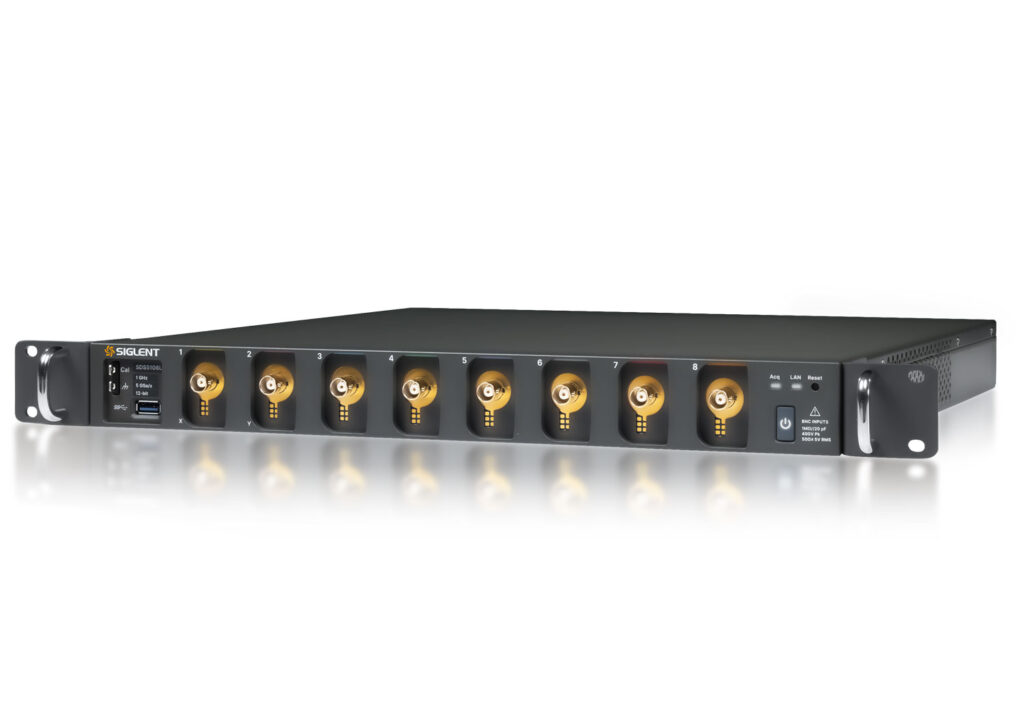

The SDS5000L is a low-profile module without an integrated display or digital input channels (MSO capability). Multiple SDS5000L modules can be synchronised using a 64-channel distributor (SYN64) to form a high-channel-count acquisition system scalable up to 512 channels. Alternatively, an individual SDS5000L module can function as a standalone oscilloscope when connected to an external display and mouse. Remote control is supported via LAN, including web browser access. A comprehensive SCPI command set over the integrated 1000 Mbps Ethernet interface facilitates rapid data acquisition for automated test applications.

Key Features:

  • 350 MHz, 500 MHz, 1GHz models
  • 8 analog channels + 1 external trigger
  • Sampling rate up to 5 GSa/s
  • Up to 2.5 Gpts waveform length
  • SYNC-64 to Synchronize 64 x SDS5000L
  • Waveform capture rate up to 650,000 wfm/s (Sequence mode)
