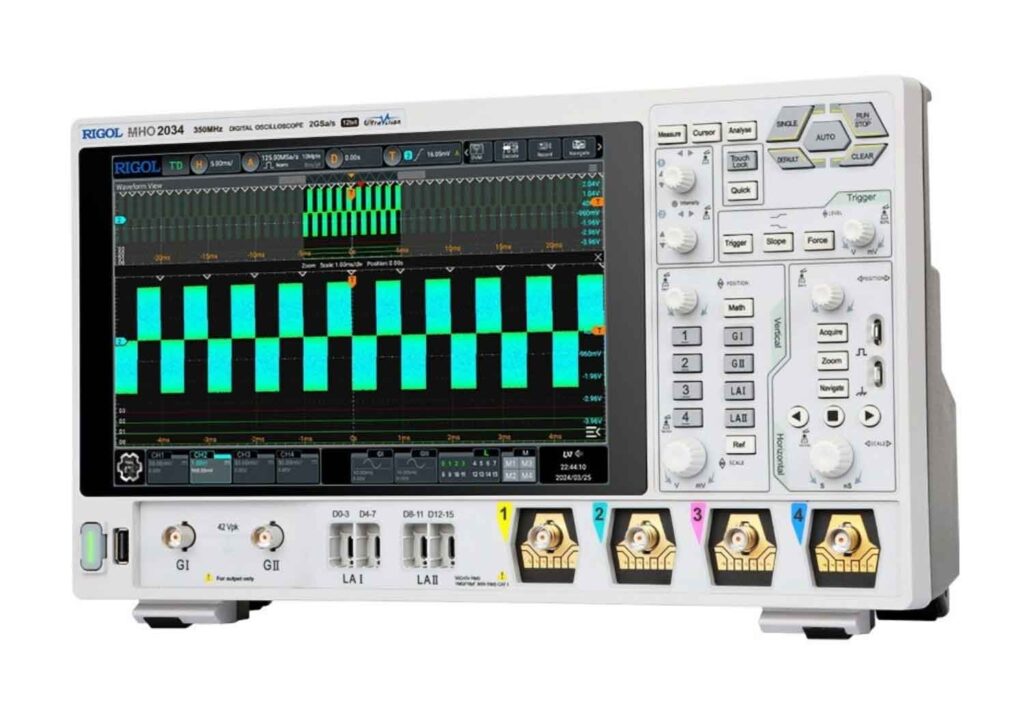

Rigol MHO2000 Series High-Resolution Digital Oscilloscope
The MHO2000 series comprises two models of high-resolution mixed-signal oscilloscopes intended for design, debugging, and test applications requiring bandwidths up to 350 MHz. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, and excellent noise floor are ready to meet the high-accuracy needs of a wide array of applications. Additionally, the MHO2000 series oscilloscopes sport a 10.1-inch touchscreen, optional integrated AFG, Bode plot analysis, and a variety of serial decode options.
Key Features:
- 12-bit Vertical Resolution: With 12-bit vertical resolution and up to 4096 levels of quantisation bits – 16 times that of an 8-bit oscilloscope – measurement accuracy is greatly improved, enabling the capture of the smallest details of a waveform.
- Low Noise: Make the most of 12-bit analogue-to-digital converters with a significantly lower noise floor.
- 500 Mpts Memory Depth: With up to 500 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode.
- Multi-Instrument Capability: Arbitrary Waveform/Function Generator (opt), digital signal analysis, and Bode plot analysis.
- Protocol Analysis for today’s common serial communication buses: Trigger, decode, and visualise serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.
Rigol MHO2000 Oscilloscope Comparison Table
Model | Channels | Bandwidth | Sample Rate | Max Memory Depth | Waveform Refresh Rate | Digital Channels | Built-In Signal Source |
---|---|---|---|---|---|---|---|
MHO2034 | 4 | 350MHz | 2GSa/s | 500Mpts | 1,000,000wfm/s | 16(Probe opt.) | 50MHz, 2CH(opt.) |
MHO2024 | 4 | 200MHz | 2GSa/s | 500Mpts | 1,000,000wfm/s | 16(Probe opt.) | 50MHz, 2CH(opt.) |
Showing all 2 results
-
RIGOL MHO2024 12 bit, 4Ch, 200MHz, 2GSa/s High Resolution Oscilloscope
£2,117.00Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
RIGOL MHO2034 12 bit, 4Ch, 350MHz, 2GSa/s High Resolution Oscilloscope
£2,912.00Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
