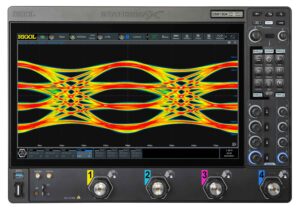

Rigol DS80000 Series Digital Oscilloscopes

The DS80000 series digital oscilloscope is the eighth-generation digital oscilloscope independently developed by RIGOL. Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analogue bandwidth of 13GHz. In addition to hardware improvements, the DS80000 series digital oscilloscope also provides a variety of user-friendly designs to ensure a high-quality customer experience!

Key Features:

• Built on RIGOL’s brand new core module
• 4 analogue channels, 1 EXT channel
• Analogue channel bandwidth: Max. 13 GHz
• Up to 40 GSa/s sample rate
• Max. 2 Gpts or 4 Gpts memory depth (opt.)
• Max. waveform capture rate: 250,000 wfms/s
• Vertical resolution: 8-16 bits adjustable
• Vertical sensitivity range: 1 mV/div ~ 1 V/div (50Ω)
• Timebase range: 20 ps/div~1 ks/div
• N-in-1 instrument, including digital oscilloscope, digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyser (option)
• Various trigger functions: Zone trigger, Edge trigger, Pulse trigger, Slopetrigger, Video trigger, Pattern trigger, Duration trigger, Timeout trigger, Runttrigger, Window trigger, Delay trigger, Setup/Hold trigger, Nth Edge trigger, RS232/UART, I2C, SPI, CAN, FlexRay, LIN, I2S, and MILSTD-1553
• Various serial bus decodings (opt.): RS232/UART, I2C, SPI, CAN, CAN-FD,FlexRay, LIN, I2S, MILSTD-1553, USB2.0; 4 decode channels
• Support Ethernet, USB2.0, and other protocol compliance analysis functions
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function
• Various math operations: A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, LowPass, HighPass, BandPass, and BandStop built-in peak search functions
• Real-time eye diagram and jitter analysis (opt.)
• Recording and playback functions for a maximum of 2,000,000 frames of hardware real-time and ceaseless waveforms
• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, AUX OUT; Web Control supported
• 15.6” HD capacitive multi-touch screen with one-button electronic tilt; multi-pane windowing
• The photoelectric encoder operating knob prolongs its service life, guaranteeing more than 100,000 times of pressing operation and 1 million times of rotation operation, greatly improving its service life
• High-definition smart and quick-responsive shortcut menu display
• Support online upgrade
