Rigol DS70000 Series Digital Oscilloscopes

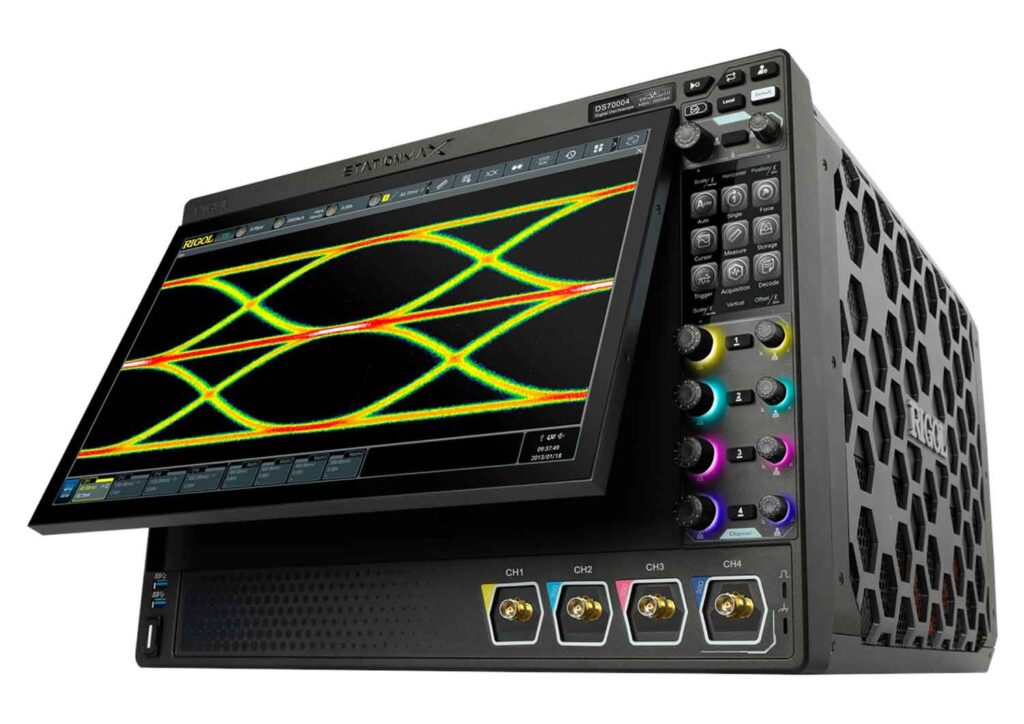

The workstations from the Rigol STATIONMAX DS70000 series are based on the enhanced UltraVision III architecture. They offer exceptional features with high sampling rate, deep memory, fast waveform capture rate and better vertical resolution compared to previous designs. At the heart of the UltraVision III architecture is the Phoenix chipset with multiple Rigol-developed ASICs that form the analogue front-end and deliver the large signal processing power. Various trigger, math and display options, as well as all the usual serial bus protocol analysis functions, are available in enhanced form. Integrated voltmeter, frequency counter and totalizer complete the measurement spectrum.
- 5-in-1 workstation: High-end oscilloscope, voltmeter, frequency counter/totalizer, real-time spectrum analyser (option RTSA), protocol analyser (option).
- 4 analogue input channels.
- Bandwidth 3 GHz or 5 GHz.
- Sample rate up to 20 GS/s.
- Dimensions: 7 U (full rack size).
- Two touch displays:
Tilting, capacitive 15.6″/39.6 cm colour touchscreen display (main display, for multiple measurement windows).
3.5″/8.9 cm touchscreen display for device settings and control. - Memory depth 500 Mpts, option up to 2 GPts.
- The vertical resolution can be selected between 8 bit and 16 bit – ideal for the measurement of very small signal components.
- Waveform capture rate up to 1 Mio Wfms/s.
- Various versatile display, math and trigger features (e.g. zone trigger).
- Interfaces: USB 3.0 host/device, LAN/Ethernet (remote control or via web control/browser), optional USB-to-GPIB (adaptor) as well as USB mouse support; additional HDMI, TRIG OUT, 10-MHz-IN/OUT, AUX OUT.
Model | DS70504 | DS70304 | |
---|---|---|---|
Analog Bandwidth (50 Ω, -3 dB) | 5 GHz | 3 GHz | |
Analog Bandwidth (1 MΩ, -3 dB) | 500 MHz | ||
Calculated Rising Time under 50 Ω (Half-channel 10%-90%, typical) | ≤108 ps | ≤130 ps | |
No. of Input Channels | 4 analog channel inputs 1 EXT channel input |
||
Sampling Mode | Real-time sampling | ||
Max. Sample Rate of Analog Channel | Half-channel: 20 GSa/s Full-channel: 10 GSa/s |
||
Max. Memory Depth | Standard: 500 Mpts Option: 2 Gpts (half-channel), 1 Gpts (full-channel) |
||
Max. Waveform Capture Rate | >1,000,000 wfms/s | ||
Vertical Resolution | 8-16 bits (selectable) | ||
Hardware Real-time Waveform Recording and Playing | Max. 2,000,000 frames (half-channel) | ||
Peak Detection | Captures 200 ps glitches | ||
LCD Size and Type | Main display: 15.6” capacitive multi-touch screen with onebutton electronic tilt Secondary display: 3.5” capacitive multi-touch screen with user-defined shortcut key menu, supporting quickresponsive touch operation with vibration |
||
Display Resolution | Main display: 1920×1080; Secondary display: 480×320 |
Showing all 2 results
-
Sale!
Rigol DS70304 Digital Oscilloscope, 3GHz Bandwidth, up to 16 bit
Original price was: £19,487.00.£15,589.00Current price is: £15,589.00.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Sale!
Rigol DS70504 Digital Oscilloscope, 5GHz Bandwidth, up to 16 bit
Original price was: £26,266.00.£21,013.00Current price is: £21,013.00.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
