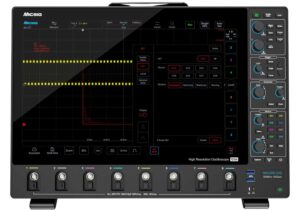

Micsig MHO 6 Series High Resolution Oscilloscopes

Slide
MHO6 Series
High Resolution, Handheld Oscilloscope

- Bandwidth: 350/500MHz/1GHz
- Sampling Rate: 6GSa/s
- Memory Depth: 1800Mpts
- Analogue Ch: 8 Channels
- Display: 16" Touch-screen, 1920x1200

The MHO high-resolution oscilloscope 6 series features a 1GHz bandwidth, 6GSa/s sampling rate, 8 analogue channels, a storage depth of 1800 million points (Mpts), and a 12-bit vertical resolution. Its high bandwidth and 8-channel capability are suitable for faster circuit analysis and more synchronised signal testing. Its ultra-thin design at 3.76 cm can save a lot of your precious desk space; a 16-inch touch screen with a resolution of 1920*1200 provides a super-clear waveform display for a more comfortable visual experience.

Key Features

  • 12-bit vertical resolution (up to 4096 quantisation levels, 16 times that of traditional 8-bit ADC)
  • 8 analogue channels
  • 3.76cm Ultra-Thin design (portable and aesthetically pleasing)
  • 350MHz, 500MHz or 1GHz options available
  • 6 GS/s sampling rate, 1800 Mpts memory depth
  • 16-inch touch screen, 1920*1200 resolution
  • Simultaneous display for 40 measurement items
  • Advanced math and FFT function
  • Segmented storage function
  • Simultaneous data saving on multi-channel
  • High / Low pass bandwidth filtering
  • Mobile app, PC remote control, SCPI commands
  • 256G internal storage to save large data
  • Bus decodes: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, MIL-STD-1553B
  • Support PC and smartphone remote control
  • HDMI port (for demonstration purposes)
  • Standard with BNC adapters
  • Equipped with abundant ports (USB 3.0/2.0 Host, USB Type-C, LAN, HDMI, Aux In/Out and 10MHz clock signal In/Out)
