Rigol DNA6000 Series Vector Network Analysers

Slide

DNA6000   Series
Vector Network Analyser

- Expanded Port Options: Available in 2-port or 4-port models to handle more complex test scenarios.
- Superior Signal Purity: Extremely low 0.003 dB trace noise for high-precision measurements up to 26.5 GHz.
- Enhanced Connectivity: Adds GPIB and Application I/O interfaces for deeper integration into automated test benches.
- Professional Grade Analysis: Full suite of S-parameters, Time Domain Analysis (TDA), and fixture de-embedding.
- Industrial Versatility: Desktop-ready compact design with Web Control and 10.1'' HD touch interface.

RIGOL DNA6000 banner telonicuk

The DNA6000 series vector network analyser provides various calibration methods such as frequency response, single-port, response isolation, enhanced response, full dual-port, and electronic calibration. It supports various display formats such as Log Mag, Lin Mag, SWR, Phase, Group Delay, Smith Chart, and Polar Chart. Through the connectivity with the instrument under test via the standard interfaces such as USB, LAN, and HDMI, this series can accurately measure the amp/ freq characteristics, phase/freq characteristics, and group delay characteristics of the microwave network.

While maintaining the high-performance characteristics in terms of its specifications, appearance, display effects, and software interface, the DNA6000 series features compact size, light weight, and low noise, offering you a better user experience. This series product can be widely used in the electronics, communication, and microwave fields. It is the commonly used test instrument in the R&D and batch production for the industry and universities.

SKUImageFrequency RangeChannelsDynamic RangeNoiseOutput RangesStockPrice

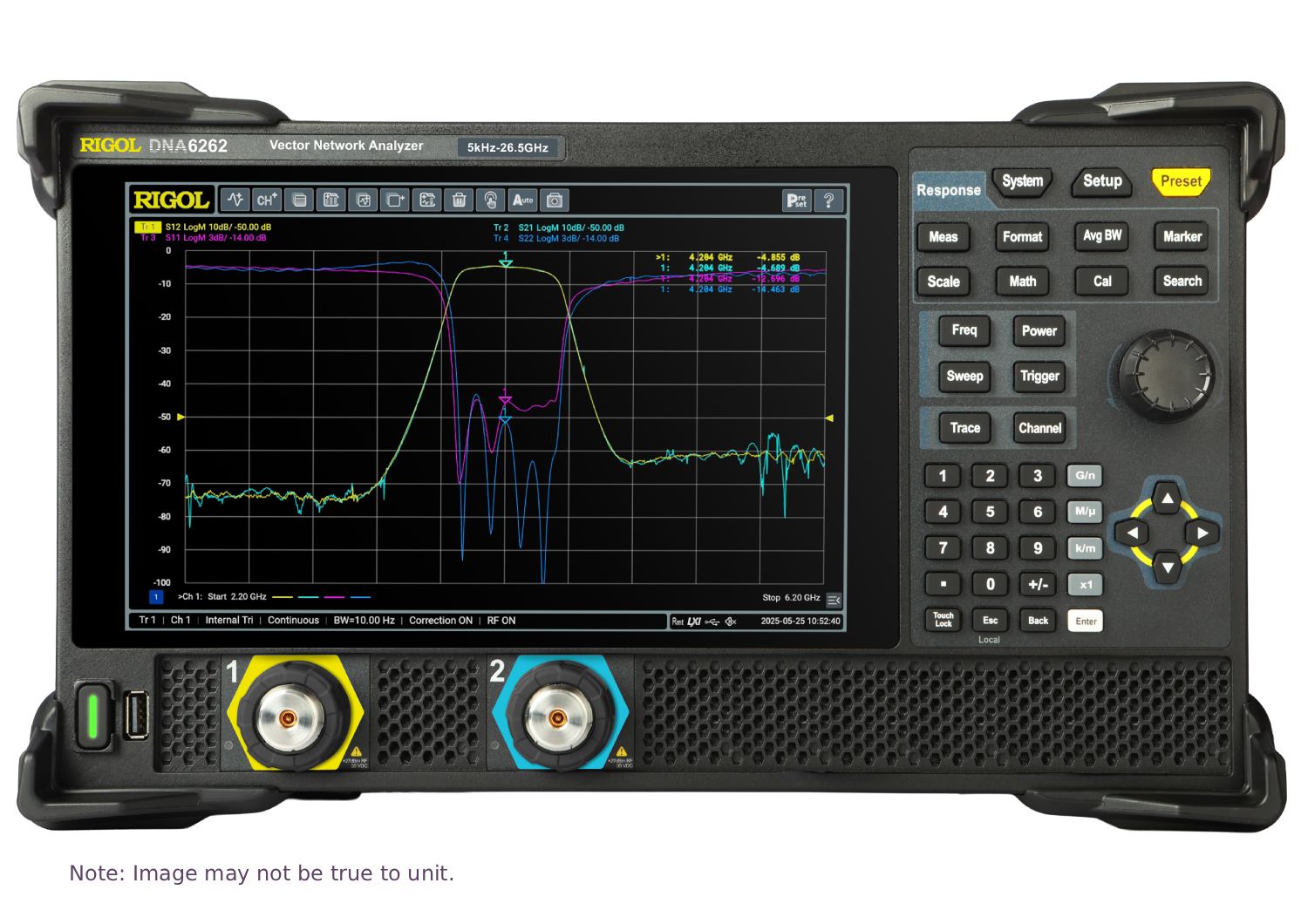

DNA6082dna6262 telonicUK5 kHz to 8.5 GHz2120dB0.003 dB-40dBm ~ 10dBmOn Backorder£9,130.00
DNA6084DNA6 Front TelonicUK5 kHz to 8.5 GHz4120dB0.003 dB-40dBm ~ 10dBmOn Backorder£14,869.00
DNA6142dna6262 telonicUK5 kHz to 14 GHz2120dB0.003 dB-40dBm ~ 10dBmOn Backorder£13,738.00
DNA6144DNA6 Front TelonicUK5 kHz to 14 GHz4120dB0.003 dB-40dBm ~ 10dBmOn Backorder£20,521.00
DNA6202dna6262 telonicUK5 kHz to 20 GHz2120dB0.003 dB-40dBm ~ 10dBmOn Backorder£18,260.00
DNA6204DNA6 Front TelonicUK5 kHz to 20 GHz4120dB0.003 dB-40dBm ~ 10dBmOn Backorder£27,390.00
DNA6262dna6262 telonicUK5 kHz to 26.5 GHz2120dB0.003 dB-40dBm ~ 10dBmOn Backorder£22,869.00
DNA6264DNA6 Front TelonicUK5 kHz to 26.5 GHz2120dB0.003 dB-40dBm ~ 10dBmOn Backorder£34,260.00
