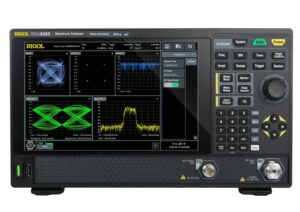

Rigol RSA6000 Series Real-Time Spectrum Analysers

In the world of Wi-Fi, **Bluetooth}$, and cutting-edge RF design, engineers are constantly battling elusive challenges: fleeting frequency hopping signals, sudden channel conflicts, and insidious spectrum interference. You can’t troubleshoot what you can’t see—and that’s where traditional analysers fall short.

The Rigol RSA6000 series is a compact, lightweight powerhouse that changes the game. It combines a top-tier standard spectrum analyser with a revolutionary Real-Time Spectrum Analyser (RTSA). This means you’ll never miss a signal that lasts longer than 7.45 μs.

The RSA6000 doesn’t just measure; it brings the dimension of time into your RF analysis. With a best-in-class 7.45 μs 100% Probability of Intercept (POI), exceptional data displays, and sophisticated triggering, you can swiftly capture, identify, and characterise even the most complex and transient RF events.

Key Features:

• Frequency Range: 5 kHz up to 8.5 / 14 / 26.5 GHz
• Display: 10.1″ Capacitive Touchscreen
• Noise Floor: DANL as low as −163 dBm (with optional preamplifier)
• Real-Time Bandwidth: 80 MHz standard (200 MHz optional)
• Minimum POI: As low as 3.83 μs
• Fast Sweep: 1 ms full span sweep speed
• Advanced Features: EMI RBW and Detector standard (200 Hz, 5 kHz, 120 kHz, 1 MHz), 7 Real-Time visualisation modes, 1 Hz Minimum RBW.
• Optional: Tracking Generator and VSWR measurements.
