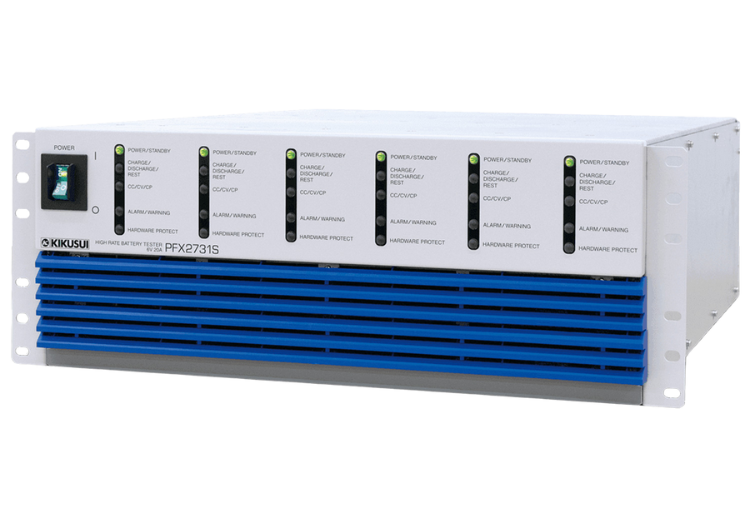

Kikusui PFX2731S High-rate Battery Tester

Slide
PFX2731S
High-rate Battery Tester

- 10 ms continuous measurement (at the fastest setting)
- Supports single cell evaluation (C-rate can be set)
- Various charge/discharge modes (9 modes in total)
・Charge: CC, CC-CV, CP, CP-CV
・Discharge: CC, CC-CV, CP, CP-CV
・Pattern Charge/Discharge (CC(+CV), CP(+CV))

The PFX2731S is a 6V-20 6-channel battery tester that supports high-rate charge/discharge tests. It is operated with the application software BPChecker4000, which is exclusive to the PFX2731S. As one PC can operate up to 4 units (24 channels), a multi-channel charge/discharge system can be constructed according to the required number of channels.

To safely conduct long-term continuous testing, it also features a 2-system independent protection function for hardware and software, as well as various additional protection functions, including a connection confirmation function that detects incorrect wiring and integrated capacity protection.
