Bulk Current Injection Probes (BCI Probes)

Bulk Current Injection Probes are used to inject RF-current into cables of electrical equipment to test the susceptibility against radiated electromagnetic energy. Tekbox BCI-probes can be clamped around wire bundles with up to 27 mm. They are designed to meet the specifications of the standards IEC 61000-4-6 (domestic and industrial products) and ISO 11452-4 (automotive products).

Tekbox supplies suitable wideband power amplifiers to drive the BCI probes:

  • TBMDA-CDN25 for immunity tests according to IEC 61000-4-6
  • TBMDA-BCI25 for immunity tests according to ISO 11452-4

The calibration fixture TBBCI1-CAL is suitable for both BCI-probe models

Applications

  • Industrial & Commercial EMC (IEC / EN 61000-4-6):
    TBBCI1-200K280 – conducted immunity testing up to 30 V (Levels 1–3, X)
  • Automotive EMC (ISO 11452-4):
    TBBCI1-800K420 – BCI testing of ECUs, wiring harnesses, and vehicle electronics
  • Automotive, Military & Aerospace EMC (ISO 11452-4, MIL-STD-461 CS114, DO-160):
    TBBCI1-300K420-HV – high-level and pulse testing up to 5 kV
  • EMC Pre-Compliance & R&D:
    All models – early immunity testing and design validation
  • RF Current Monitoring & Diagnostics:
    All models – non-intrusive RF current measurement on cables and harnesses
SKUImageFrequency RangeCoupling LossMax. RF Input PowerAperture DiameterOuter DimensionsStandardStockPrice
TBBCI1-200K280TBBCI1 200K280 SIDE150 kHz – 230 MHz8 dB typical50W continuous
100W short time		27 mm92 x 76 mmBCI probe for IEC / ISO 61000-6-42£1,391.00
TBBCI1-800K420TBBCI1 200K280 SIDE1 MHz – 400 MHz5 dB typical50W continuous
100W short time		27 mm92 x 76 mmBCI probe for IEC / ISO 11452-4On Backorder£1,391.00
TBBCI1-300K420TEKBOX TBBCI1 300K420 HV TelonicUK300 kHz – 400 MHz5 dB typical50W continuous
100W short time		27 mm92 x 76 mmBCI probe for ISO 11452-4; MIL-STD-461
CS114, GJB 151B-2013, DO-160		On Backorder£1,419.00
TBBCI1-CALTEKBOX Calibration Fixture TBCI1 TelonicUK150 kHz – 400 MHz-500 W-200 × 150 × 140 mmBCI probe calibrator for IEC / ISO 61000-6-4
IEC / ISO 11452-4		1£725.00
  • TBBCI1 200K280 SIDE

    TBBCI1-200K280 SNAP-ON BULK CURRENT INJECTION PROBE

    £1,391.00

    2 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TBBCI1 200K280 SIDE

    TBBCI1-800K420 SNAP-ON BULK CURRENT INJECTION PROBE

    £1,391.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket

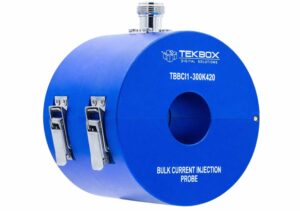

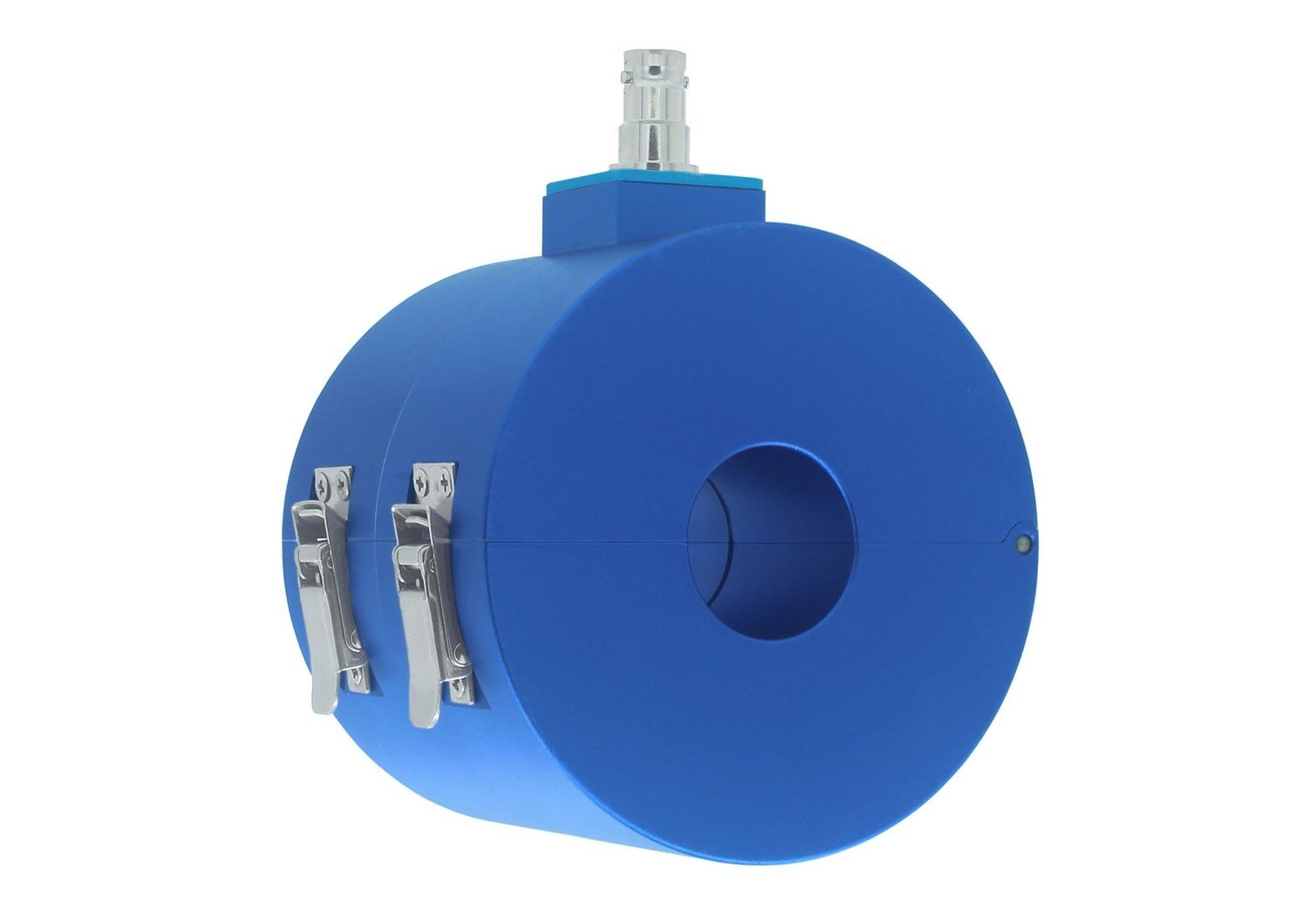

  • TEKBOX TBBCI1 300K420 HV TelonicUK

    Tekbox TBBCI1-300K420 Snap-On Bulk Current Injection Probe

    £1,419.00

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • TEKBOX Calibration Fixture TBCI1 TelonicUK

    Tekbox TBBCI1-CAL Bulk Current Injection Probe Calibration Fixture

    £725.00

    1 in stock (can be backordered)

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
