Introducing the Rigol DNA800 Vector Network Analysers!

Posted on: June 30th, 2026 by Kane Brady

RIGOL has expanded its RF and microwave test portfolio with the introduction of the DNA800 Series Vector Network Analysers, combining laboratory-grade performance with a compact, highly portable design. Available with frequency ranges up to 14 GHz, the DNA800 Series delivers accurate S-parameter measurements, high dynamic range and advanced RF analysis capabilities for engineers working across research, education, manufacturing and field service.

Designed to bridge the gap between traditional benchtop instruments and portable test equipment, the DNA800 Series offers comprehensive measurement functionality, intuitive touchscreen operation and extensive remote control capabilities in a lightweight 1.9 kg platform.

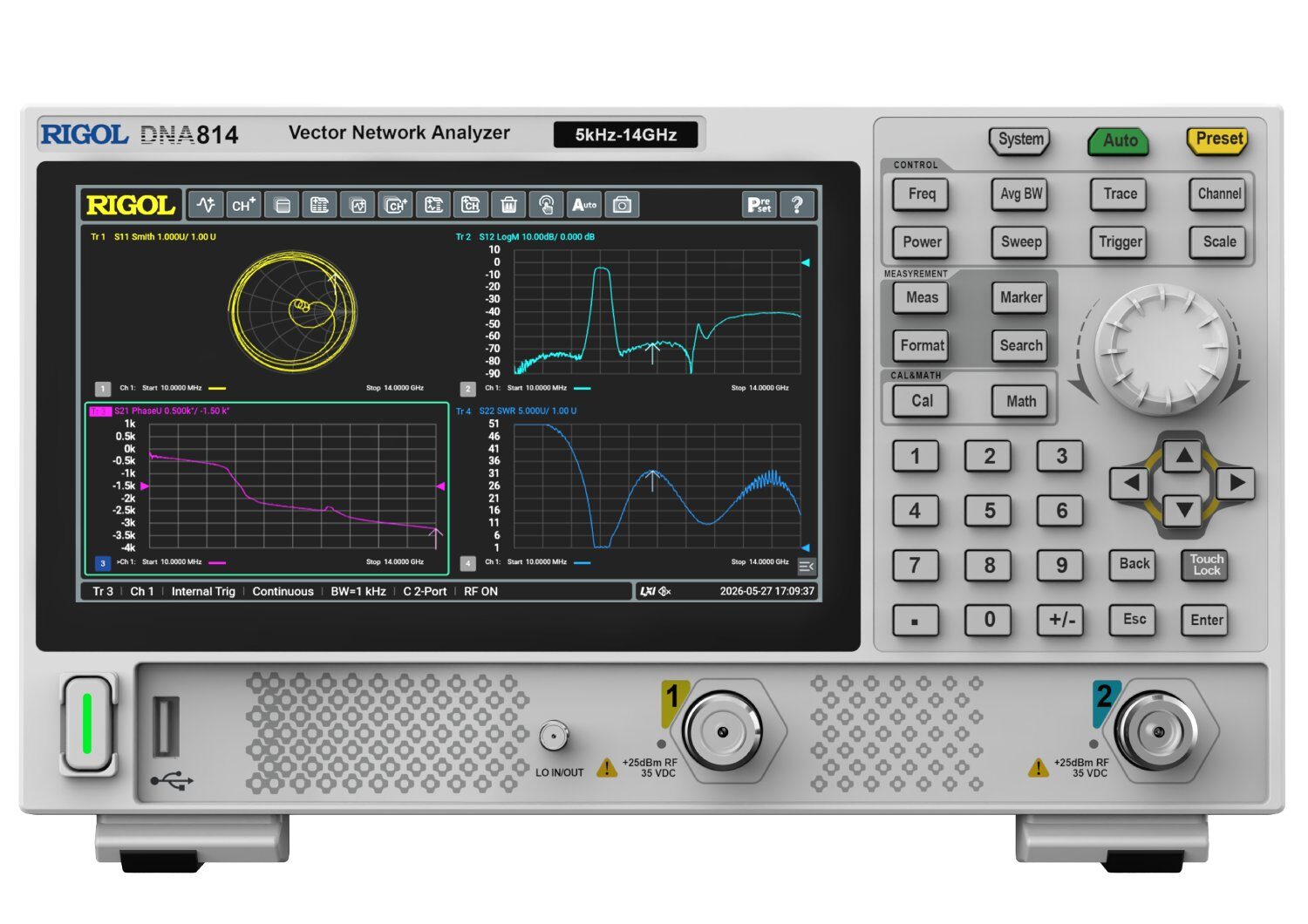

  • Image of Dna800 front telonicuk

    RIGOL DNA804 4.5 GHz, 125 dB, 2-Port Vector Network Analyser

    £2,347.00 (£2,816.40 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Dna800 front telonicuk

    RIGOL DNA808 8.5 GHz, 125 dB, 2-Port Vector Network Analyser

    £4,086.00 (£4,903.20 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket
  • Image of Dna800 front telonicuk

    RIGOL DNA814 14 GHz, 125 dB, 2-Port Vector Network Analyser

    £6,695.00 (£8,034.00 inc. VAT)

    Available on back-order

    Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

    Add to basket

Key Features and Performance

  • Frequency coverage from 5 kHz to 4.5 GHz, 8.5 GHz or 14 GHz
  • 125 dB typical dynamic range with ultra-low 0.005 dB trace noise
  • Comprehensive RF measurements including S-parameters, Smith Charts, VSWR, impedance, group delay and polar plots
  • Supports mechanical and electronic calibration with multiple calibration methods, including SOLT and Enhanced Response
  • Optional Time Domain Analysis (TDA) and Distance-to-Fault (DTF) capabilities
  • Compact 1.9 kg portable design with a 7-inch HD capacitive touchscreen
  • Remote operation via LAN, Web Control and SCPI commands
  • USB, LAN and HDMI connectivity for easy integration into automated test systems

Applications

  • RF component design and validation
  • Filter, amplifier and antenna characterisation
  • Wireless communications and IoT development
  • Microwave engineering research
  • Electronics manufacturing and production testing
  • Educational laboratories and universities
  • Field service and maintenance
  • Automated RF test systems

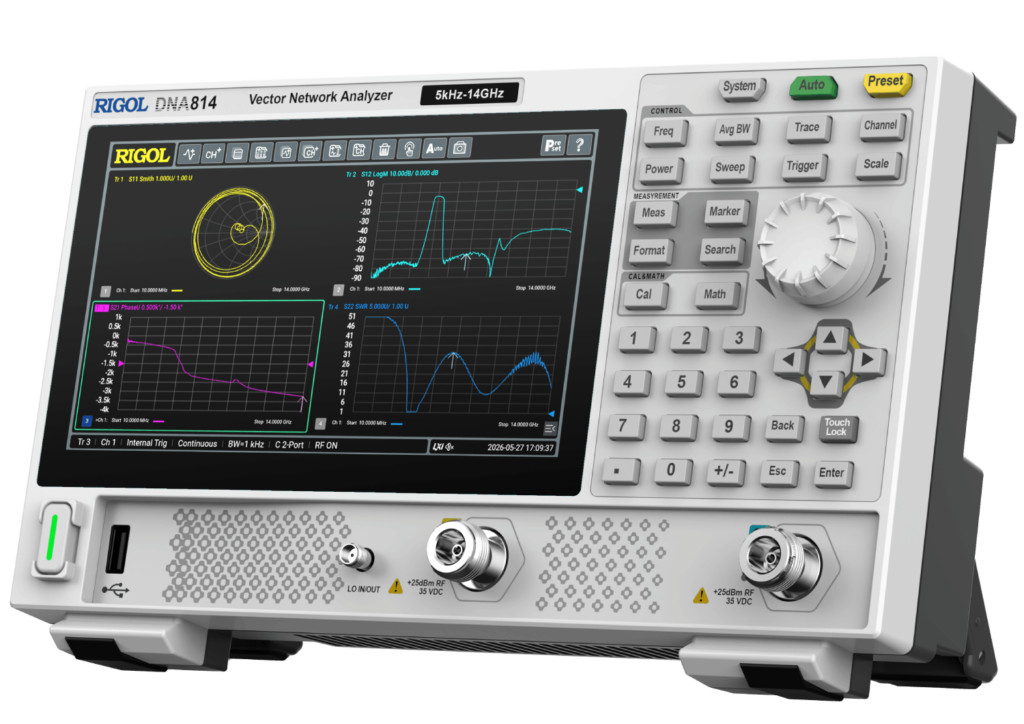

Image of Dna800 left transp telonicuk 1

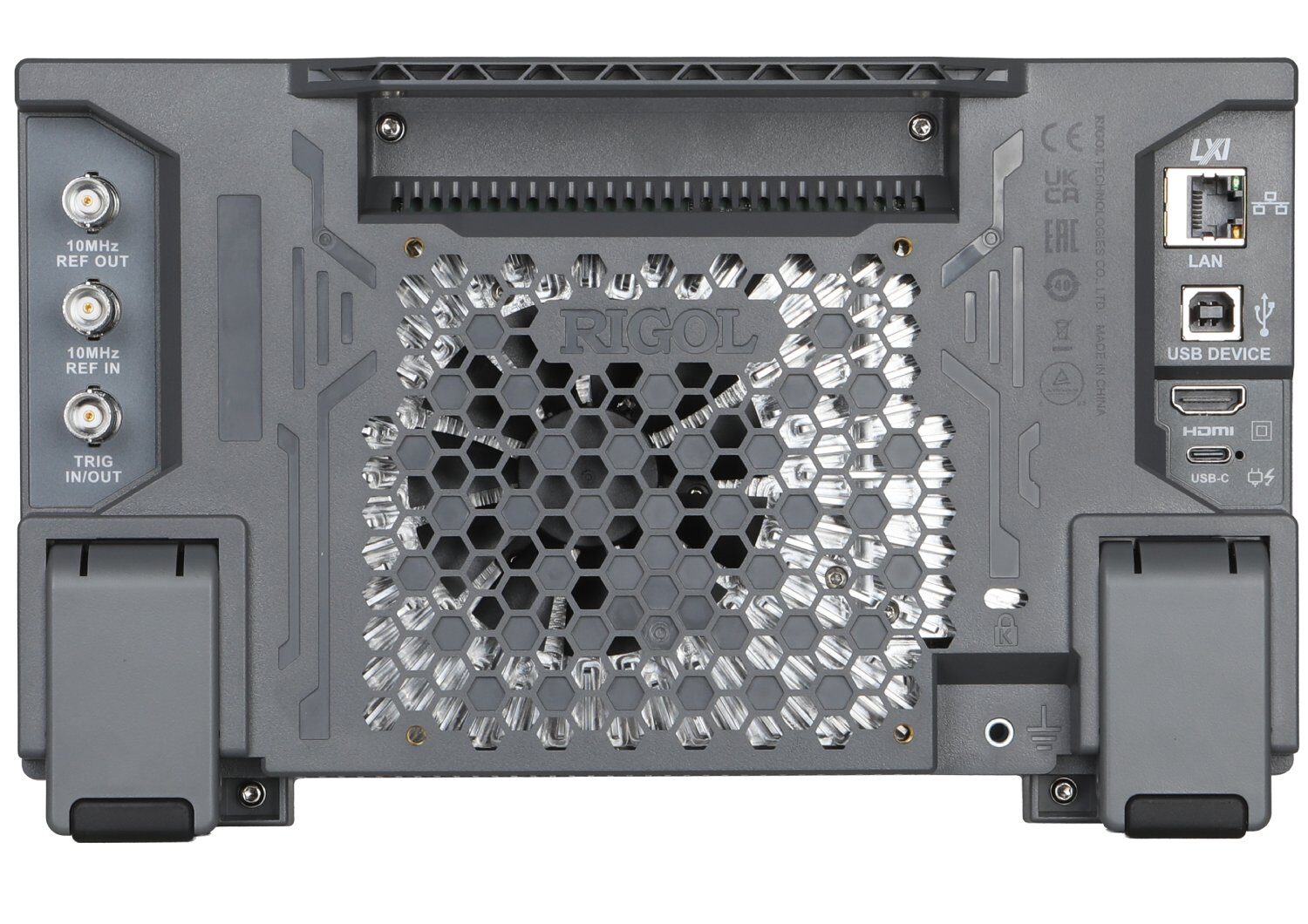

Image of Dna800 back telonicuk

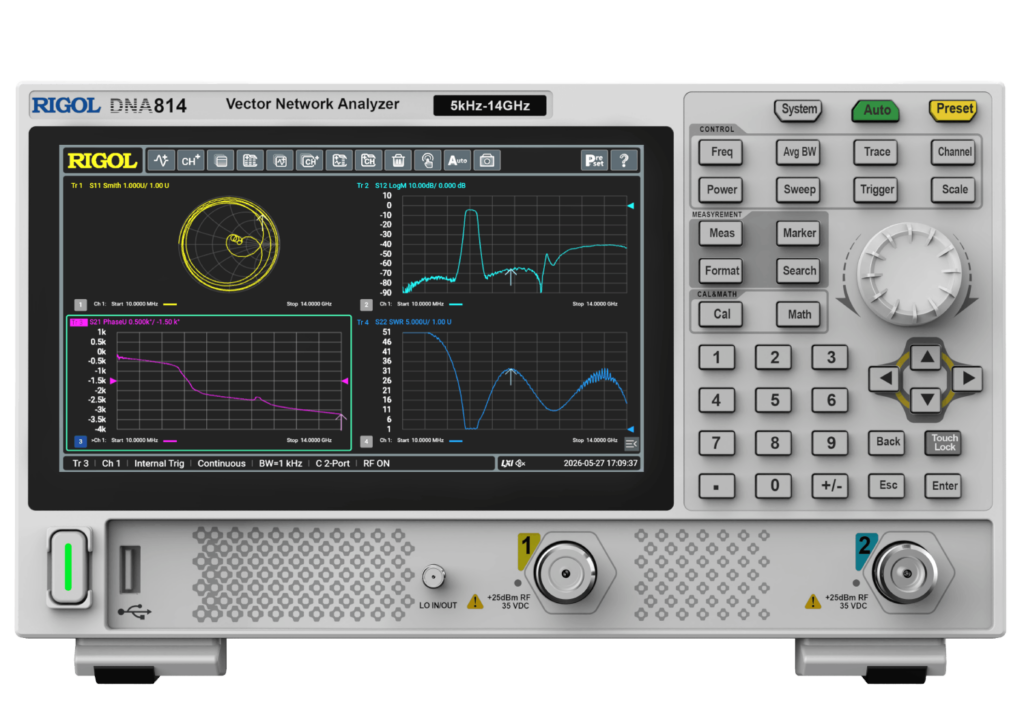

Image of Dna800 front transp telonicuk

Product Specifications Table

SKUImageFrequency RangeChannelsDynamic RangeNoiseOutput RangesStockPrice
DNA804Image of Dna800 front telonicuk4.5 GHz2125 dB0.005 dB10 dBmOn Backorder£2,347.00
DNA808Image of Dna800 front telonicuk8.5 GHz2125 dB0.005 dB10 dBmOn Backorder£4,086.00
DNA814Image of Dna800 front telonicuk14 GHz2125 dB0.005 dB10 dBmOn Backorder£6,695.00
See the DNA800 Series
