TEKBOX TBGTC1 GTEM Cell

Name: TEKBOX TBGTC1 GTEM Cell
Brand: Tekbox
SKU: TBGTC1
Availability: InStock

£1935.50 (£2,322.60 inc VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Facebook

Post

SKU: TBGTC1 Categories: EMC, Hardware, TEM Cells Brand: Tekbox

Description

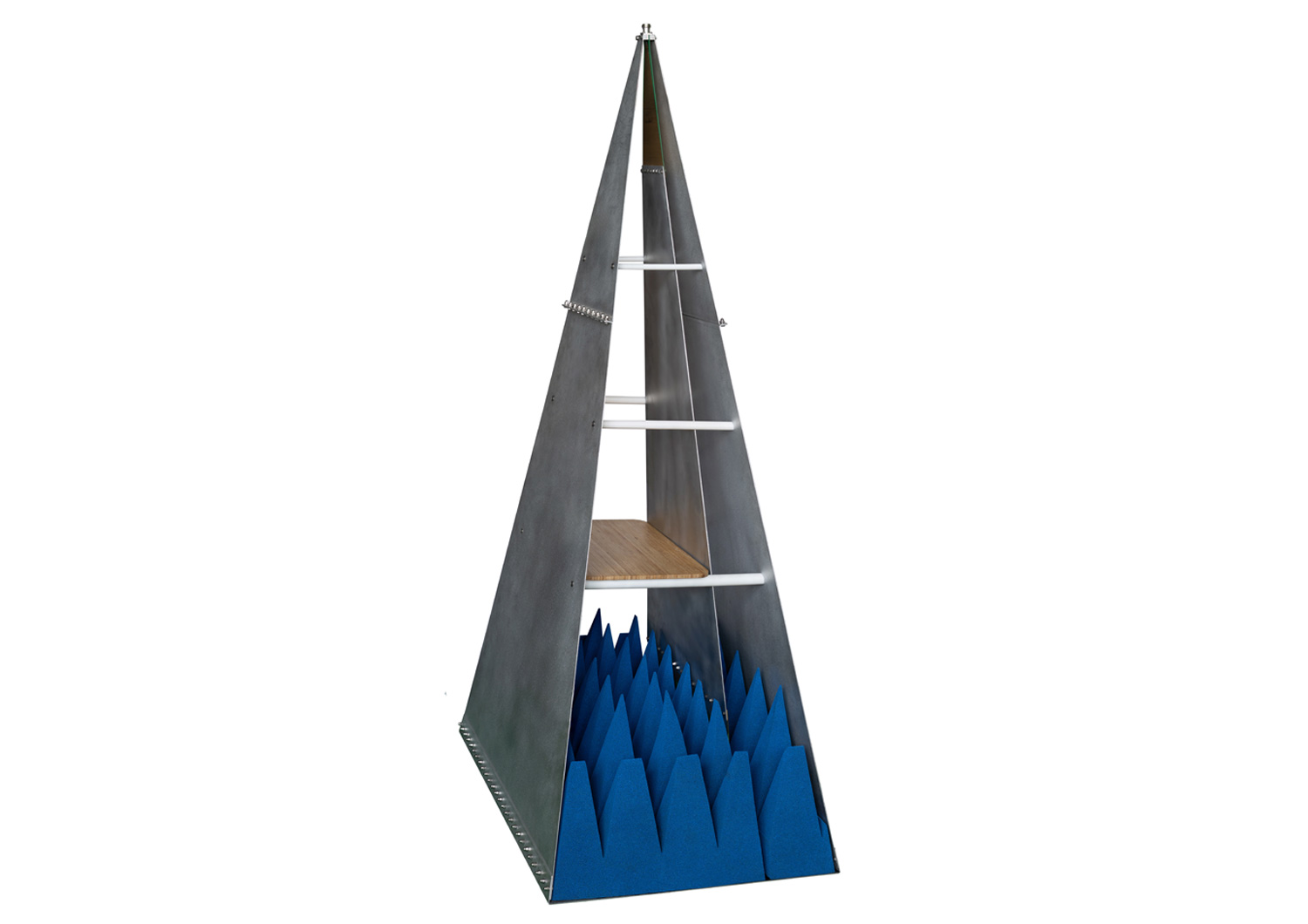

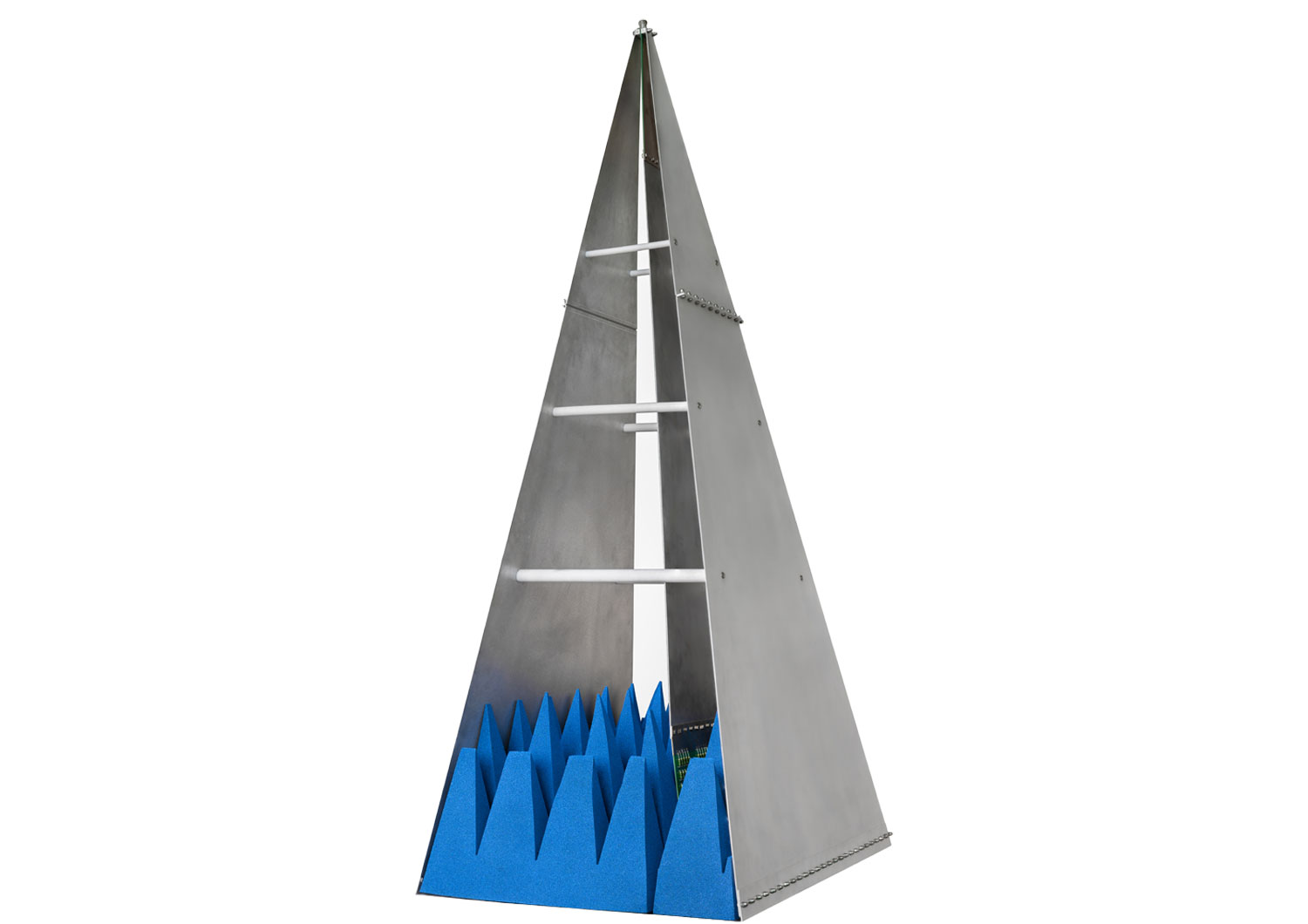

TEKBOX TBGTC1 GTEM Cell

The TBGTC1 open GTEM-cell adds to our existing portfolio of low-cost open TEM-cells for EMC pre-compliance testing. Unlike TEM cells, which have limits at higher frequencies, GTEM cells may operate up to many GHz.

Products can be examined for radiated emissions and immunity before and after EMC-related design changes using a spectrum analyser with a tracking generator, modulated power amplifier, and EMCview software.

The engineer can easily validate whether his changes improved or harmed the EMC performance, or if it stayed unaltered. The use of GTEM cells eliminates the need for guesswork.

When positioned vertically, the TBGTC1 requires just an area of 78 cm × 52 cm. The EUT can be conveniently placed on a supplied wooden board that rests on the GTEM-cell spacers.

Optional Hardware Accessories

Documentation

TBGTC1 User Manual

Septum Height: 250 mm at the location of the EUT-board
Outer dimensions (LxWxH): 1452x780x520 mm
Approx Cell Weight: 13 kg.
Maximum EUT size (LxWxH): 200x200x150 mm
Defined test volume (±3 dB < 3000 MHz, LxWxH): 100x100x100 mm
GTEM cell connectors: N-female
Nominal cell impedance: 50 Ohm
Frequency range: 0.009 MHz – 6 GHz
Wave impedance: 377 Ohm
Maximum continuous RF input power: 600W
VSWR: 1:1.3 typical, 1:1.9 max.
Field uniformity on maximum test volume: up to 3 GHz < ± 6 dB

Note* Specifications are liable to change. For the full list of Specifications, please see the product’s documents located under the ‘Documentation’ tab.
