Description
VNA Analyzer.

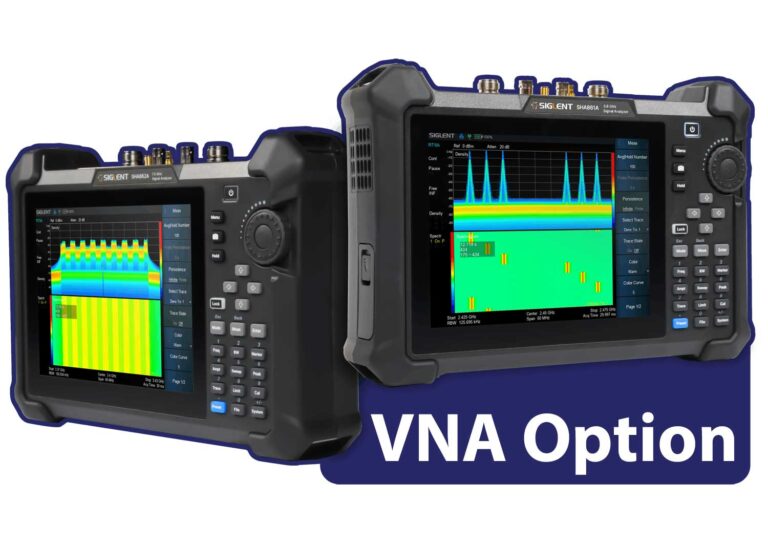

Option available for the Siglent SHA861A and SHA862A Handheld Spectrum / Vector Network Analysers.
| Stimulus and Measurement | ||
|---|---|---|
| SHA861A | SHA862A | |
| Frequency Range | 100 kHz~3.6 GHz(30 kHz usable) | 100 kHz~7.5 GHz(30 kHz usable) |
| Measurement | S11, S21 | |
| IFBW | 100 Hz，300 Hz，1 kHz，3 kHz，10 kHz | |
| Port1 Stimulus Power | -40 dBm ~ 0 dBm (nom) | |
| Format | Lin Mag, Log Mag, Phase, Group Delay, SWR, Smith Chart (Lin/Phase, Log/Phase, Real/Imag, R+j*X, G+j*B), Polar Chart (Lin/Phase, Log/Phase, Real/Imag) |
|
| Sweep Points | 101~10001, default 1001 | |
| Trace | 4 traces, Mem, Math, Hold, Overlay | |
| Marker | (6+Ref)* 4 traces | |
