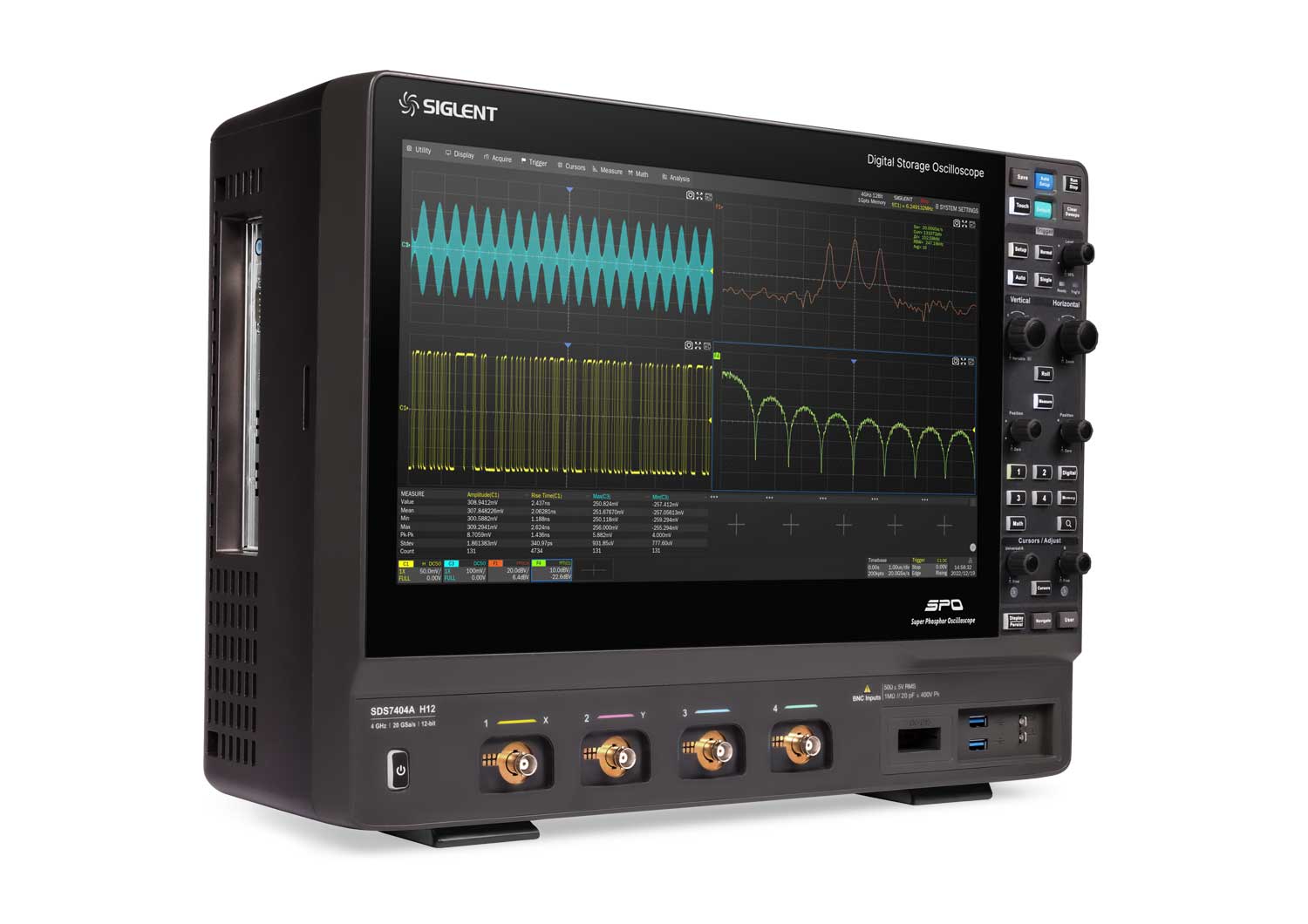

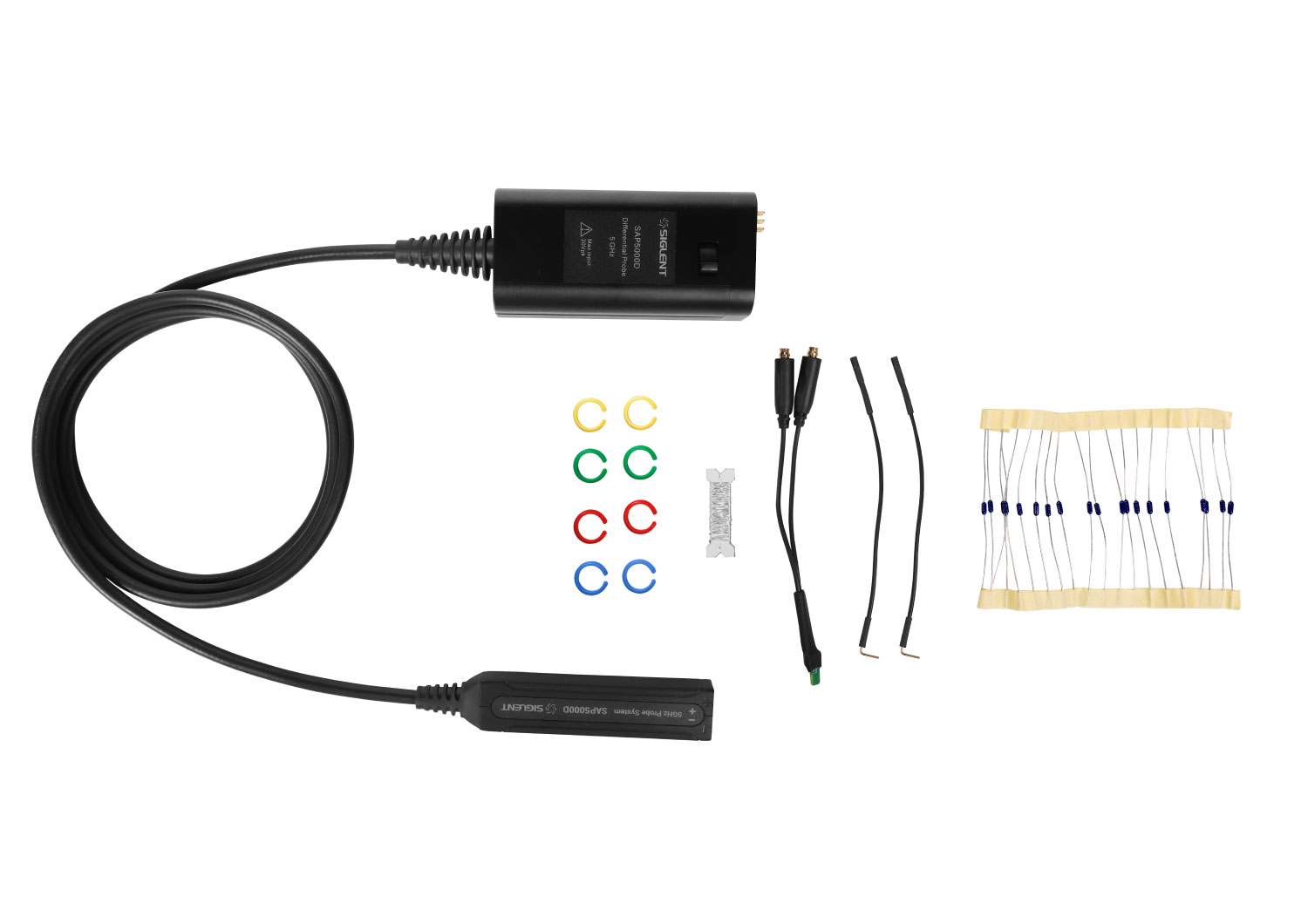

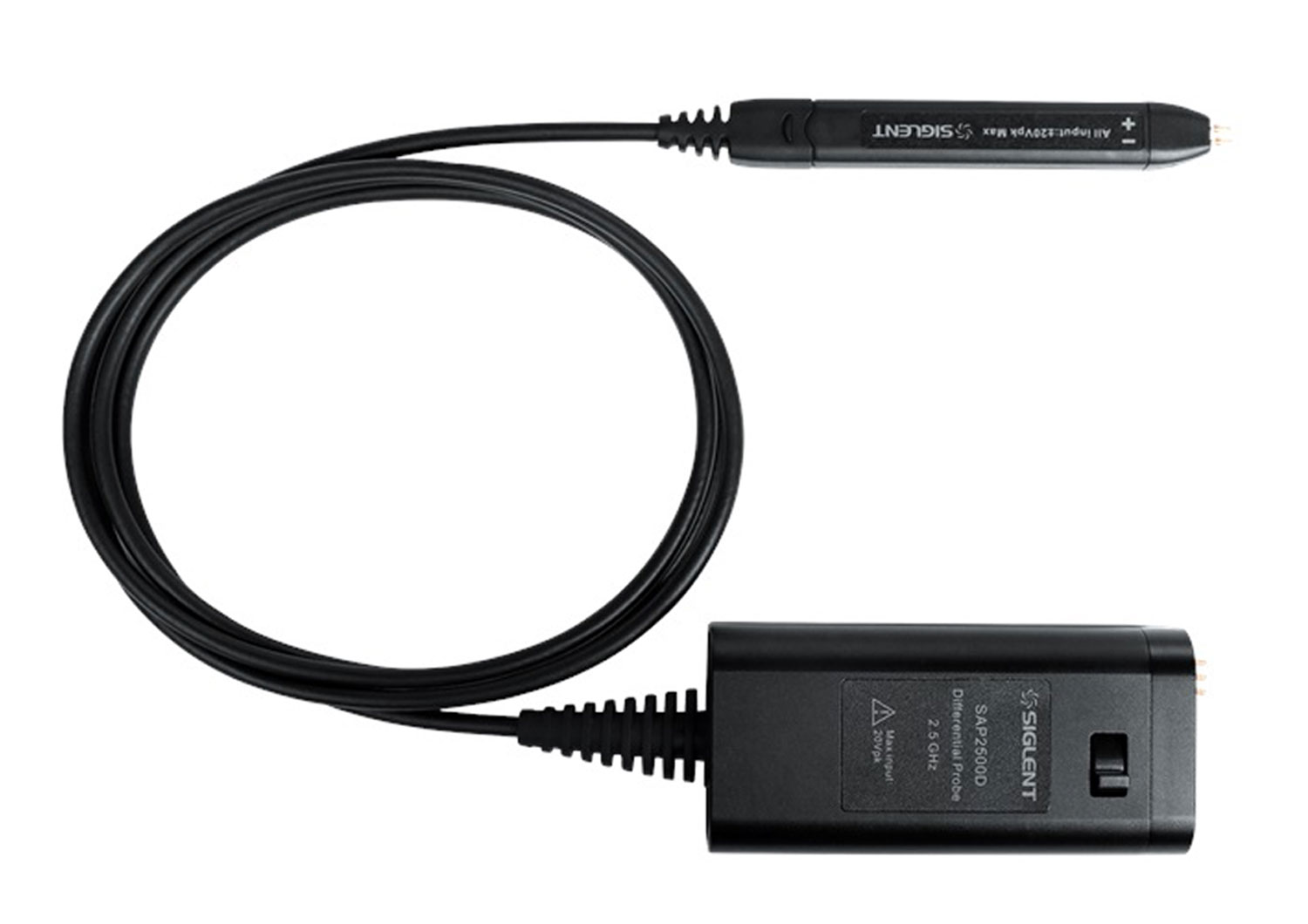

Siglent SDS7604AP 12-Bit High Resolution Oscilloscope
SIGLENT’s SDS7000A series Digital Storage Oscilloscopes are available in bandwidths of 8 GHz、6 GHz、4 GHz, and 3 GHz, have 12-bit ADCs with sample rate up to 20 GSa/s, maximum record length of 2 Gpts/ch, and display up to 4 analogue channels + 16 digital channels for high-performance mixed signal analysis.

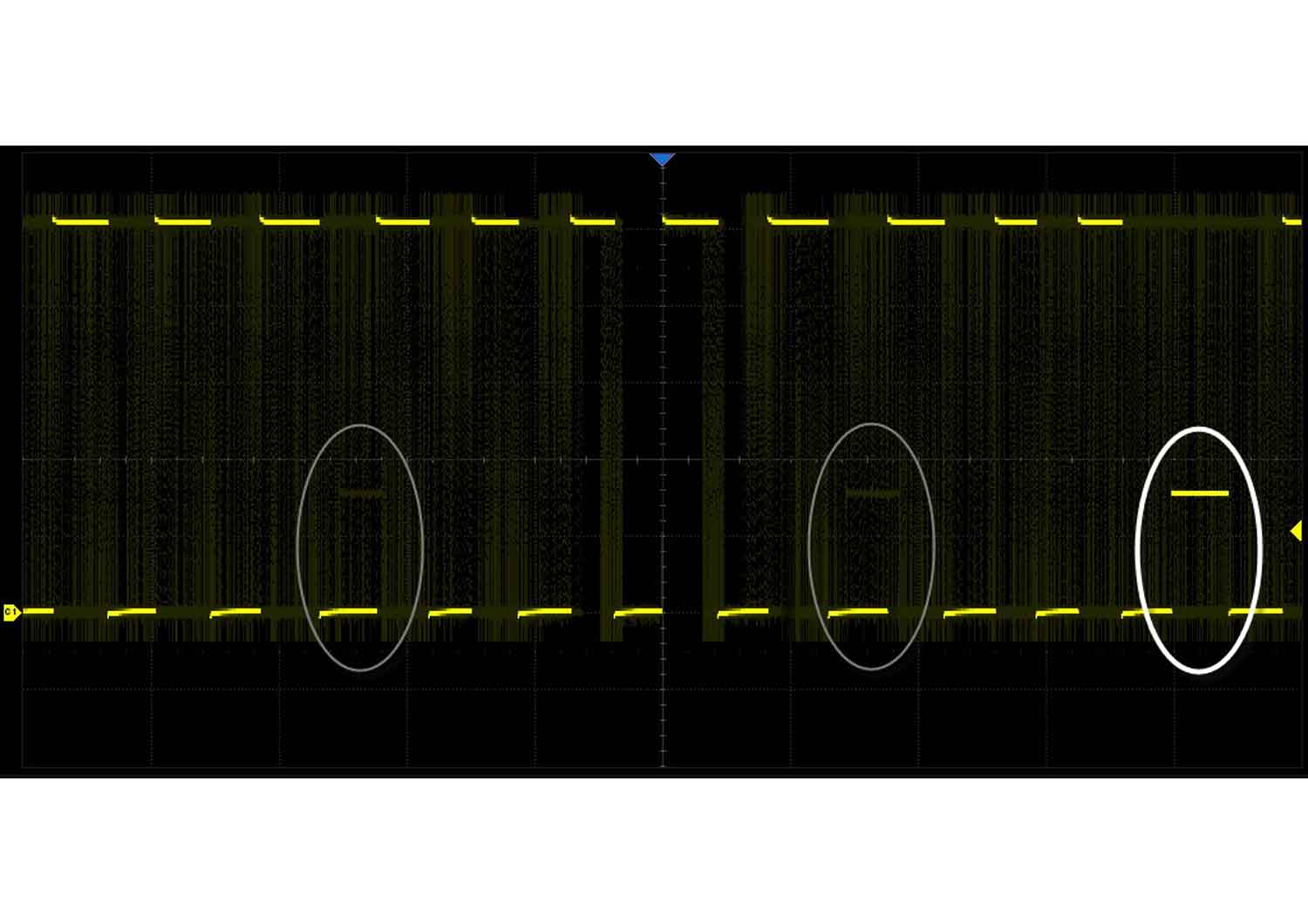

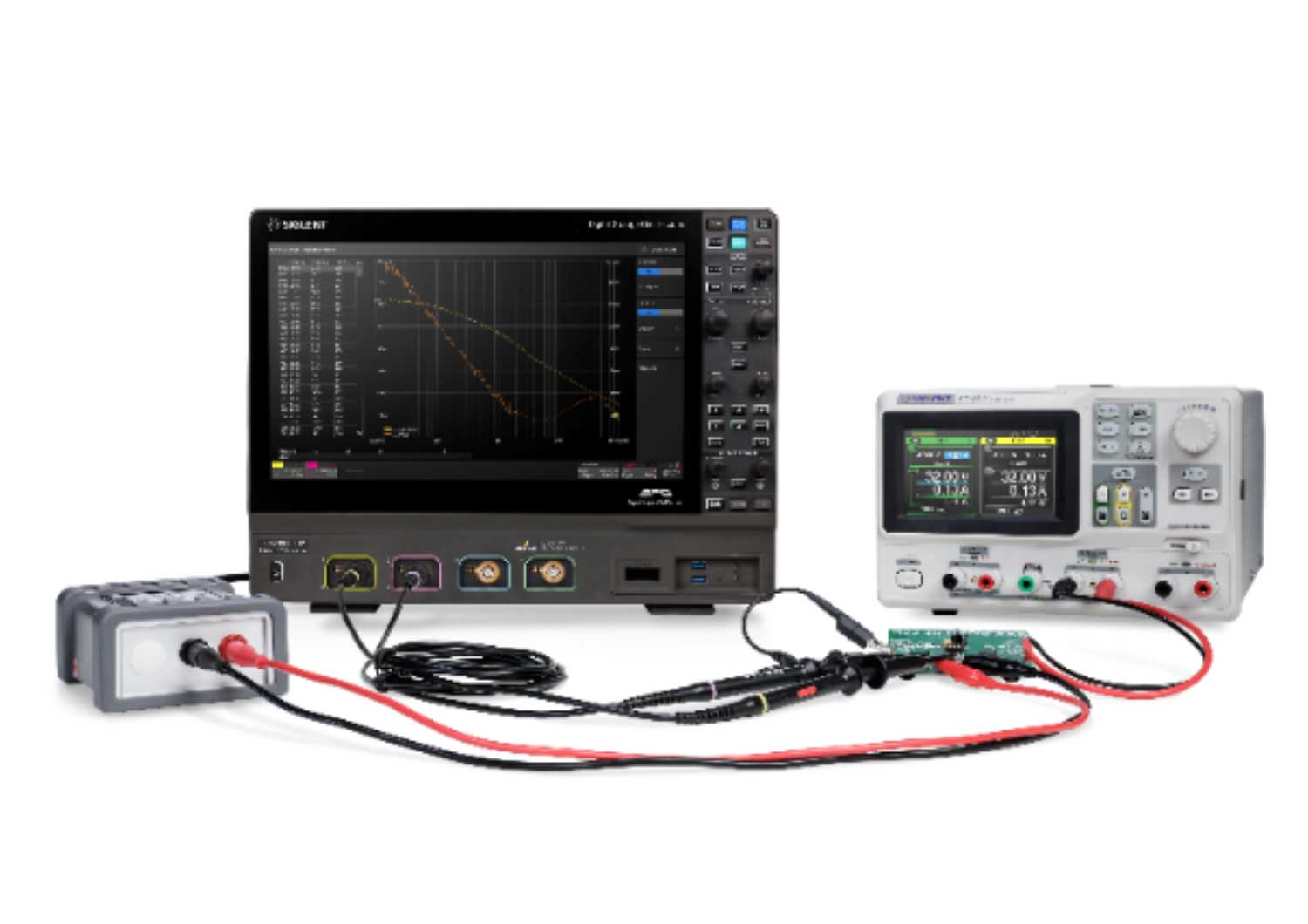

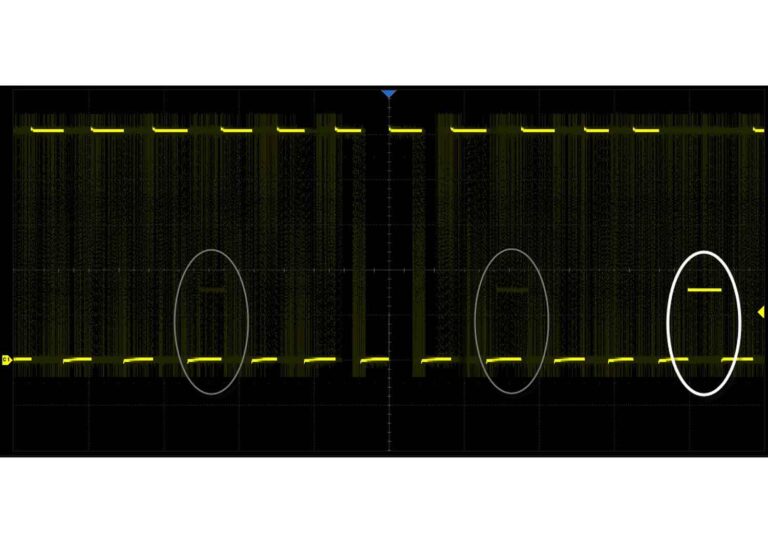

The SDS7000A series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/ s, 256-level intensity grading display function, plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes, including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, Mask Test, Bode Plot, Power Analysis, Eye/Jitter Analysis, RTSA, SigVSA, and Compliance Test enable the capture, storage, and analysis of extended waveform records. The SDS7000A features an impressive array of measurement and math capabilities, including options for a 50 MHz arbitrary waveform generator, as well as serial decoding.
The large 15.6’’ HD display capacitive touch screen supports multi-touch gestures, and with the addition of a user-friendly UI design, can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.
Features:

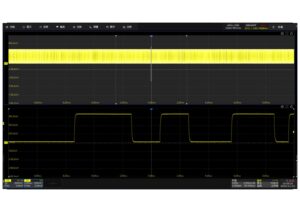

- 4 analogue channels, up to 6 GHz bandwidth with up to 20GSa/s sample rate

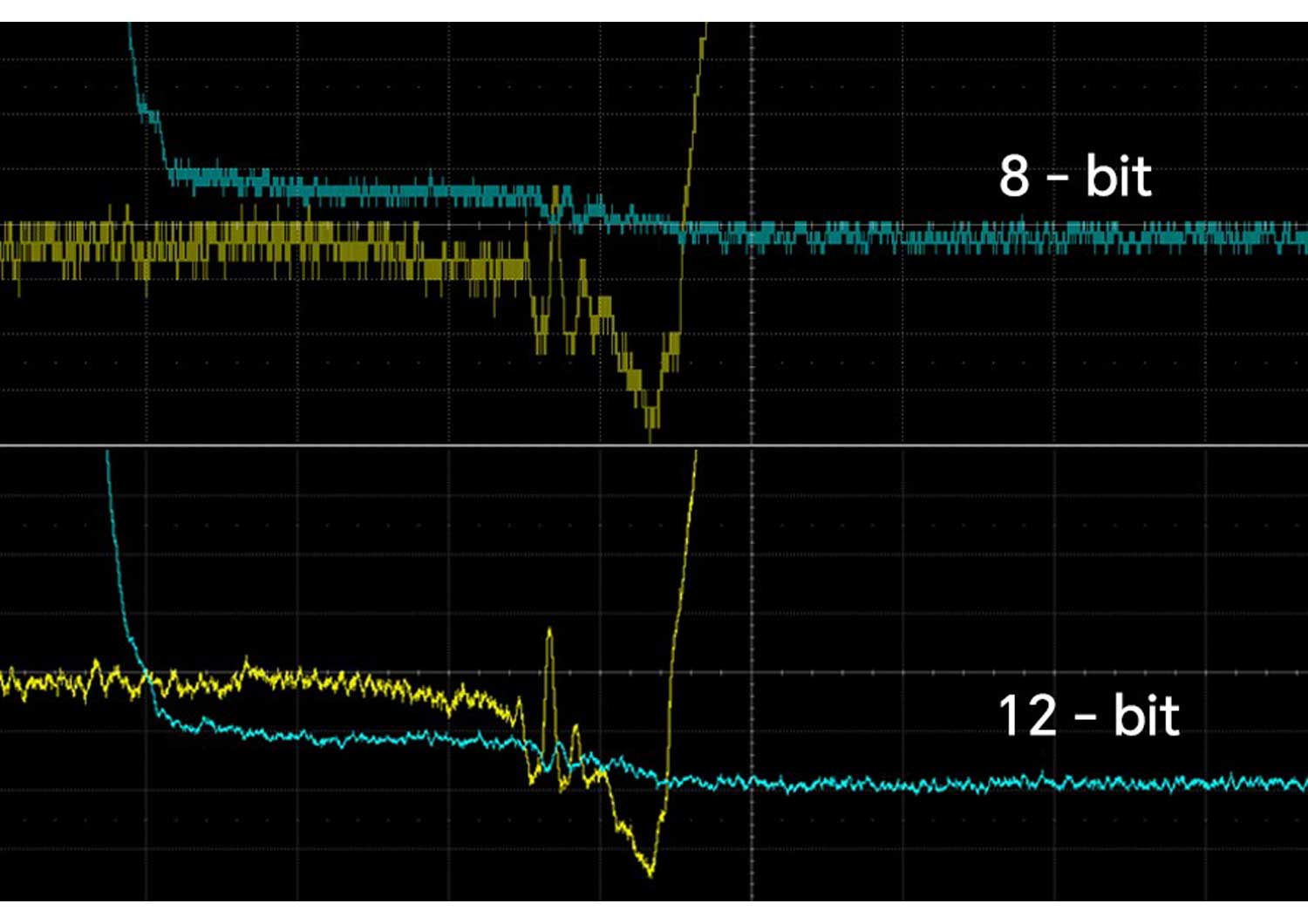

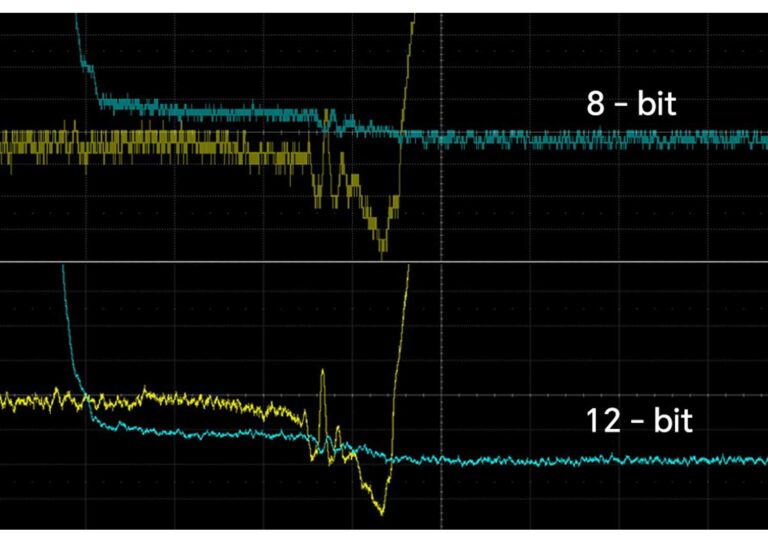

- 12-bit ADC
- Low background noise: 260 μVrms @ 6 GHz bandwidth
- SPO technology

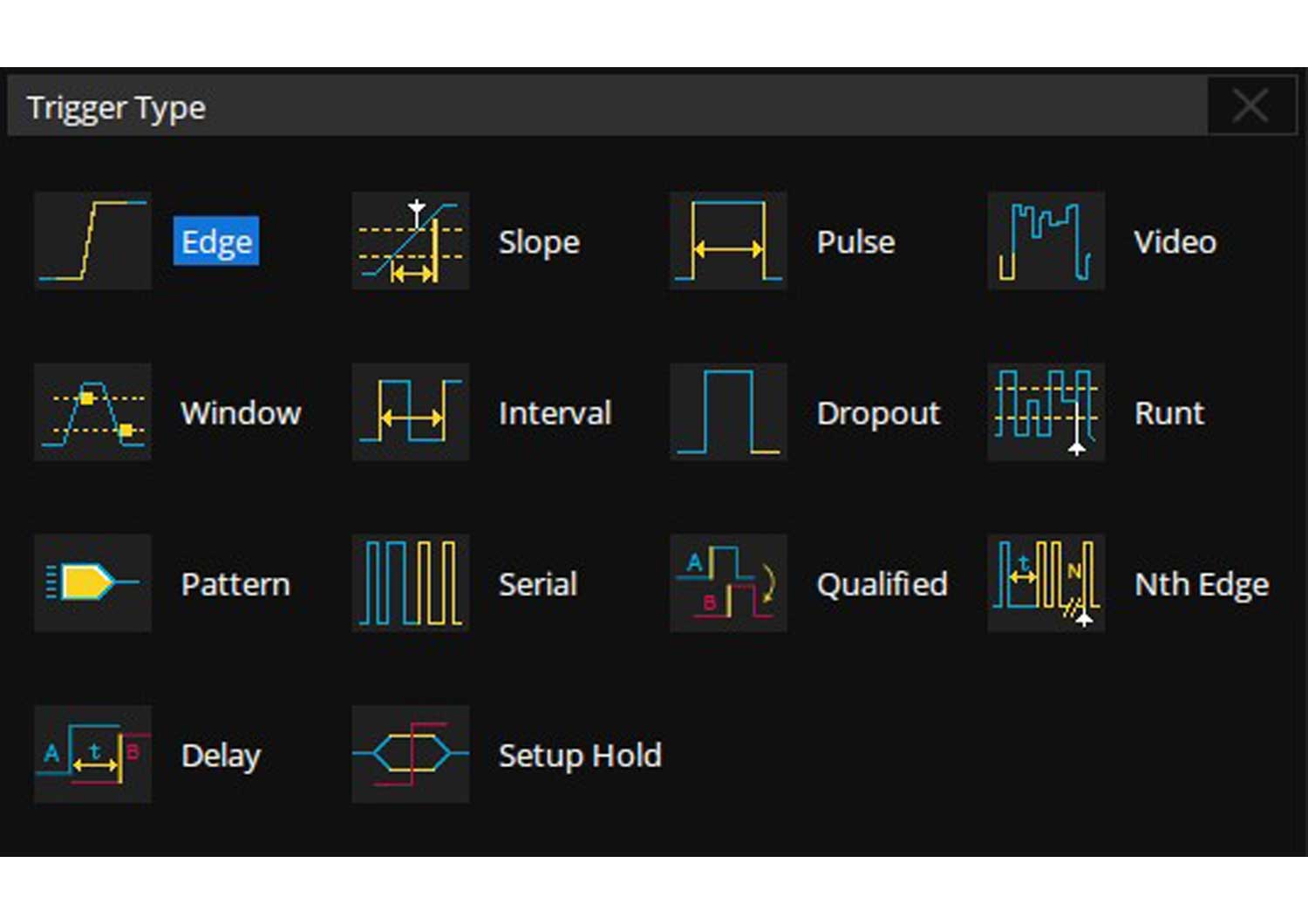

- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC429 and USB 2.0
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 124,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, the maximum recorded waveform length is 124,000 frames
- Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Memory traces
- 4 Math traces (32 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor

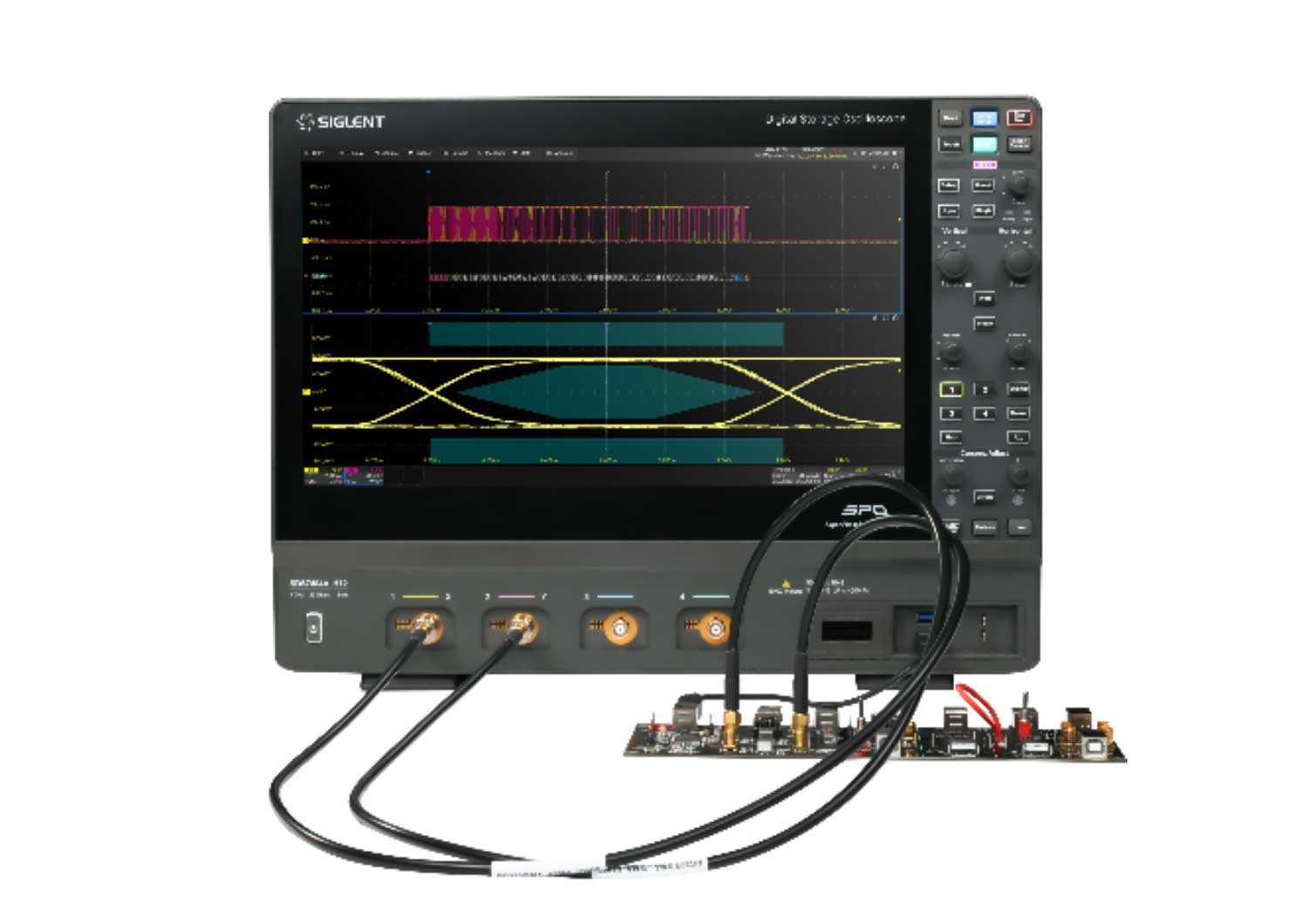

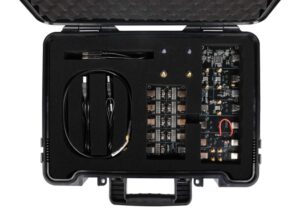

- Abundant data analysis functions such as Search, Navigate, SignalScan, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis, Eye/Jitter Analysis and Compliance Test

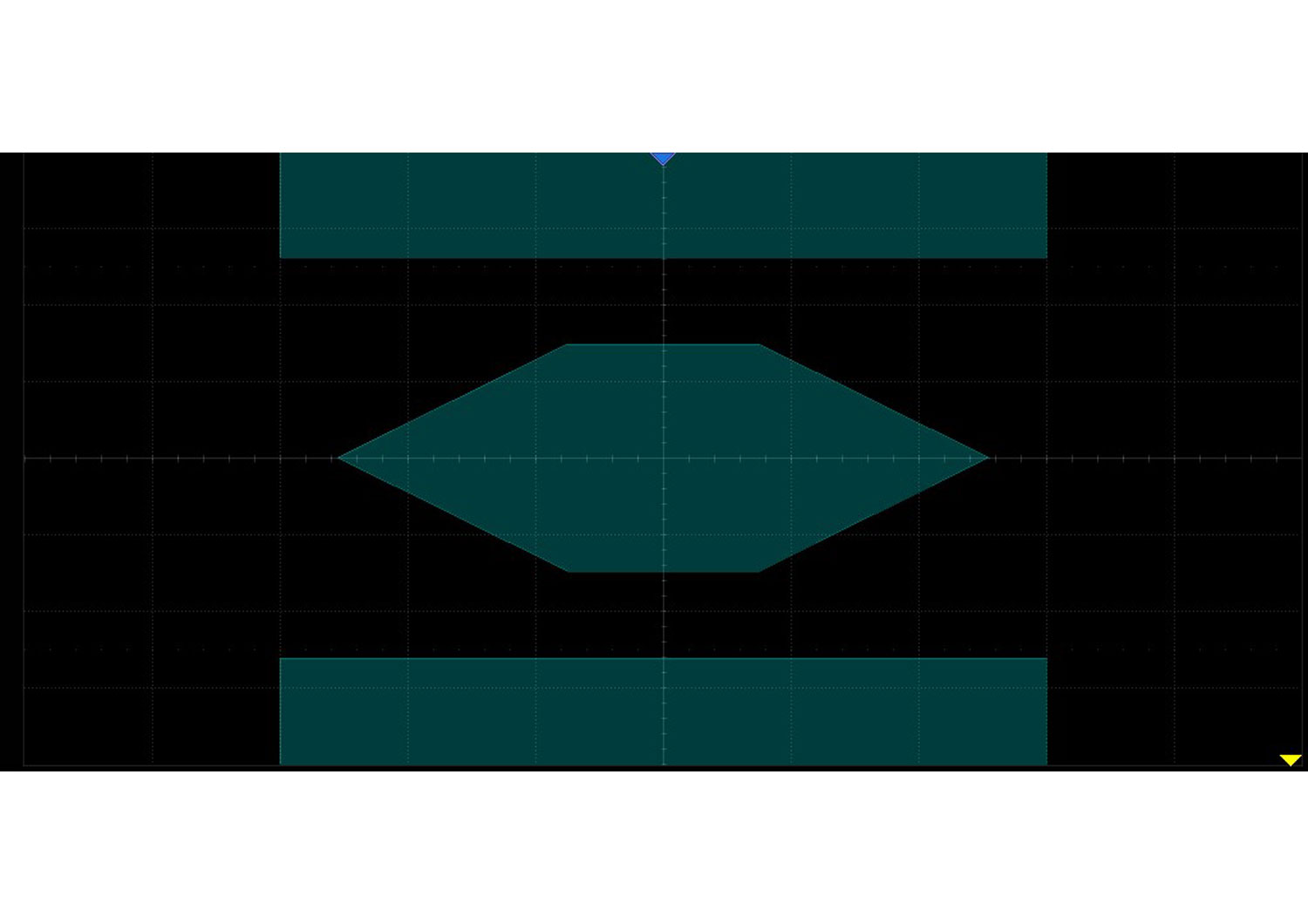

- High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
- 16 digital channels

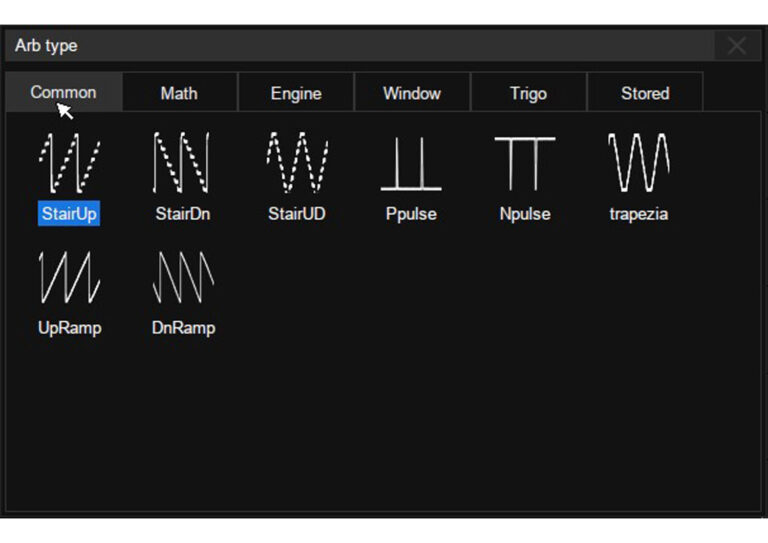

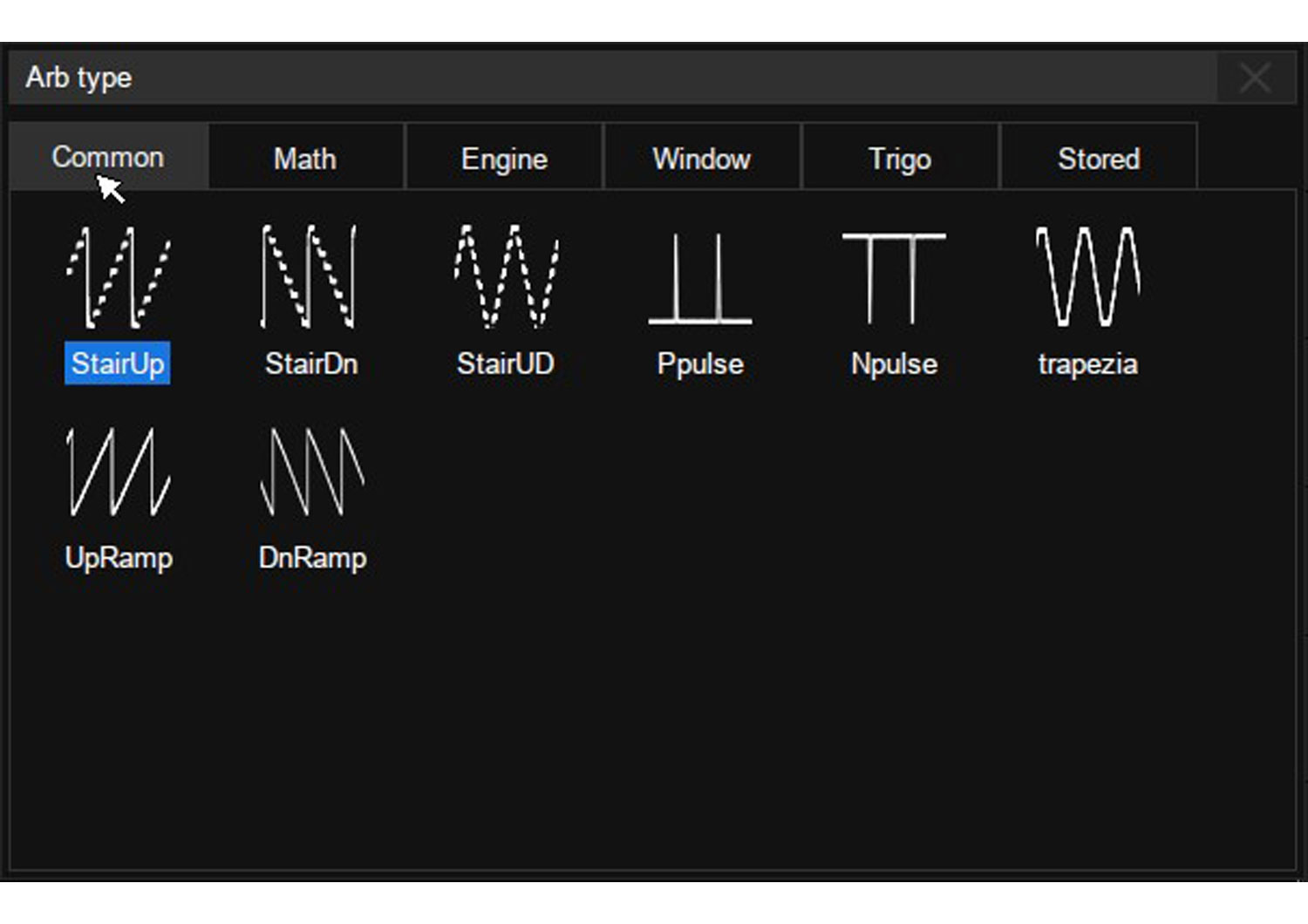

- Built-in 50 MHz waveform generator
- Large 15.6” HD TFT-LCD display with 1920 * 1080 resolution; Capacitive touch screen supports multi-touch gestures.

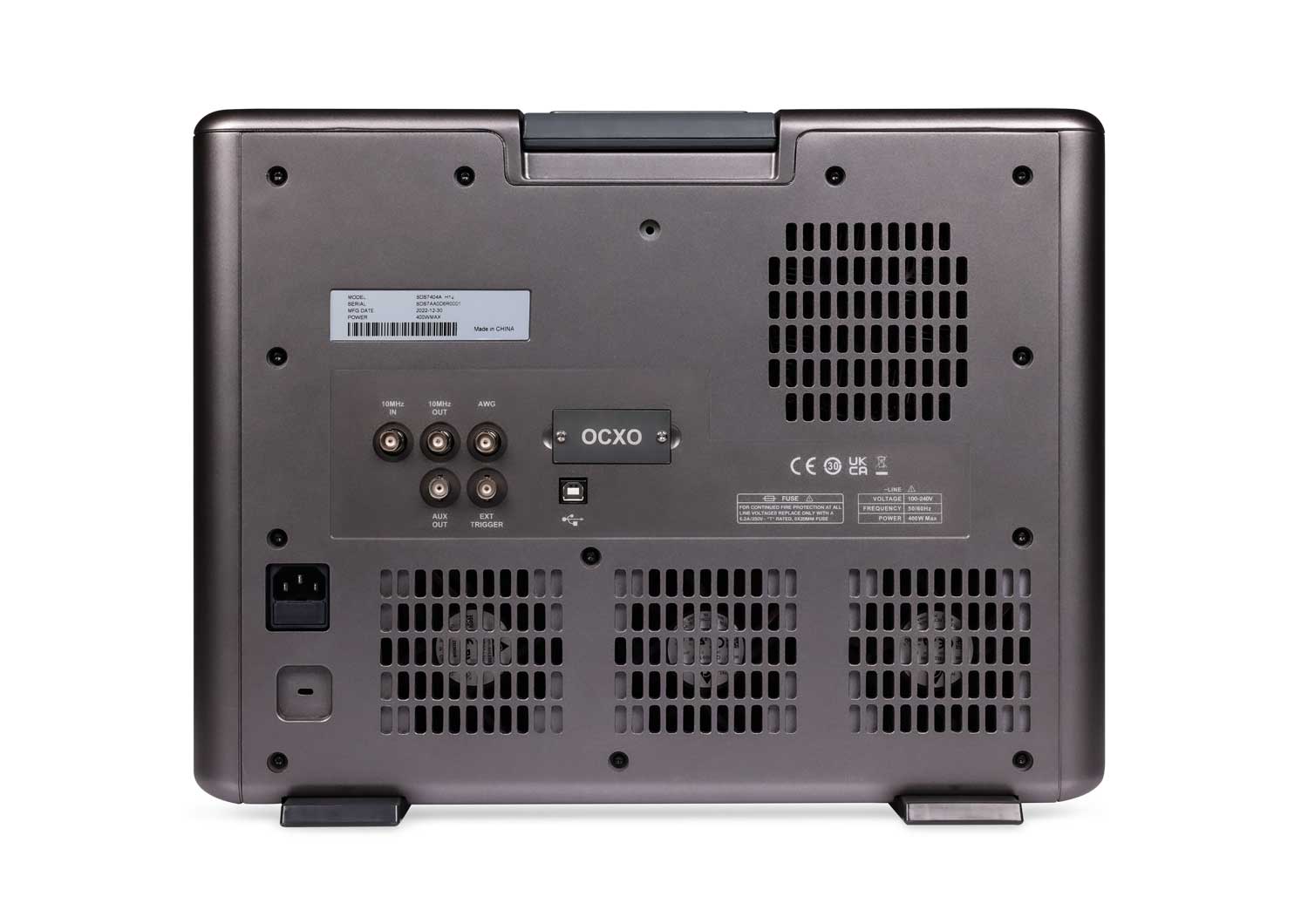

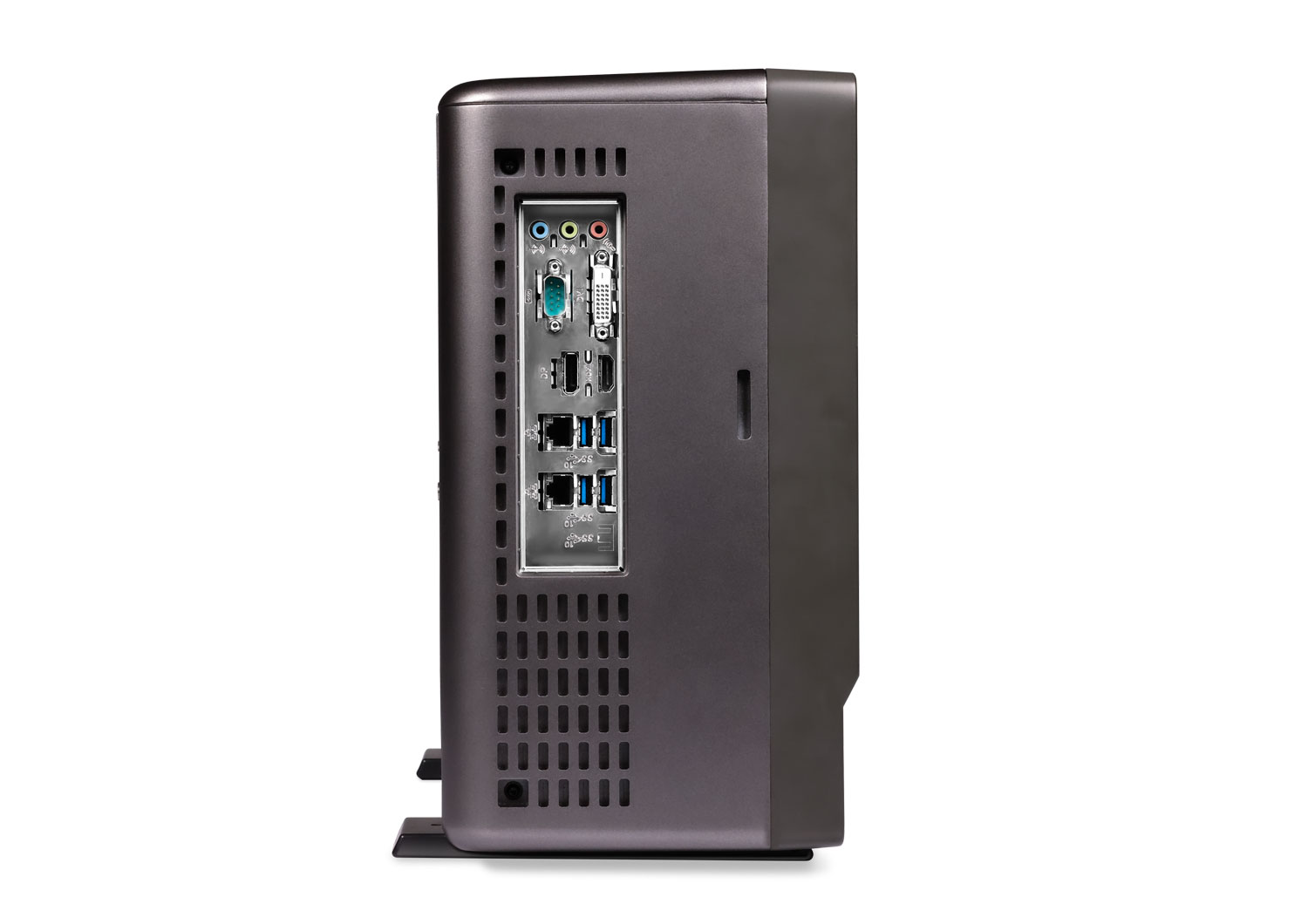

- Interfaces include: 4x USB Host 3.1 Gen 1，2x USB 3.0 Host， USB 2.0 Device，2x 1000M LAN， DVI-D， DP 1.2， HDMI 1.4， Audio, External Trigger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In，10 MHz Out
- Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
Siglent SDS7000A Datasheet
