Siglent SDS6054A 4Ch, 500MHz, 5/10GSa/s ESR Per Channel, Super Phosphor Oscilloscope

£5634.00 (£6,760.80 inc VAT)

Available on back-order

Request QuoteRemove from Quote
Request Quote
Request Demo SKU: SDS6054A Category:

Description


Siglent SDS6054A Super Phosphor Oscilloscope

Siglent SDS6054A 4Ch, 500MHz, 5/10GSa/s ESR Per Channel, Super Phosphor Oscilloscope. The SDS6000A series Digital Storage Oscilloscopes are available in bandwidths of 2 GHz, 1 GHz and 500 MHz, have sample rate of 5 GSa/s (10 GSa/s ESR) at each channel, maximum record length of 500 Mpts/ch, and display up to 4 analogue channels + 16 digital channels mixed signal analysis ability.

The SDS6000A series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 170,000 wfm/ s (normal mode, up to 750,000 wfm/s in Sequence mode), 256- level intensity grading display function plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering.

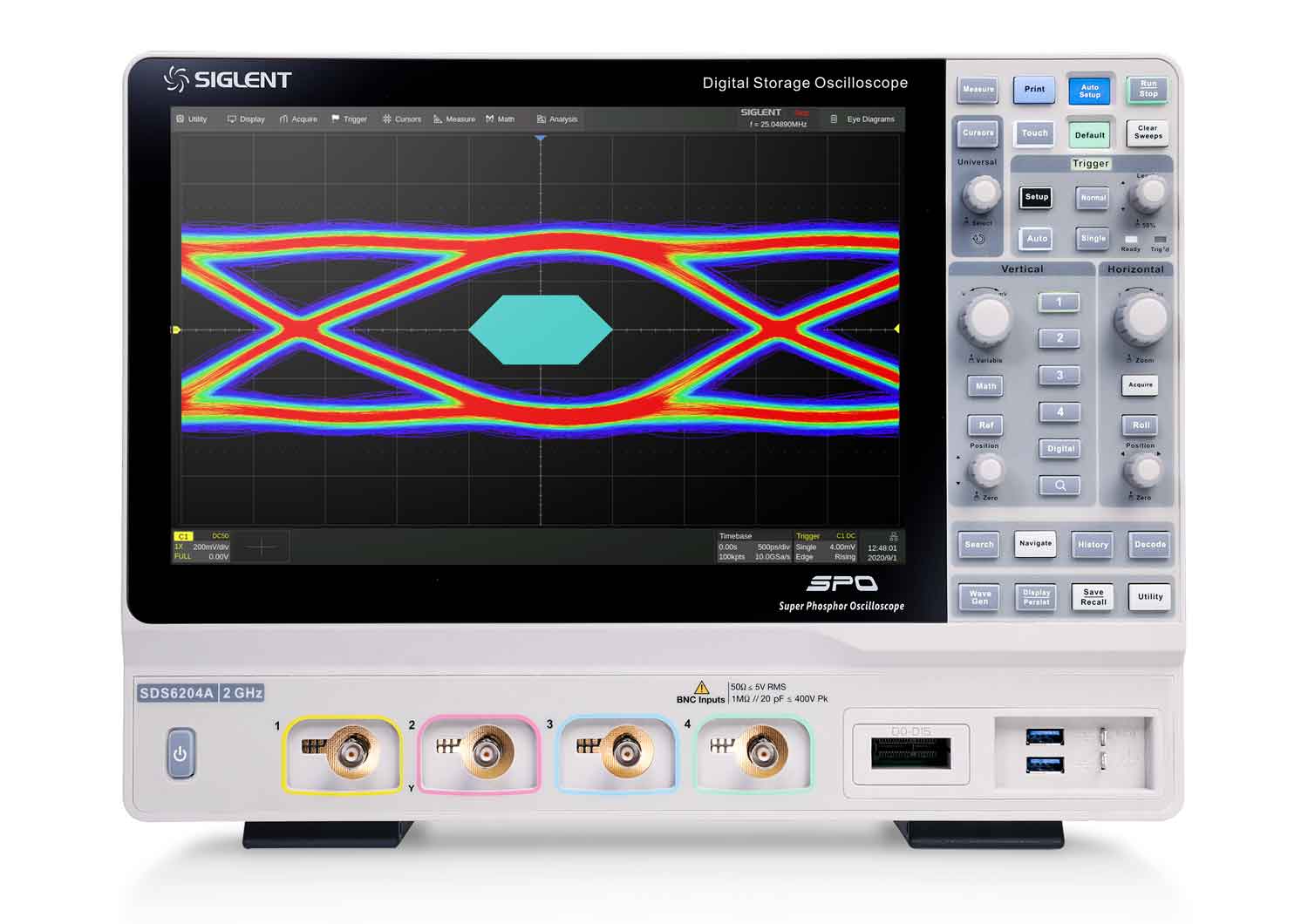

Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Eye/Jitter Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS6000A.

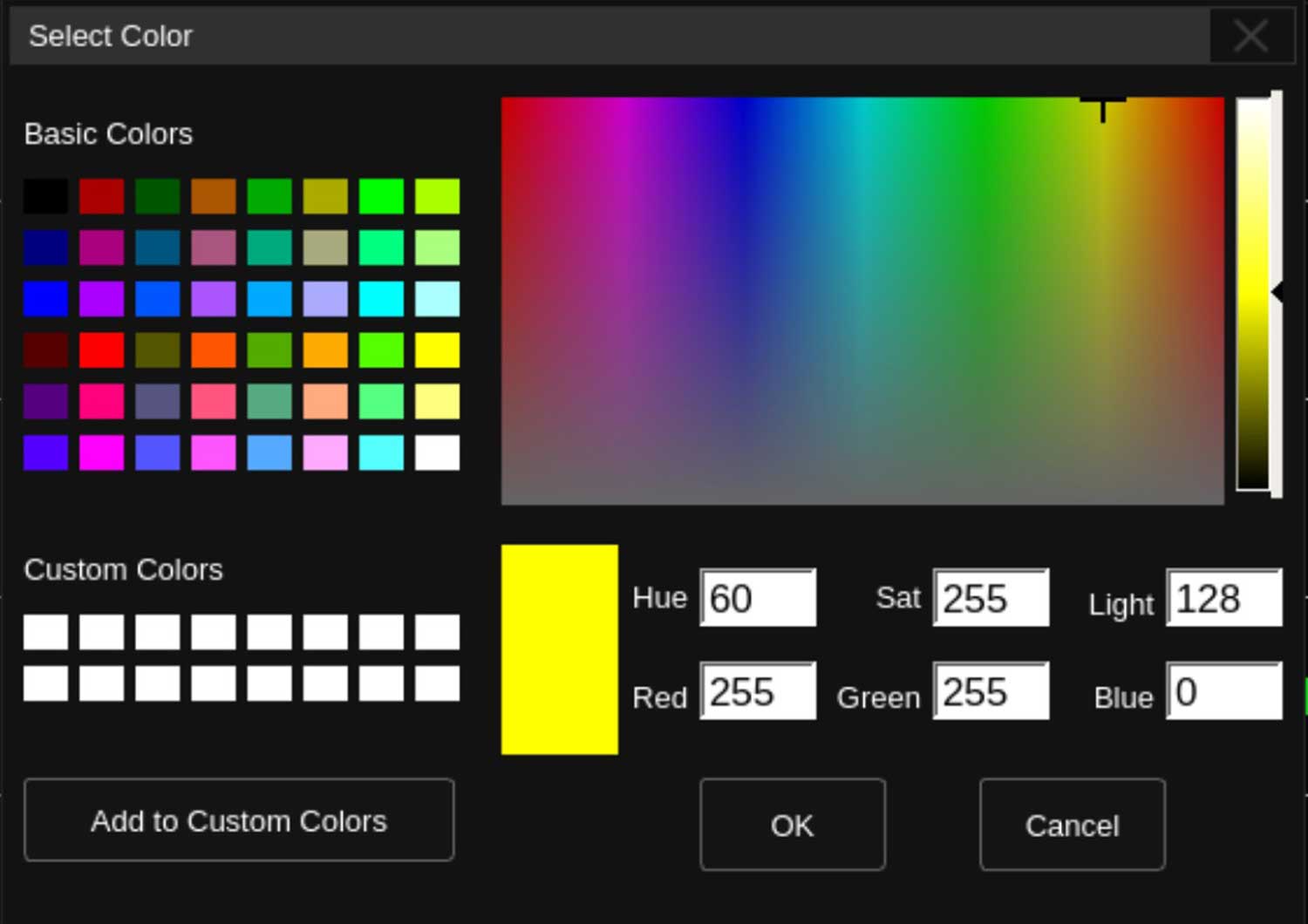

The large 12.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Features:

    • 4 analogue channels, up to 2 GHz bandwidth with 5 GSa/s (10 GSa/s ESR) sample rate at each channel
    • Low background noise, supports 0.5 mV/div to 10 V/div vertical scales
    • SPO technology

Waveform capture rates up to 170,000 wfm/s(normal mode), and 750,000 wfm/s (sequence mode)

    Supports 256-level intensity grading and colour temperature display modes
    500 Mpts Record length in total for all 4 channels
    Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
  • Serial bus triggering and decoder, Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MILSTD-1553B, SENT and Manchester

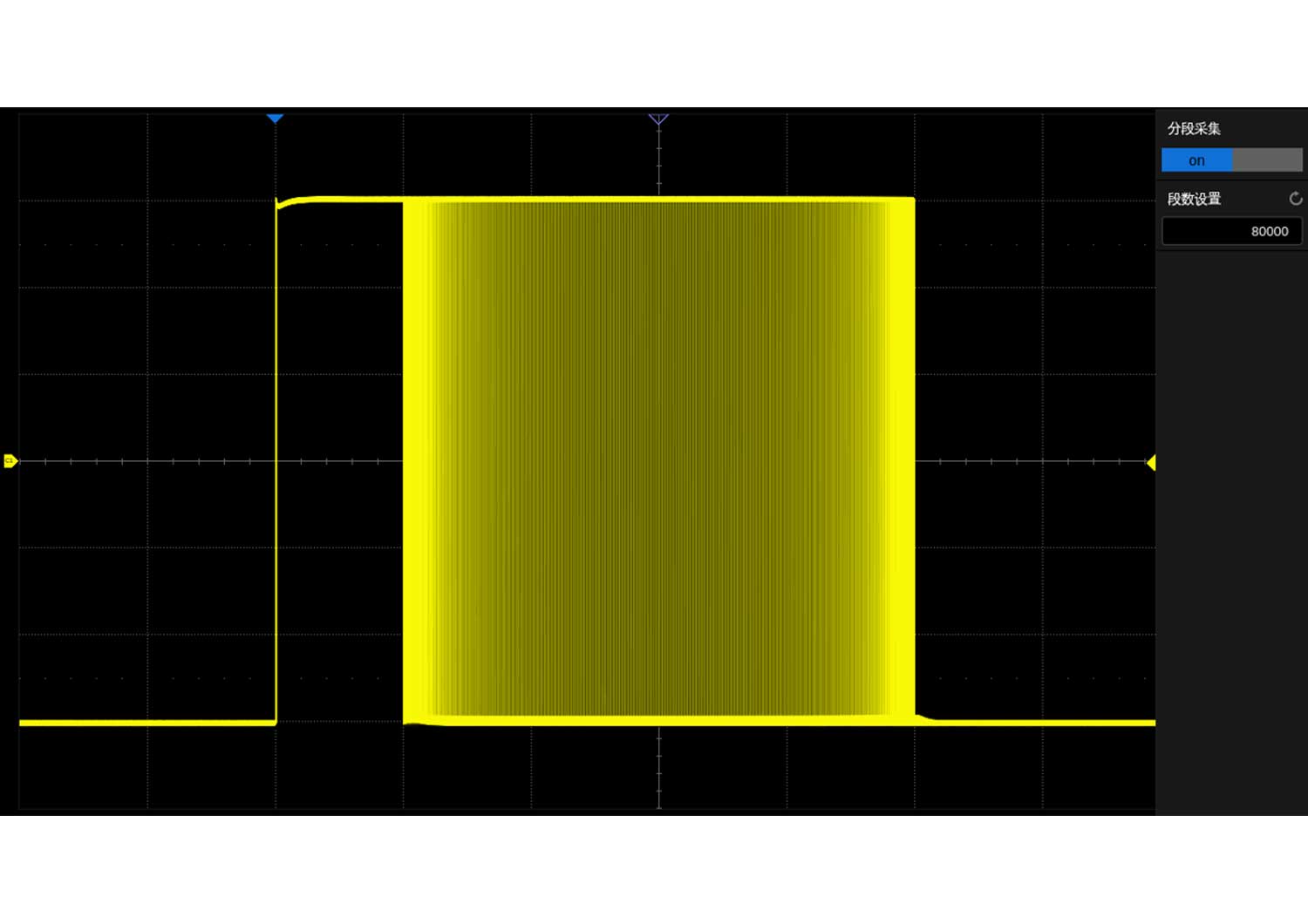

  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event .

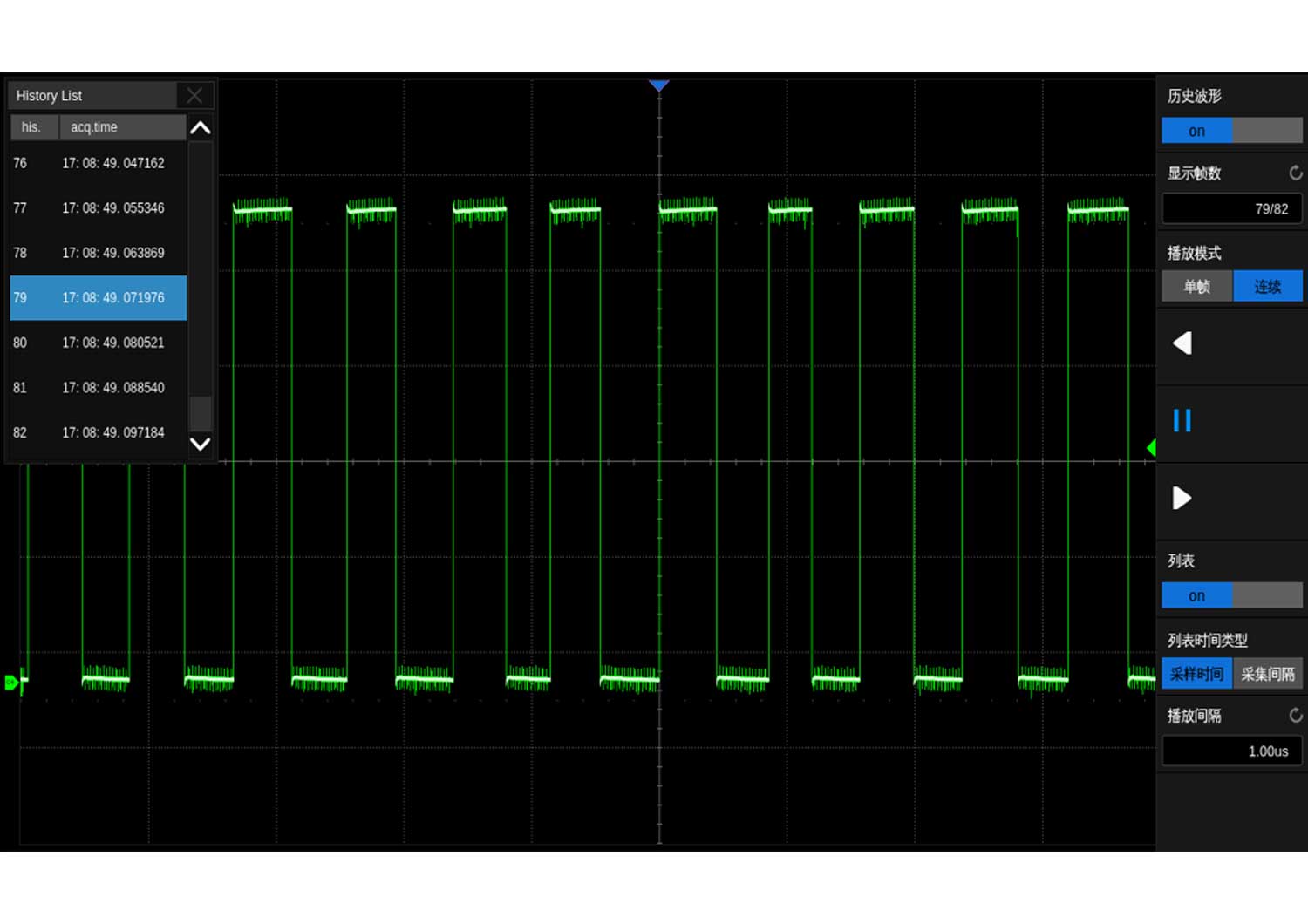

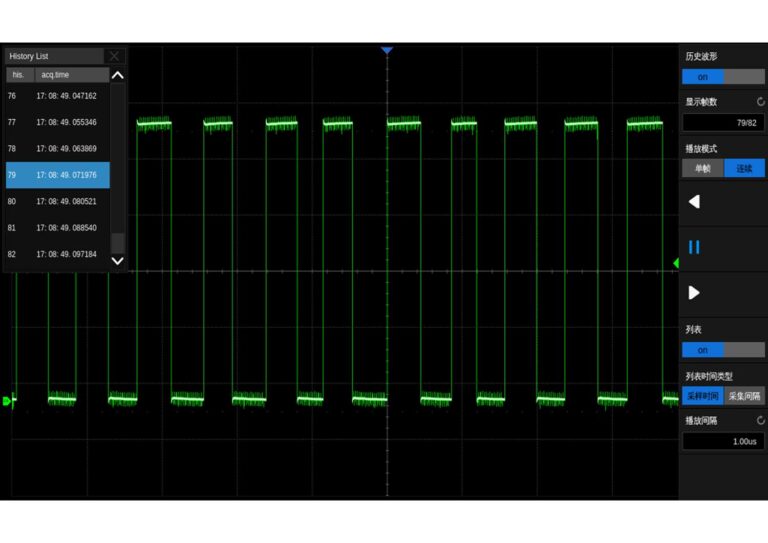

  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames

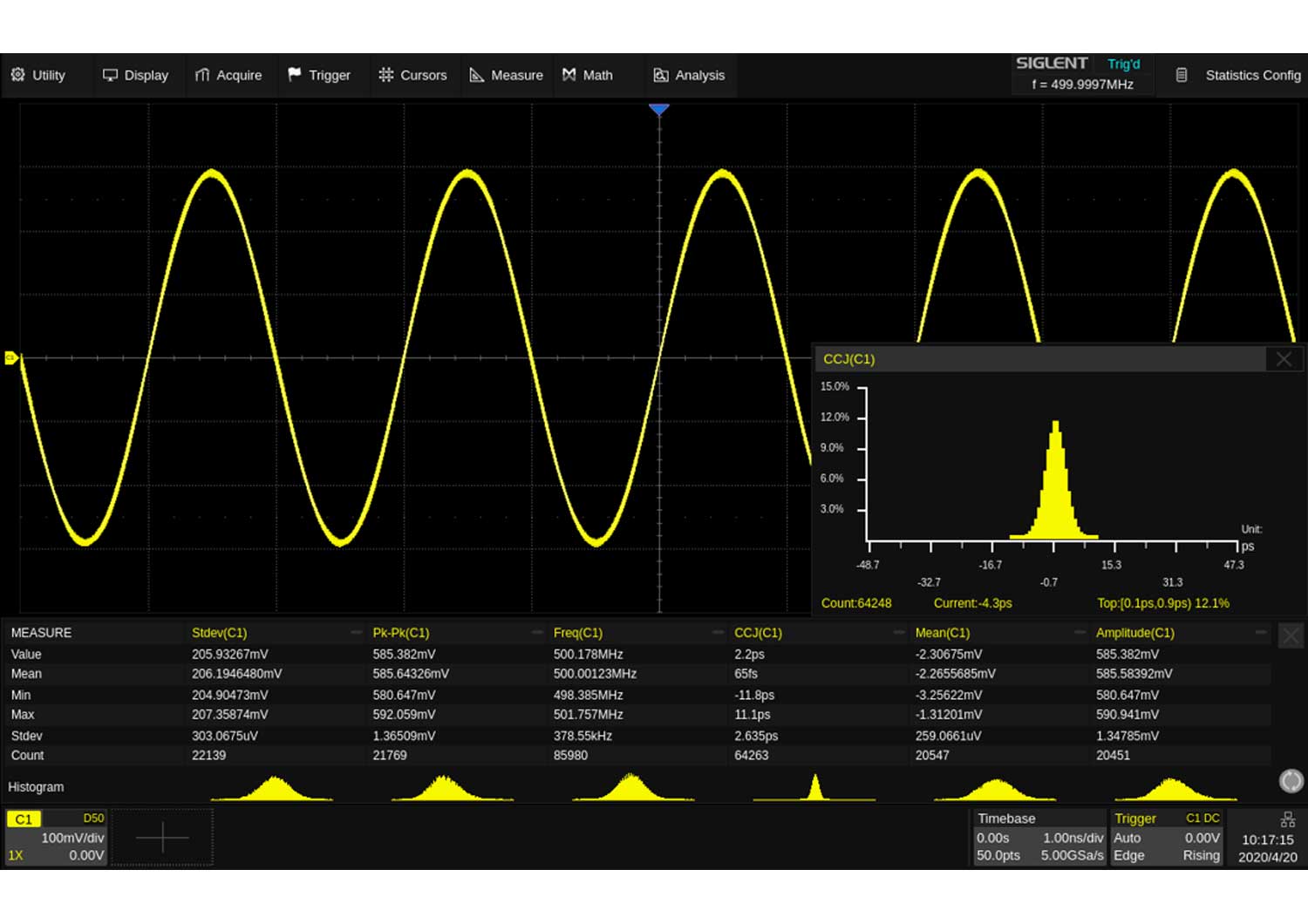

  • Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref

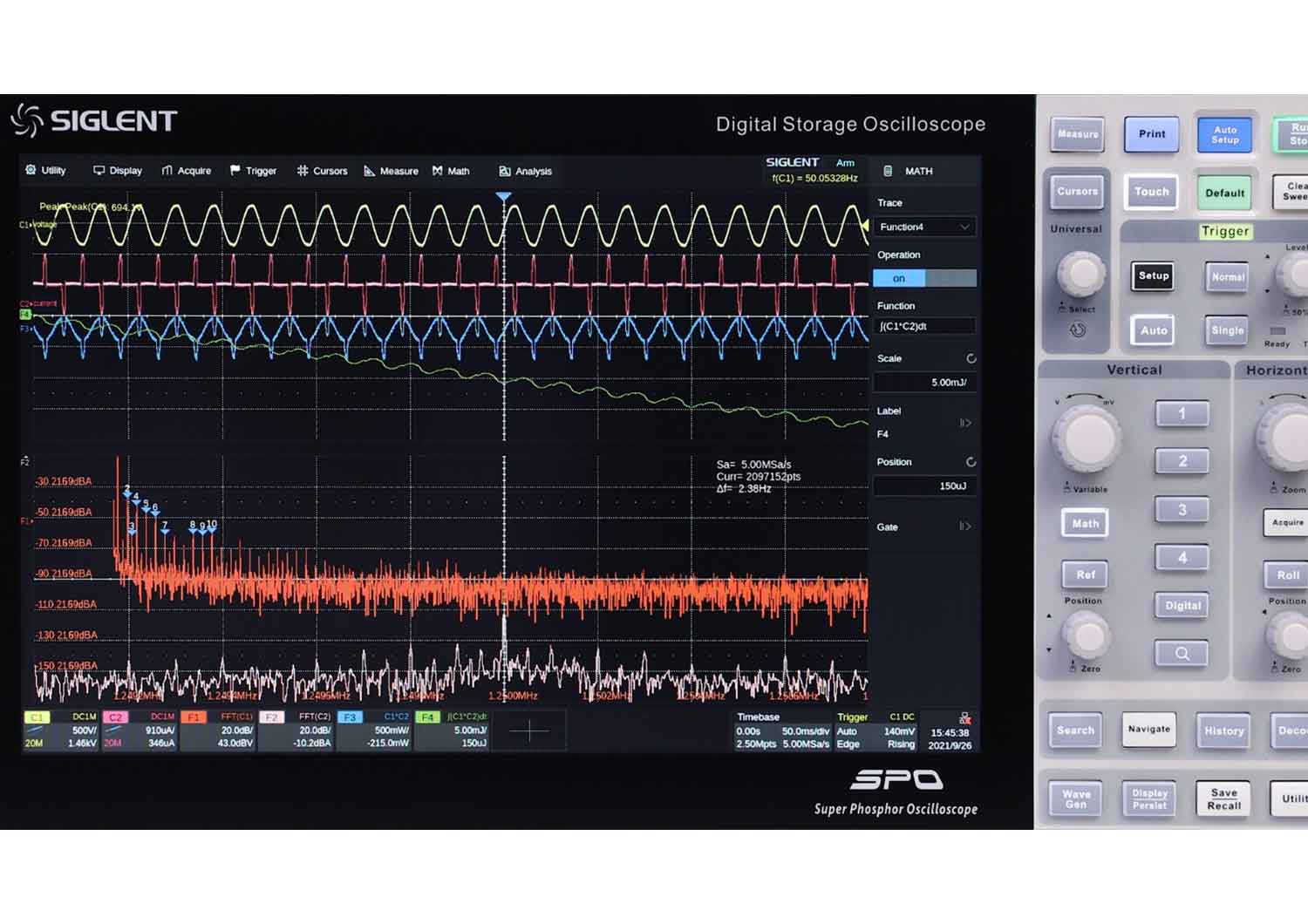

  • 4 Math traces (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
  • Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Eye/Jitter Analysis
  • High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional)
  • 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
  • Large 12.1” TFT-LCD display with 1280 * 800 resolution; Capacitive touch screen supports multi-touch gestures

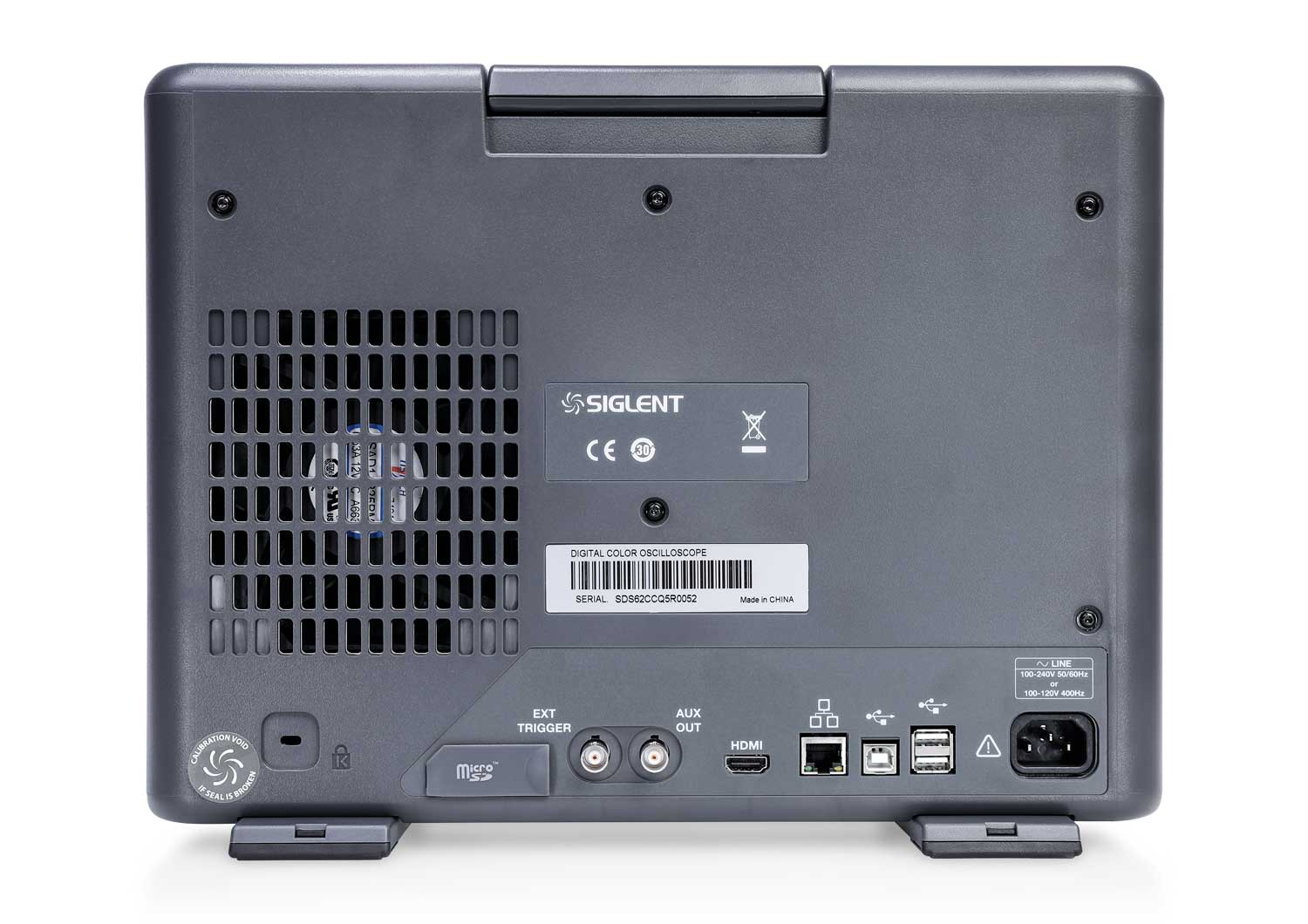

  • Interfaces include: USB Hosts, USB Device (USBTMC), LAN（VXI-11/Telnet/Socket, micro SD card, Pass/Fail, Trigger Out, HDMI
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.

Siglent SDS6000A Oscilloscope Comparison Table

ModelChannelsBandwidthReal Time Sampling RateCapture RateMemory Depth
SDS6054A4 + EXT500MHz5 GSa/s (10 GSa/s ESR) per channel170,000wfm/s (Normal Mode) 750,000wfm/s (Sequence Mode)500Mpts (Single CH) 250Mpts (Dual CH) 125Mpts (CH 3 or 4 CH)
SDS6104A4 + EXT1GHz5 GSa/s (10 GSa/s ESR) per channel170,000wfm/s (Normal Mode) 750,000wfm/s (Sequence Mode)500Mpts (Single CH) 250Mpts (Dual CH) 125Mpts (CH 3 or 4 CH)
SDS6204A4 + EXT2GHz5 GSa/s (10 GSa/s ESR) per channel170,000wfm/s (Normal Mode) 750,000wfm/s (Sequence Mode)500Mpts (Single CH) 250Mpts (Dual CH) 125Mpts (CH 3 or 4 CH)

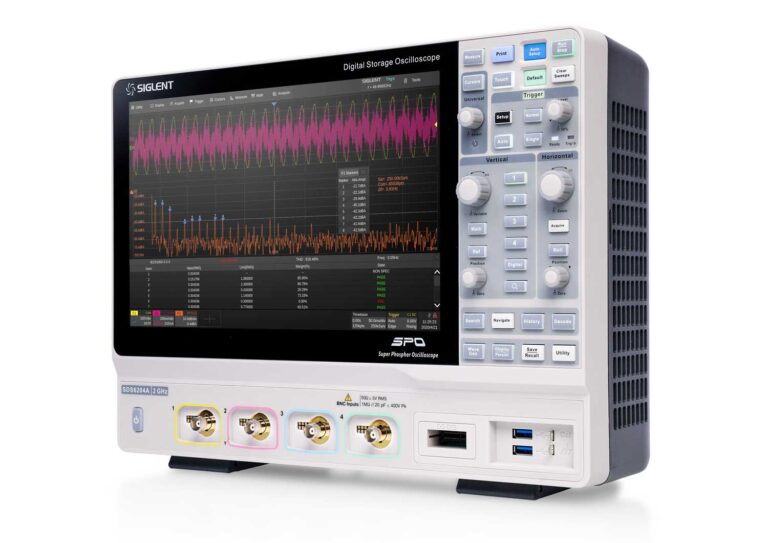

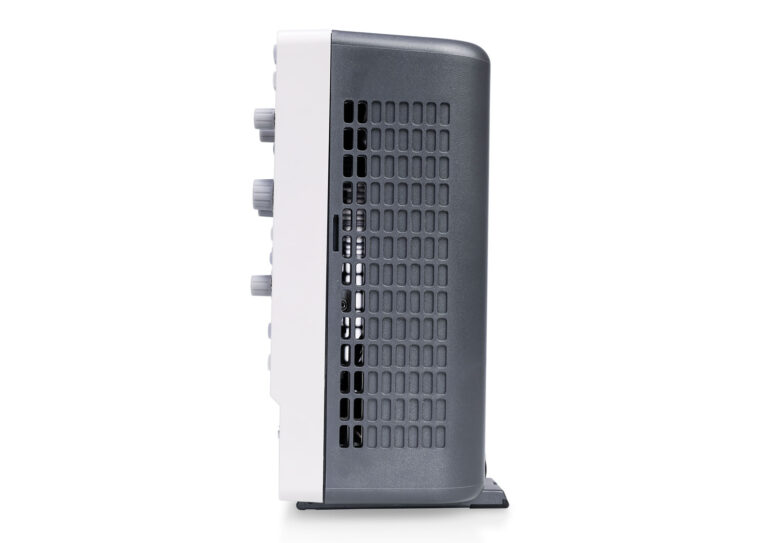

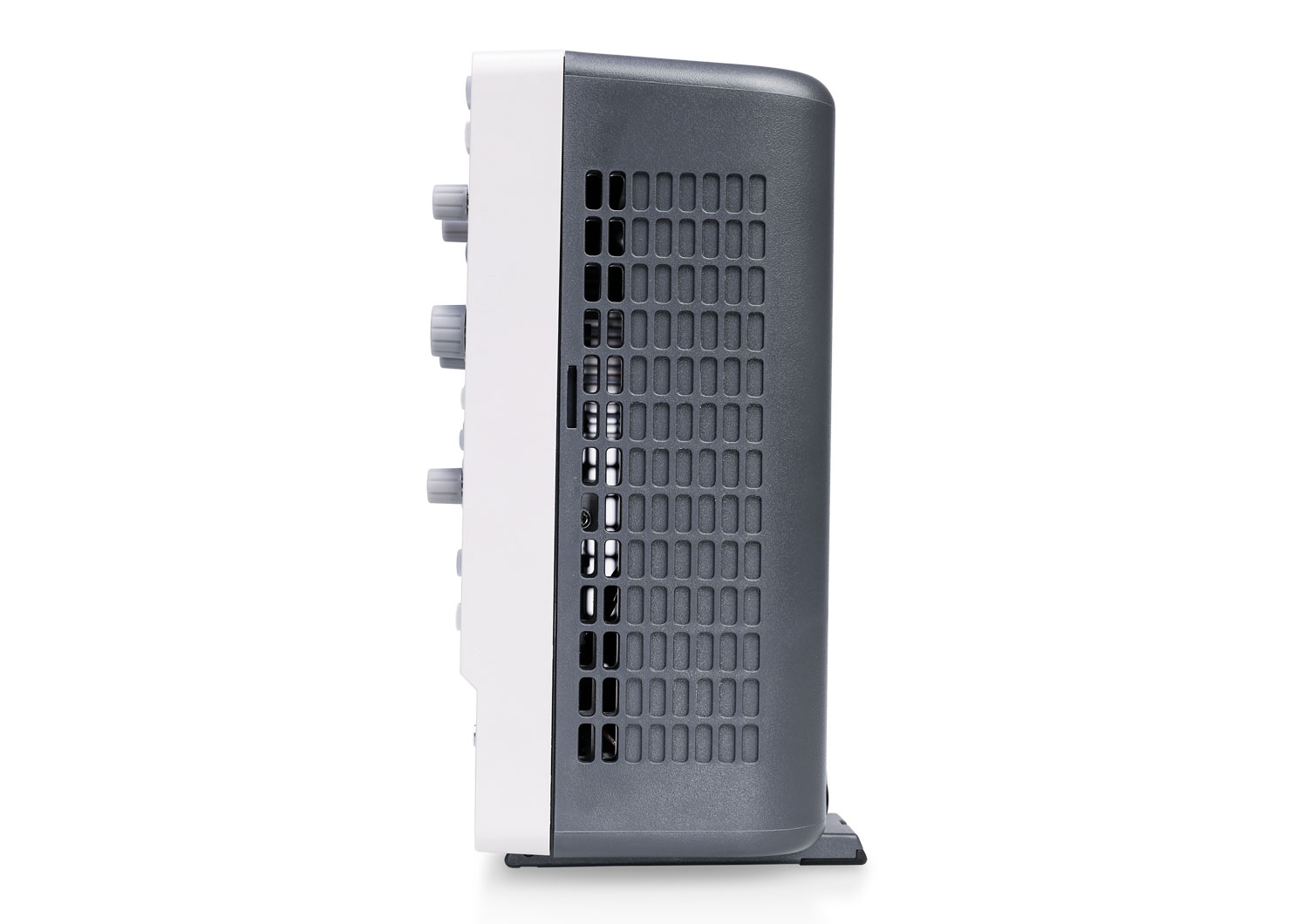

Product Images

Product Videos

YouTube Video
SDS6000A Series Digital Oscilloscope Intro

Documentation

Datasheet

Siglent SDS6000A Datasheet

User Manual

Siglent SDS6000A User Manual

Quick Start

Siglent SDS6000A Quick Start

Service Manual

Siglent SDS6000A Service Manual

Application Notes

Power Supply Design: Load Step Response with a SIGLENT DC Electronic Load

Programming Example: SDS Oscilloscope save a copy of a screen image via Python/PyVISA

Generating an Activation Code (Option Code)

Programming Example: SDS Oscilloscope screen image capture using Python over LAN

SDS FFT performance on low frequency signals

Programming Example: List connected VISA compatible resources using PyVISA

Programming Example: Retrieve data from an XE series Oscilloscope using Kotlin


Acquire System (Analogue Channel)
Sample Rate5 GSa/s (10 GSa/s (ESR*1) @ each channel
Memory Depth500 Mpts/ch（single-channel）
250 Mpts/ch (dual-channel)
125 Mpts/ch (3 or 4 channels)
Waveform update
rate		Normal mode：up to 170,000 wfm/s
Sequence mode：up to 750,000 wfm/s
Intensity grading256-level
Peak Detect200 ps
Average4, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192
Hi-resEnhanced bit: 1, 2, 3, 4, 5, 6, 7, 8 bit
SequenceUp to 80,000 segments, interval between triggers = 1.3 μs min.
HistoryUp to 80,000 frames
Interpolationsinx/x, x
Vertical System (Analogue Channel)
Bandwidth (-3dB) @50 Ω2GHz/1GHz/500MHz
Rise time (typical) @50 Ω230ps/350ps/550ps
Resolution8-bit, up to 16-bit in Hi-Res mode
Bandwidth in HiRes mode9-bit: 0.25*Sample rate, up to the analog bandwidth
10-bit: 0.115*Sample rate, up to 1.15 GHz, limited by the analog bandwidth
11-bit: 0.055*Sample rate, up to 550 MHz, limited by the analog bandwidth
12-bit: 0.028*Sample rate, up to 280 MHz
13-bit: 0.014*Sample rate, up to 140 MHz
14-bit: 0.007*Sample rate, up to 70 MHz
15-bit: 0.0035*Sample rate, up to 35 MHz
16-bit: 0.0017*Sample rate, up to 17 MHz
Range8 divisions
Vertical scale
(probe 1X)		1 MΩ: 0.5 mV/div – 10 V/div
50 Ω: 0.5 mV/div – 1 V/div
DC gain accuracy±1.5%
Offset accuracy± (1% of the offset setting + 0.5 full scale + 0.02% of max offset + 1mV)
Offset range
(probe 1X)		1 MΩ: 0.5 mV/div ~ 5 mV/div: ±1.6 V; 5.1 mV/div ~ 10 mV/div: ±4 V; 10.2 mV/div ~ 20 mV/div : ±8 V; 20.5
mV/div ~ 100 mV/div: ±16 V；102 mV/div ~ 200 mV/div: ±80V; 205 mV/div ~ 1 V/div: ±160 V;1.02 V/div ~
10 V/div: ±400 V
50 Ω: 0.5 mV/div ~ 5 mV/div: ±1.6 V; 5.1 mV/div ~ 10 mV/div: ±4 V; 10.2 mV/div ~ 20 mV/div: ±8 V; 20.5
mV/div ~ 100 mV/div: ±10 V
Bandwidth limitHardware Bandwidth limit: 20MHz, 200MHz
CouplingDC, AC, GND
Impedance(1 MΩ ±2%) || (20 pF ±3 pF)
50 Ω: 50 Ω ±2%
Low frequency
response (AC
coupling -3 dB)		6 Hz (typical)
Overshoot (100
mV/div, 150 ps
edge @50 Ω,
typical)		15%/10%/5%
Max. Input
voltage		1 MΩ ≤ 400 Vpk(DC + AC), DC ~ 10 kHz
50 Ω ≤ 5 Vrms, ±10V Peak
SFDR≥ 45dBc
CH to CH
Isolation (@50Ω)		70 dB up to 200 MHz
60 dB up to 500 MHz
50 dB up to 1 GHz
40 dB up to 2 GHz
Probe Attenuation1X, 10X, 100X, custom
Horizontal System
Time ScaleSDS6204A: 0.1 ns/div – 1000 s/div SDS6104A: 0.2 ns/div – 1000 s/div SDS6104A: 0.5 ns/div – 1000 s/div
Range10 divisions
Display ModeY-T, X-Y, Roll
Roll Mode≥ 50 ms/div
Skew (CH1~CH4)< 100 ps
Time Base Accuracy±2 ppm initial (0~50℃);±0.5 ppm 1st year aging; ±3 ppm 20-year aging
Trigger System
ModeAuto, Normal, Single
LevelInternal: ±4.5 div from the center of the screen
EXT: ±0.61 V
EXT/5: ±3.05 V
Hold Off RangeBy time: 8 ns ~ 30 s (8 ns step)
By event: 1 ~ 108
CouplingCH1~CH4
DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 15 Hz
LFRJ: Attenuates the frequency components below 2.4 MHz
HFRJ: Attenuates the frequency components above 1.3 MHz
Noise RJ: Increases the trigger hysteresis
EXT
DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 15 Hz
LFRJ: Attenuates the frequency components below 2.5 MHz
HFRJ: Attenuates the frequency components above 1.3 MHz
Accuracy (typical)CH1～CH4: ±0.2 div
EXT: ±0.3 div
JitterCH1～CH4:
< 9 ps RMS (typical) for ≥ 300 MHz sine and ≥ 6 divisions peak to peak amplitude for vertical gain settings
from 2.5 mV/div to 10 V/div
< 5 ps RMS (typical) for ≥ 500 MHz sine and ≥ 6 divisions peak to peak amplitude for vertical gain settings
from 2.5 mV/div to 10 V/div
EXT: < 200 ps rms
DisplacementPre-Trigger: 0 ~ 100% memory

Delay-Trigger: 0 ~ 5,000 div

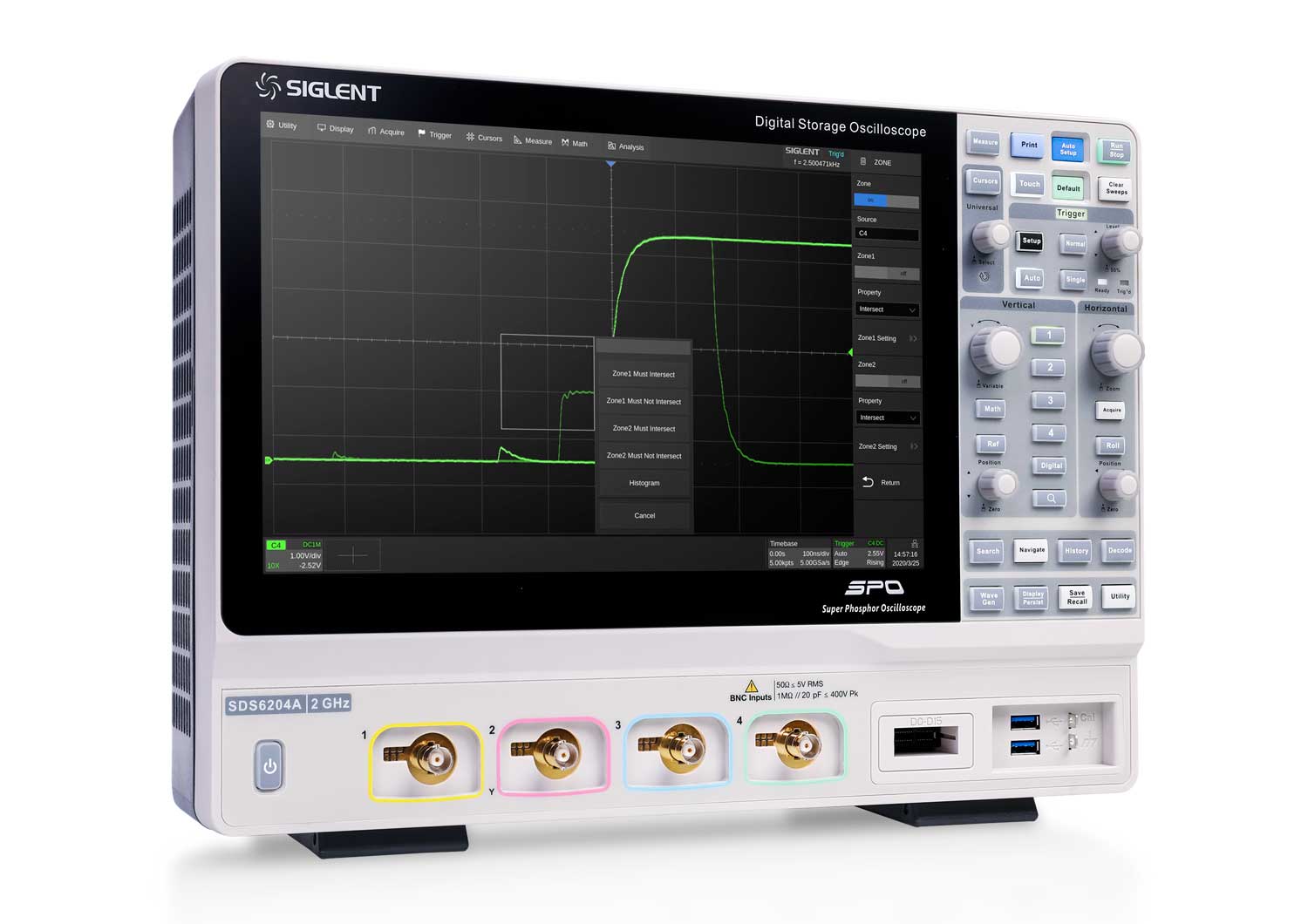

ZoneUp to 2 zones
Source: CH1~CH4
Property: Intersect, Not Intersect
Edge Trigger
SourceCH1~CH4/EXT/(EXT/5)/AC Line/D0~D15
SlopeRising, Falling, Rising & Falling
Slope Trigger
SourceCH1~CH4
SlopeRising, Falling
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Pulse Width Trigger
SourceCH1~CH4/D0~D15
Polarity+wid, -wid
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Video Trigger
SourceCH1~CH4
StandardNTSC, PAL, 720p/50, 720p/60, 1080p/50, 1080p/60, 1080i/50, 1080i/60, Custom
SynchronizationAny, Select
Trigger ConditionLine, Field
Window Trigger
SourceCH1~CH4
Window typeAbsolute, Relative
Interval Trigger
SourceCH1~CH4/D0~D15
SlopeRising, Falling
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Dropout Trigger
SourceCH1~CH4/D0~D15
Timeout typeEdge, State
SlopeRising, Falling
Time range2ns ～ 20s，Resolution = 1 ns
Runt Trigger
SourceCH1~CH4
PolarityPositive, Negative
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Pattern Trigger
SourceCH1~CH4/D0~D15
Pattern SettingDon’t Care, Low, High
LogicAND, OR, NAND, NOR
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Qualified Trigger
TypeState, State with Delay, Edge, Edge with Delay
Qualified SourceCH1~CH4/D0~D15
Edge Trigger SourceCH1~CH4/D0~D15
Nth Edge Trigger
SourceCH1~CH4/D0~D15
SlopeRising, Falling
Idle time8ns ～ 20s，Resolution = 1 ns
Edge Number1 ～ 65535
Delay Trigger
Source ACH1~CH4/D0~D15
Source BCH1~CH4/D0~D15
SlopeRising, Falling
Limit range<, >, in range, out of range
Time range2ns ～ 20s，Resolution = 1 ns
Serial Trigger
SourceCH1~CH4/D0~D15
ProtocolStandard: I2C, SPI, UART, CAN, LIN
Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT
I2CType: Start, Stop, Restart, No Ack, EEPROM, Address & Data, Data Length
SPIType: Data
UARTType: Start, Stop, Data, Parity Error
CANType: All, Remote, ID, ID+Data, Error
LINType: Break, Frame ID, ID+Data, Error
CAN FD（Optional）Type: Start, Remote, ID, ID+Data, Error
FlexRay（Optional）Type: TSS, Frame, Symbol, Errors
I2S（Optional）Type: Data, Mute, Clip, Glitch, Rising Edge, Falling Edge
MIL-STD-1553B (Optional）Type：Transfer, Word, Error, Timing
SENT（Optional）Type：Start, Slow channel, Fast channel, Error

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
