Siglent SDG3202X 2Ch, 200 MHz, 1.2GSa/s, Function Generator

Description

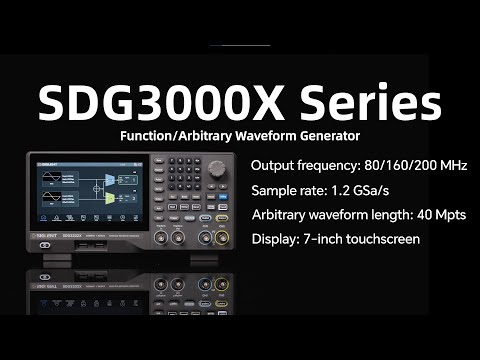

Siglent SDG3202X PLUS Function Generator

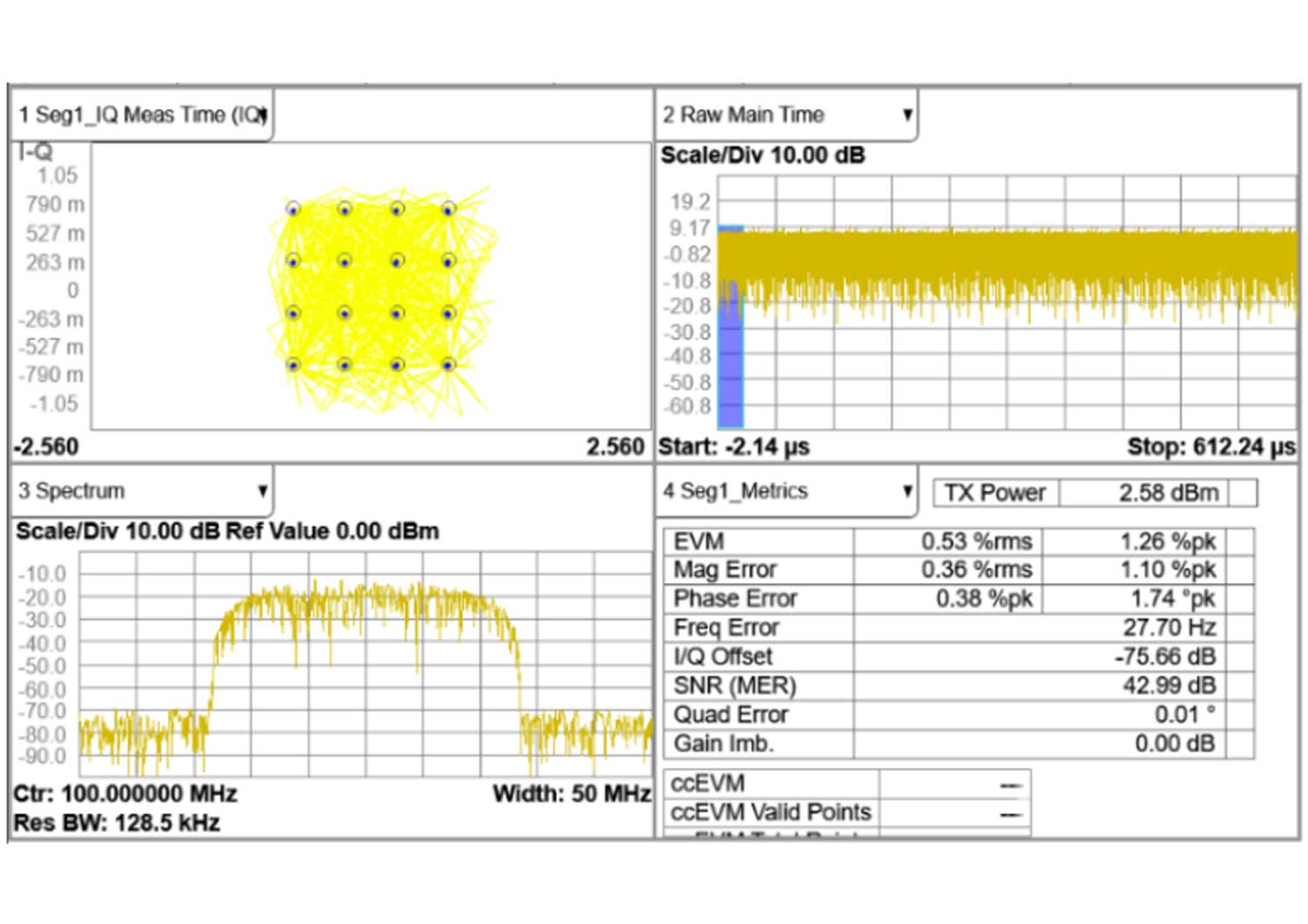

The SDG3000X series dual-channel function/arbitrary waveform generator boasts a maximum bandwidth of 200 MHz and impressive sampling specifications, including a sampling rate of 1.2 GSa/s and 16-bit vertical resolution. Utilising traditional Direct Digital Synthesis (DDS) technology, it incorporates innovative TrueArb and EasyPulse technologies. These advancements effectively address the inherent limitations of DDS in generating arbitrary waves and square waves, or pulses, delivering high-fidelity, low-jitter signals to users. Furthermore, the SDG3000X offers features such as PRBS pattern generation, sequencing, dual pulse output, and vector signal capabilities, making it suitable for a broader range of applications.

Features:

• Dual channels, maximum output frequency, maximum output amplitude $20\text{ Vpp}$
• $1.2\text{ GSa}/\text{s}$ sampling rate, $16\text{-bit}$ vertical resolution
• Using TrueArb technology, arbitrary waveforms can be output point by point. Under the premise of not losing waveform details, low-jitter waveforms can be output at a sampling rate of $10\text{ mSa}/\text{s}$ – $600\text{ MS}/\text{s}$

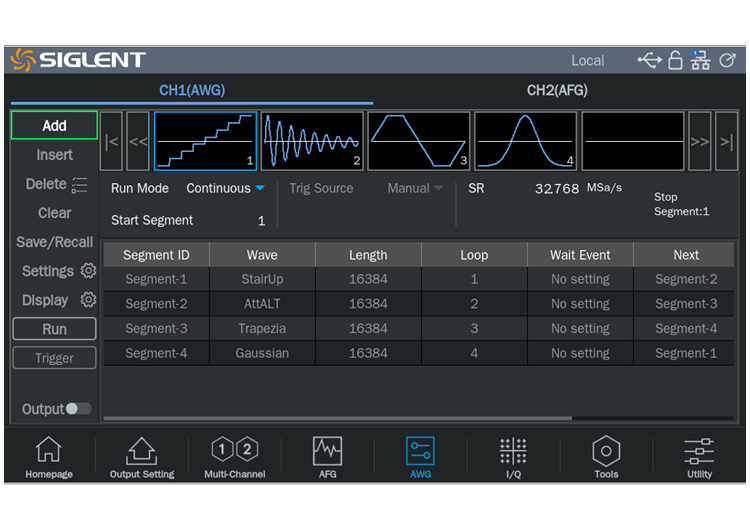

• Supports sequence wave playback function, with a maximum waveform memory per channel

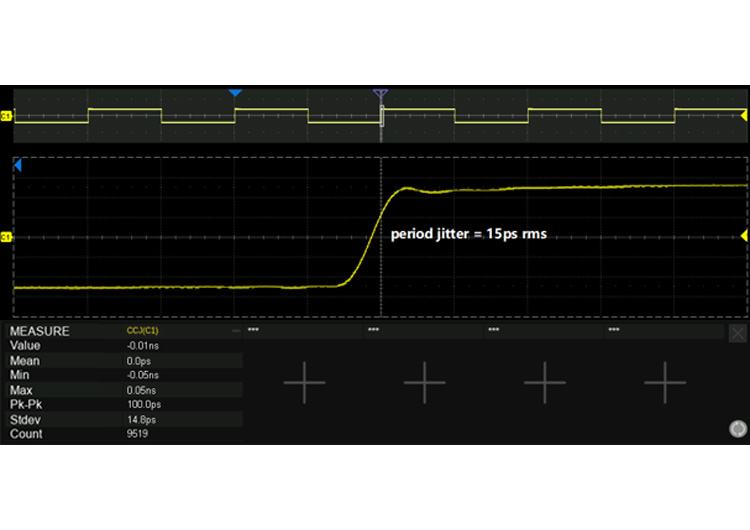

• Using EasyPulse technology, it can output low-jitter square waves/pulses, and the pulse wave can achieve fine adjustment of pulse width, rising/falling edges, with extremely high adjustment resolution and adjustment range
• Supports dual pulse output function, which can be used to measure the switching parameters of power devices and evaluate their dynamic characteristics
• Supports PRBS up to $120\text{ Mbps}$
• Rich analogue and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
• Sweep and Burst functions
• Harmonic function
• Waveform Combining Function
• High precision Frequency Counter
• $196$ built-in arbitrary waveforms
• Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11); optional GPIB
• Built-in WebServer supports instrument control via a web browser
• $7\text{-inch}$ display touch screen

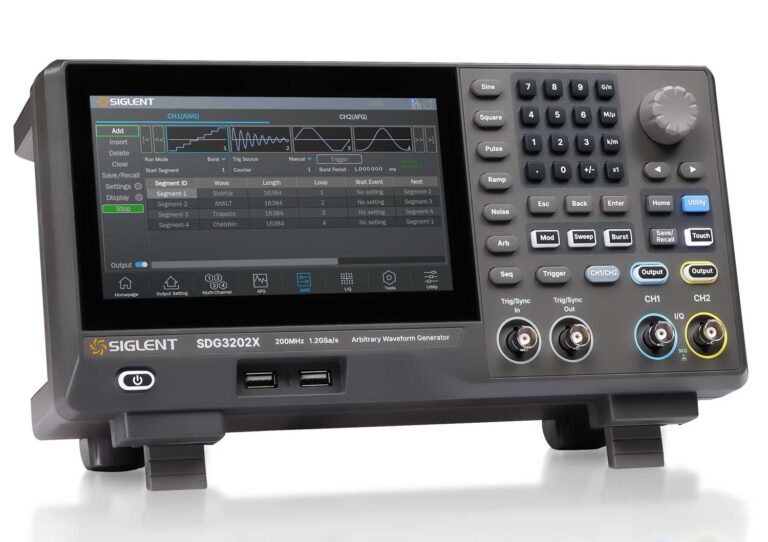

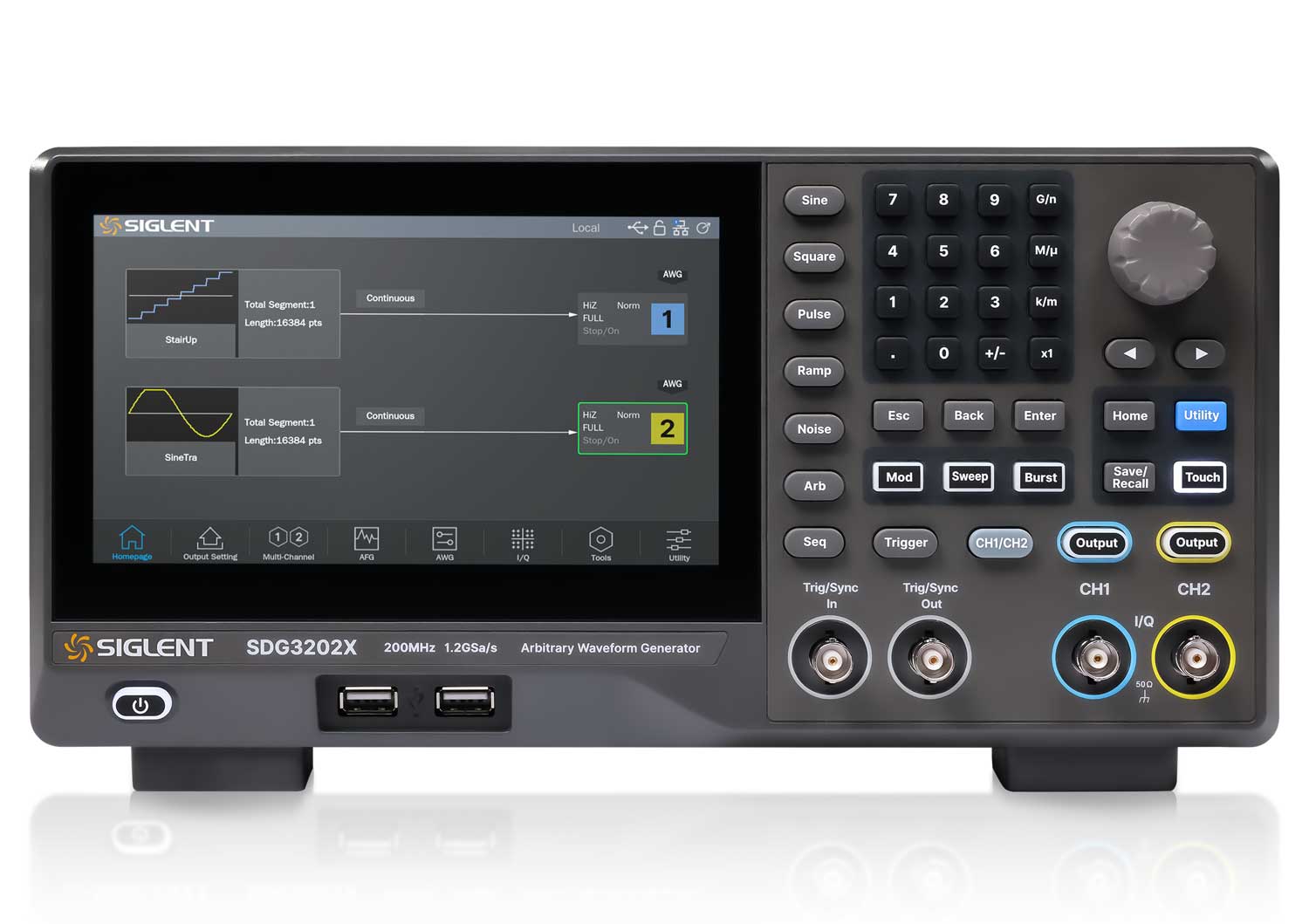

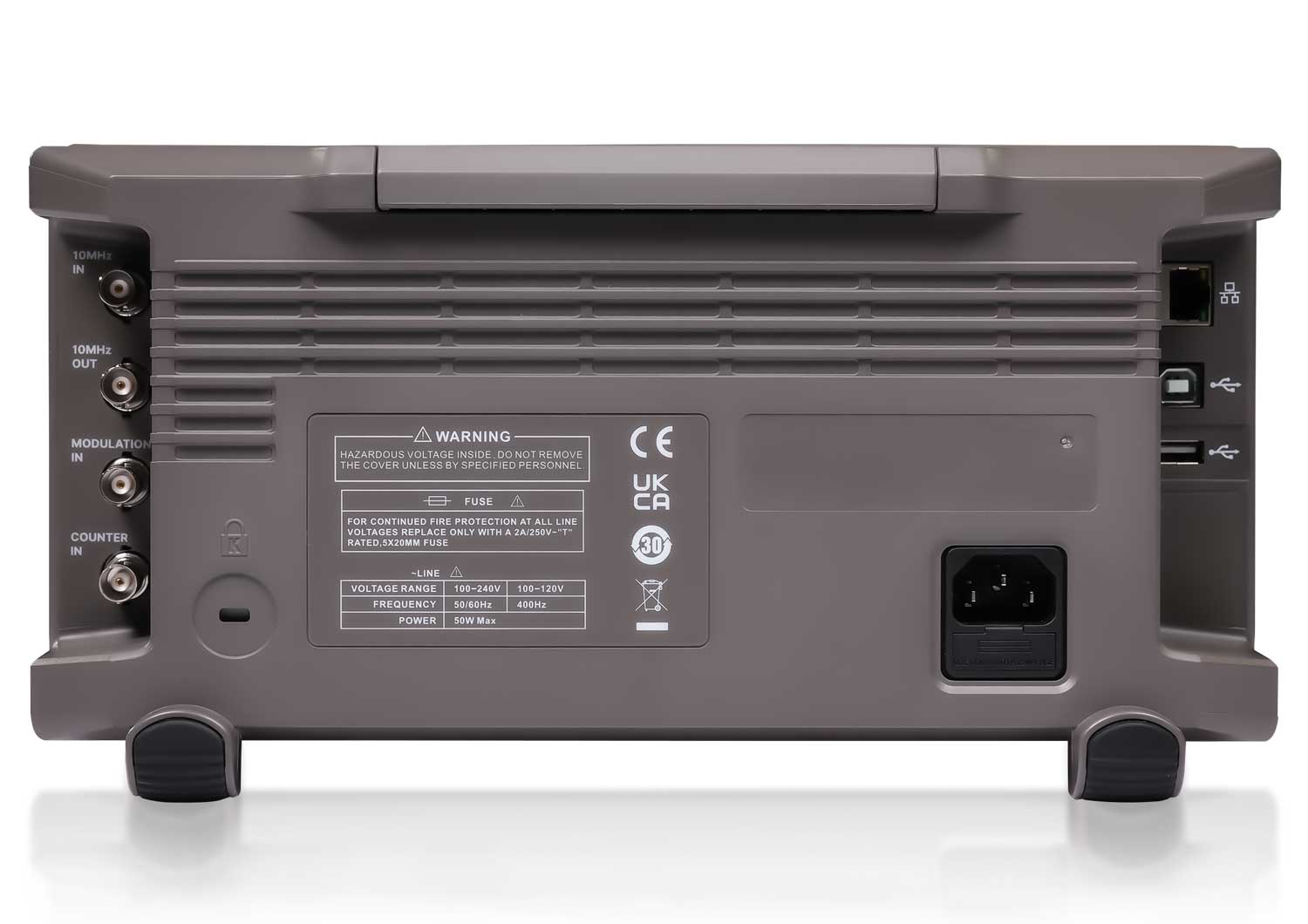

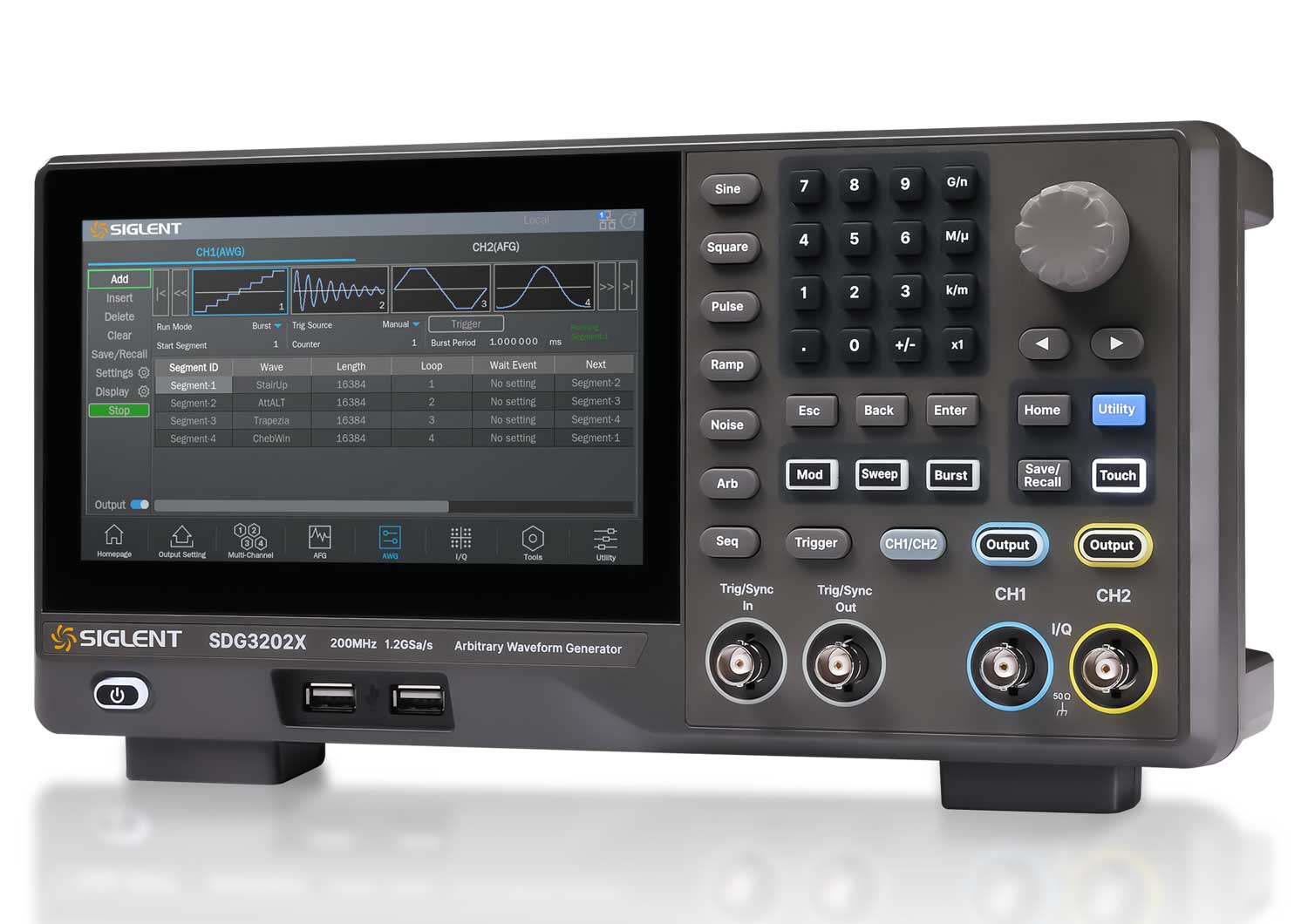

Product Images

Innovative EasyPulse Technology Learn more...

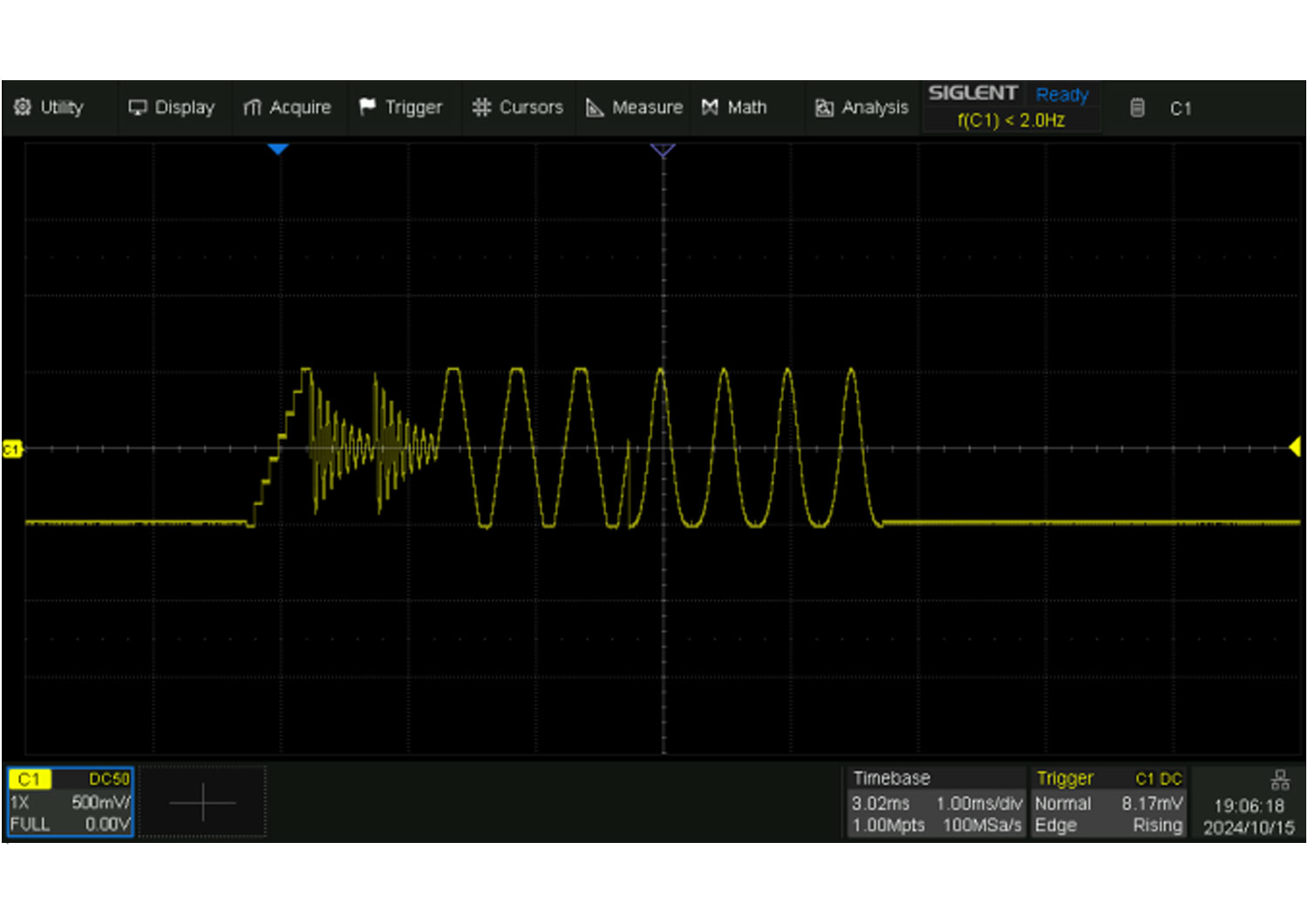

Powerful sequence playback function Learn more...
