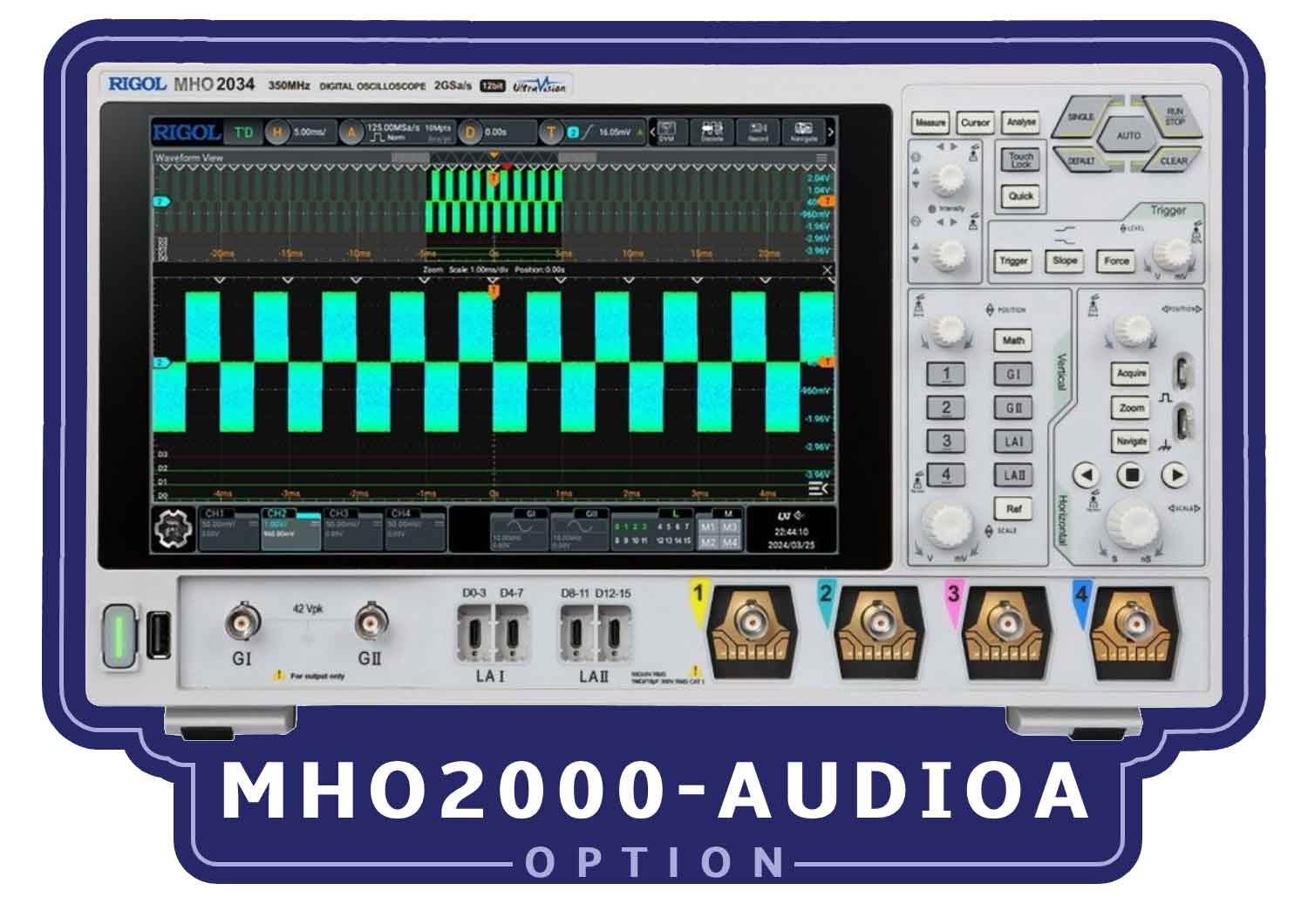

RIGOL MHO2024 High Resolution Oscilloscope

The MHO2000 series is a high-resolution, reliable, and cost-effective mixed-signal digital oscilloscope with up to 350 MHz bandwidth. It features a 12-bit ADC and integrates functions such as protocol analysis, logic analysis, and signal generation. Ideal for power, medical, and automotive electronics, the MHO2000 enables efficient, multi-dimensional testing and analysis.

Key Features:

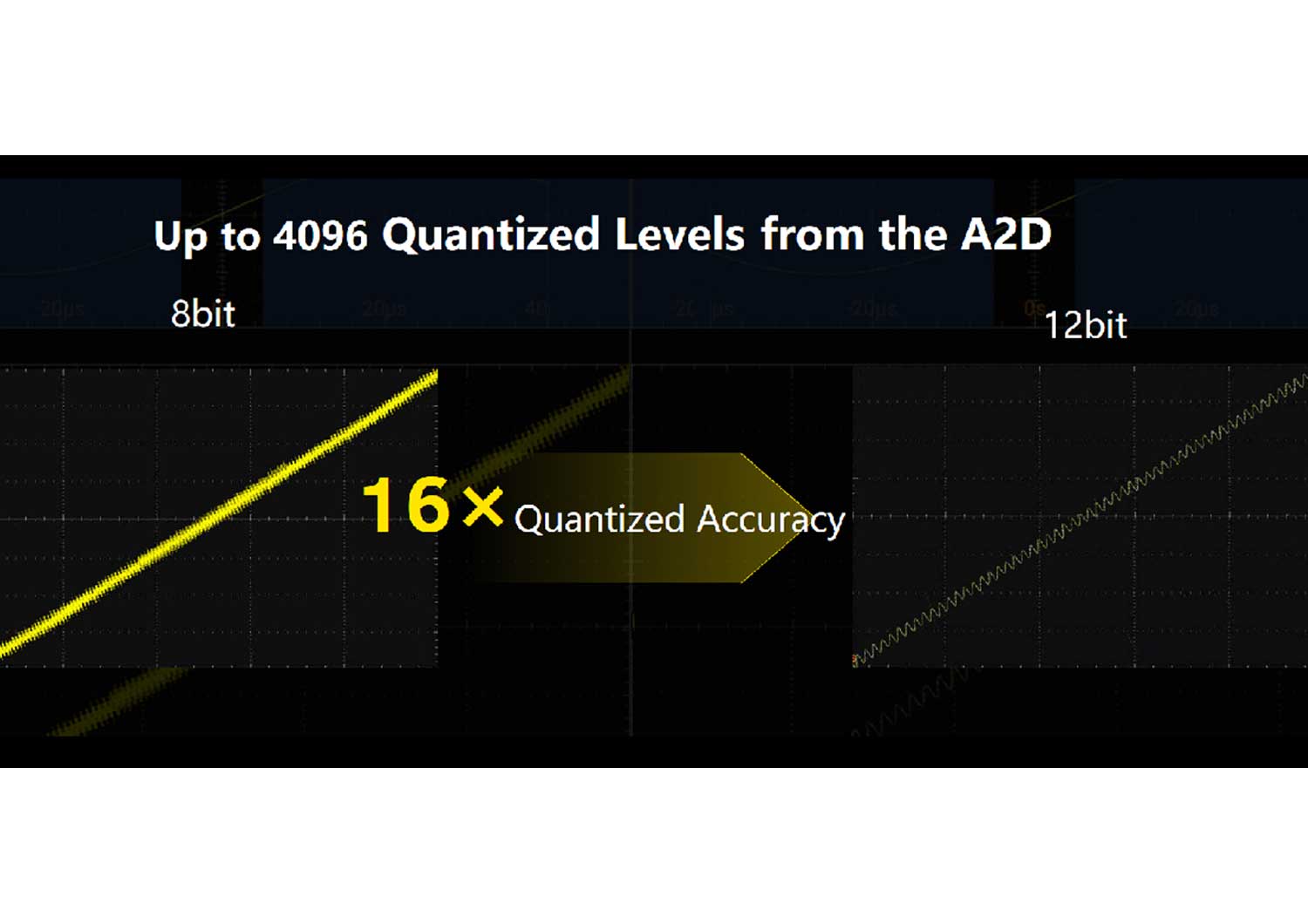

12-bit Vertical Resolution: With 12-bit vertical resolution and up to 4096 levels of quantisation bits – 16 times that of an 8-bit oscilloscope – measurement accuracy is greatly improved, enabling the capture of the smallest details of a waveform.
Low Noise: Make the most of 12-bit analogue-to-digital converters with a significantly lower noise floor.
500 Mpts Memory Depth: With up to 500 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode.
Multi-Instrument Capability: Arbitrary Waveform/Function Generator (opt), digital signal analysis, and Bode plot analysis.
Protocol Analysis for today’s common serial communication buses: Trigger, decode, and visualise serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

Model	Channels	Bandwidth	Sample Rate	Max Memory Depth	Waveform Refresh Rate	Digital Channels	Built-In Signal Source
MHO2034	4	350MHz	2GSa/s	500Mpts	1,000,000wfm/s	16(Probe opt.)	50MHz, 2CH（opt.）
MHO2024	4	200MHz	2GSa/s	500Mpts	1,000,000wfm/s	16(Probe opt.)	50MHz, 2CH（opt.）

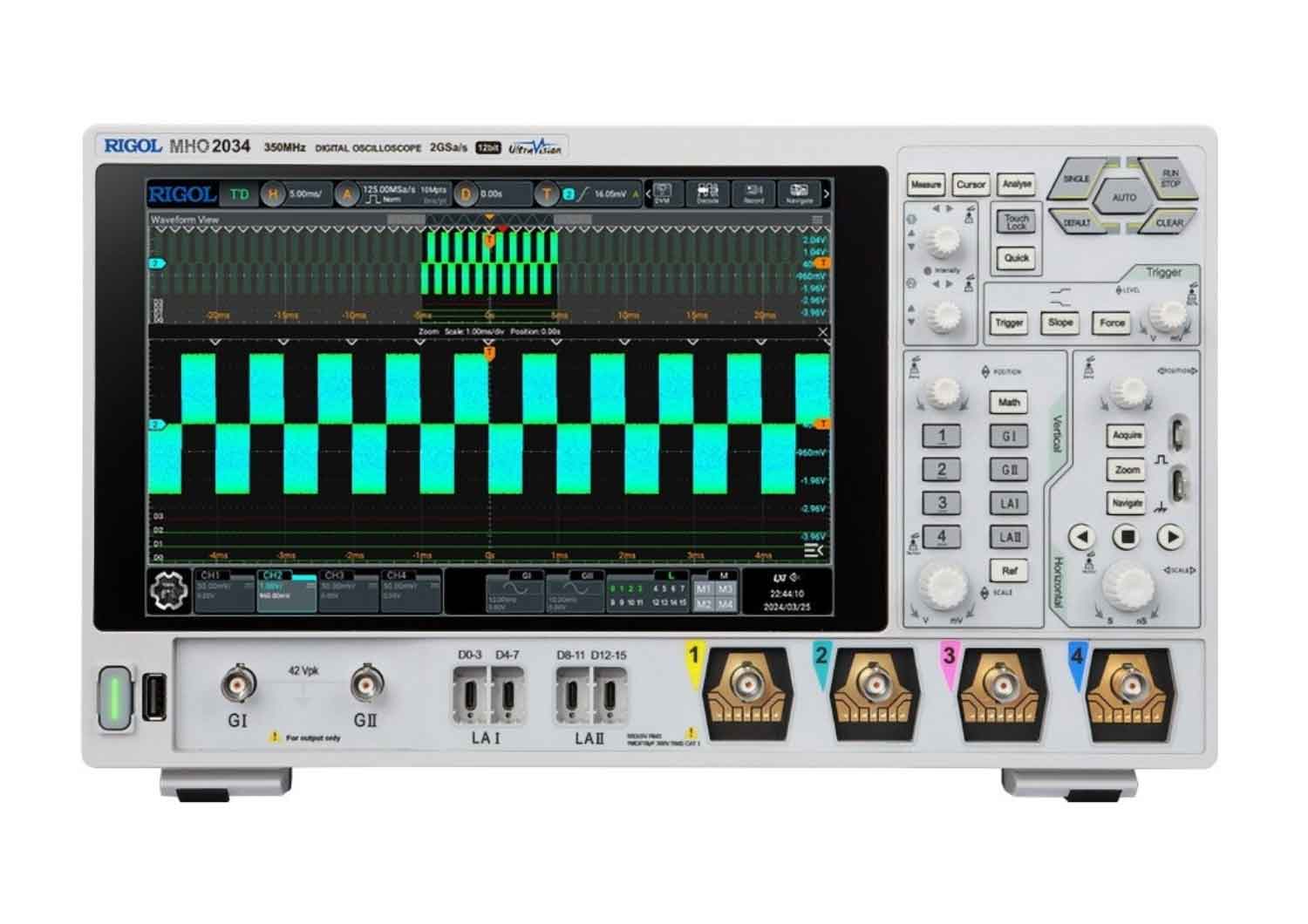

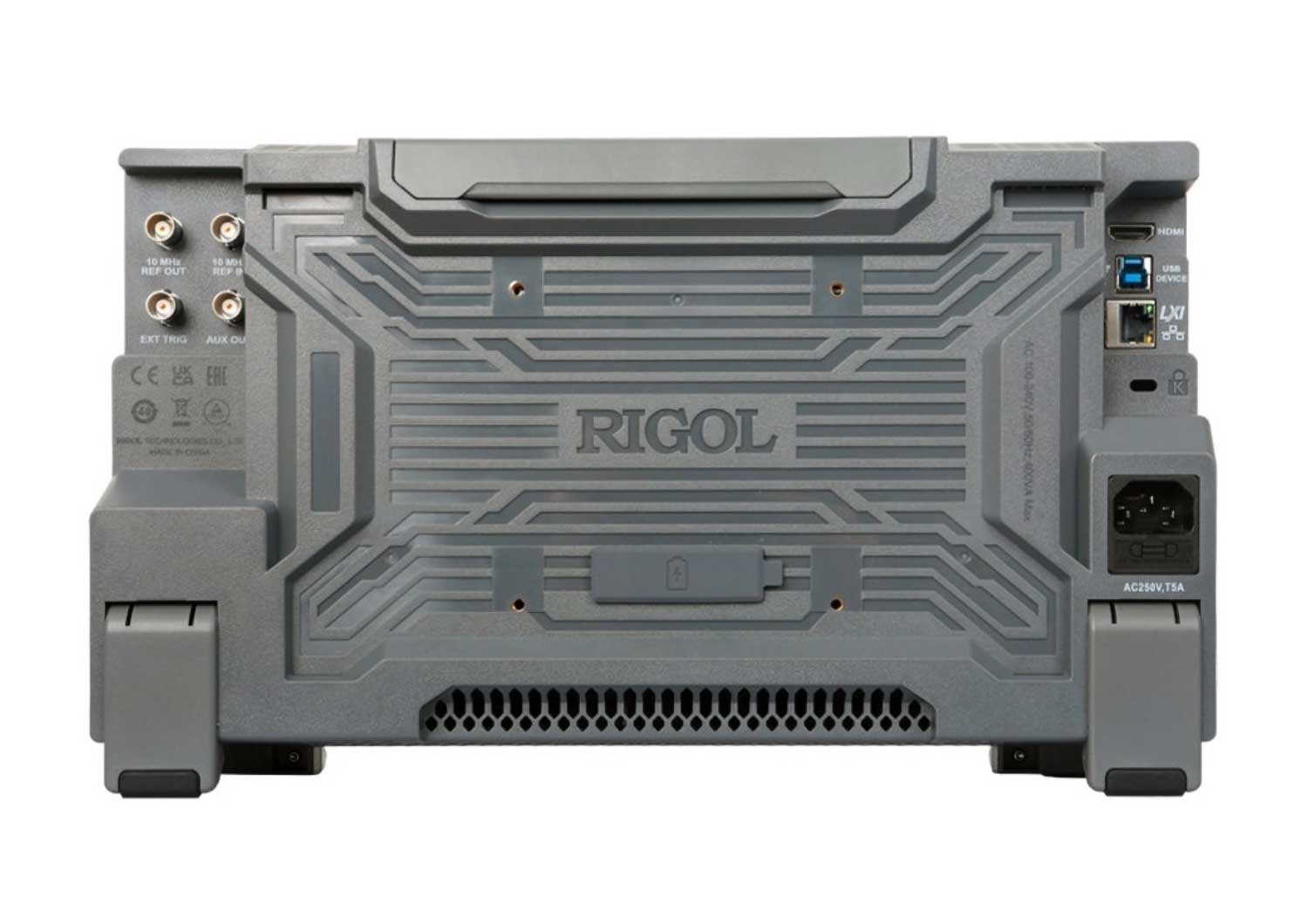

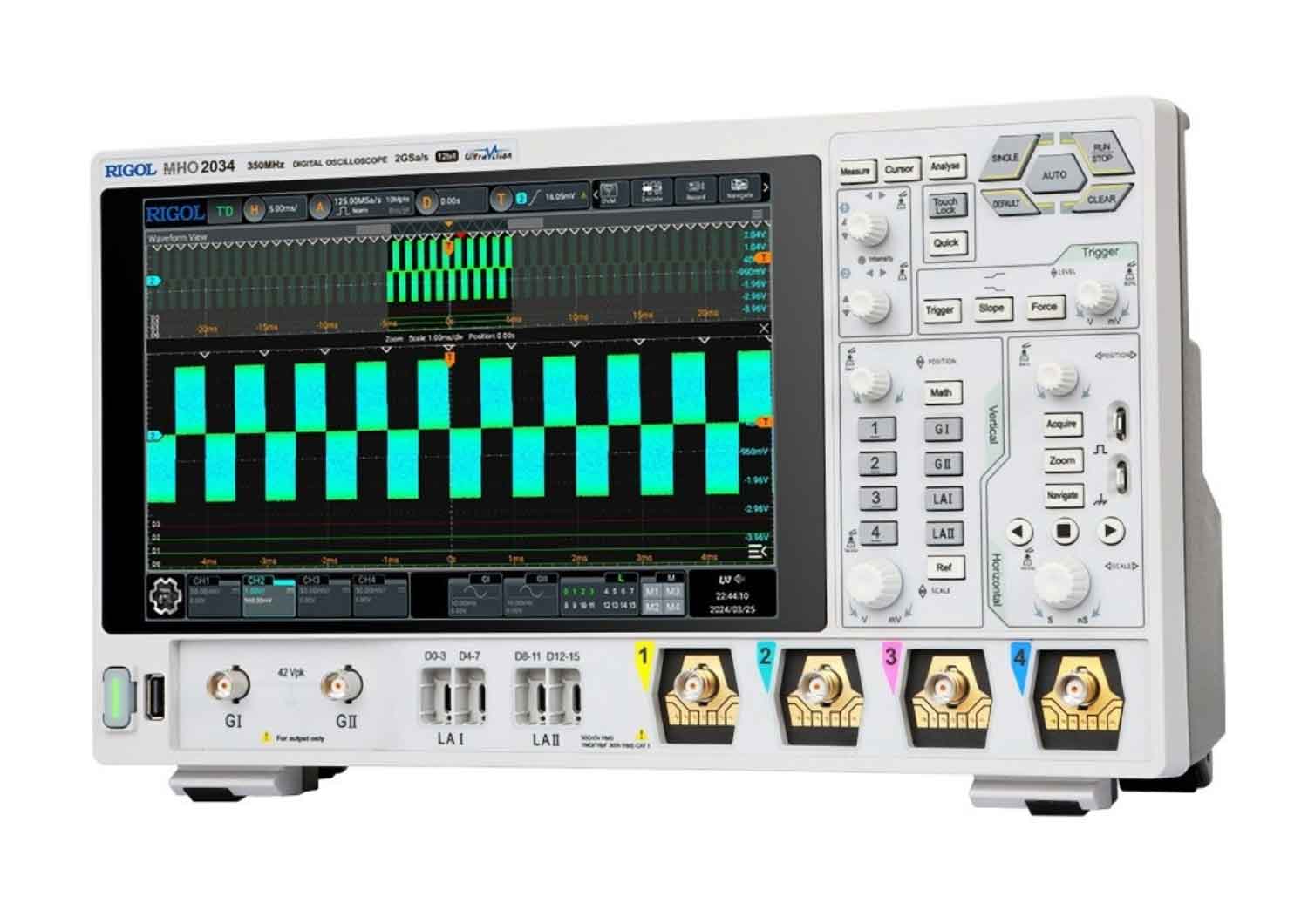

Product Images

Ultra-high resolution capturing tiny details<br />
<br />
The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200 μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.

Ultra-high resolution capturing tiny details Learn more...

Versatile triggering and decoding for diverse industries<br />
<br />

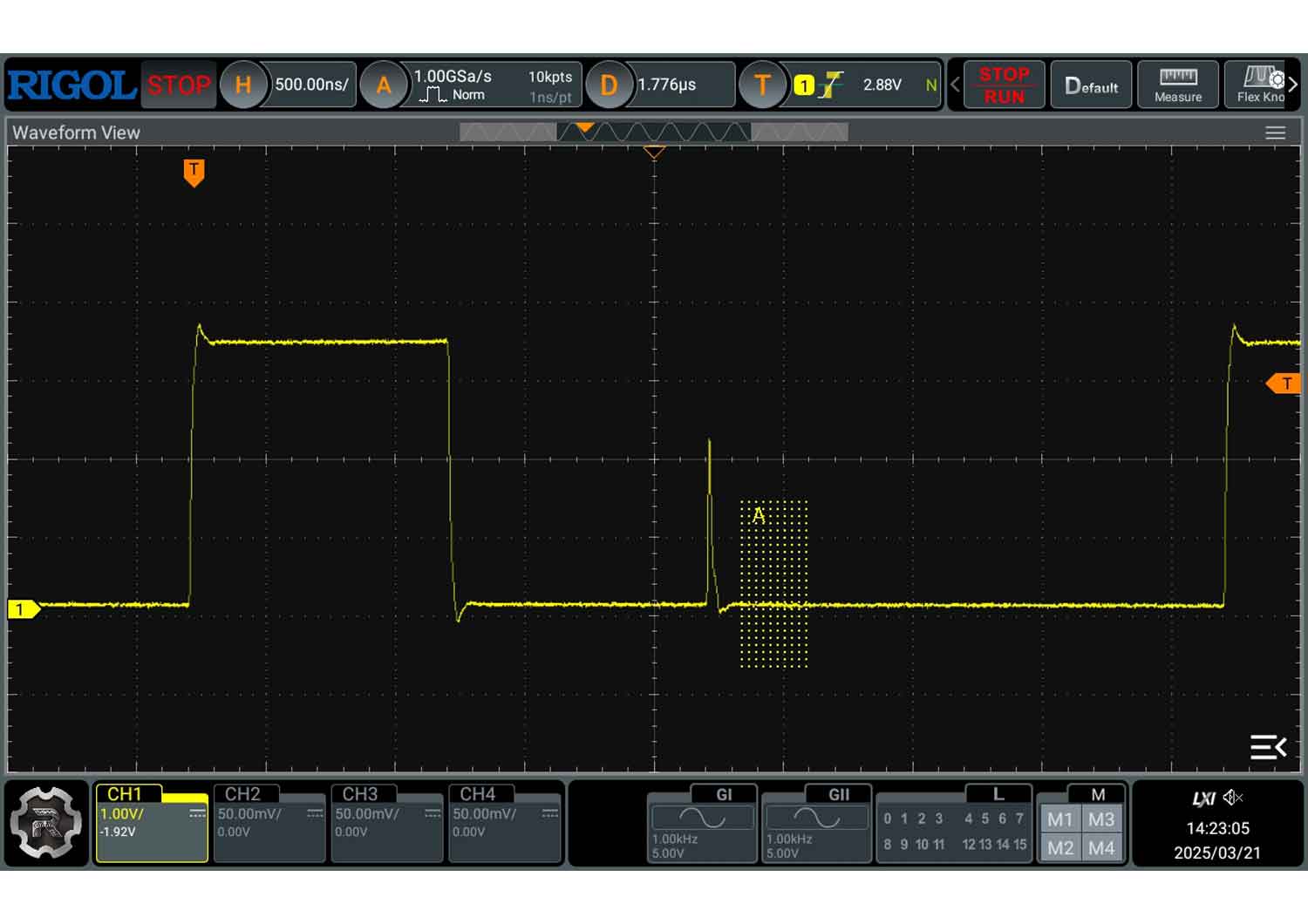

The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, SENT, and more, meeting bus testing needs across embedded, automotive, and computing industries.

Versatile triggering and decoding for diverse industries Learn more...

Standard digital channel, stable signal transmission<br />
<br />

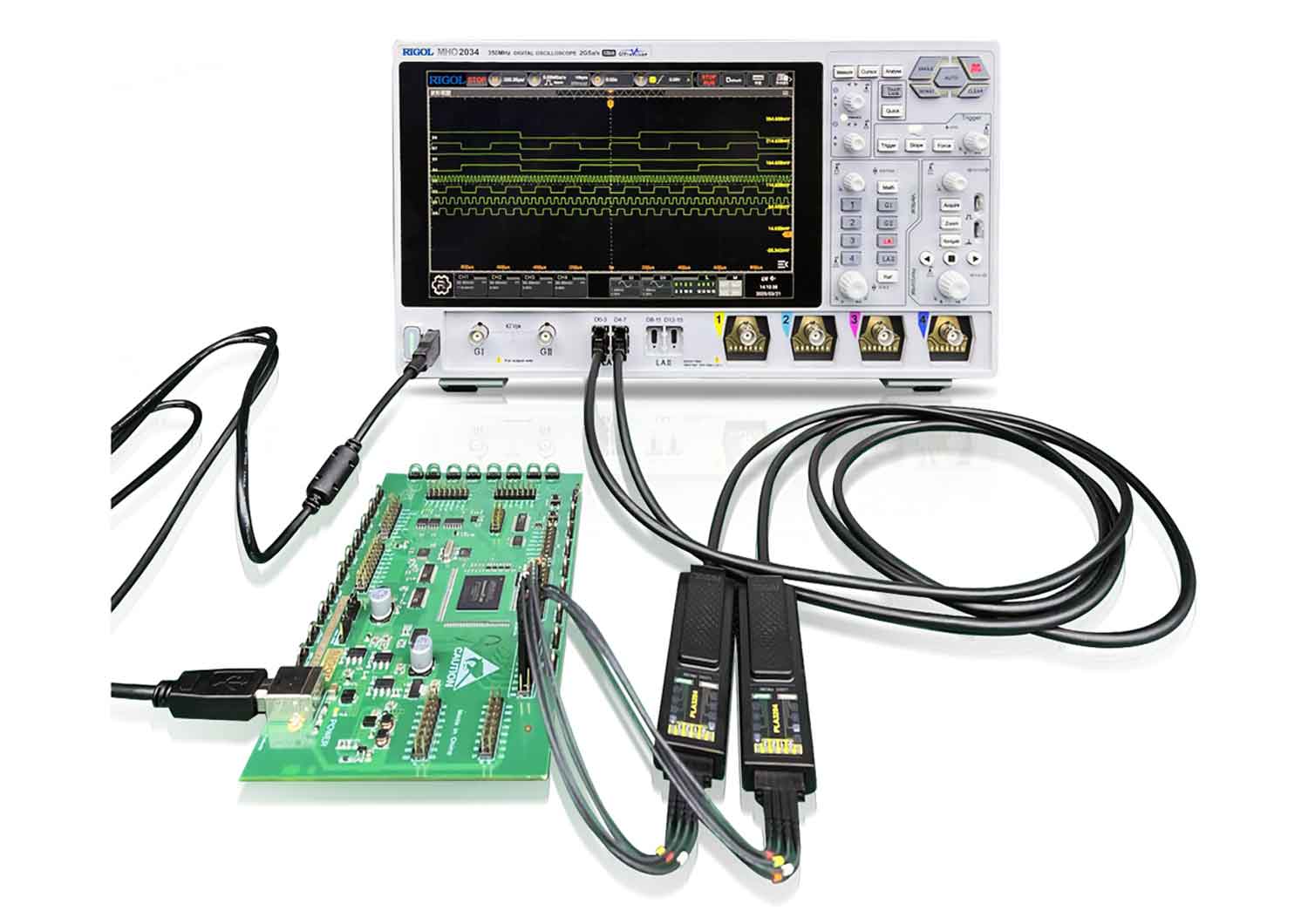

The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analogue and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates.

Standard digital channel, stable signal transmission Learn more...

Built-in function generator for advanced analysis<br />
<br />

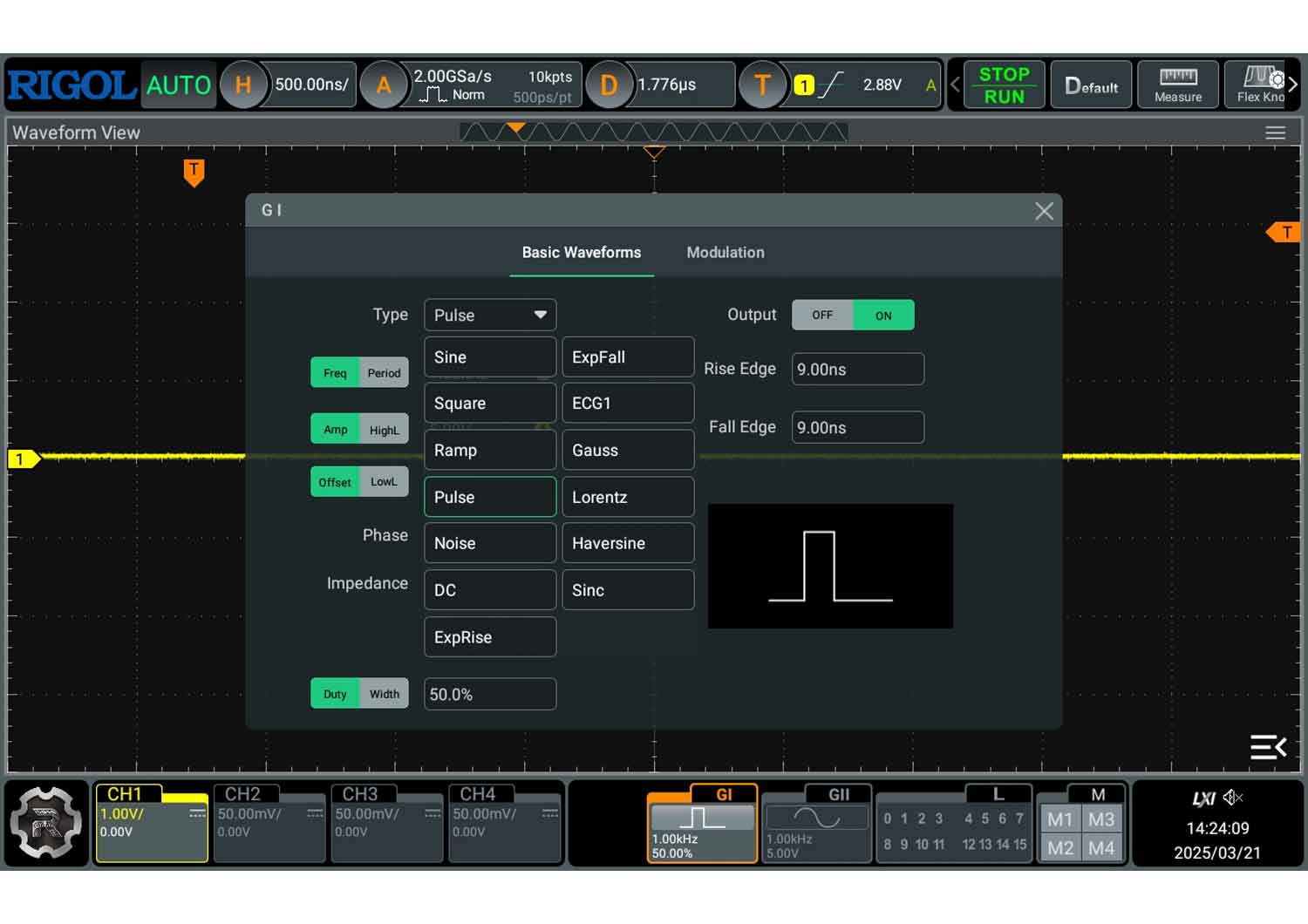

The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields.

Built-in function generator for advanced analysis Learn more...

Standard Hardware Accessories

Rigol 4x PVP2350 350MHz Passive Oscilloscope Probes
UK Power Cord
USB Data Cable

Optional Software Accessories

Optional Hardware Accessories

4002 Sensepeek PCBite Kit (Small Base Plate)
£49
4007 Sensepeek PCBite Kit (Large Base Plate)
£58
Micsig ACP1000 AC Current Probe
£183.2
Rigol PLA3204 high-performance 4-channel active logic probe
£151

Documentation

Aaronia BPSG Datasheet MHO2000 User Manual

Aaronia BPSG Datasheet MHO2000 Datasheet

Aaronia BPSG Datasheet MHO2000 Programming Manual

General Technical Specifications
Model	MHO2024	MHO2034
Analogue bandwidth (50 Ω, -3 dB)	200 MHz	350 MHz
Analogue bandwidth (1 MΩ, -3 dB)	200 MHz	350 MHz
Calculated Rising Time under 50 Ω (10%-90%, typical)	2 ns	1.4 ns
No. of Input Channels	4 analogue channels + 1 EXT channel
Max. Sample Rate of Analogue Channel	2 GSa/s
Max. Memory Depth	500 Mpts (half-channel) 250 Mpts (full-channel)
Sampling Mode	Real-time Sampling
Max. Waveform Capture Rate	200,000 wfms/s (in Vector mode) 1,000,000 wfms/s (in Record mode)
Vertical Resolution	12-bit (up to 16-bit in high resolution mode)
Max. Frames of Waveform Recording	Max. 500,000 frames
Peak Detection	Captures 500 ps glitches
LCD Size and Type	10.1” capacitive multi-touch screen
Display Resolution	1280×800
