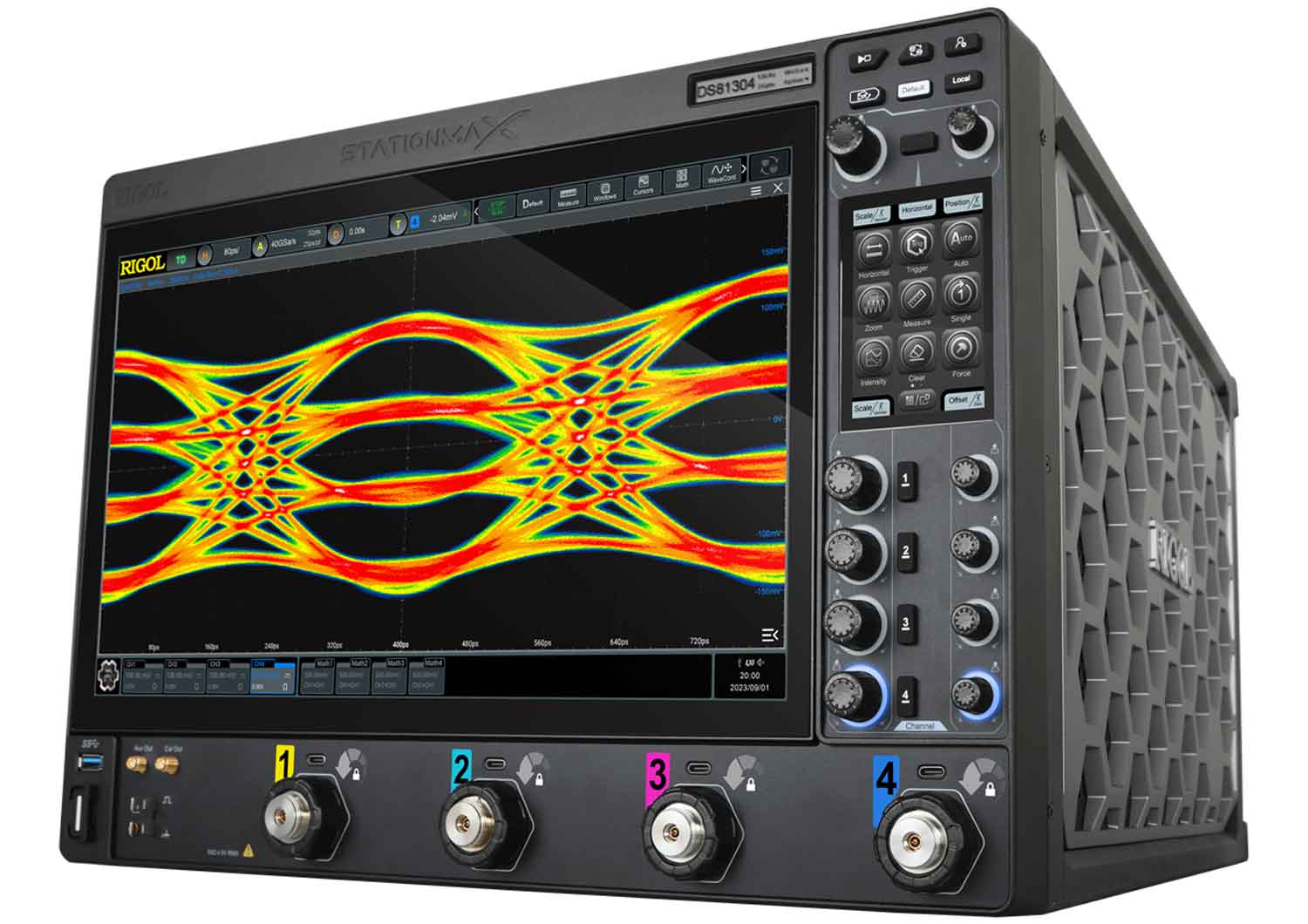

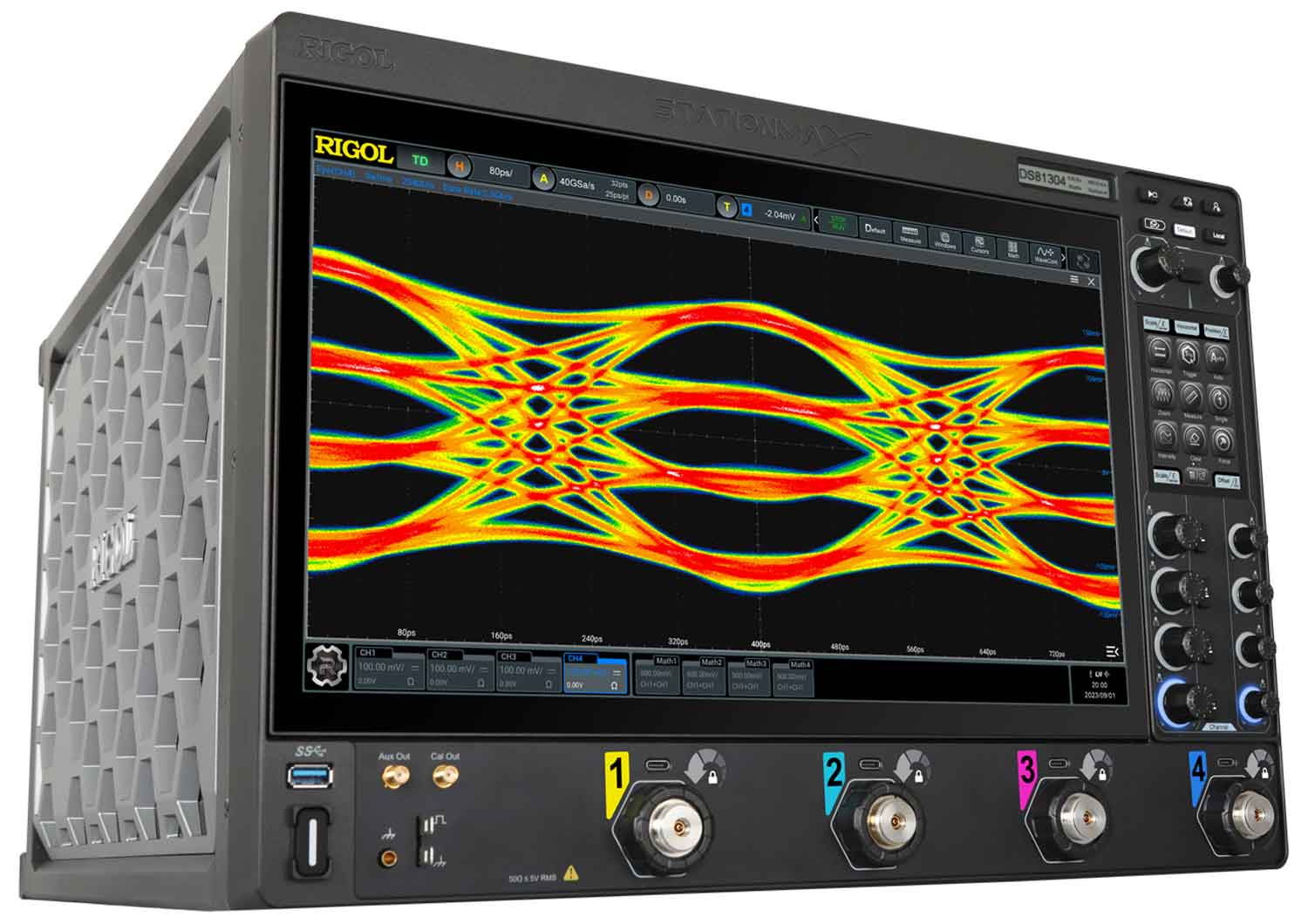

Rigol DS81304 4 Channel, 13GHz Bandwidth, 40GSa/s Digital Oscilloscope

Description

Rigol DS81304 Digital Oscilloscope

The DS81304 Digital Oscilloscope, part of the DS80000 Series, is the eighth-generation digital oscilloscope independently developed by RIGOL. Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40 GSa/s and an analogue bandwidth of up to 13 GHz. In addition to hardware improvements, the DS80000 Series digital oscilloscope also provides a variety of user-friendly features to ensure a high-quality customer experience.

Higher bandwidth & sampling
Based on the StationMAX II hardware technology platform, it achieves a maximum real-time sampling rate of 40 GSa/s and an analogue bandwidth of 13 GHz, which can more realistically restore signals and cover more applications.

Deep memory & high fidelity
Based on the RIGOL new generation UltraVision III platform, it achieves a maximum storage depth of 4 Gpts, allowing DS80000 to have high-fidelity signal acquisition capability and capture waveforms for longer periods of time at high sampling rates.

New interface design
The DS80000 series adopts the RIGOL SmartProbe 2.0 interface, which supports direct signal connection with 3.5 mm connectors, and is equipped with RIGOL’s self-developed probe adapter. It can also be backwards compatible with the previous generation of RIGOL probes, providing convenience.

Performance for High-Speed Applications
The DS80000 oscilloscope’s bandwidth and sample rate performance are ideally suited to the performance verification of high-speed devices and systems, high-speed bus compliance analysis, DDR debugging and other application scenarios, helping engineers solve more testing challenges.

Key Features:

• Built on RIGOL’s brand new core module
• 4 analogue channels, 1 EXT channel
• Analogue channel bandwidth: Max. 13 GHz
• Up to 40 GSa/s sample rate
• Max. 2 Gpts or 4 Gpts memory depth (opt.)
• Max. waveform capture rate: 250,000 wfms/s
• Vertical resolution: 8-16 bits adjustable
• Vertical sensitivity range: 1 mV/div ~ 1 V/div (50Ω)
• Timebase range: 20 ps/div~1 ks/div
• N-in-1 instrument, including digital oscilloscope, digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyser (option)
• Various trigger functions: Zone trigger, Edge trigger, Pulse trigger, Slopetrigger, Video trigger, Pattern trigger, Duration trigger, Timeout trigger, Runttrigger, Window trigger, Delay trigger, Setup/Hold trigger, Nth Edge trigger, RS232/UART, I2C, SPI, CAN, FlexRay, LIN, I2S, and MILSTD-1553
• Various serial bus decodings (opt.): RS232/UART, I2C, SPI, CAN, CAN-FD,FlexRay, LIN, I2S, MILSTD-1553, USB2.0; 4 decode channels
• Support Ethernet, USB2.0, and other protocol compliance analysis functions
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function
• Various math operations: A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, LowPass, HighPass, BandPass, and BandStop built-in peak search functions
• Real-time eye diagram and jitter analysis (opt.)
• Recording and playback functions for a maximum of 2,000,000 frames of hardware real-time and ceaseless waveforms

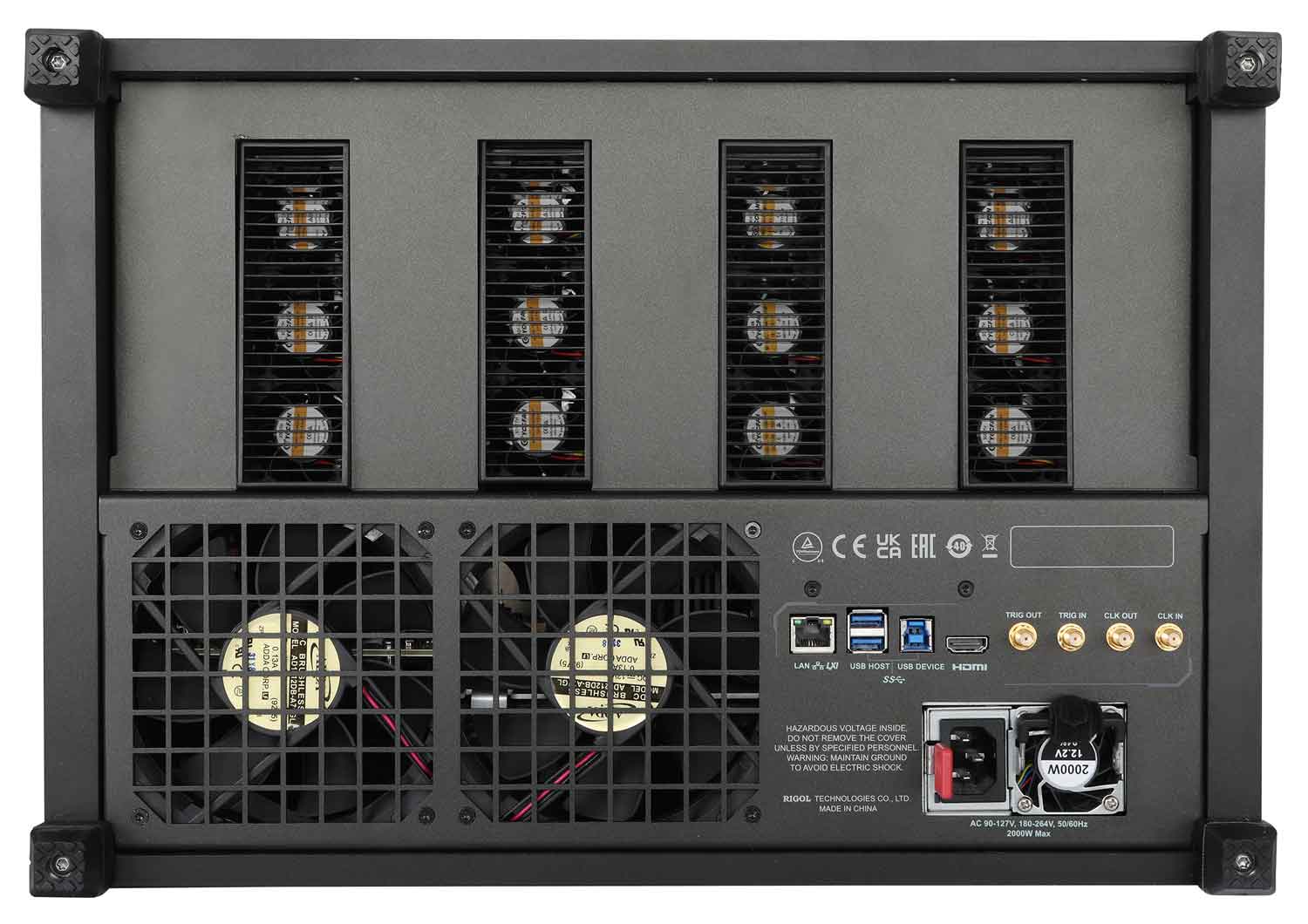

• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, AUX OUT; Web Control supported
• 15.6” HD capacitive multi-touch screen with one-button electronic tilt; multi-pane windowing
• The photoelectric encoder operating knob prolongs its service life, guaranteeing more than 100,000 times of pressing operation and 1 million times of rotation operation, greatly improving its service life
• High-definition smart and quick-responsive shortcut menu display
• Support online upgrade

Product Images

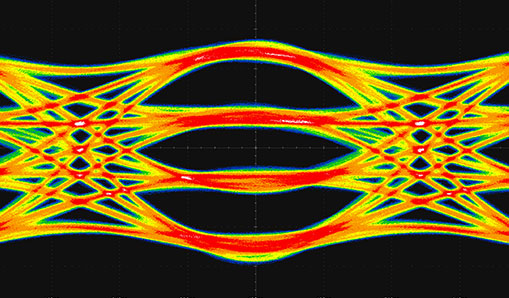

Higher bandwidth, higher sampling Learn more...

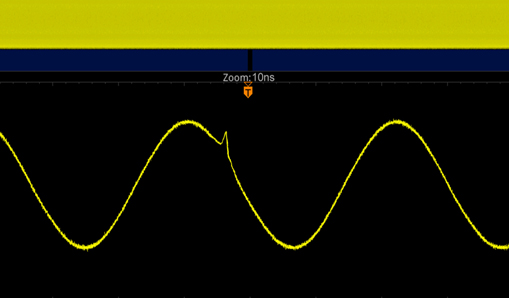

Deep storage high fidelity Learn more...

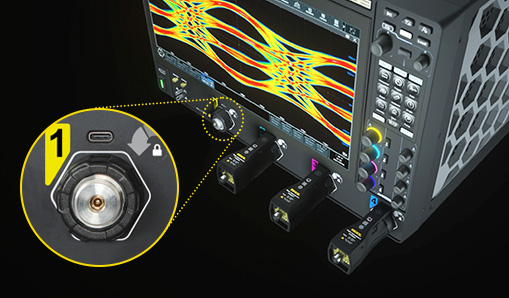

New interface design Learn more...

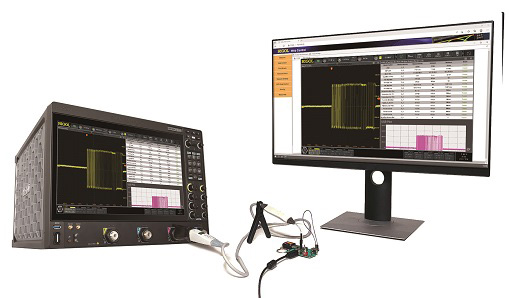

Meet more high-speed application scenarios Learn more...

Product Videos

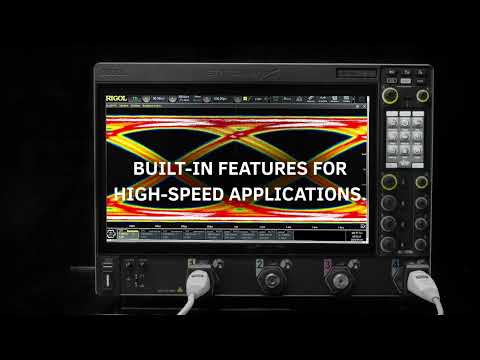

Introducing the NEW RIGOL DS80000 Series | Up to 13 GHz High-Performance Oscilloscope
