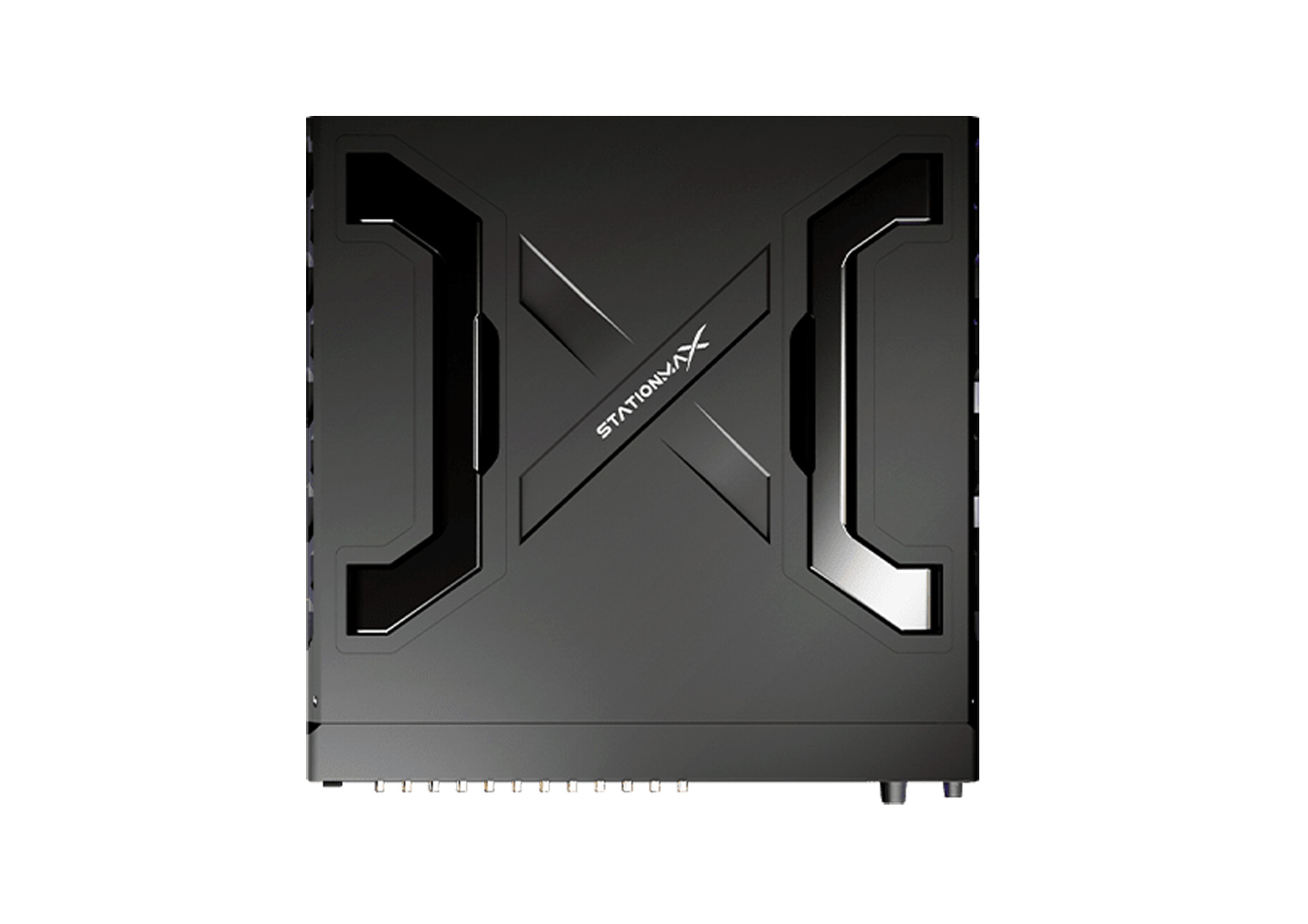

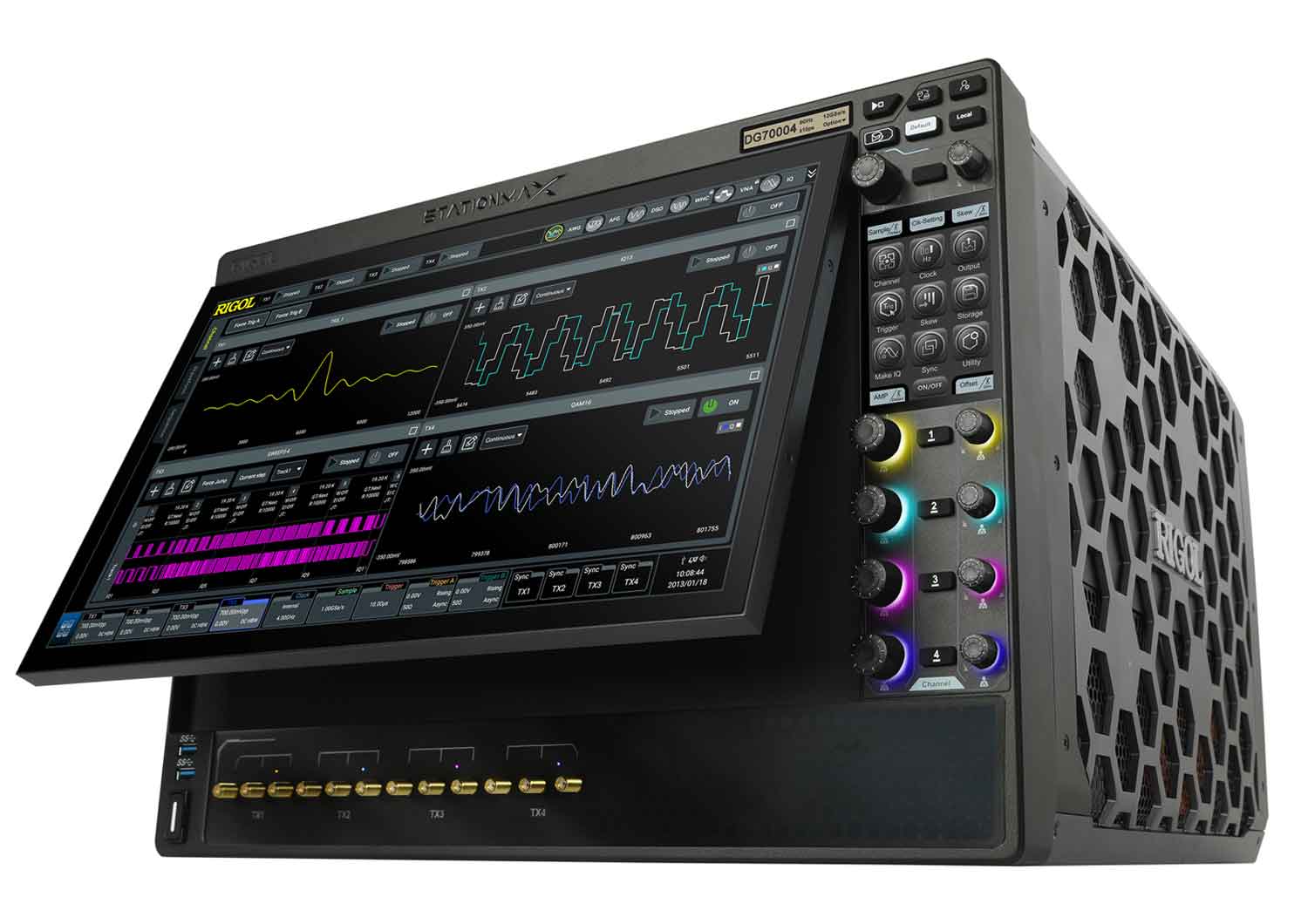

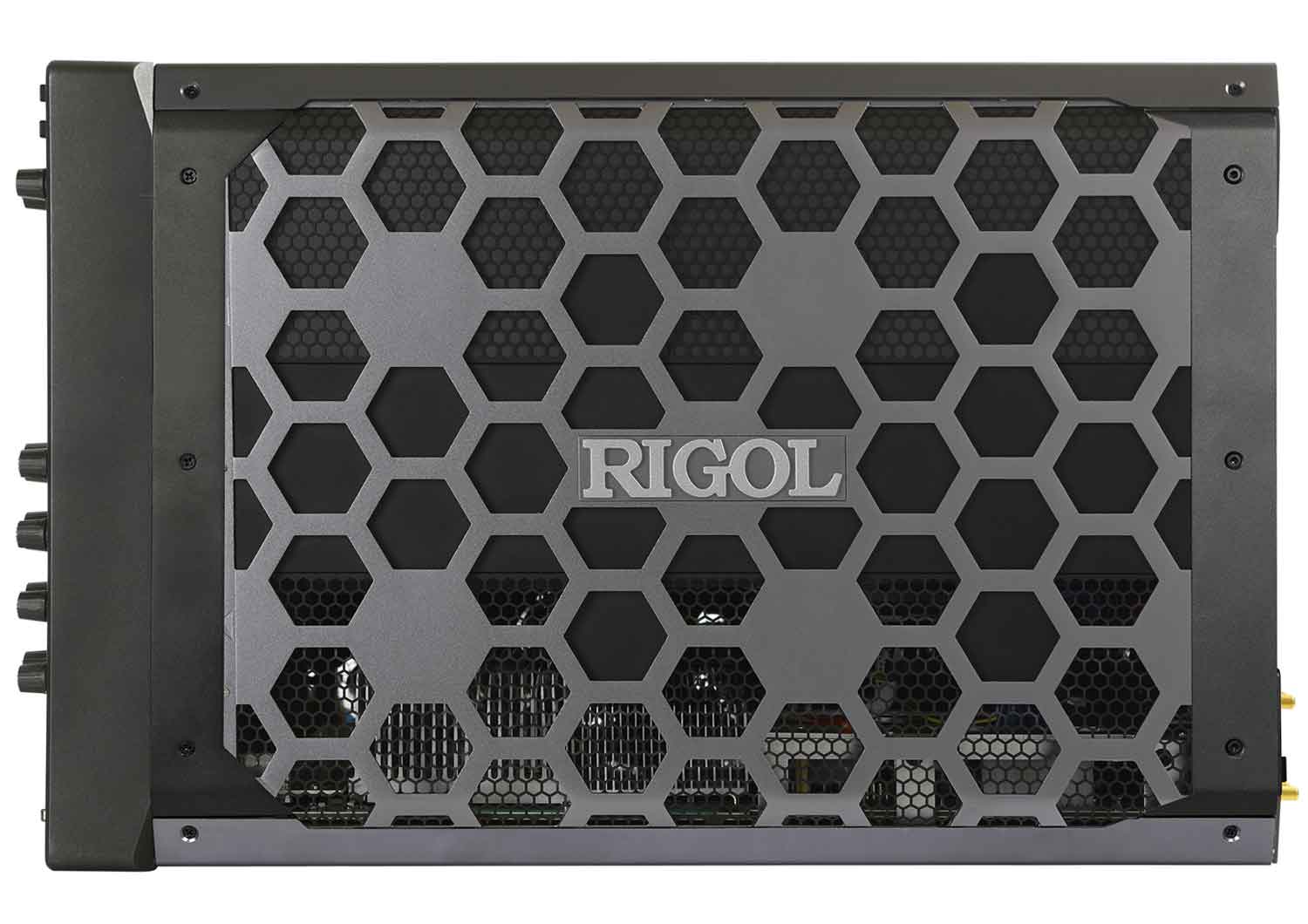

Rigol DG70002 Arbitrary Waveform Generator 2-channel, 2 GHz bandwidth
Rigol DG70002 Arbitrary Waveform Generator 2-channel, 2 GHz bandwidth
Rigol DG70002 Arbitrary Waveform Generator 2-channel, 2 GHz bandwidth
Rigol DG70002 Arbitrary Waveform Generator 2-channel, 2 GHz bandwidth

Rigol DG70002 Arbitrary Waveform Generator 2-channel, 2 GHz bandwidth

£43391.00 (£52,069.20 inc VAT)

Available on back-order

Request QuoteRemove from Quote
Request Quote
SKU: DG70002 Categories: , Brand:

Description


SIGLENT DG70002 Series Arbitrary Waveform Generators: Precision and Versatility at the Highest Level

The DG70002 Arbitrary Waveform Generator from SIGLENT represents the pinnacle of arbitrary waveform generation technology, designed to meet the most demanding requirements in industrial and communications applications. Built on SIGLENT’s cutting-edge SiFi III platform and powered by an Android operating system, the DG70002 series offers unparalleled flexibility, precision, and user experience.

Key Features of the DG70000 Series:
  • High Sampling Rates: Achieve up to 5 GSa/s (with 12 GSa/s interpolated), ensuring ultra-precise signal generation.
  • 4-Channel Synchronisation: Seamlessly synchronise four channels within a single instrument, ideal for complex multi-signal scenarios.

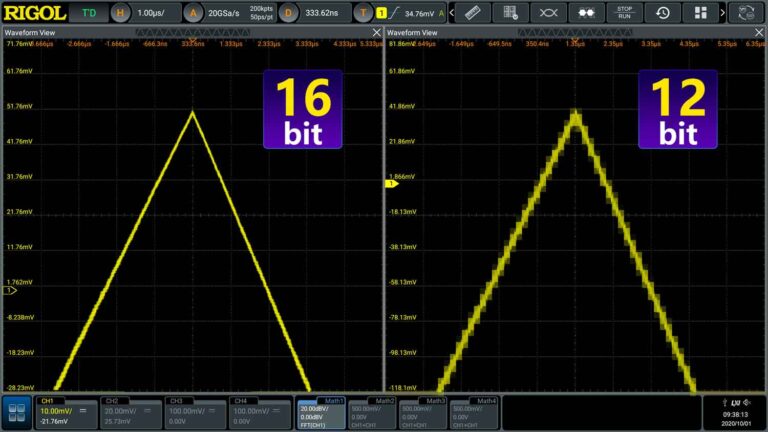

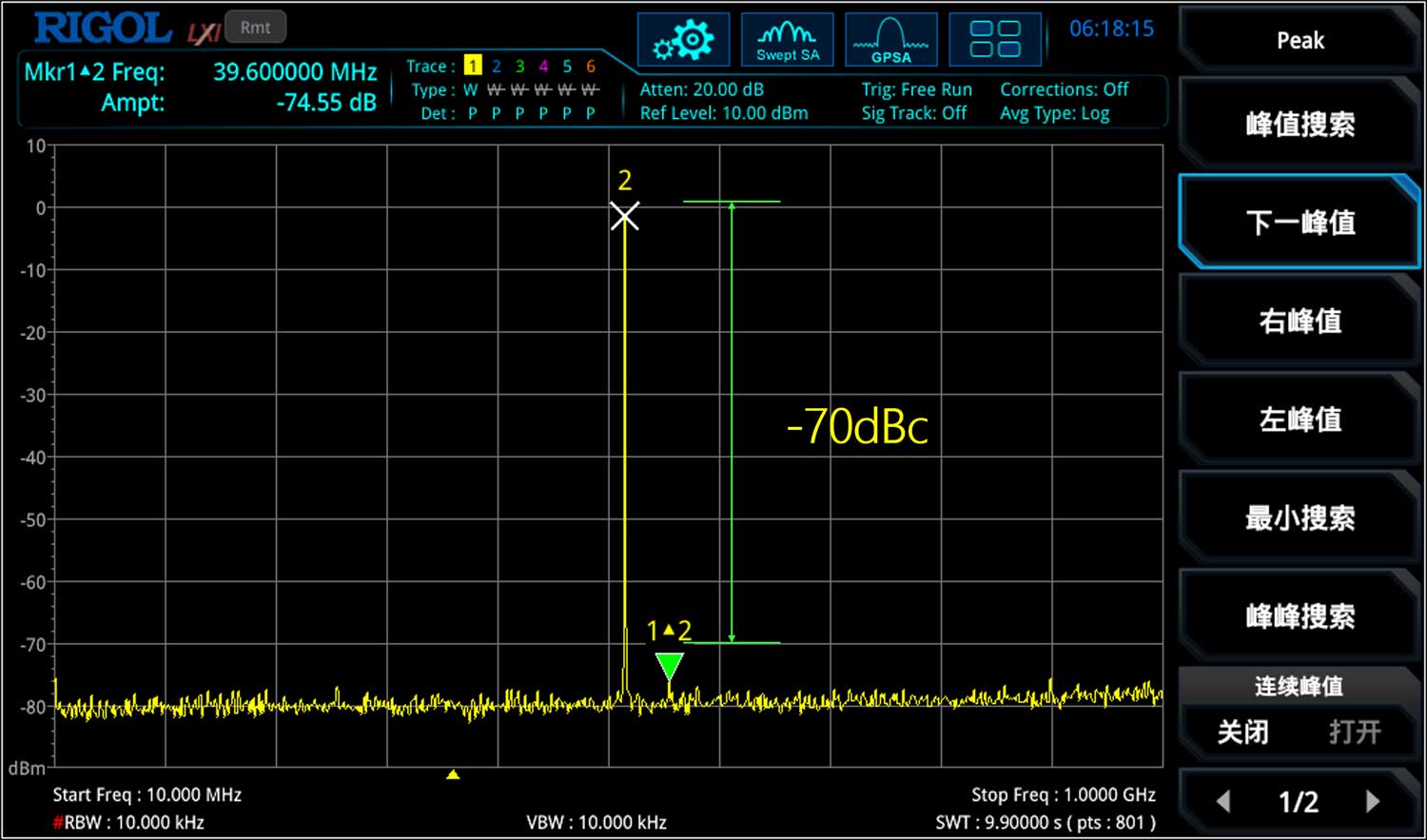

  • Superior Signal Fidelity: Experience crystal-clear outputs with a spurious-free dynamic range (SFDR) of -70 dBc and 16-bit vertical resolution.
  • Generous Waveform Memory: 1.5 GSample memory depth per channel allows for intricate waveform generation without compromise.
  • High-Frequency Signal Generation: Directly generate signals with carriers up to 5 GHz, covering a wide range of high-speed applications.
  • Minimal Jitter: Enjoy total jitter as low as 10 ps p-p and random jitter as low as 350 fs rms, ensuring the highest signal integrity.

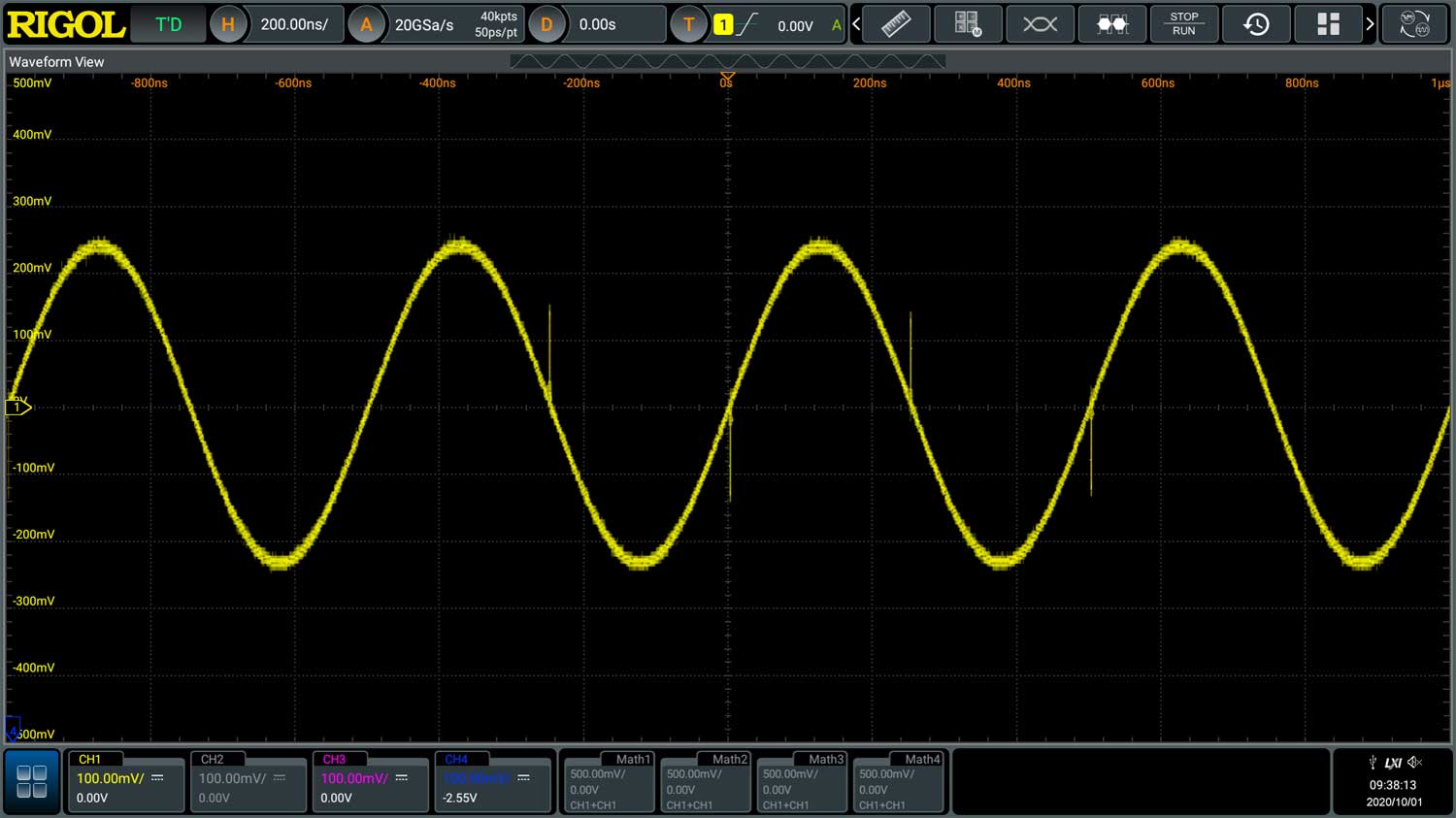

  • Adjustable Sample Rates: Flexible sample rates ranging from 100 Sa/s to 12 GSa/s accommodate a broad spectrum of testing needs.
  • Precise Synchronisation: Channel-to-channel skew time as low as ± 10 ps ensures high-precision synchronisation across channels.
  • Advanced Sequencing: Define and execute complex waveforms through advanced sequencing capabilities.
  • Robust Connectivity: Equipped with LAN, USB 3.0, and HDMI interfaces, enabling easy remote control and integration.

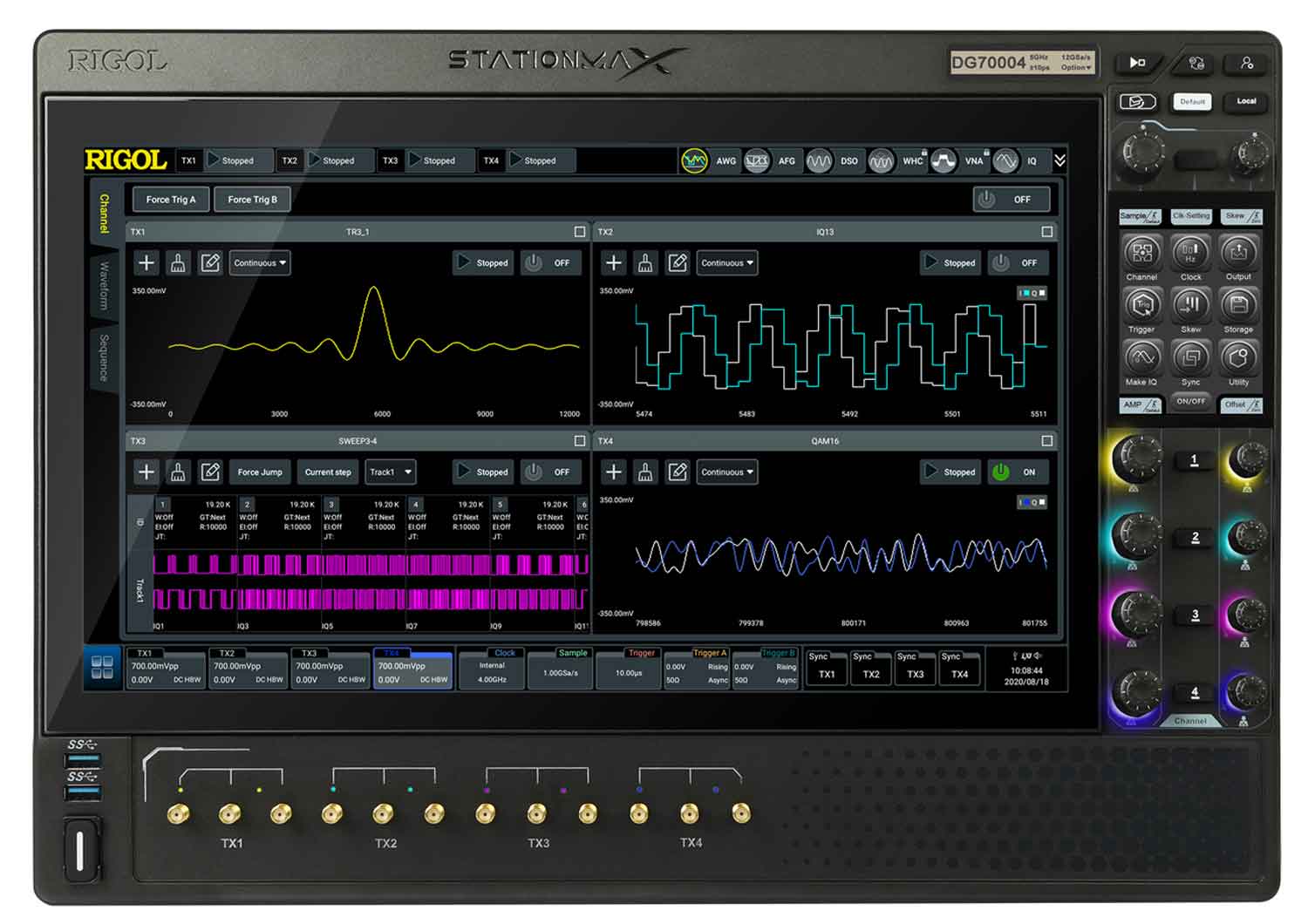

  • User-Centric Design: The 15.6-inch angle-adjustable touch screen with multi-pane windowing offers a superior and intuitive user interface.
  • Versatile Signal Generation: Support for importing external waveform files allows for versatile signal creation and customisation.
Advanced Applications
  • High-Speed Communications Testing
  • Advanced Industrial Applications
  • Complex Signal Research and Development

Product Images

    Optional Software Accessories

Documentation


Model DG70002 DG70004
Channels 2 4
Bandwidth 2 GHz
Sample rate 100 Sa/s to 12 GSa/s[1]
Vertical
Resolution		 16-bit (0 Marker/channel)
15-bit (1 Markers/channel)
14-bit (2 Markers/channel)
Waveform Memory Depth 1.5 Gpts/channel
Multi-channel Synchronisation Skew Repeatability: ±10 ps
Delay Adjustment Resolution: 3 ps
Effective Frequency Output The maximum frequency is determined as “sample
rate/2.5”.
2 GHz (Real Data mode)
4 GHz (IQ Data mode, 10 GSa/s interpolated)
