NoiseKen ESS-PS1 Electrostatic Discharge Simulator with GT-31S ESD Gun – IEC 61000-4-2 ED 3.0 & ISO 10605 ED 3.0 Compliant
NoiseKen ESS-PS1 Electrostatic Discharge Simulator with GT-31S ESD Gun – IEC 61000-4-2 ED 3.0 & ISO 10605 ED 3.0 Compliant
NoiseKen ESS-PS1 Electrostatic Discharge Simulator with GT-31S ESD Gun – IEC 61000-4-2 ED 3.0 & ISO 10605 ED 3.0 Compliant

NoiseKen ESS-PS1 Electrostatic Discharge Simulator with GT-31S ESD Gun – IEC 61000-4-2 ED 3.0 & ISO 10605 ED 3.0 Compliant

. (£ inc VAT)

Available on back-order

Request QuoteRemove from Quote
Request Quote
Request QuoteRemove from Quote
Request Quote
SKU: ESS-PS1 + GT-31S Category: Brand:

Description

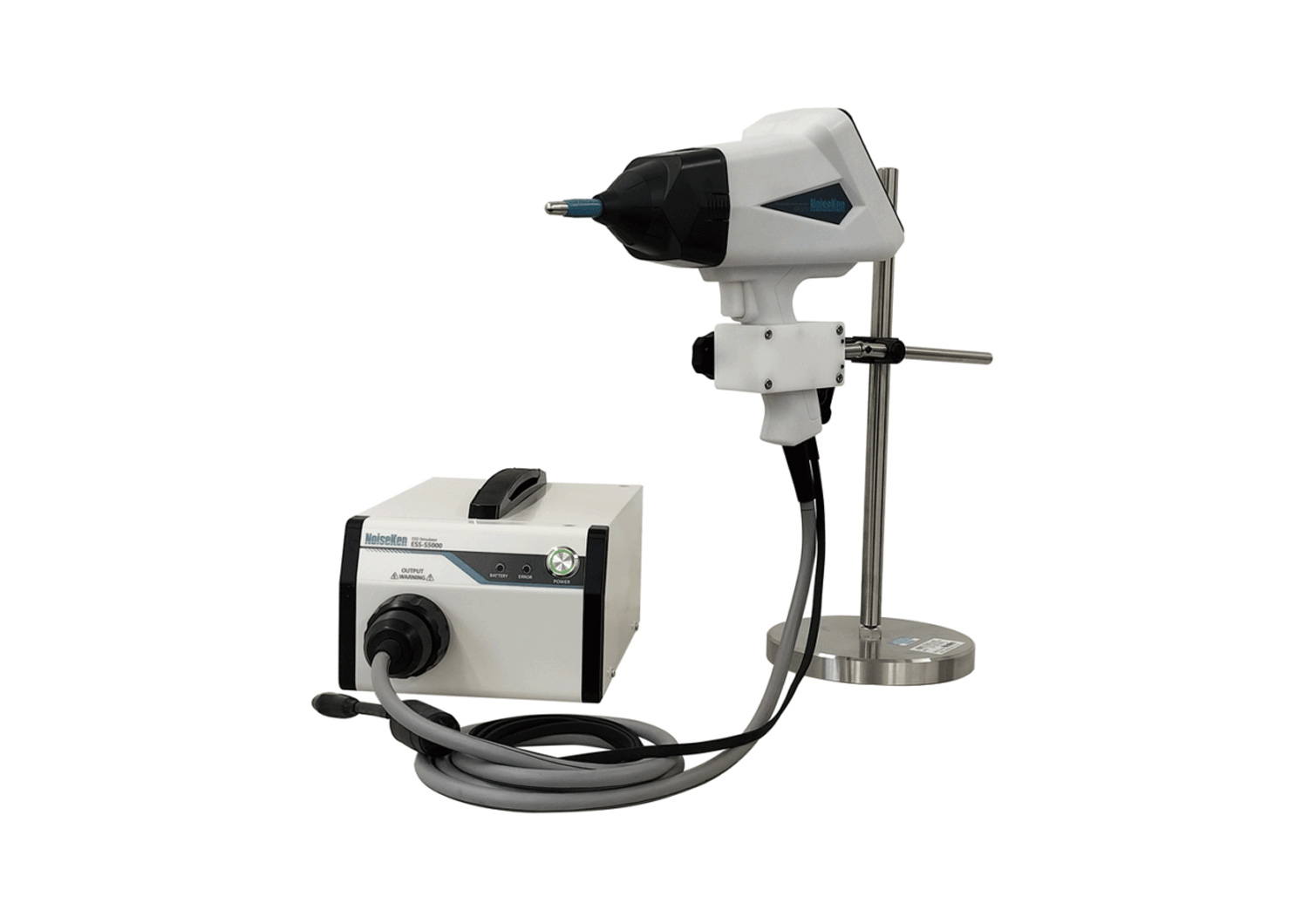

The NoiseKen ESS-PS1 + GT-31S system is a complete ESD immunity testing solution designed for evaluating equipment in compliance with IEC 61000-4-2 Edition 3.0 and ISO 10605 standards.

This combined simulator and discharge gun package provides a comprehensive, ready-to-use setup for performing both contact and air discharge testing in accordance with international EMC requirements.

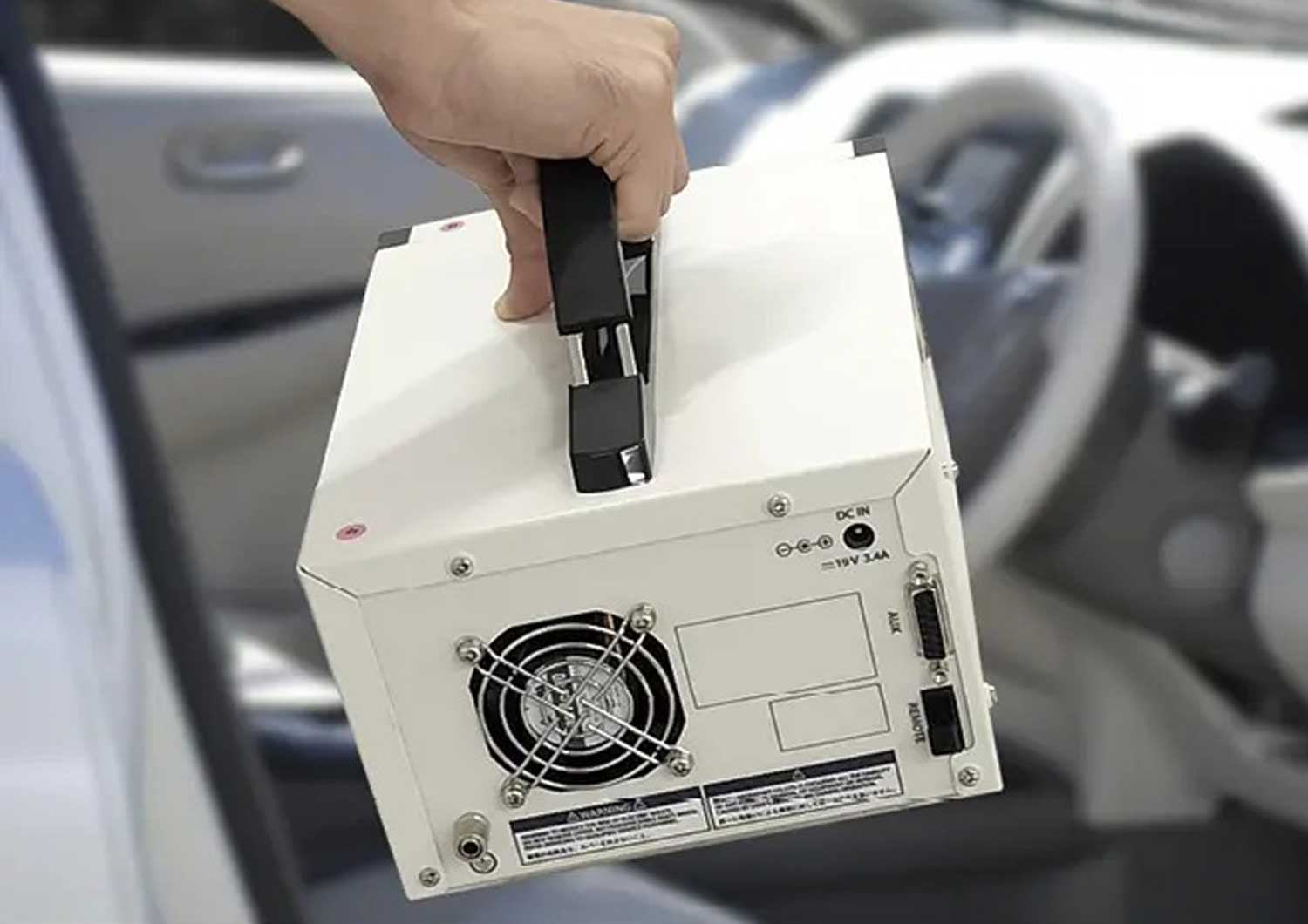

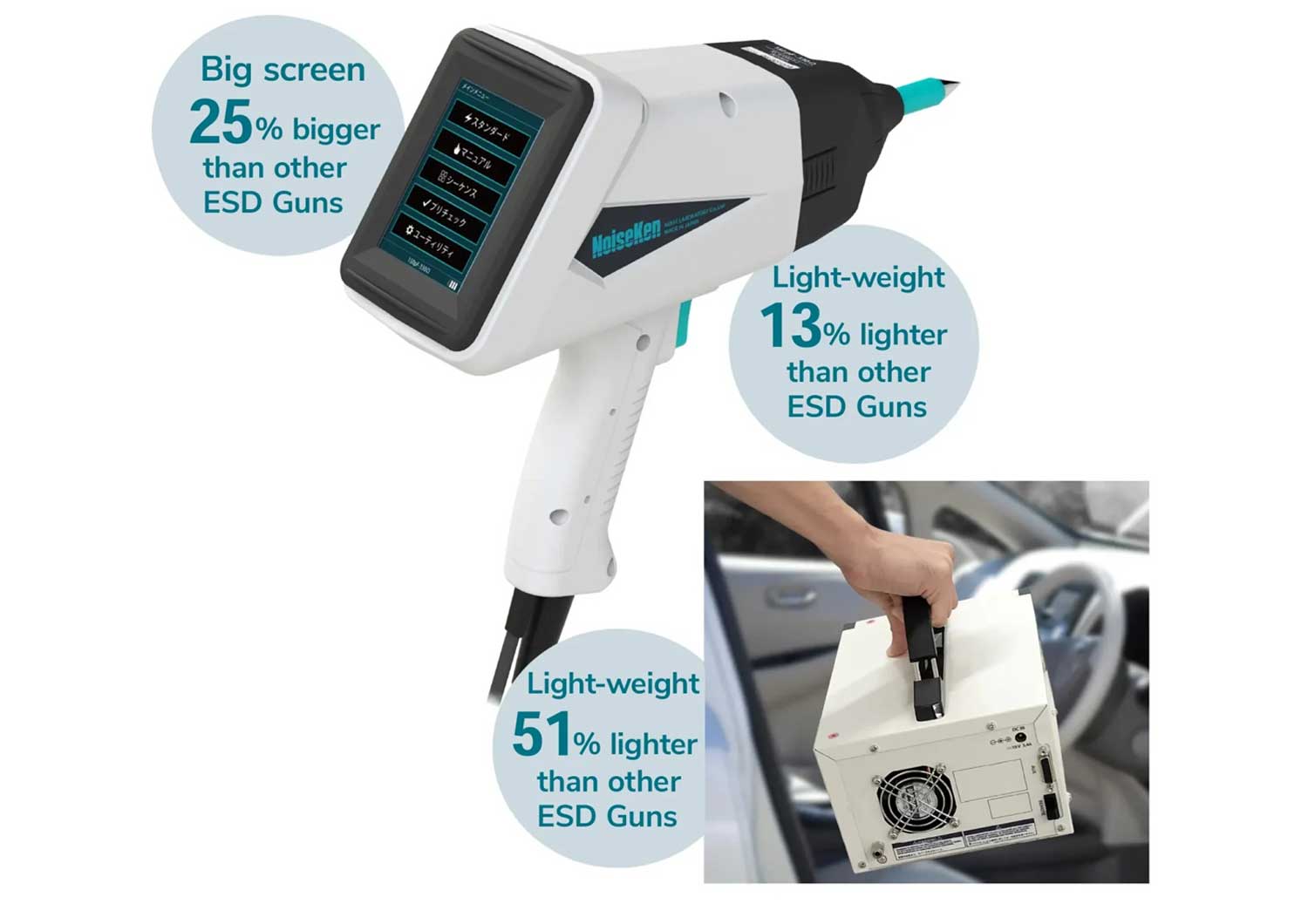

The ESS-PS1 main unit delivers a voltage range of 0.2 kV to 30.5 kV with both polarities, enabling precise simulation of electrostatic discharge events. Its compact and lightweight design, paired with a rechargeable battery offering up to seven hours of operation, makes it suitable for laboratory and on-site testing alike.

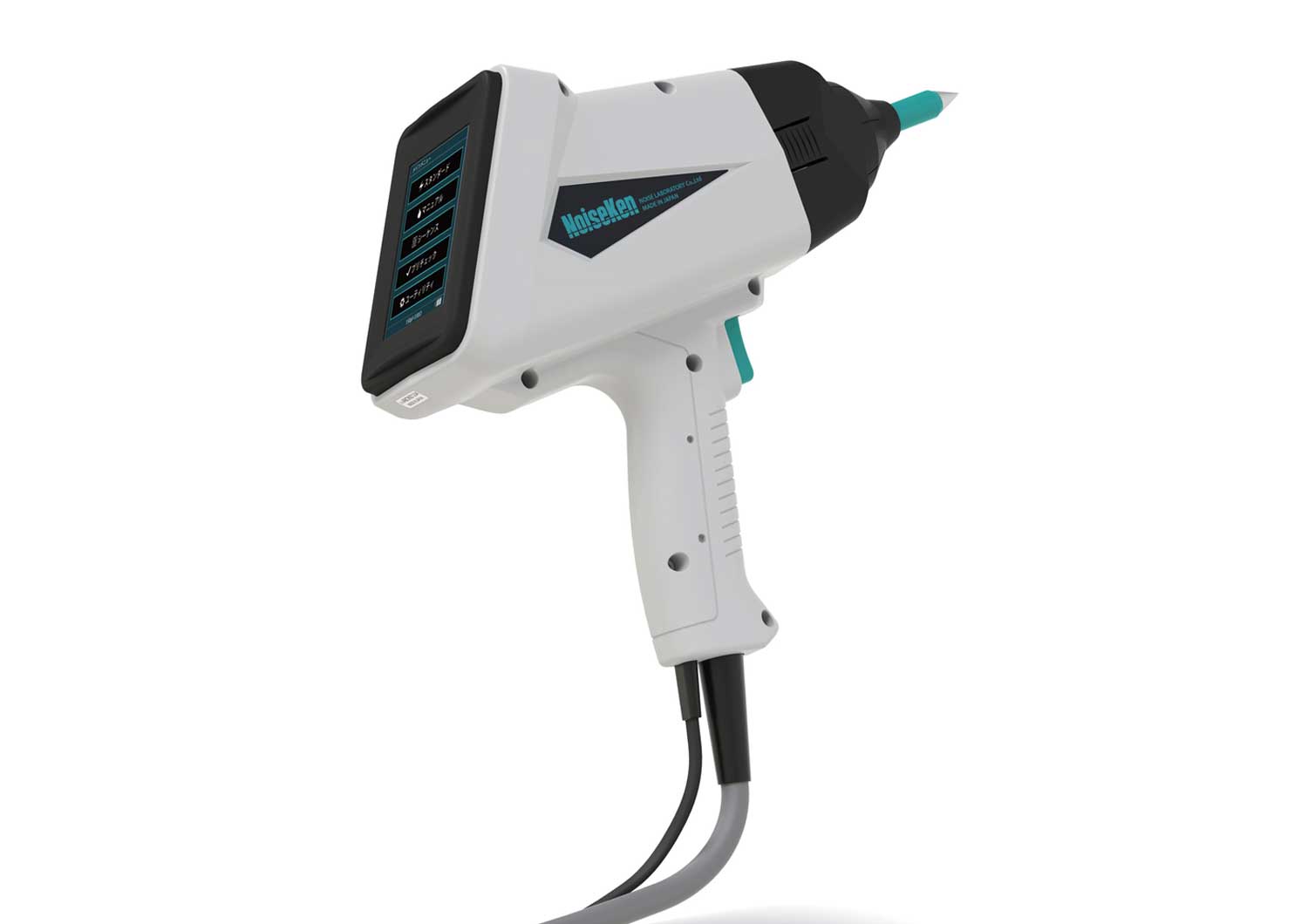

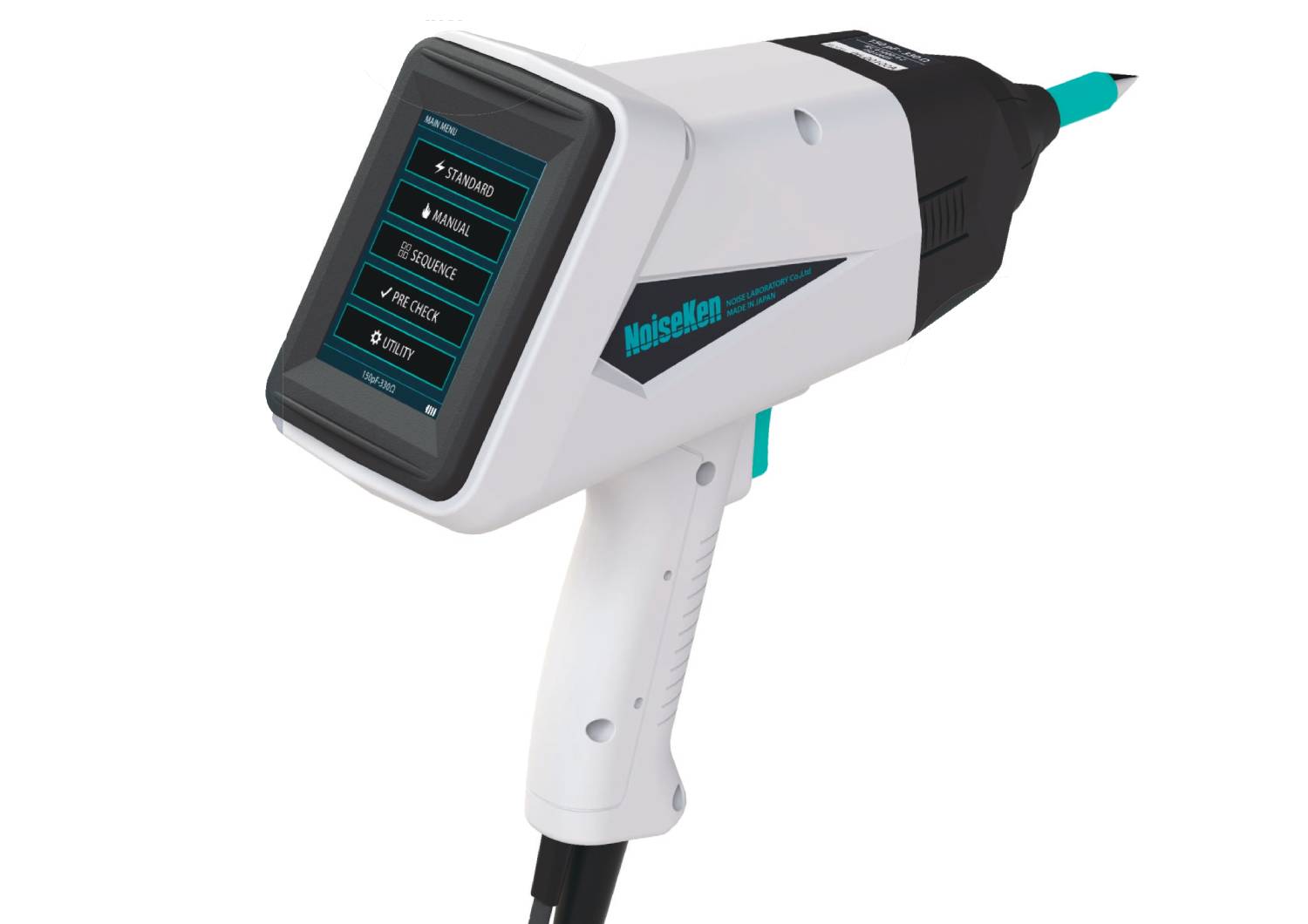

The GT-31S discharge gun features a built-in LCD touch panel for easy configuration and operation, with three selectable test modes (Standard, Manual, and Sequence). Together, the system provides exceptional control, portability, and compliance assurance for a wide range of test environments.

Optional accessories—such as the GT-ISOSET-A ISO accessory set (required for ISO 10605 Compliance Standard) or micro-gap discharge tips—can be purchased separately to expand testing capability and meet additional standards or waveform conditions.

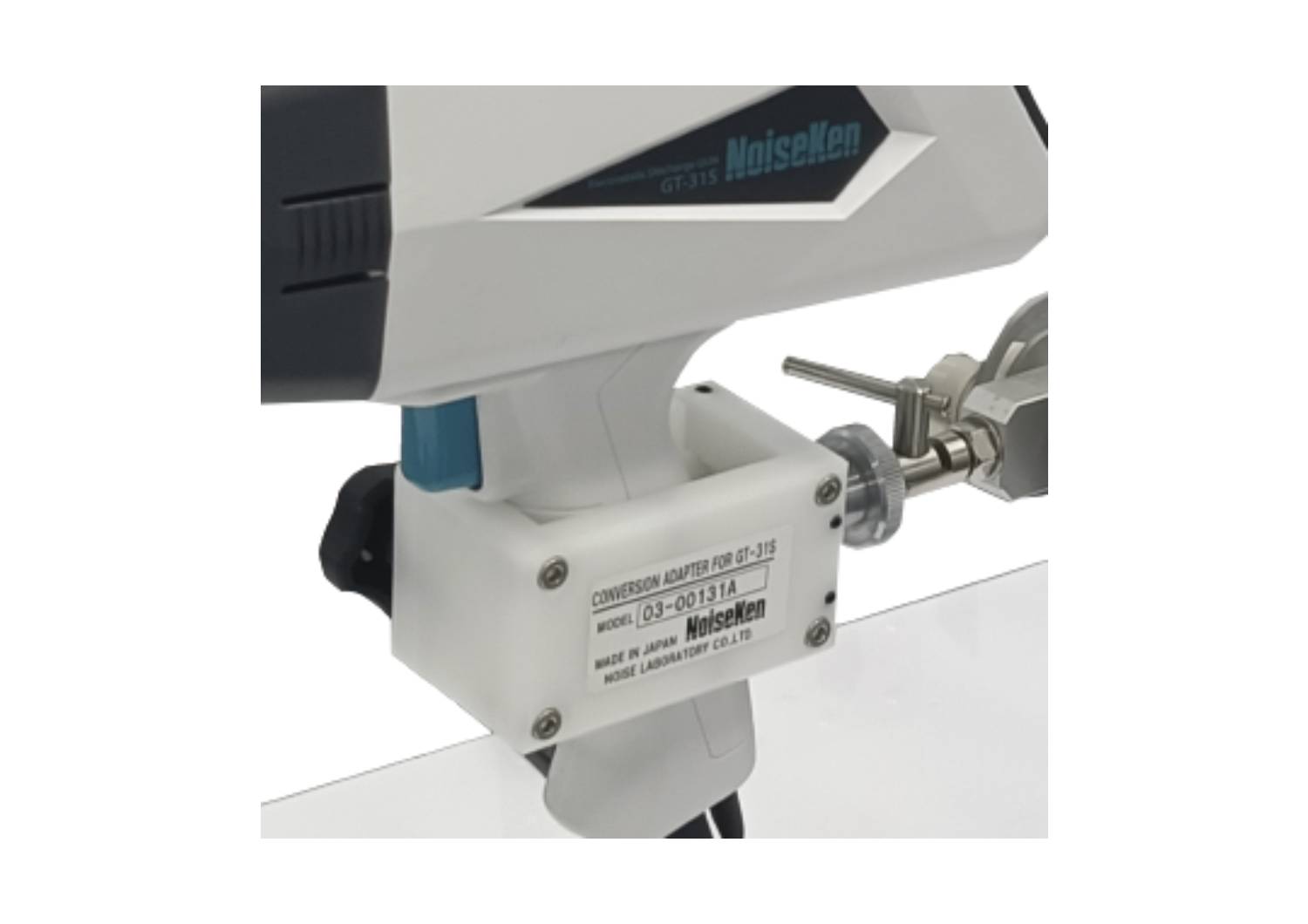

*Note, the Probe stand in the product image is a paid-for optional accessory.

Key Features
  • Complies with IEC 61000-4-2 Edition 3.0 and ISO 10605* standards.
  • Voltage output range: 0.2 kV to 30.5 kV, positive and negative polarity.

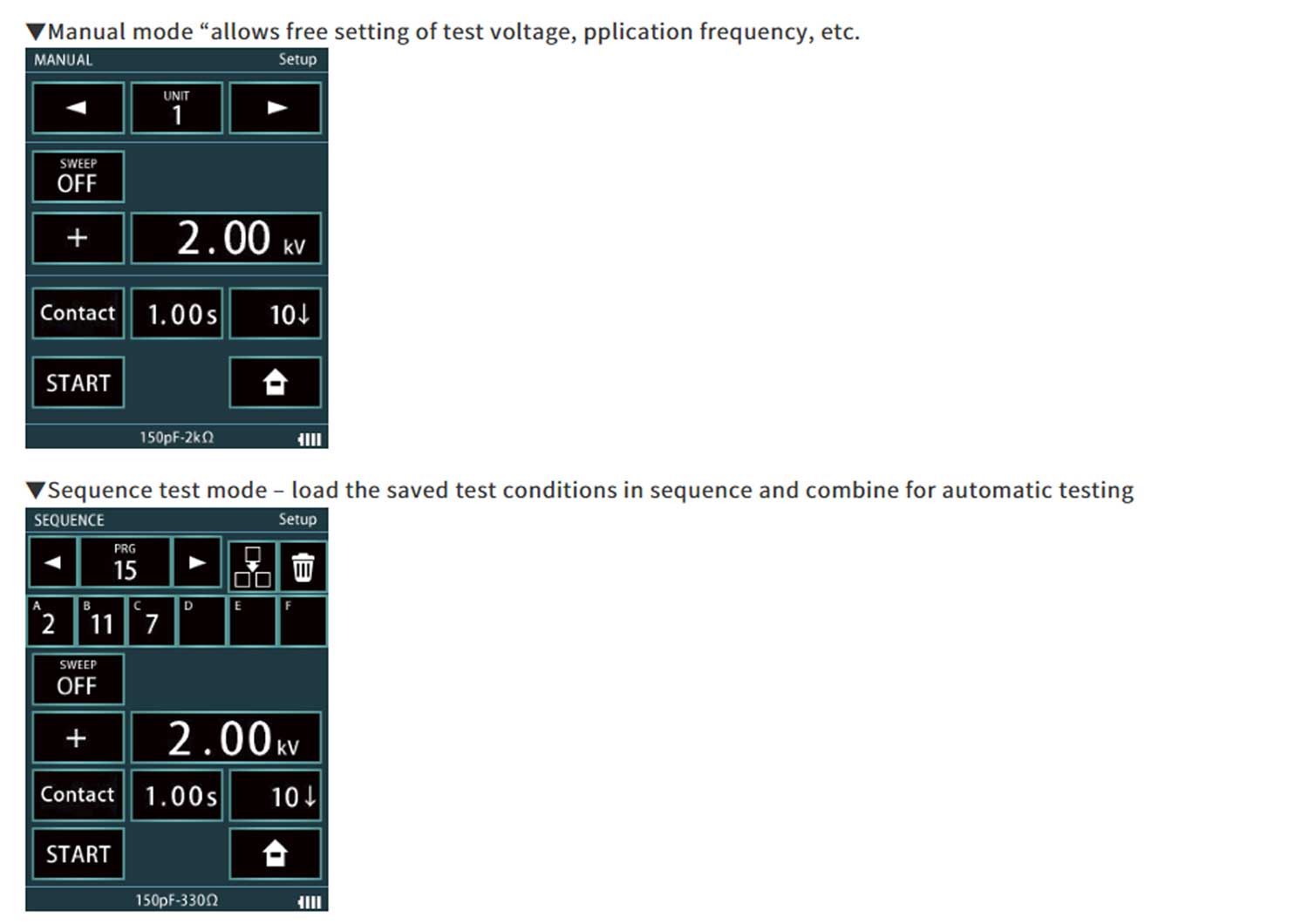

  • Three test modes: Standard, Manual, and Sequence for flexible operation.
  • The discharge gun features an LCD touch panel for improved operability and direct parameter control.
  • Battery or AC operation for enhanced portability; ideal for large equipment testing.

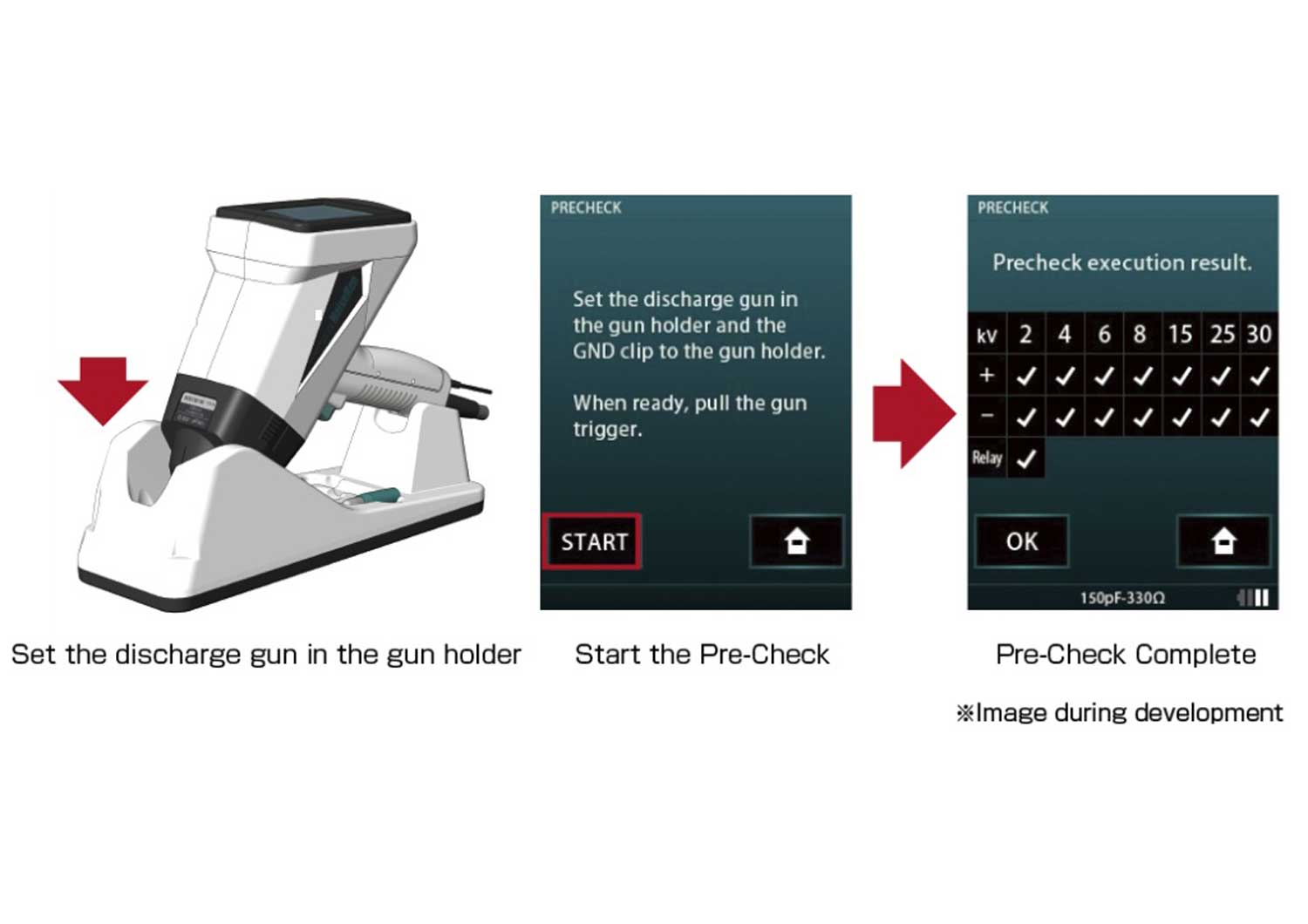

  • Equipped with a pre-check (pre-start inspection) function to ensure safe and reliable testing.
  • Integrated discharge module design combining CR unit and discharge cup for ease of replacement.
  • Automatic discharge module recognition reduces risk of mis-attachment or configuration errors.
  • Discharge detection function confirms successful discharge events (air discharge mode).
  • Supports remote PC control via optional optical communication interface.
*Opt Req'd for ISO 10605

Short Specifications
  • Output Voltage: 0.2 kV to 30.5 kV (positive and negative polarity)
  • Discharge Modes: Contact discharge / Air discharge
  • Test Modes: Standard, Manual, and Sequence
  • Display: LCD touch panel (integrated on GT-31S discharge gun)
  • Operation: Battery or AC adapter (up to 7 hours continuous use)
  • Discharge Module: 150 pF / 330 Ω (IEC configuration, mounted on gun)
  • Communication: Optical interface for PC remote control (optional)
  • Dimensions (Main Unit): (W)1800 x (D)270 x (H)124mm * Protrusions not included
  • Weight: Approx. 3 kg (main unit)
What's Included
  • ESS-PS1 Electrostatic Discharge Simulator main unit
  • GT-31S Electrostatic Discharge Gun (with 150 pF / 330 Ω discharge module mounted)
  • Contact discharge tip (conical type, Model: 12-00007A)
  • Air discharge tip (round type, Model: 12-00008A)
  • AC adapter & power cord (Model: 17-00007A)
  • Gun stand (Model: 03-00127A)
  • Instruction manual (common for ESS-PS1 and GT-31S)
Compliance Standards
  • IEC 61000-4-2 Edition 3.0: Electromagnetic compatibility (EMC) – Testing and measurement techniques – Electrostatic discharge immunity test.
  • ISO 10605: Road vehicles – Test methods for electrical disturbances from electrostatic discharge (supported with optional GT-ISOSET-A Accessory Set).
Applications
  • Electronic and electrical equipment testing – General EMC and ESD immunity evaluation for consumer, industrial, and medical devices.
  • Automotive electronics development – Validation of ECUs, sensors, and in-vehicle systems to ISO 10605 requirements.
  • R&D and compliance laboratories – Precise discharge waveform control for research or pre-compliance verification.
  • Production and quality assurance environments – Quick functional checks and repeatable ESD performance verification.

Product Images

Product Videos

YouTube Video
Product Walkthrough
YouTube Video
ESD Voltage Meter MODEL : 18-00086B

Documentation


Main Unit ESS-PS1 Specifications
Output voltage 0.20kV – 30.0kV (30.5kV max), 0.20kV – 10.00kV: 0.01kV step setting, 10.0kV – 30.0kV: 0.1kV step setting
Output polarity Positive / Negative
Repetition cycle 0.05s – 600.0s ±10%, 0.05s – 9.99s: 0.01s step setting, 10.0s – 600.0s: 0.1s step setting
Discharge number of times 1 – 60000 times, 1 time step setting, or continuous
Discharge mode Contact discharge, Air discharge
Test mode IEC test mode – Contact discharge: 2.0kV, 4.0kV, 6.0kV, 8.0kV Air discharge: 2.0kV, 4.0kV, 8.0kV, 15.0kV
ISO test mode – Test voltage: 2.0kV, 4.0kV, 6.0kV, 8kV, 15kV, 20kV, 25kV
Manual test mode – Contact and air discharge mode 0.20kV – 30.5kV, Arbitrary setting,
Sweep function available, *99 test units memory
Sequence test mode – Max. 6 steps per sequence program, *20 sequence programs memory
Trigger settings Trigger switch or external trigger
Gun stand Gun stand for the GT-315 discharge gun *included as standard equipment
Discharge detection Detects discharges in air discharge mode
Pre-check function (pre-start inspection) Check 1: Check the output voltage of the built-in high-voltage power supply and the dielectric strength of the simulator
Check 2: High voltage output and dielectric strength check
Check 3: Discharge relay operation check
Discharge Module detection Recognition and display of various discharge modules
AUX connector D-SUB 15-pin female connector Connection of warning light (MODEL: 11-00014B) and automatic ESD Elimination probe
(MODEL: 01-00013B) External trigger input and external interlock input
Optical Communication Connectors PC-communication optical connector (serial interface)
Power Supply and Power Consumption AC100V – 240V ±10%, 50Hz to 60Hz / Battery
Operating temperature +15°C – +35°C
Operating humidity 20%RH – 60%RH * No condensation
Dimensions Main unit: (W)180.0 × (D)270 × (H)124mm * Protrusions not included
Mass Main unit: 3.0 kg *excluding AC adapter for charging
Discharge Gun GT-315 Specification
Output voltage 0.20kV ~ 30.5kV
Output polarity Positive/Negative
Holding time 5 seconds or more
Control panel Color LCD touch panel (resistive film type)
Operating temperature +15°C – +35°C
Operating humidity 20%RH – 60%RH * No condensation
Dimensions (W)90 × (D)236.2 × (H)246mm * Excluding discharge tip
Mass 1.5 kg * including cables, excluding connectors
Battery Specification
Battery type Rechargeable lithium-ion battery
Rated voltage DC14.4V
Rated capacity 3.40Ah
Charging time (reference value) 3 hours (ambient temperature 25°C)
Continuous use time (reference value) Approx. 7 hours *Depends on usage conditions
AC Adapter Specification
Input Rating AC100V ~ AC240V ±10% 50Hz ~ 60Hz / 1.7A
Rated voltage DC19.0V / 3.42A
Dimensions (W)95 × (D)25.4 × (H)50mm * Cable and connector not included
Mass 270g
