Microtest 7140 100kHz AC/DC Single-Phase Power Analyser/ Meter

Description

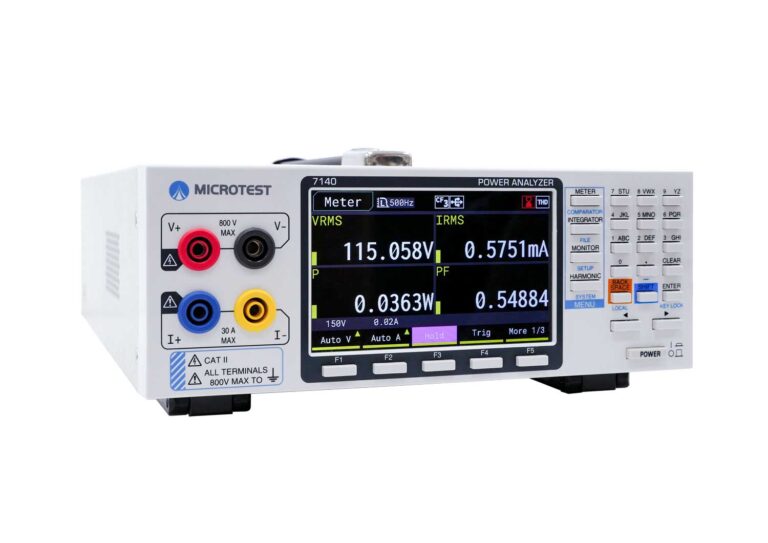

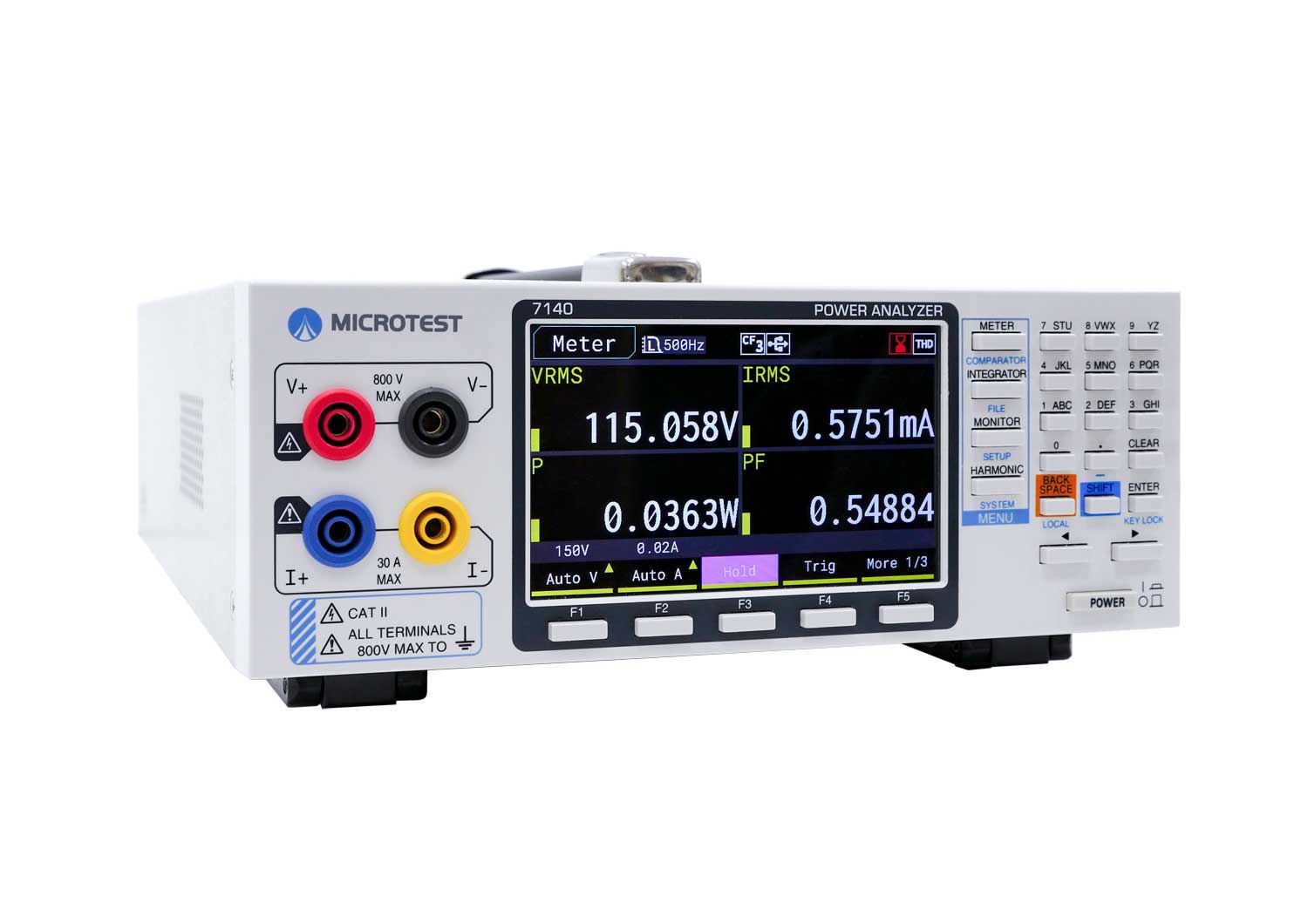

Microtest 7140 100kHz AC/DC Single-Phase Power Analyser/ Meter

MICROTEST 7140 is designed for single-phase AC/DC power measurement and analysis, featuring a 0.2Hz–100kHz bandwidth, 500kSPS sampling rate, and ±0.05% accuracy. Its compact design includes a 4.3” TFT LCD for numeric and graphical displays of key power parameters. With 800V/30A direct input and 100th-order harmonic analysis, it enables simultaneous harmonic and integration measurements, boosting efficiency. For standby power testing, it offers a 5mA range, 10μW resolution, and supports waveform, bar, and trend charts. Meter mode displays 4, 8, or 16 parameters with real-time min/max tracking, while comparison mode provides PASS/FAIL evaluation.

Features:

• Ultra-High Measurement Accuracy ±0.05%
• 100th-Order Harmonic Analysis
• High-Speed 500kSPS Sampling Rate
• Simultaneous AC+DC Measurement and Display
• Rated Direct Input Voltage: 800V / Input Current: 30A
• DC, 0.2Hz~100kHz Voltage/Current Measurement Bandwidth
• 4.3” Color Multifunctional Digital & Graphical LCD Display

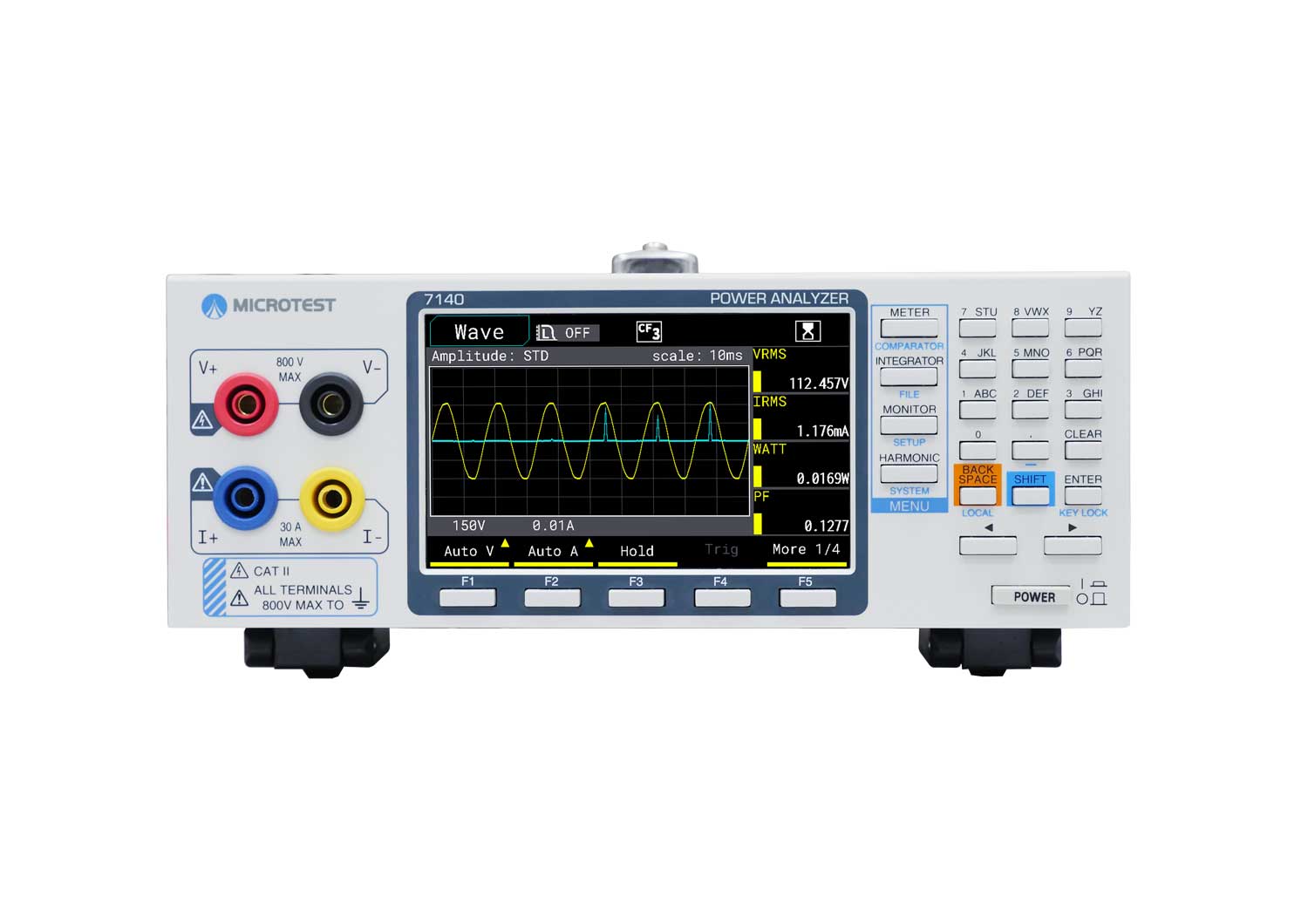

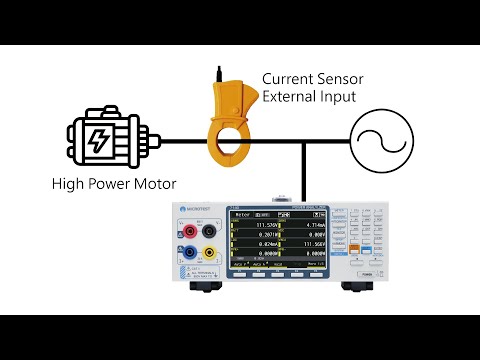

• Supports voltage and current waveform analysis mode
• Automatic Integration up to 10,000 Hours with Simultaneous Harmonic Analysis
• Minimum Current Range of 5mA & Power Resolution of 10μW
• Supports Comparison Mode with Upper/Lower Limit PASS/FAIL Judgment

Extensive Parameter Measurement

• Voltage: VRMS / VDC / V+PK / V-PK
• Current: IRMS / IDC / I+PK / I-PK
• Frequency: VHZ / IHZ
• Power: P
• Crest Factor: CFV / CFI
• Power Factor: PF
• Apparent Power: S
• Reactive Power: Q
• Phase Angle: DEG
• Total Harmonic Distortion: THDV / THDI / THDW
• Maximum Current Ratio: MCR
• Displacement Power Factor: DPF

Power Analyser/ Meter Application

Household Appliances | Refrigerators, washing machines, air conditioners, microwaves, etc.

Consumer Electronics | Laptops, tablets, servers, mobile phones, etc.

Industrial Equipment | Machinery, power tools, compressors, etc.

Power Equipment | Generators, transformers, inverters, etc.

New Energy Equipment | Solar power systems
