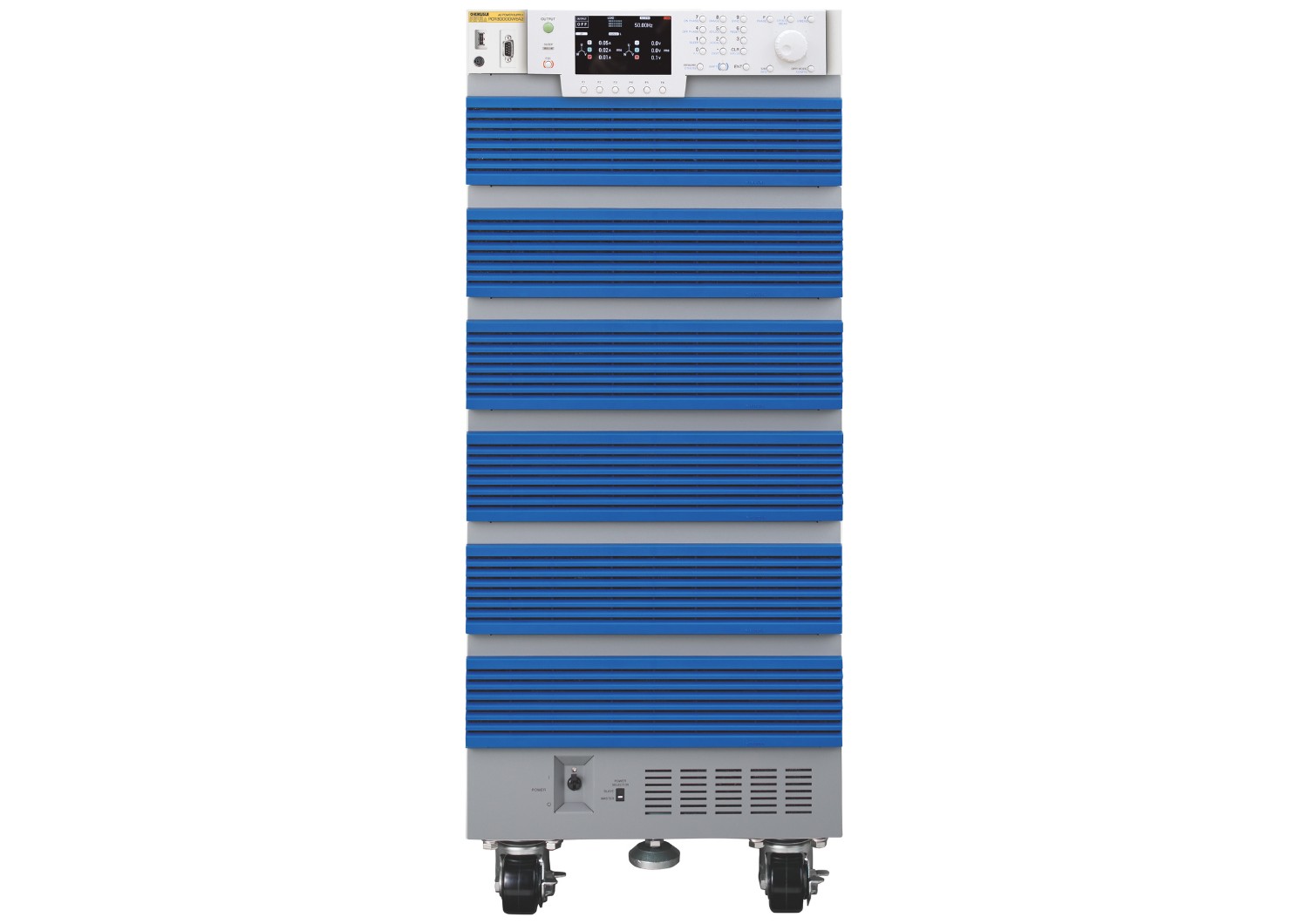

Kikusui PCR30000WEA2 AC/DC Power Supply / Frequency Converter, Single-phase 30kVA, Single-phase 3-wire 20kVA, Three-phase 30kVA. AC 0 to 320Vrms per phase, 1Hz to 5kHz, DC0 to ±452V, PWM type

. (£ inc VAT)

Available on back-order

Facebook

Post

Request QuoteRemove from Quote

SKU: PCR30000WEA2 Category: Kikusui PCR-WEA/WEA2 Series AC Power Supplies & Frequency Converters Brand: Kikusui

Description

Kikusui PCR30000WEA2 AC Power Supply / Frequency Converter

The PCR30000WEA2 is a Single-phase 30kVA/Single-phase 3-wire 20kVA/Three-phase 30kVA, AC 0 to 320Vrms, 1Hz to 5kHz, DC0 to ±452V, PWM type AC Power Supply / Frequency Converter. The PCR-WEA/WEA2 is a series of multifunctional switching AC power supplies that combines accurate, high-power output with an ultra-compact design. The 15 model line-up ranges from 1 kVA to 36 kVA AC/DC with single & 3-phase variable output from 6 kVA and up. The PCR-WEA2 also features a regenerative mode*1 that can drastically reduce power consumption and cut operating costs. The PCR-WEA2/WEA2R also supports mix-and-match parallel operation*2 up to 144 kVA for large-scale test systems. Output frequency up to 5 kHz is also available with all models, which is critical for AC applications in avionic industries.

Compact Size!
Compared to our previous PWM models, the size of the PCR-WE has been drastically reduced up to 60%. Efficiency has also been increased by approximately 7%, for an overall high efficiency of approximately 85%.

Low Ripple Noise
Achieves an extremely low switching noise for a PWM inverter-type AC power supply, with ripple noise as low as 0.25 Vrms. The PCR-WEA series even boasts similar noise performance with the PCR-LE/LE2 linear amplifier power supply series. The compact, high-power design of the PCR-WEA/WEA2 has been achieved with absolutely no compromises to ripple noise performance.

Output Frequency up to 5 kHz
It has a maximum output frequency up to 5 kHz for critical applications in the defense and avionics industries. The frequency performance of the PCR-WEA allows for simulation of sharp voltage fluctuations required for airborne electronic equipment testing. Furthermore, the compact 6kVA/6U form factor allows for the easy preparation of an automated, one-rack testing system without requiring a costly, specialized power source installation space.

LAN, USB, RS232C Standard Digital Interface
The PCR-WEA/WEA2 series includes a flexible digital interface for users utilizing LAN, USB, and RS232C communication interfaces (GPIB factory option available). LAN connection is LXI compliant, allowing you to monitor and control your device wherever you are via computer, smartphone, or tablet web browser. This feature is particularly important when conducting critical AC tests in anechoic chambers/shield rooms.

Power Line Error Simulation
The PCR-WEA/WEA2 series can simulate various power line abnormalities such as power outages, voltage drops (dips) and voltage increases (pops). This feature is useful for the testing of power-source switches and various electronic devices.

Available Software:

SD009 Power Line Disturbance Immunity Testing Software
Standards Covered: IEC61000-1-11, IEC61000-4-13, IEC61000-4-14, IEC61000-4-17, IEC61000-4-27, IEC61000-4-28, IEC61000-4-29, IEC61000-4-34.
SD012 Avionics Test Software
Standards Covered: MIL-STD-704A , RTCA/DO-160 Section 16, JIS W0812.
SD021 RMT CONT Software
SD032 Wavy Sequence Creation Software

Product Images

Up to 144 kVA with Parallel Operation Learn more...

Power Line Error Simulation Learn more...

DC Output 100% of Rated Power Learn more...

LAN, USB, RS232C Standard Digital Interface Learn more...

Extremely Power Dense 36 kVA Chassis Learn more...

Compact Size Learn more...

Power Saving Mode Learn more...

Product Videos

PCR-WE Programmable AC/DC Power Supply

Standard Hardware Accessories

UK Power Cord

Optional Software Accessories

Optional Hardware Accessories

Documentation

Datasheet

Kikusui PCRWEA/2/R Datasheet

User Manual

Kikusui PCRWEA/2/R User Manual

Interface Manual

Kikusui PCRWEA/2/R Interface Manual

Input (AC rms)
Model	PCR1000WEA	PCR2000WEA	PCR3000WEA2	PCR6000WEA2	PCR12000WEA2	PCR18000WEA2	PCR24000WEA2	PCR30000WEA2	PCR36000WEA2
Nominal input voltage	1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac	1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac	1P2W Input Model: 100 Vac to 120 Vac / 200 Vac to 240 Vac	3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage) 3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)	3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage) 3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)	3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage) 3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)	3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage) 3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)	3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage) 3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)	3P3W Input Model: 200 Vac to 240 Vac (3 phase line voltage) 3P4W Input Model: 380 Vac to 480 Vac (3 phase line voltage)
Phase	Single-phase	Single-phase	Single-phase	Three-phase	Three-phase	Three-phase	Three-phase	Three-phase	Three-phase
Nominal input Frequency	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz	50 Hz to 60 Hz
Input frequency range	45 Hz to 65 Hz	45 Hz to 65 Hz	45 Hz to 65 Hz	45 Hz to 65 Hz	45 Hz to 65 Hz	45 Hz to 65 Hz	45 Hz to 65 Hz	45 Hz to 65 Hz	45 Hz to 65 Hz
Apparent power	1.4kVA and less	2.7kVA and less	4kVA and less	7.8kVA and less	15.6kVA and less	23.4kVA and less	31.2kVA and less	39kVA and less	46.8kVA and less
Power factor	0.95(TYP)	0.95(TYP)	0.95(TYP)	0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model	0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model	0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model	0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model	0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model	0.97(TYP) 3P3W input model / 0.95(TYP) 3P4W input model
Maximum current	1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A	1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A	1P2W input model: 17 A / 8.5 A 32 A / 16 A 48 A / 24 A	3P3W Input Model: 27A 3P4W Input Model: 14A	3P3W Input Model: 53A 3P4W Input Model: 28A	3P3W Input Model: 80A 3P4W Input Model: 42A	3P3W Input Model: 106A 3P4W Input Model: 56A	3P3W Input Model: 133A 3P4W Input Model: 70A	3P3W Input Model: 159A 3P4W Input Model: 84A
Holdup time for power interruption	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
Output
Model	PCR1000WEA	PCR2000WEA	PCR3000WEA2	PCR6000WEA2	PCR12000WEA2	PCR18000WEA2	PCR24000WEA2	PCR30000WEA2	PCR36000WEA2
AC Voltage
Rating	155 V / 320 V	155 V / 320 V	155 V / 320 V	155 V / 320 V	155 V / 320 V	155 V / 320 V	155 V / 320 V	155 V / 320 V	155 V / 320 V
Setting Range	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V	0 V to 157.5 V / 0 V to 315.0 V
Setting Resolution	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V
Setting accuracy (phase voltage)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)
Setting accuracy (Line voltage)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)	±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)
Maximum current
Single-phase output	10 A / 5 A	20 A / 10 A	30 A / 15 A	60A / 30A	120A / 60A	180A / 90A	240A / 120A	300A / 150A	360A / 180A
Single-phase three-wire output, Three-phase output			10A / 5A	20A / 10A	40A / 20A	60A / 30A	80A / 40A	100A / 50A	120A / 60A
Phase	1P	1P	1P2W, 1P3W, 3P4W switchable	1P2W, 1P3W, 3P4W switchable	1P2W, 1P3W, 3P4W switchable	1P2W, 1P3W, 3P4W switchable	1P2W, 1P3W, 3P4W switchable	1P2W, 1P3W, 3P4W switchable	1P2W, 1P3W, 3P4W switchable
Power capacity
Single-phase output	1 kVA	2 kVA	3kVA	6kVA	12kVA	18kVA	24kVA	30kVA	36kVA
Three-phase output	– – –	– – –	3kVA	6kVA	12kVA	18kVA	24kVA	30kVA	36kVA
Single-phase ― three-wire output	– – –	– – –	2kVA	4kVA	8kVA	12kVA	16kVA	20kVA	24kVA
Maximum peak current	4 times the maximum output current	4 times the maximum output current	4 times the maximum output current	4 times the maximum output current	4 times the maximum output current	4 times the maximum output current	4 times the maximum output current	4 times the maximum output current	4 times the maximum output current
Inrush current capacity	3 times the rated current (0.07 s)	3 times the rated current (0.07 s)	3 times the rated current (0.07 s)	1.4 times the rated current (0.5 s)	1.4 times the rated current (0.5 s)	1.4 times the rated current (0.5 s)	1.4 times the rated current (0.5 s)	1.4 times the rated current (0.5 s)	1.4 times the rated current (0.5 s)
Load power factor	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)	0 to 1 (leading or lagging)
Frequency
Setting range	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)	1 Hz to 5 kHz (5 kHz -3dB, <40 Hz derating required)
Resolution	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)	0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)
Accuracy	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C	±0.01 %, Temperature coefficient : ±0.005 %/°C
Phase
Resolution	– – –	– – –	0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)	0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)	0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)	0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)	0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)	0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)	0.1°(1 Hz to 500 Hz), 1°(500 Hz to 4 kHz), 2°(4 kHz or more)
Accuracy	– – –	– – –	Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]	Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]	Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]	Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]	Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]	Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]	Within 120°±(0.4°+2.5 μs) Within (120°±(0.4°+fo×0.9×10-3°)) fo : frequency [kHz]
DC voltage
Rating	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V	-219 V to +219 V / -438 V to +438 V
Setting range	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V	-222.5 V to +222.5 V / -445.0 V to +445.0 V
Resolution	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V
Accuracy	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)	±(0.05 % of setting +0.1 V)
Maximum current	10A / 5A	20A / 10A	30A / 15A	60A / 30A	120A / 60A	180A / 90A	240A / 120A	300A / 150A	360A / 180A
Power capacity	1kW	2kW	3kW	6kW	12kW	18kW	24kW	30kW	36kW
Efficiency	82 %(TYP)	82 %(TYP)	82 %(TYP)	85 %(TYP)	85 %(TYP)	85 %(TYP)	85 %(TYP)	85 %(TYP)	85 %(TYP)

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
