Danisense DSSIU-6-1U Six Channel System Interface Unit

Description

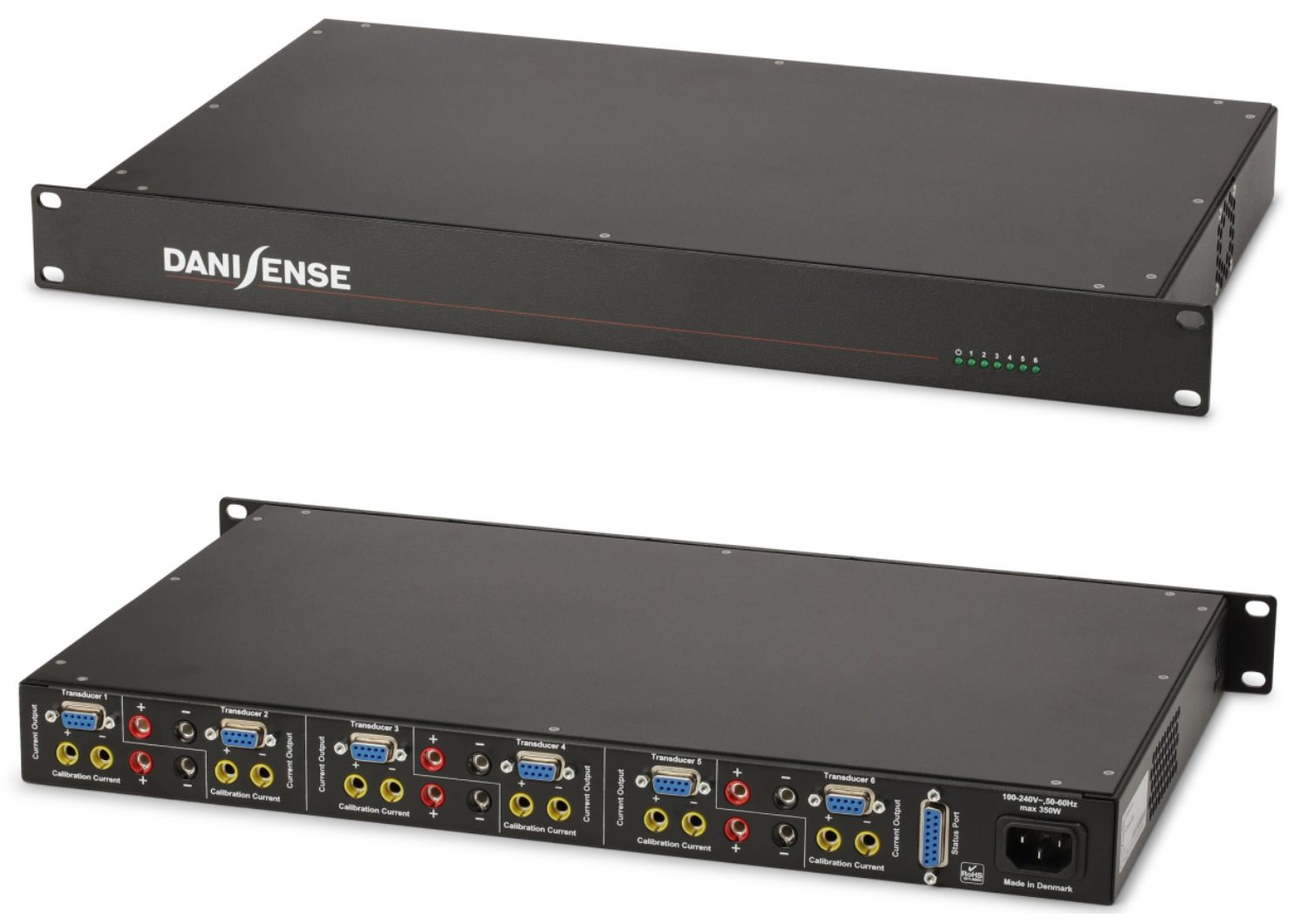

Danisense DSSIU-6-1U Interface Unit

DSSIU-6-1U is a Dedicated 6-channel system interface unit for ultra-stable, high precision fluxgate technology DS series current transducers.
Powers up to 6 x DS50 to DS2000 at the same time.
Supports calibration windings directly from the backpanel

Features:

• Compact 19” rack mount 1U height
• Current transducers’ output signals available via
  4mm banana plugs
• Individual or serial access to calibration windings
  of all 6 transducers via 4mm banana plugs
• 15-pin DSUB connector provides access to isolated status signals of each transducer and power
• Front LEDs indication of normal operation for each transducer and power LED for DSSIU-6-1U
• Universal autorange (100-240V AC 50/60Hz) AC input voltage or 120–370V DC input voltage.
