Description

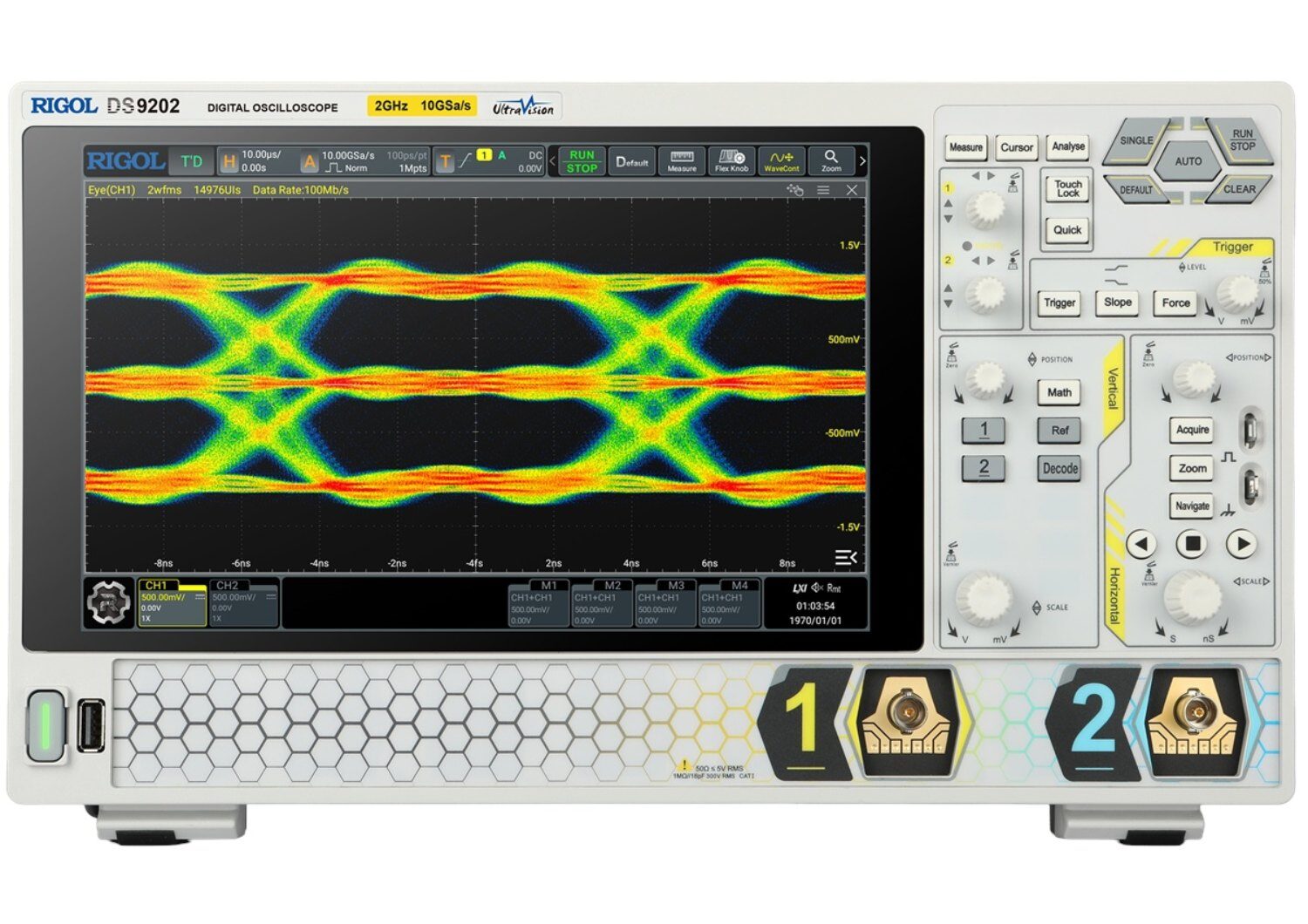

Rigol DS9202 2 Channel, 2 GHz, 10 GSa/s Digital Oscilloscope
The MSO/DS9000 series digital oscilloscope is engineered to meet the demanding requirements of mainstream applications in electronic design, debugging, and advanced testing environments. Powered by RIGOL’s next-generation, self-developed processing module, this versatile instrument delivers unprecedented performance by achieving a blazing-fast waveform capture rate of up to 1,000,000 waveforms per second in fast recording mode. This high-speed acquisition ensures that rare glitches and transient anomalies are captured with absolute fidelity.
To complement this speed, the series boasts an industry-leading 2 Gpts(1) memory depth, allowing users to record extensive periods of high-resolution data without sacrificing sample rates. Precision is further elevated by an adaptive 8 to 16-bit vertical resolution, which works in tandem with an exceptionally low noise floor and superior vertical accuracy. This powerful combination allows engineers to resolve micro-volt level signals with confidence, eliminating measurement uncertainty and delivering an exceptional, seamless test and measurement experience from the bench to the production line.
Notes:
1: 2 Gpts is an optional upgrade; the standard built-in memory depth is 500 Mpts. This 2 Gpts option is exclusively available for 4-channel models or the MSO model.
- Based on RIGOL's brand new self-developed module
- 2/4 analog channels, 1 EXT channel
- Max. 2 GHz / 2.5 GHz / 4 GHz / 6 GHz Analogue Bandwidth
- Max. real-time sampling rate of 10/20 GSa/s
- Max. memory depth of 2 Gpts4
- Max. waveform capture rate of 1,000,000 wfms/s in fast recording mode
- Vertical resolution: 8 to 16 bits selectable
- Vertical sensitivity range: 1 mV/div to 10 V/div (1 MΩ), 1 mV/div to 1 V/div (50 Ω)
- Time base range: 50 ps/div to 500 s/div
- Up to 2,000,000 hardware real-time waveform continuously recording and playing function
- Integrates various independent instruments into 1, including digital oscilloscope, function/arbitrary waveform generator1, digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyser (option)
- Comprehensive trigger and bus decoding functions: Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth edge, RS232, I2C, SPI, CAN, CAN-FD (option), FlexRay (option), LIN (option), I2S (option), MIL-STD-1553 (option), SENT Decode (option)
- Search and navigation, mask testing, and zone trigger functions enable users to quickly identify abnormal signal events and locate them accurately
- Auto measurements of 41 waveform parameters
- Supports Ethernet, Automotive Ethernet, USB2.0, MIPI D-PHY, and other protocol compliance analysis functions (option)
- Supports multiple functions, including digital signal analysis2, Bode plot3, and histogram
- Supports optional real-time eye diagram, jitter analysis, and power analysis
- Multiple interfaces available: USB HOST & DEVICE, HDMI, AUX OUT, LAN(LXI), Web Control
- 10.1" 1280*800 HD touch screen display, portable design
- User-friendly Flex Knobs for a smoother, more intuitive user experience
- Electronic Design and Debugging: Prototyping, verifying, and troubleshooting complex analogue and digital circuits.
- Embedded System Testing: Analysing and debugging microcontrollers, firmware, and integrated hardware systems.
- Serial Bus Serial Decoding: Troubleshooting and validating communication protocols such as I2C, SPI, UART, CAN, and LIN.
- Power Supply Analysis: Testing power integrity, switching losses, and efficiency in power supply unit (PSU) designs.
- High-Frequency RF & Signal Integrity: Examining high-speed clock signals, identifying jitter, and performing eye diagram analysis.
- Automotive Electronics: Testing and compliance checking for automotive networks, including Automotive Ethernet and CAN-FD.
- Academic and Research Laboratories: Conducting advanced electronic experiments, sensor analysis, and engineering research.
- Manufacturing Test and Quality Assurance: Automated testing on production lines to ensure product reliability and specification compliance.
1: Option available only on the MSO model.
2: Option available only on the MSO model.
3: Option available only on the MSO model.
4: 2 Gpts is an optional upgrade; the standard built-in memory depth is 500 Mpts. This 2 Gpts option is exclusively available for 4-channel models or the MSO model.
Product Images
More Reliable Range Switching
Deep Memory, Zero Misses
Compact & Portable
Advanced Analysis in One
Rigol MSO/DS9000 Datasheet
