TekBox TBVC-SF6 3.5mm / SMA – Female VNA calibration kit, 6 GHz

£399.00 (£478.80 inc VAT)

Available on back-order

SKU: TBVC-SF6 Categories: , , , , Brand:

Description


TekBox TBVC-SF6 3.5mm / SMA – Female VNA calibration kit, 6 GHz

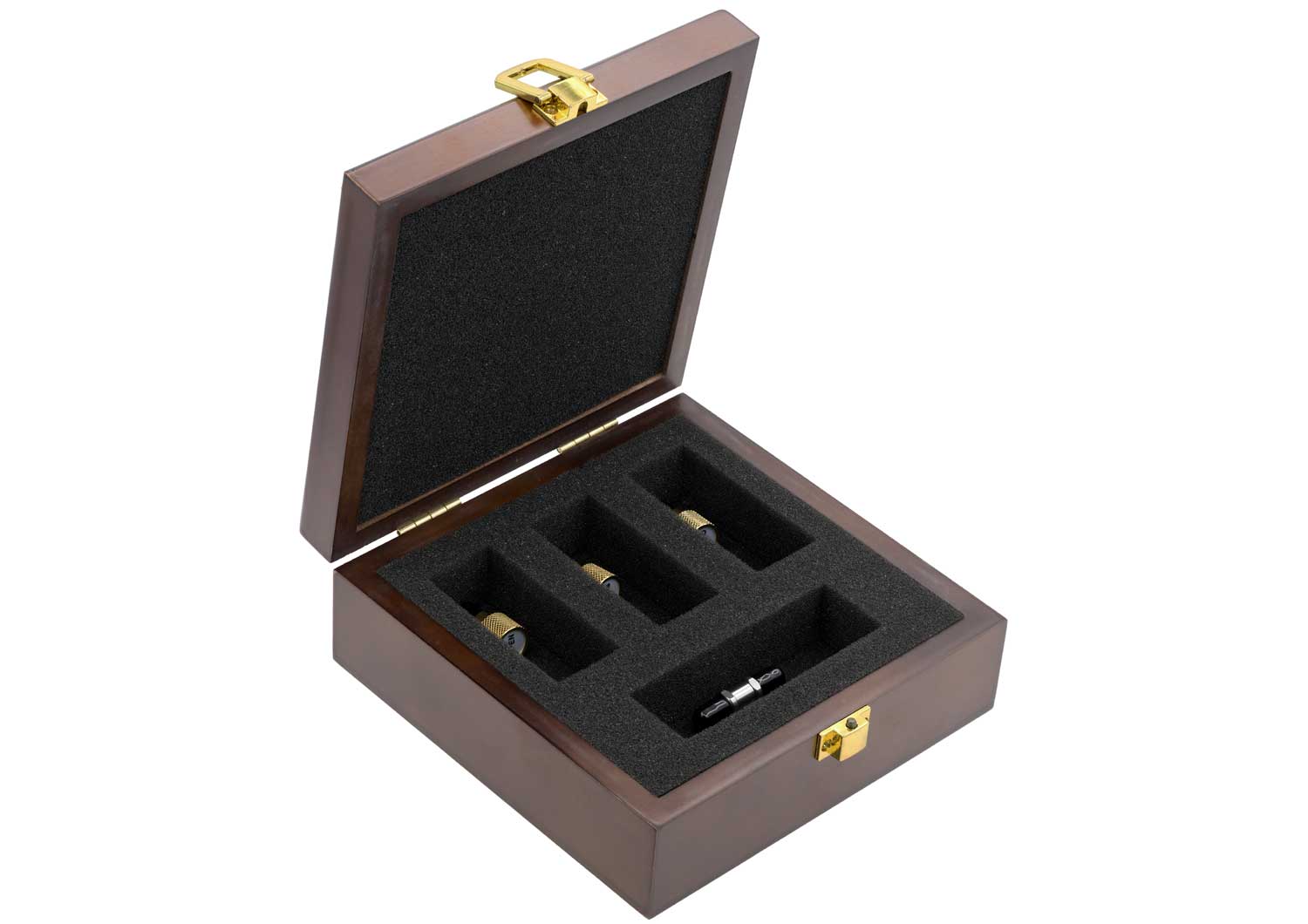

The TBVC-SF6 is a 3.5mm/SMA compatible calibration kit for Vector Network Analysers. It contains an Open, Short, Load and a Through. It is used for OSLT calibration in the frequency range DC-6GHz.

Documentation

Load: Through:
3.5mm-Female 3.5mm-Female
Z = 50 Ω Z = 50 Ω
Return loss > 30 dB Loss = 6.24 GΩ/s
Delay = 75.17 ps
Short: Open:
3.5mm-Female 3.5mm-Female
Z = 50 Ω Z = 50 Ω
Delay = 48.586 ps Delay = 46.378 ps
Loss = 7.08 GΩ/s Loss = 6.14 GΩ/s
L0 = 5.59 pH C0 = 4.1 fF
L1 = -8.5598e-21 H/Hz C1 = 6.4125e-24 F/Hz
L2 = -3.092e-31 H/Hz² C2 = -2.78e-35 F/Hz²
L3 = -1.77e-42 H/Hz³ C3 = -2.593e-44 F/Hz³

Frequency range: DC – 6 GHz

Box dimensions: 145 mm x 145 mm x 55 mm

Weight: 340 g
