TekBox TBVC-NF6 N-Female VNA calibration kit, 6 GHz

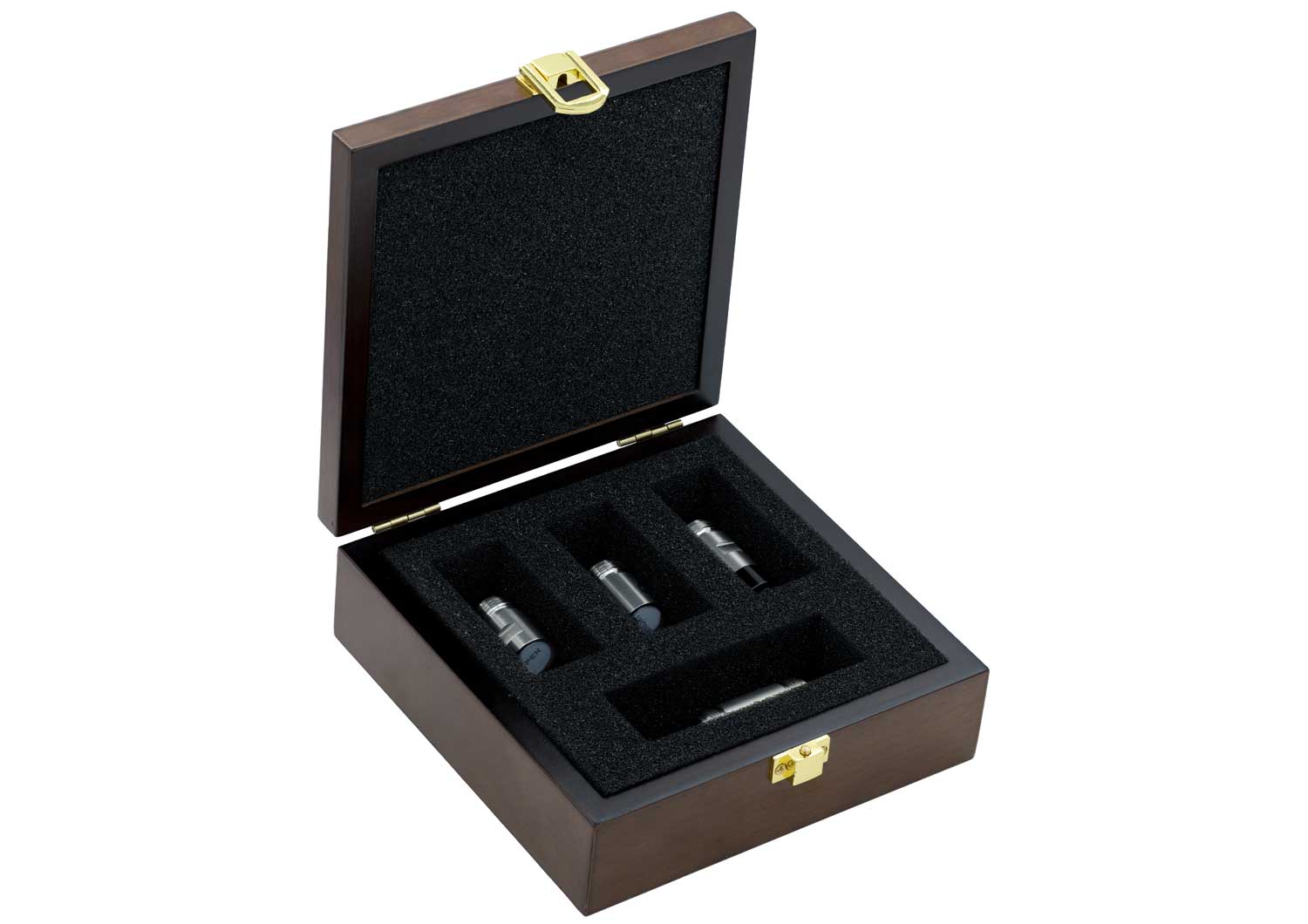

The TBVC-NF6 is a calibration kit for Vector Network Analysers. It contains an Open, a Short, a Load and a Through. It is used for OSLT calibration in the frequency range DC – 6 GHz.
£301.00 (£361.20 inc VAT)
Available on back-order
TekBox TBVC-NF6 N-Female VNA calibration kit, 6 GHz
The TBVC-NF6 is a calibration kit for Vector Network Analysers. It contains an Open, a Short, a Load and a Through. It is used for OSLT calibration in the frequency range DC – 6 GHz.
Load: | Through: |
N-Female | N-Female |
Z = 50 Ω | Z = 50 Ω |
Return loss > 35 dB | Loss = 2 GΩ/s |
Delay = 80.375 ps | |
Short: | Open: |
N-Female | N-Female |
Z = 50 Ω | Z = 50 Ω |
Delay = 0 ps | Delay = 6.810 ps |
Loss = 2.88 GΩ/s | Loss = 979.28 GΩ/s |
L0 = 1.19 pH | C0 = 4.96 fF |
L1 = -8.9e-22 H/Hz | C1 = -2.274e-24 fF/Hz |
L2 = 1.4e-31 H/Hz² | C2 = 8.78e-35 fF/Hz² |
L3 = 1.6e-42 H/Hz³ | C3 = 5.54e-45 fF/Hz³ |
Frequency range: DC – 6 GHz
Box dimensions: 145 mm x 145 mm x 55 mm
Weight: 475 g
