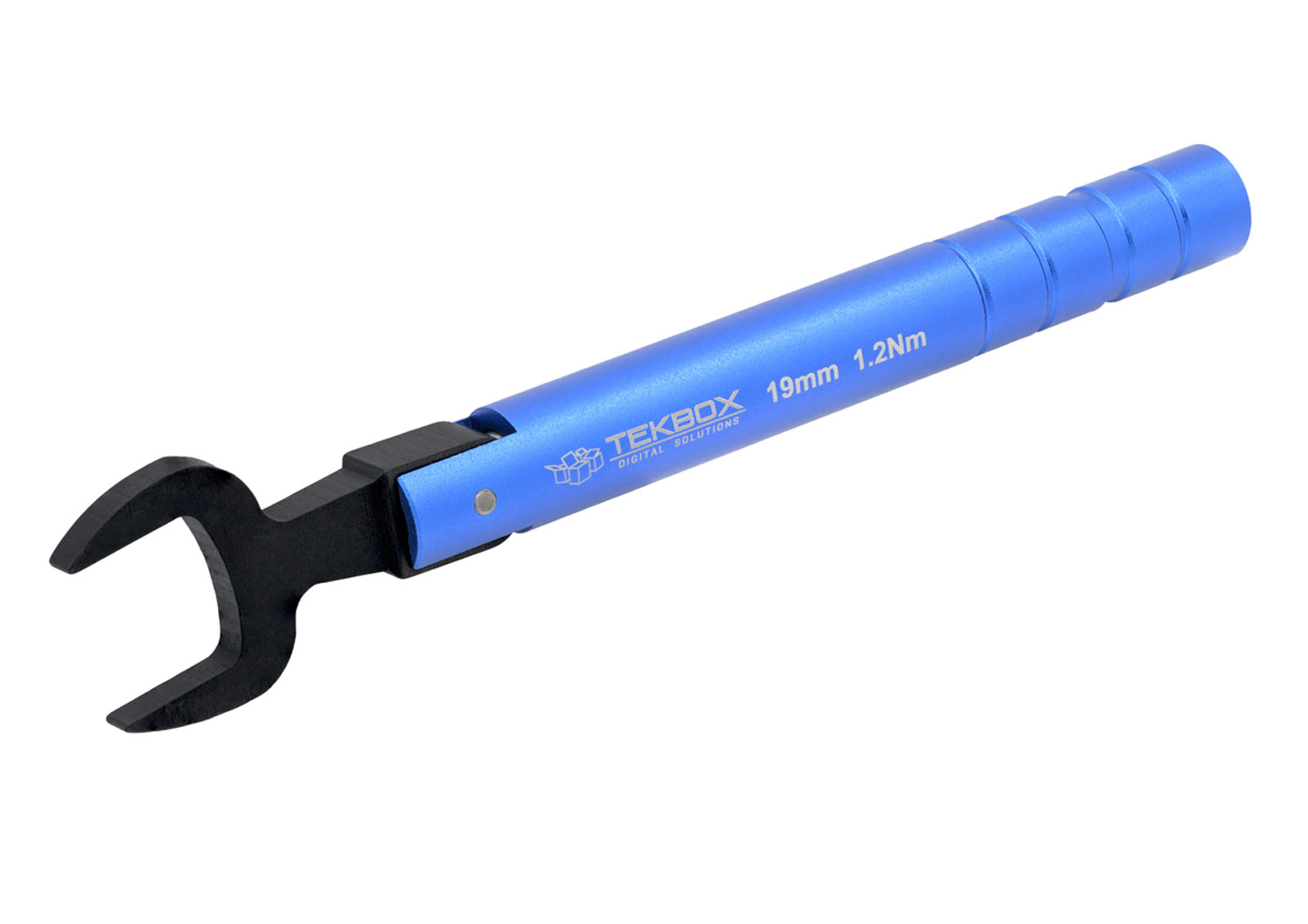

Tekbox TBTWR-1.2NM-N-19mm N Type Torque Wrench

Description

TBTWR-1.2NM-N-19mm N Type Torque Wrench

Tekbox offers an SMA and type N torque wrenches
The SMA torque wrench is a break-over type with a standard SMA 5/16″ (8 mm) opening (also suitable for 3.5 mm and 2.92 mm connectors).
The break-over type-N torque wrenches have an opening of 20 mm or 19 mm (0.8”/0.75”). The 20 mm model should cover most applications.

SPECIFICATIONS:

SMA
Economical SMA torque wrench to ensure consistent and reliable connections for RF/microwave measurements
Break-over type with a standard SMA 5/16″ (8mm) opening
Bidirectional operation
Default factory calibration: 0.5 Nm
Torque accuracy: ± 0.05 Nm
Available in 0.5 Nm or 0.9 Nm (custom torque settings also available)

Type N
Economical type-N torque wrench to ensure consistent and reliable connections for RF/microwave measurements
Break-over type for type-N connectors with 20 mm or 19 mm (0.8”/0.75”) opening
Bidirectional operation
Default factory calibration: 1.2 Nm
Torque accuracy: ± 0.05 Nm

APPLICATION:

SMA
SMA with brass connectors: 0.5 Nm (5 in-lbs)
SMA with stainless steel connectors: 0.9 Nm (8 in-lbs)
For connecting 3.5 mm or 2.92 mm to SMA: 0.56 Nm (5 in-lbs)
For 3.5 mm and 2.92 mm: 0.9 Nm (8 in-lbs)

Type N
Type-N connectors: 1.2 Nm (10.6 in-lbs)
